FETs, MOSFETs
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | FET Type | Technology | Drain to Source Voltage (Vdss) | Current - Continuous Drain (Id) @ 25°C | Drive Voltage (Max Rds On, Min Rds On) | Rds On (Max) @ Id, Vgs | Vgs(th) (Max) @ Id | Gate Charge (Qg) (Max) @ Vgs | Vgs (Max) | Input Capacitance (Ciss) (Max) @ Vds | FET Feature | Power Dissipation (Max) | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
IRFL110TRPBF-BE3MOSFET N-CH 100V 1.5A SOT223 |
3,289 |
|
Datasheet |
- | TO-261-4, TO-261AA | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 100 V | 1.5A (Tc) | 10V | 540mOhm @ 900mA, 10V | 4V @ 250µA | 8.3 nC @ 10 V | ±20V | 180 pF @ 25 V | - | 2W (Ta), 3.1W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SOT-223 |
|
IPN70R450P7SATMA1MOSFET N-CH 700V 10A SOT223 |
3,165 |
|
Datasheet |
CoolMOS™ P7 | TO-261-4, TO-261AA | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 700 V | 10A (Tc) | 10V | 450mOhm @ 2.3A, 10V | 3.5V @ 120µA | 13.1 nC @ 10 V | ±16V | 424 pF @ 400 V | - | 7.1W (Tc) | -40°C ~ 150°C (TJ) | - | - | Surface Mount | PG-SOT223 |
|
IPD25N06S240ATMA2MOSFET N-CH 55V 29A TO252-31 |
2,427 |
|
Datasheet |
OptiMOS™ | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 55 V | 29A (Tc) | 10V | 40mOhm @ 13A, 10V | 4V @ 26µA | 18 nC @ 10 V | ±20V | 513 pF @ 25 V | - | 68W (Tc) | -55°C ~ 175°C (TJ) | - | - | Surface Mount | PG-TO252-3-11 |
|
SI7114ADN-T1-GE3MOSFET N-CH 30V 35A PPAK 1212-8 |
20,676 |
|
Datasheet |
TrenchFET® | PowerPAK® 1212-8 | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 30 V | 35A (Tc) | 4.5V, 10V | 7.5mOhm @ 18A, 10V | 2.5V @ 250µA | 32 nC @ 10 V | ±20V | 1230 pF @ 15 V | - | 3.7W (Ta), 39W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | PowerPAK® 1212-8 |
|
RS1E280BNTBMOSFET N-CH 30V 28A 8HSOP |
19,987 |
|
Datasheet |
- | 8-PowerTDFN | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 30 V | 28A (Ta), 80A (Tc) | 4.5V, 10V | 2.3mOhm @ 28A, 10V | 2.5V @ 1mA | 94 nC @ 10 V | ±20V | 5100 pF @ 15 V | - | 3W (Ta), 30W (Tc) | 150°C (TJ) | - | - | Surface Mount | 8-HSOP |
|
IPC70N04S5L4R2ATMA1MOSFET N-CH 40V 70A 8TDSON-34 |
14,280 |
|
Datasheet |
OptiMOS™ | 8-PowerTDFN | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 40 V | 70A (Tc) | 4.5V, 10V | 4.2mOhm @ 35A, 10V | 2V @ 17µA | 30 nC @ 10 V | ±16V | 1600 pF @ 25 V | - | 50W (Tc) | -55°C ~ 175°C (TJ) | Automotive | AEC-Q101 | Surface Mount | PG-TDSON-8-34 |
|
SQS142ENW-T1_GE3AUTOMOTIVE N-CHANNEL 40 V (D-S) |
5,998 |
|
Datasheet |
TrenchFET® Gen IV | PowerPAK® 1212-8SLW | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 40 V | 110A (Tc) | 10V | 4.5mOhm @ 10A, 10V | 3.3V @ 250µA | 35 nC @ 10 V | ±20V | 1952 pF @ 25 V | - | 113W (Tc) | -55°C ~ 175°C (TJ) | Automotive | AEC-Q101 | Surface Mount, Wettable Flank | PowerPAK® 1212-8SLW |
|

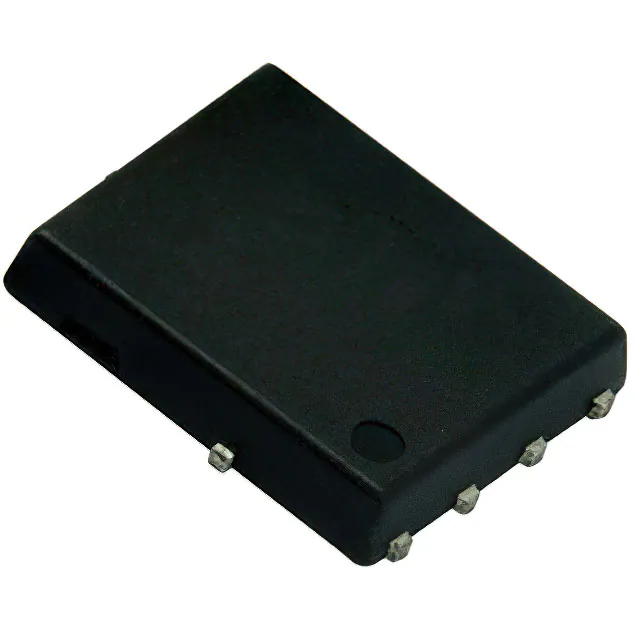

SIR1309DP-T1-GE3P-CHANNEL 30 V (D-S) MOSFET POWE |
4,519 |
|
Datasheet |
TrenchFET® Gen IV | PowerPAK® SO-8 | Tape & Reel (TR) | Active | P-Channel | MOSFET (Metal Oxide) | 30 V | 19.1A (Ta), 65.7A (Tc) | 4.5V, 10V | 7.3mOhm @ 10A, 10V | 2.5V @ 250µA | 87 nC @ 10 V | ±25V | 3250 pF @ 15 V | - | 4.8W (Ta), 56.8W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | PowerPAK® SO-8 |
.jpg)
|
SIHFRC20TR-GE3MOSFET N-CHANNEL 600V |
1,521 |
|
Datasheet |
- | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 600 V | 2A (Tc) | 10V | 4.4Ohm @ 1.2A, 10V | 4V @ 250µA | 18 nC @ 10 V | ±20V | 350 pF @ 25 V | - | 2.5W (Ta), 42W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | TO-252AA |
|
IPA50R800CEXKSA2MOSFET N-CH 500V 4.1A TO220 |
287 |
|
Datasheet |
CoolMOS™ CE | TO-220-3 Full Pack | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 500 V | 4.1A (Tc) | 13V | 800mOhm @ 1.5A, 13V | 3.5V @ 130µA | 12.4 nC @ 10 V | ±20V | 280 pF @ 100 V | - | 26.4W (Tc) | -40°C ~ 150°C (TJ) | - | - | Through Hole | PG-TO220-3-FP |
|
CSD25480F3TMOSFET P-CH 20V 1.7A 3PICOSTAR |
16,604 |
|
Datasheet |
FemtoFET™ | 3-XFDFN | Tape & Reel (TR) | Active | P-Channel | MOSFET (Metal Oxide) | 20 V | 1.7A (Ta) | 1.8V, 8V | 132mOhm @ 400mA, 8V | 1.2V @ 250µA | 0.91 nC @ 10 V | -12V | 155 pF @ 10 V | - | 500mW (Ta) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 3-PICOSTAR |
|
|
CSD23280F3TMOSFET P-CH 12V 1.8A 3PICOSTAR |
12,029 |
|
Datasheet |
FemtoFET™ | 3-XFDFN | Tape & Reel (TR) | Active | P-Channel | MOSFET (Metal Oxide) | 12 V | 1.8A (Ta) | 1.5V, 4.5V | 116mOhm @ 400mA, 4.5V | 950mV @ 250µA | 1.23 nC @ 4.5 V | -6V | 234 pF @ 6 V | - | 500mW (Ta) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 3-PICOSTAR |
|
NTMFS4C05NT1GMOSFET N-CH 30V 11.9A 5DFN |
8,400 |
|
Datasheet |
- | 8-PowerTDFN, 5 Leads | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 30 V | 11.9A (Ta) | 4.5V, 10V | 3.4mOhm @ 30A, 10V | 2.2V @ 250µA | 14 nC @ 4.5 V | ±20V | 1972 pF @ 15 V | - | 770mW (Ta), 33W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 5-DFN (5x6) (8-SOFL) |
|
FDMS0308ASMOSFET N-CH 30V 24A/49A 8PQFN |
6,754 |
|
Datasheet |
PowerTrench®, SyncFET™ | 8-PowerTDFN | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 30 V | 24A (Ta), 49A (Tc) | 4.5V, 10V | 2.8mOhm @ 24A, 10V | 3V @ 1mA | 47 nC @ 10 V | ±20V | 3000 pF @ 15 V | - | 2.5W (Ta), 50W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 8-PQFN (5x6) |
|
MCG53N06A-TPN-CHANNEL MOSFET,DFN3333 |
6,656 |
|
Datasheet |
- | 8-VDFN Exposed Pad | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 60 V | 53A | 4.5V, 10V | 8.2mOhm @ 20A, 10V | 2.5V @ 250µA | 34 nC @ 10 V | ±20V | 2000 pF @ 35 V | - | 45W | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DFN3333 |
|
CSD25483F4TMOSFET P-CH 20V 1.6A 3PICOSTAR |
2,790 |
|
Datasheet |
FemtoFET™ | 3-XFDFN | Tape & Reel (TR) | Active | P-Channel | MOSFET (Metal Oxide) | 20 V | 1.6A (Ta) | 1.8V, 4.5V | 205mOhm @ 500mA, 8V | 1.2V @ 250µA | 0.96 nC @ 4.5 V | -12V | 198 pF @ 10 V | - | 500mW (Ta) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 3-PICOSTAR |
|
|
SIS890ADN-T1-GE3MOSFET N-CH 100V 7.6A/24.7A PPAK |
4,707 |
|
Datasheet |
- | PowerPAK® 1212-8 | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 100 V | 7.6A (Ta), 24.7A (Tc) | - | 25.5mOhm @ 10A, 10V | 2.5V @ 250µA | 29 nC @ 10 V | ±20V | 1330 pF @ 50 V | - | 3.6W (Ta), 39W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | PowerPAK® 1212-8 |
|
PSMN4R2-30MLDXMOSFET N-CH 30V 70A LFPAK33 |
3,448 |
|
Datasheet |
- | SOT-1210, 8-LFPAK33 (5-Lead) | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 30 V | 70A (Tc) | 4.5V, 10V | 4.3mOhm @ 25A, 10V | 2.2V @ 1mA | 29.3 nC @ 10 V | ±20V | 1795 pF @ 15 V | Schottky Diode (Body) | 65W (Tc) | -55°C ~ 175°C (TJ) | - | - | Surface Mount | LFPAK33 |
|
|
BUK9M9R1-40EXMOSFET N-CH 40V 64A LFPAK33 |
3,194 |
|
Datasheet |
TrenchMOS™ | SOT-1210, 8-LFPAK33 (5-Lead) | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 40 V | 64A (Tc) | 5V | 7.3mOhm @ 20A, 10V | 2.1V @ 1mA | 16.2 nC @ 5 V | ±10V | 2048 pF @ 25 V | - | 75W (Tc) | -55°C ~ 175°C (TJ) | Automotive | AEC-Q101 | Surface Mount | LFPAK33 |
|
STS1NK60ZMOSFET N-CH 600V 250MA 8SO |
2,474 |
|
Datasheet |
SuperMESH™ | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 600 V | 250mA (Tc) | 10V | 15Ohm @ 400mA, 10V | 4.5V @ 50µA | 6.9 nC @ 10 V | ±30V | 94 pF @ 25 V | - | 2W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 8-SOIC |
