FET, MOSFET Arrays
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Technology | Configuration | FET Feature | Drain to Source Voltage (Vdss) | Current - Continuous Drain (Id) @ 25°C | Rds On (Max) @ Id, Vgs | Vgs(th) (Max) @ Id | Gate Charge (Qg) (Max) @ Vgs | Input Capacitance (Ciss) (Max) @ Vds | Power - Max | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
BUK9K35-60RAXMOSFET 2N-CH 60V 22A LFPAK56D |
2,521 |
|
Datasheet |
- | SOT-1205, 8-LFPAK56 | Tape & Reel (TR) | Active | MOSFET (Metal Oxide) | 2 N-Channel (Dual) | Logic Level Gate | 60V | 22A (Ta) | 32mOhm @ 5A, 10V | 2.1V @ 1mA | 7.8nC @ 5V | 1081pF @ 25V | 38W (Ta) | -55°C ~ 175°C (TJ) | Automotive | AEC-Q101 | Surface Mount | LFPAK56D |
|
SIZ926DT-T1-GE3MOSFET 2N-CH 25V 40A 8POWERPAIR |
2,500 |
|
Datasheet |
TrenchFET® Gen IV | 8-PowerWDFN | Tape & Reel (TR) | Active | MOSFET (Metal Oxide) | 2 N-Channel (Dual) | - | 25V | 40A (Tc), 60A (Tc) | 4.8mOhm @ 5A, 10V, 2.2mOhm @ 8A, 10V | 2.2V @ 250µA | 19nC @ 10V, 41nC @ 10V | 925pF @ 10V, 2150pF @ 10V | 20.2W, 40W | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 8-PowerPair® (6x5) |
|
SQJB60EP-T1_BE3MOSFET 2N-CH 60V 30A PPAK SO8 |
4,430 |
|
Datasheet |
TrenchFET® | PowerPAK® SO-8 Dual | Tape & Reel (TR) | Active | MOSFET (Metal Oxide) | 2 N-Channel (Dual) | - | 60V | 30A (Tc) | 12mOhm @ 10A, 10V | 2.5V @ 250µA | 30nC @ 10V | 1600pF @ 25V | 48W (Tc) | -55°C ~ 175°C (TJ) | Automotive | AEC-Q101 | Surface Mount | PowerPAK® SO-8 Dual Asymmetric |
|
SIZ256DT-T1-GE3MOSFET 2N-CH 70V 11.5A 8PWRPAIR |
3,000 |
|
Datasheet |
TrenchFET® Gen IV | 8-PowerWDFN | Tape & Reel (TR) | Active | MOSFET (Metal Oxide) | 2 N-Channel (Dual) | - | 70V | 11.5A (Ta), 31.8A (Tc) | 17.6mOhm @ 7A, 4.5V | 1.5V @ 250µA | 27nC @ 10V | 1060pF @ 35V | 4.3W (Ta), 33W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 8-PowerPair® (3.3x3.3) |
|

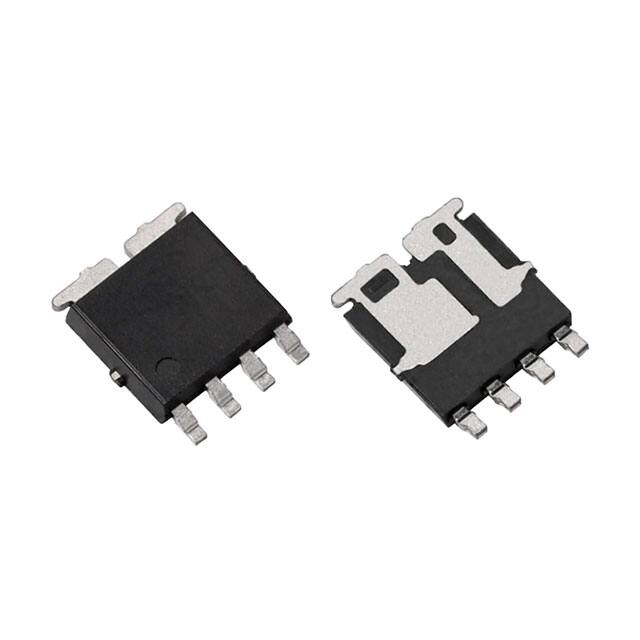

SQJ202EP-T2_GE3MOSFET 2N-CH 12V 20A PPAK SO8 |
9,000 |
|
Datasheet |
TrenchFET® | PowerPAK® SO-8 Dual | Tape & Reel (TR) | Active | MOSFET (Metal Oxide) | 2 N-Channel (Dual) | - | 12V | 20A (Tc), 60A (Tc) | 6.5mOhm @ 15A, 10V, 3.3mOhm @ 20A, 10V | 2V @ 250µA | 22nC @ 10V, 54nC @ 10V | 975pF @ 6V, 2525pF @ 6V | 27W (Tc), 48W (Tc) | -55°C ~ 175°C (TJ) | Automotive | AEC-Q101 | Surface Mount | PowerPAK® SO-8 Dual Asymmetric |
|
TQM150NB04DCR RLGMOSFET 2N-CH 40V 9A 8PDFNU |
1,670 |
|
Datasheet |
- | 8-PowerTDFN | Tape & Reel (TR) | Active | MOSFET (Metal Oxide) | 2 N-Channel (Dual) | - | 40V | 9A (Ta), 39A (Tc) | 15mOhm @ 9A, 10V | 4V @ 250µA | 18nC @ 10V | 1135pF @ 20V | 2.4W (Ta), 48W (Tc) | -55°C ~ 175°C (TJ) | - | - | Surface Mount, Wettable Flank | 8-PDFNU (5x6) |
|
IPG20N06S2L35ATMA1MOSFET 2N-CH 55V 20A 8TDSON |
14,440 |
|
Datasheet |
OptiMOS™ | 8-PowerVDFN | Tape & Reel (TR) | Active | MOSFET (Metal Oxide) | 2 N-Channel (Dual) | Logic Level Gate | 55V | 20A | 35mOhm @ 15A, 10V | 2V @ 27µA | 23nC @ 10V | 790pF @ 25V | 65W | -55°C ~ 175°C (TJ) | Automotive | AEC-Q101 | Surface Mount | PG-TDSON-8-4 |
|
NTMFD020N06CT1GMOSFET 2N-CH 60V 8A 8DFN |
1,270 |
|
Datasheet |
- | 8-PowerTDFN | Tape & Reel (TR) | Active | MOSFET (Metal Oxide) | 2 N-Channel (Dual) | - | 60V | 8A (Ta), 27A (Tc) | 20.3mOhm @ 4A, 10V | 4V @ 20µA | 5.8nC @ 10V | 355pF @ 30V | 3.1W (Ta), 31W (Tc) | -55°C ~ 175°C (TJ) | - | - | Surface Mount | 8-DFN (5x6) Dual Flag (SO8FL-Dual) |
|
|
NTMFD2D4N03P8MOSFET 2N-CH 30V 17A 8PQFN |
9,000 |
|
Datasheet |
- | 8-PowerWDFN | Tape & Reel (TR) | Active | MOSFET (Metal Oxide) | 2 N-Channel (Dual) Asymmetrical | - | 30V | 17A (Ta), 56A (Tc), 25A (Ta), 84A (Tc) | 5mOhm @ 17A, 10V, 2.4mOhm @ 25A, 10V | 3V @ 250µA, 3V @ 1mA | 24nC @ 10V, 55nC @ 10V | 1715pF @ 15V, 3825pF @ 15V | 1W (Ta), 23W (Tc), 1.1W (Ta), 25W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 8-PQFN (5x6) |
|
SIRB40DP-T1-GE3MOSFET 2N-CH 40V 40A PPAK SO8 |
9,000 |
|
Datasheet |
TrenchFET® | PowerPAK® SO-8 Dual | Tape & Reel (TR) | Active | MOSFET (Metal Oxide) | 2 N-Channel (Dual) | - | 40V | 40A (Tc) | 3.25mOhm @ 10A, 10V | 2.4V @ 250µA | 45nC @ 4.5V | 4290pF @ 20V | 46.2W | -55°C ~ 150°C (TJ) | - | - | Surface Mount | PowerPAK® SO-8 Dual |
|
SQJ990EP-T1_GE3MOSFET 2N-CH 100V 34A PPAK SO8 |
8,975 |
|
Datasheet |
TrenchFET® | PowerPAK® SO-8 Dual | Tape & Reel (TR) | Active | MOSFET (Metal Oxide) | 2 N-Channel (Dual) | - | 100V | 34A (Tc) | 40mOhm @ 6A, 10V, 19mOhm @ 10A, 10V | 2.5V @ 250µA | 30nC @ 10V, 15nC @ 10V | 1390pF @ 25V, 650pF @ 25V | 48W | -55°C ~ 175°C (TJ) | Automotive | AEC-Q101 | Surface Mount | PowerPAK® SO-8 Dual Asymmetric |
|
PSMN013-40VLDXMOSFET 2N-CH 40V 42A LFPAK56D |
5,933 |
|
Datasheet |
- | SOT-1205, 8-LFPAK56 | Tape & Reel (TR) | Active | MOSFET (Metal Oxide) | 2 N-Channel (Half Bridge) | - | 40V | 42A (Ta) | 13.6mOhm @ 10A, 10V | 2.2V @ 1mA | 19.4nC @ 10V | 1160pF @ 25V | 46W (Ta) | -55°C ~ 175°C (TJ) | - | - | Surface Mount | LFPAK56D |
|
|
TQM250NB06DCR RLGMOSFET 2N-CH 60V 6A 8PDFNU |
7,395 |
|
Datasheet |
- | 8-PowerTDFN | Tape & Reel (TR) | Active | MOSFET (Metal Oxide) | 2 N-Channel (Dual) | - | 60V | 6A (Ta), 30A (Tc) | 25mOhm @ 6A, 10V | 3.8V @ 250µA | 24nC @ 10V | 1398pF @ 30V | 2.5W (Ta), 58W (Tc) | -55°C ~ 175°C (TJ) | Automotive | AEC-Q101 | Surface Mount, Wettable Flank | 8-PDFNU (5x6) |
|
IPG20N06S2L35AATMA1MOSFET 2N-CH 55V 20A 8TDSON |
14,700 |
|
Datasheet |
OptiMOS™ | 8-PowerVDFN | Tape & Reel (TR) | Active | MOSFET (Metal Oxide) | 2 N-Channel (Dual) | Logic Level Gate | 55V | 20A (Tc) | 35mOhm @ 15A, 10V | 2V @ 27µA | 23nC @ 10V | 790pF @ 25V | 65W | -55°C ~ 175°C (TJ) | Automotive | AEC-Q101 | Surface Mount, Wettable Flank | PG-TDSON-8-10 |
|
|
IPG20N10S4L35AATMA1MOSFET 2N-CH 100V 20A 8TDSON |
3,095 |
|
Datasheet |
OptiMOS™ | 8-PowerVDFN | Tape & Reel (TR) | Active | MOSFET (Metal Oxide) | 2 N-Channel (Dual) | Logic Level Gate | 100V | 20A | 35mOhm @ 17A, 10V | 2.1V @ 16µA | 17.4nC @ 10V | 1105pF @ 25V | 43W | -55°C ~ 175°C (TJ) | Automotive | AEC-Q101 | Surface Mount, Wettable Flank | PG-TDSON-8-10 |
|
|
BUK9K13-40HXMOSFET 2N-CH 40V 42A LFPAK56D |
2,965 |
|
Datasheet |
TrenchMOS™ | SOT-1205, 8-LFPAK56 | Tape & Reel (TR) | Active | MOSFET (Metal Oxide) | 2 N-Channel (Dual) | Logic Level Gate | 40V | 42A (Ta) | 13.6mOhm @ 10A, 10V | 2.2V @ 1mA | 19.4nC @ 10V | 1160pF @ 25V | 46W (Ta) | -55°C ~ 175°C (TJ) | Automotive | AEC-Q101 | Surface Mount | LFPAK56D |
|
SH8KA2GZETBMOSFET 2N-CH 30V 8A 8SOP |
2,503 |
|
Datasheet |
- | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Not For New Designs | - | 2 N-Channel (Dual) | - | 30V | 8A | 28mOhm @ 8A, 10V | 2.5V @ 1mA | 8nC @ 10V | 330pF @ 15V | 2.8W | 150°C (TJ) | - | - | Surface Mount | 8-SOP |
|
CSD87384MTMOSFET 2N-CH 30V 30A 5PTAB |
807 |
|
Datasheet |
NexFET™ | 5-LGA | Tape & Reel (TR) | Active | MOSFET (Metal Oxide) | 2 N-Channel (Half Bridge) | Logic Level Gate | 30V | 30A | 7.7mOhm @ 25A, 8V | 1.9V @ 250µA | 9.2nC @ 4.5V | 1150pF @ 15V | 8W | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 5-PTAB (5x3.5) |
|
CSD87351Q5DMOSFET 2N-CH 30V 32A 8LSON |
11,661 |
|
Datasheet |
NexFET™ | 8-PowerLDFN | Tape & Reel (TR) | Active | MOSFET (Metal Oxide) | 2 N-Channel (Dual) | Logic Level Gate | 30V | 32A | 7.6mOhm @ 20A, 8V | 2.1V @ 250µA | 7.7nC @ 4.5V | 1255pF @ 15V | 12W | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 8-LSON (5x6) |
|
|
SQJ940EP-T1_GE3MOSFET 2N-CH 40V 15A PPAK SO8 |
8,349 |
|
Datasheet |
TrenchFET® | PowerPAK® SO-8 Dual | Tape & Reel (TR) | Active | MOSFET (Metal Oxide) | 2 N-Channel (Dual) | Logic Level Gate | 40V | 15A (Ta), 18A (Tc) | 16mOhm @ 15A, 10V | 2.5V @ 250µA | 20nC @ 20V | 896pF @ 20V | 48W, 43W | -55°C ~ 175°C (TJ) | Automotive | AEC-Q101 | Surface Mount | PowerPAK® SO-8 Dual Asymmetric |
FET, MOSFET Arrays Electronic Components
Explore FET, MOSFET Arrays electronic components, related subcategories, product specifications, datasheets and sourcing options. We support original component procurement, BOM sourcing and RFQ services for engineers, distributors and global buyers.
