FET, MOSFET Arrays
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Technology | Configuration | FET Feature | Drain to Source Voltage (Vdss) | Current - Continuous Drain (Id) @ 25°C | Rds On (Max) @ Id, Vgs | Vgs(th) (Max) @ Id | Gate Charge (Qg) (Max) @ Vgs | Input Capacitance (Ciss) (Max) @ Vds | Power - Max | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MCQD08N03A-TPMOSFET 2N-CH 30V 8.5A 8SOP |
4,000 |
|
Datasheet |
- | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | MOSFET (Metal Oxide) | 2 N-Channel (Dual) | - | 30V | 8.5A | 23mOhm @ 8.5A, 10V | 2.2V @ 250µA | 5.2nC @ 4.5V | 490pF @ 15V | 3W | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 8-SOP |
|
SI1965DH-T1-BE3MOSFET 2P-CH 12V 1.14A SC70-6 |
3,000 |
|
Datasheet |
TrenchFET® | 6-TSSOP, SC-88, SOT-363 | Tape & Reel (TR) | Active | MOSFET (Metal Oxide) | 2 P-Channel (Dual) | - | 12V | 1.14A (Ta), 1.3A (Tc) | 390mOhm @ 1A, 4.5V | 1V @ 250µA | 4.2nC @ 8V | 120pF @ 6V | 740mW (Ta), 1.25W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SC-70-6 |
|
PJL9801_R2_00001MOSFET 2P-CH 30V 5A 8SOP |
1,996 |
|
Datasheet |
- | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | MOSFET (Metal Oxide) | 2 P-Channel (Dual) | - | 30V | 5A (Ta) | 54mOhm @ 5A, 10V | 1.3V @ 250µA | 9.1nC @ 4.5V | 816pF @ 15V | 2W (Ta) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 8-SOP |
|
CMLDM3757 TR PBFREEMOSFET N/P-CH 20V 0.54A SOT563 |
6,410 |
|
Datasheet |
- | SOT-563, SOT-666 | Tape & Reel (TR) | Active | MOSFET (Metal Oxide) | N and P-Channel | Logic Level Gate | 20V | 540mA, 430mA | 550mOhm @ 540mA, 4.5V | 1V @ 250µA | 1.58nC @ 4.5V | 150pF @ 16V | 350mW | -65°C ~ 150°C (TJ) | - | - | Surface Mount | SOT-563 |
|
SIA907EDJT-T1-GE3MOSFET 2P-CH 20V 4.5A PPAK8X8 |
3,593 |
|
Datasheet |
TrenchFET® | PowerPAK® SC-70-6 Dual | Tape & Reel (TR) | Not For New Designs | MOSFET (Metal Oxide) | 2 P-Channel (Dual) | Logic Level Gate | 20V | 4.5A (Tc) | 57mOhm @ 3.6A, 4.5V | 1.4V @ 250µA | 23nC @ 10V | - | 7.8W | -55°C ~ 150°C (TJ) | - | - | Surface Mount | PowerPAK® SC-70-6 Dual |
|
SI5935CDC-T1-E3MOSFET 2P-CH 20V 4A 1206-8 |
2,817 |
|
Datasheet |
TrenchFET® | 8-SMD, Flat Leads | Tape & Reel (TR) | Active | MOSFET (Metal Oxide) | 2 P-Channel (Dual) | - | 20V | 4A | 100mOhm @ 3.1A, 4.5V | 1V @ 250µA | 11nC @ 5V | 455pF @ 10V | 3.1W | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 1206-8 ChipFET™ |
|
DMG8601UFG-7MOSFET 2N-CH 20V 6.1A 8DFN |
5,835 |
|
Datasheet |
- | 8-PowerUDFN | Tape & Reel (TR) | Active | MOSFET (Metal Oxide) | 2 N-Channel (Dual) Common Drain | Logic Level Gate | 20V | 6.1A | 23mOhm @ 6.5A, 4.5V | 1.05V @ 250µA | 8.8nC @ 4.5V | 143pF @ 10V | 920mW | -55°C ~ 150°C (TJ) | - | - | Surface Mount | U-DFN3030-8 |
|

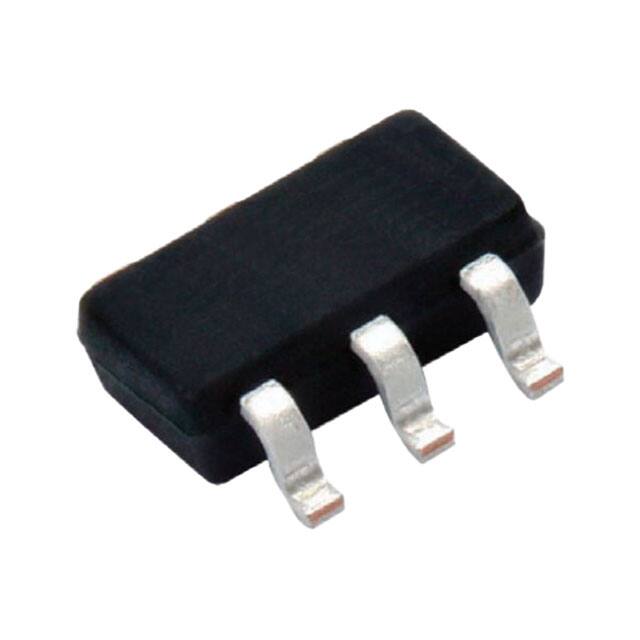

SQ3989EV-T1_BE3MOSFET 2P-CH 30V 2.5A 6TSOP |
8,900 |
|
Datasheet |
TrenchFET® | SOT-23-6 Thin, TSOT-23-6 | Tape & Reel (TR) | Active | MOSFET (Metal Oxide) | 2 P-Channel (Dual) | - | 30V | 2.5A (Tc) | 155mOhm @ 400mA, 10V | 1.5V @ 250µA | 11.1nC @ 10V | - | 1.67W (Tc) | -55°C ~ 175°C (TJ) | Automotive | AEC-Q101 | Surface Mount | 6-TSOP |
|
|
MCQD12N03A-TPMOSFET 2N-CH 30V 12A 8SOP |
7,876 |
|
Datasheet |
- | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | MOSFET (Metal Oxide) | 2 N-Channel (Dual) | - | 30V | 12A | 12mOhm @ 8A, 10V | 2.5V @ 250µA | 28nC @ 10V | 950pF @ 15V | 2.5W | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 8-SOP |
|
SI1900DL-T1-GE3MOSFET 2N-CH 30V 0.63A SC70-6 |
3,000 |
|
Datasheet |
TrenchFET® | 6-TSSOP, SC-88, SOT-363 | Tape & Reel (TR) | Active | MOSFET (Metal Oxide) | 2 N-Channel (Dual) | - | 30V | 630mA (Ta), 590mA (Ta) | 480mOhm @ 590mA, 10V | 3V @ 250µA | 1.4nC @ 10V | - | 300mW, 270mW | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SC-70-6 |
|
PJL9812_R2_00201MOSFET 2N-CH 30V 6A 8SOP |
4,959 |
|
Datasheet |
- | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | MOSFET (Metal Oxide) | 2 N-Channel (Dual) | - | 30V | 6A (Ta) | 35mOhm @ 6A, 10V | 1.3V @ 250µA | 5.1nC @ 4.5V | 421pF @ 15V | 2W (Ta) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 8-SOP |
|
|
CMLDM5757 TR PBFREEMOSFET 2P-CH 20V 0.43A SOT563 |
2,960 |
|
Datasheet |
- | SOT-563, SOT-666 | Tape & Reel (TR) | Active | MOSFET (Metal Oxide) | 2 P-Channel (Dual) | Logic Level Gate | 20V | 430mA | 900mOhm @ 430mA, 4.5V | 1V @ 250µA | 1.2nC @ 4.5V | 175pF @ 16V | 350mW | -65°C ~ 150°C (TJ) | - | - | Surface Mount | SOT-563 |
|
DMN4031SSD-13MOSFET 2N-CH 40V 5.2A 8SO |
2,452 |
|
- |
- | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | MOSFET (Metal Oxide) | 2 N-Channel (Dual) | Logic Level Gate | 40V | 5.2A | 31mOhm @ 6A, 10V | 3V @ 250µA | 18.6nC @ 10V | 945pF @ 20V | 1.42W | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 8-SO |
|
DMN2022UNS-7MOSFET 2N-CH 20V 10.7A PWRDI3333 |
4,000 |
|
Datasheet |
- | 8-PowerVDFN | Tape & Reel (TR) | Active | MOSFET (Metal Oxide) | 2 N-Channel (Dual) Common Drain | - | 20V | 10.7A (Ta) | 10.8mOhm @ 4A, 4.5V | 1V @ 250µA | 20.3nC @ 4.5V | 1870pF @ 10V | 1.2W | -55°C ~ 150°C (TJ) | - | - | Surface Mount | PowerDI3333-8 (Type UXB) |
|
|
ZXMN3F31DN8TAMOSFET 2N-CH 30V 5.7A 8SO |
5,274 |
|
Datasheet |
- | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | MOSFET (Metal Oxide) | 2 N-Channel (Dual) | Logic Level Gate | 30V | 5.7A | 24mOhm @ 7A, 10V | 3V @ 250µA | 12.9nC @ 10V | 608pF @ 15V | 1.8W | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 8-SO |
|
US6J12TCRMOSFET 2P-CH 12V 2A TUMT6 |
2,738 |
|
Datasheet |
- | 6-SMD, Flat Leads | Tape & Reel (TR) | Active | MOSFET (Metal Oxide) | 2 P-Channel (Dual) | - | 12V | 2A (Ta) | 105mOhm @ 2A, 4.5V | 1V @ 1mA | 7.6nC @ 4.5V | 850pF @ 6V | 910mW (Ta) | 150°C (TJ) | - | - | Surface Mount | TUMT6 |
|
HS8K11TBMOSFET 2N-CH 30V 7A/11A HSML |
1,306 |
|
Datasheet |
- | 8-UDFN Exposed Pad | Tape & Reel (TR) | Active | MOSFET (Metal Oxide) | 2 N-Channel (Dual) | Logic Level Gate | 30V | 7A, 11A | 17.9mOhm @ 7A, 10V | 2.5V @ 1mA | 11.1nC @ 10V | 500pF @ 15V | 2W | 150°C (TJ) | - | - | Surface Mount | HSML3030L10 |
|
TSM8588CS RLGMOSFET N/P-CH 60V 2.5A 8SOP |
2,124 |
|
Datasheet |
- | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | MOSFET (Metal Oxide) | N and P-Channel Complementary | - | 60V | 2.5A (Ta), 5A (Tc), 2A (Ta), 4A (Tc) | 103mOhm @ 2.5A, 10V, 180mOhm @ 2A, 10V | 2.5V @ 250µA | 9.4nC @ 10V, 9nC @ 10V | 527pF @ 30V, 436pF @ 30V | 1.4W (Ta), 5.7W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 8-SOP |
|
|
SIA929DJ-T1-GE3MOSFET 2P-CH 30V 4.5A PPAK8X8 |
141 |
|
Datasheet |
TrenchFET® | PowerPAK® SC-70-6 Dual | Tape & Reel (TR) | Active | MOSFET (Metal Oxide) | 2 P-Channel (Dual) | Logic Level Gate | 30V | 4.5A (Tc) | 64mOhm @ 3A, 10V | 1.1V @ 250µA | 21nC @ 10V | 575pF @ 15V | 7.8W | -55°C ~ 150°C (TJ) | - | - | Surface Mount | PowerPAK® SC-70-6 Dual |
|
|
CMLDM8002AG TR PBFREEMOSFET 2P-CH 50V 0.28A SOT563 |
2,670 |
|
Datasheet |
- | SOT-563, SOT-666 | Tape & Reel (TR) | Active | MOSFET (Metal Oxide) | 2 P-Channel (Dual) | Logic Level Gate | 50V | 280mA | 2.5Ohm @ 500mA, 10V | 2.5V @ 250µA | 0.72nC @ 4.5V | 70pF @ 25V | 350mW | -65°C ~ 150°C (TJ) | - | - | Surface Mount | SOT-563 |
