FET, MOSFET Arrays
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Technology | Configuration | FET Feature | Drain to Source Voltage (Vdss) | Current - Continuous Drain (Id) @ 25°C | Rds On (Max) @ Id, Vgs | Vgs(th) (Max) @ Id | Gate Charge (Qg) (Max) @ Vgs | Input Capacitance (Ciss) (Max) @ Vds | Power - Max | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
QS5K2TRMOSFET 2N-CH 30V 2A TSMT5 |
134,303 |
|
Datasheet |
- | SOT-23-5 Thin, TSOT-23-5 | Tape & Reel (TR) | Active | MOSFET (Metal Oxide) | 2 N-Channel (Dual) Common Source | Logic Level Gate | 30V | 2A | 100mOhm @ 2A, 4.5V | 1.5V @ 1mA | 3.9nC @ 4.5V | 175pF @ 10V | 1.25W | 150°C (TJ) | - | - | Surface Mount | TSMT5 |
|
SI3932DV-T1-GE3MOSFET 2N-CH 30V 3.7A 6TSOP |
34,813 |
|
Datasheet |
TrenchFET® | SOT-23-6 Thin, TSOT-23-6 | Tape & Reel (TR) | Active | MOSFET (Metal Oxide) | 2 N-Channel (Dual) | Logic Level Gate | 30V | 3.7A | 58mOhm @ 3.4A, 10V | 2.2V @ 250µA | 6nC @ 10V | 235pF @ 15V | 1.4W | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 6-TSOP |
|
SIA910EDJ-T1-GE3MOSFET 2N-CH 12V 4.5A PPAK8X8 |
18,421 |
|
Datasheet |
TrenchFET® | PowerPAK® SC-70-6 Dual | Tape & Reel (TR) | Active | MOSFET (Metal Oxide) | 2 N-Channel (Dual) | Logic Level Gate | 12V | 4.5A | 28mOhm @ 5.2A, 4.5V | 1V @ 250µA | 16nC @ 8V | 455pF @ 6V | 7.8W | -55°C ~ 150°C (TJ) | - | - | Surface Mount | PowerPAK® SC-70-6 Dual |
|
FDC6561ANMOSFET 2N-CH 30V 2.5A SSOT6 |
9,798 |
|
Datasheet |
PowerTrench® | SOT-23-6 Thin, TSOT-23-6 | Tape & Reel (TR) | Active | MOSFET (Metal Oxide) | 2 N-Channel (Dual) | Logic Level Gate | 30V | 2.5A | 95mOhm @ 2.5A, 10V | 3V @ 250µA | 3.2nC @ 5V | 220pF @ 15V | 700mW | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SuperSOT™-6 |
|
AO4842MOSFET 2N-CH 30V 8SOIC |
3,329 |
|
Datasheet |
- | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Not For New Designs | MOSFET (Metal Oxide) | 2 N-Channel (Dual) | Logic Level Gate | 30V | - | 22mOhm @ 7.5A, 10V | 2.6V @ 250µA | 11nC @ 10V | 448pF @ 15V | 2W | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 8-SOIC |
|
NTUD3170NZT5GMOSFET 2N-CH 20V 0.22A SOT963 |
39,610 |
|
Datasheet |
- | SOT-963 | Tape & Reel (TR) | Active | MOSFET (Metal Oxide) | 2 N-Channel (Dual) | Logic Level Gate | 20V | 220mA | 1.5Ohm @ 100mA, 4.5V | 1V @ 250µA | - | 12.5pF @ 15V | 125mW | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SOT-963 |
|
SI9933CDY-T1-GE3MOSFET 2P-CH 20V 4A 8SOIC |
28,817 |
|
Datasheet |
TrenchFET® | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | MOSFET (Metal Oxide) | 2 P-Channel (Dual) | Logic Level Gate | 20V | 4A | 58mOhm @ 4.8A, 4.5V | 1.4V @ 250µA | 26nC @ 10V | 665pF @ 10V | 3.1W | -50°C ~ 150°C (TJ) | - | - | Surface Mount | 8-SOIC |
|
|
FDC6401NMOSFET 2N-CH 20V 3A SSOT6 |
17,500 |
|
Datasheet |
PowerTrench® | SOT-23-6 Thin, TSOT-23-6 | Tape & Reel (TR) | Active | MOSFET (Metal Oxide) | 2 N-Channel (Dual) | - | 20V | 3A | 70mOhm @ 3A, 4.5V | 1.5V @ 250µA | 4.6nC @ 4.5V | 324pF @ 10V | 700mW | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SuperSOT™-6 |
|

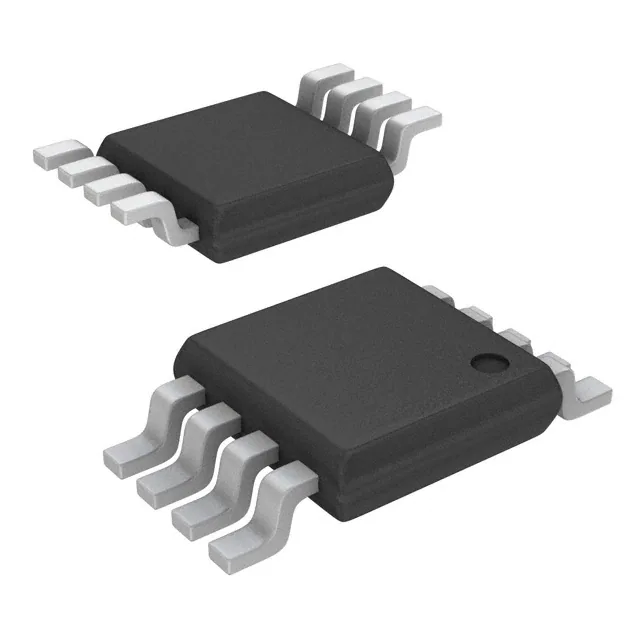

IRF7503TRPBFMOSFET 2N-CH 30V 2.4A MICRO8 |
87,699 |
|
Datasheet |
HEXFET® | 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) | Tape & Reel (TR) | Last Time Buy | MOSFET (Metal Oxide) | 2 N-Channel (Dual) | Logic Level Gate | 30V | 2.4A | 135mOhm @ 1.7A, 10V | 1V @ 250µA | 12nC @ 10V | 210pF @ 25V | 1.25W | -55°C ~ 150°C (TJ) | - | - | Surface Mount | Micro8™ |
|
FDS8984MOSFET 2N-CH 30V 7A 8SOIC |
16,448 |
|
Datasheet |
PowerTrench® | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | MOSFET (Metal Oxide) | 2 N-Channel (Dual) | Logic Level Gate | 30V | 7A | 23mOhm @ 7A, 10V | 2.5V @ 250µA | 13nC @ 10V | 635pF @ 15V | 1.6W | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 8-SOIC |
|
|
AO4840MOSFET 2N-CH 40V 6A 8SOIC |
33,552 |
|
Datasheet |
- | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Not For New Designs | MOSFET (Metal Oxide) | 2 N-Channel (Dual) | Logic Level Gate | 40V | 6A | 30mOhm @ 6A, 10V | 3V @ 250µA | 10.8nC @ 10V | 650pF @ 20V | 2W | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 8-SOIC |
|
|
NDS9948MOSFET 2P-CH 60V 2.3A 8SOIC |
6,684 |
|
Datasheet |
PowerTrench® | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | MOSFET (Metal Oxide) | 2 P-Channel (Dual) | Logic Level Gate | 60V | 2.3A | 250mOhm @ 2.3A, 10V | 3V @ 250µA | 13nC @ 10V | 394pF @ 30V | 900mW | -55°C ~ 175°C (TJ) | - | - | Surface Mount | 8-SOIC |
|
|
FDS9926AMOSFET 2N-CH 20V 6.5A 8SOIC |
19,535 |
|
Datasheet |
PowerTrench® | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | MOSFET (Metal Oxide) | 2 N-Channel (Dual) | Logic Level Gate | 20V | 6.5A | 30mOhm @ 6.5A, 4.5V | 1.5V @ 250µA | 9nC @ 4.5V | 650pF @ 10V | 900mW | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 8-SOIC |
|
|
IRF7103TRPBFMOSFET 2N-CH 50V 3A 8SO |
7,628 |
|
Datasheet |
HEXFET® | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | MOSFET (Metal Oxide) | 2 N-Channel (Dual) | - | 50V | 3A | 130mOhm @ 3A, 10V | 3V @ 250µA | 30nC @ 10V | 290pF @ 25V | 2W | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 8-SO |
|
|
AO4882MOSFET 2N-CH 40V 8A 8SOIC |
1,025,522 |
|
Datasheet |
- | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | MOSFET (Metal Oxide) | 2 N-Channel (Dual) | Logic Level Gate | 40V | 8A | 19mOhm @ 8A, 10V | 2.4V @ 250µA | 12nC @ 10V | 415pF @ 20V | 2W | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 8-SOIC |
|
|
SI3590DV-T1-E3MOSFET N/P-CH 30V 2.5A 6TSOP |
17,350 |
|
Datasheet |
TrenchFET® | SOT-23-6 Thin, TSOT-23-6 | Tape & Reel (TR) | Last Time Buy | MOSFET (Metal Oxide) | N and P-Channel | Logic Level Gate | 30V | 2.5A, 1.7A | 77mOhm @ 3A, 4.5V | 1.5V @ 250µA | 4.5nC @ 4.5V | - | 830mW | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 6-TSOP |
|
|
AO4838MOSFET 2N-CH 30V 11A 8SOIC |
16,727 |
|
Datasheet |
- | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | MOSFET (Metal Oxide) | 2 N-Channel (Dual) | Logic Level Gate | 30V | 11A | 9.6mOhm @ 11A, 10V | 2.6V @ 250µA | 22nC @ 10V | 1300pF @ 15V | 2W | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 8-SOIC |
|
|
SI6968BEDQ-T1-GE3MOSFET 2N-CH 20V 5.2A 8TSSOP |
2,692 |
|
Datasheet |
TrenchFET® | 8-TSSOP (0.173", 4.40mm Width) | Tape & Reel (TR) | Last Time Buy | MOSFET (Metal Oxide) | 2 N-Channel (Dual) Common Drain | Logic Level Gate | 20V | 5.2A | 22mOhm @ 6.5A, 4.5V | 1.6V @ 250µA | 18nC @ 4.5V | - | 1W | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 8-TSSOP |
|
FDMA2002NZMOSFET 2N-CH 30V 2.9A 6MICROFET |
6,511 |
|
Datasheet |
PowerTrench® | 6-VDFN Exposed Pad | Tape & Reel (TR) | Active | MOSFET (Metal Oxide) | 2 N-Channel (Dual) | Logic Level Gate | 30V | 2.9A | 123mOhm @ 2.9A, 4.5V | 1.5V @ 250µA | 3nC @ 4.5V | 220pF @ 15V | 650mW | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 6-MicroFET (2x2) |
|
DMP3036SSD-13MOSFET 2P-CH 30V 18.0A 8SO |
5,219 |
|
Datasheet |
- | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | MOSFET (Metal Oxide) | 2 P-Channel (Dual) | Logic Level Gate | 30V | 18.0A (Tc) | 20mOhm @ 9A, 10V | 3V @ 250µA | 16.5nC @ 10V | 1931pF @ 15V | 1.2W | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 8-SO |
