FET, MOSFET Arrays
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Technology | Configuration | FET Feature | Drain to Source Voltage (Vdss) | Current - Continuous Drain (Id) @ 25°C | Rds On (Max) @ Id, Vgs | Vgs(th) (Max) @ Id | Gate Charge (Qg) (Max) @ Vgs | Input Capacitance (Ciss) (Max) @ Vds | Power - Max | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
NTJD4001NT1GMOSFET 2N-CH 30V 0.25A SC88 |
41,860 |
|
Datasheet |
- | 6-TSSOP, SC-88, SOT-363 | Tape & Reel (TR) | Active | MOSFET (Metal Oxide) | 2 N-Channel (Dual) | - | 30V | 250mA | 1.5Ohm @ 10mA, 4V | 1.5V @ 100µA | 1.3nC @ 5V | 33pF @ 5V | 272mW | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SC-88/SC70-6/SOT-363 |
|
DMC3071LVT-7MOSFET N/P-CH 30V 4.6A TSOT26 |
17,657 |
|
Datasheet |
- | SOT-23-6 Thin, TSOT-23-6 | Tape & Reel (TR) | Active | MOSFET (Metal Oxide) | N and P-Channel Complementary | - | 30V | 4.6A (Ta), 3.3A (Ta) | 50mOhm @ 3.5A, 10V, 95mOhm @ 3.8A, 10V | 2.5V @ 250µA | 4.5nC @ 10V, 6.5nC @ 10V | 190pF @ 15V, 254pF @ 15V | 700mW (Ta) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | TSOT-26 |
|
NTZD3155CT1GMOSFET N/P-CH 20V 0.54A SOT563 |
58,836 |
|
Datasheet |
- | SOT-563, SOT-666 | Tape & Reel (TR) | Active | MOSFET (Metal Oxide) | N and P-Channel | Logic Level Gate | 20V | 540mA, 430mA | 550mOhm @ 540mA, 4.5V | 1V @ 250µA | 2.5nC @ 4.5V | 150pF @ 16V | 250mW | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SOT-563 |
|
MCM3400A-TPMOSFET 2N-CH 30V 5A 6DFN |
61,963 |
|
Datasheet |
- | 6-VDFN Exposed Pad | Tape & Reel (TR) | Active | MOSFET (Metal Oxide) | 2 N-Channel | - | 30V | 5A | 32mOhm @ 5.8A, 10V | 1.5V @ 250µA | - | 1155pF @ 15V | 1.4W | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DFN2020-6L |
|
PMDXB550UNEZMOSFET 2N-CH 30V 0.59A 6DFN |
31,763 |
|
Datasheet |
- | 6-XFDFN Exposed Pad | Tape & Reel (TR) | Active | MOSFET (Metal Oxide) | 2 N-Channel (Dual) | - | 30V | 590mA | 670mOhm @ 590mA, 4.5V | 950mV @ 250µA | 1.05nC @ 4.5V | 30.3pF @ 15V | 285mW | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DFN1010B-6 |
|
SI1539CDL-T1-GE3MOSFET N/P-CH 30V 0.7A SC70-6 |
27,617 |
|
Datasheet |
TrenchFET® | 6-TSSOP, SC-88, SOT-363 | Tape & Reel (TR) | Active | MOSFET (Metal Oxide) | N and P-Channel | Logic Level Gate | 30V | 700mA, 500mA | 388mOhm @ 600mA, 10V | 2.5V @ 250µA | 1.5nC @ 10V | 28pF @ 15V | 340mW | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SC-70-6 |
|
BSS138DWQ-7MOSFET 2N-CH 50V 0.2A SOT363 |
10,834 |
|
Datasheet |
- | 6-TSSOP, SC-88, SOT-363 | Tape & Reel (TR) | Active | MOSFET (Metal Oxide) | 2 N-Channel (Dual) | - | 50V | 200mA | 3.5Ohm @ 220mA, 10V | 1.5V @ 250µA | - | 50pF @ 10V | 200mW | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | SOT-363 |
|

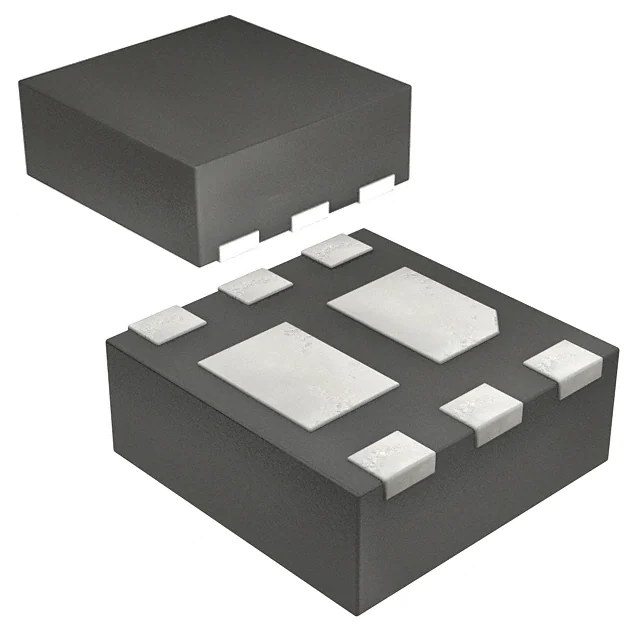

SSM6N58NU,LFMOSFET 2N-CH 30V 4A 6UDFN |
143,314 |
|
Datasheet |
- | 6-WDFN Exposed Pad | Tape & Reel (TR) | Active | MOSFET (Metal Oxide) | 2 N-Channel (Dual) | Logic Level Gate, 1.8V Drive | 30V | 4A | 84mOhm @ 2A, 4.5V | 1V @ 1mA | 1.8nC @ 4.5V | 129pF @ 15V | 1W | 150°C (TJ) | - | - | Surface Mount | 6-UDFN (2x2) |
|
|
BSS138DW-7-FMOSFET 2N-CH 50V 0.2A SOT363 |
56,494 |
|
Datasheet |
- | 6-TSSOP, SC-88, SOT-363 | Tape & Reel (TR) | Active | MOSFET (Metal Oxide) | 2 N-Channel (Dual) | Logic Level Gate | 50V | 200mA | 3.5Ohm @ 220mA, 10V | 1.5V @ 250µA | - | 50pF @ 10V | 200mW | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SOT-363 |
|
SI1016CX-T1-GE3MOSFET N/P-CH 20V SC89 |
34,012 |
|
Datasheet |
TrenchFET® | SOT-563, SOT-666 | Tape & Reel (TR) | Active | MOSFET (Metal Oxide) | N and P-Channel | Logic Level Gate | 20V | - | 396mOhm @ 500mA, 4.5V | 1V @ 250µA | 2nC @ 4.5V | 43pF @ 10V | 220mW | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SC-89 (SOT-563F) |
|
|
SSM6N57NU,LFMOSFET 2N-CH 30V 4A 6DFN |
86,896 |
|
Datasheet |
- | 6-WDFN Exposed Pad | Tape & Reel (TR) | Active | MOSFET (Metal Oxide) | 2 N-Channel (Dual) | - | 30V | 4A | 46mOhm @ 2A, 4.5V | 1V @ 1mA | 4nC @ 4.5V | 310pF @ 10V | 1W | 150°C (TJ) | - | - | Surface Mount | 6-µDFN (2x2) |
|
FDC6301NMOSFET 2N-CH 25V 0.22A SSOT6 |
22,892 |
|
Datasheet |
- | SOT-23-6 Thin, TSOT-23-6 | Tape & Reel (TR) | Active | MOSFET (Metal Oxide) | 2 N-Channel (Dual) | Logic Level Gate | 25V | 220mA | 4Ohm @ 400mA, 4.5V | 1.5V @ 250µA | 0.7nC @ 4.5V | 9.5pF @ 10V | 700mW | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SuperSOT™-6 |
|
|
DMN2004DWK-7MOSFET 2N-CH 20V 0.54A SOT363 |
13,515 |
|
Datasheet |
- | 6-TSSOP, SC-88, SOT-363 | Tape & Reel (TR) | Active | MOSFET (Metal Oxide) | 2 N-Channel (Dual) | Logic Level Gate | 20V | 540mA | 550mOhm @ 540mA, 4.5V | 1V @ 250µA | - | 150pF @ 16V | 200mW | -65°C ~ 150°C (TJ) | - | - | Surface Mount | SOT-363 |
|
|
NTJD4152PT1GMOSFET 2P-CH 20V 0.88A SC88 |
58,160 |
|
Datasheet |
- | 6-TSSOP, SC-88, SOT-363 | Tape & Reel (TR) | Active | MOSFET (Metal Oxide) | 2 P-Channel (Dual) | Logic Level Gate | 20V | 880mA | 260mOhm @ 880mA, 4.5V | 1.2V @ 250µA | 2.2nC @ 4.5V | 155pF @ 20V | 272mW | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SC-88/SC70-6/SOT-363 |
|
DMN2004DMK-7MOSFET 2N-CH 20V 0.54A SOT26 |
128,059 |
|
- |
- | SOT-23-6 | Tape & Reel (TR) | Active | MOSFET (Metal Oxide) | 2 N-Channel (Dual) | Logic Level Gate | 20V | 540mA | 550mOhm @ 540mA, 4.5V | 1V @ 250µA | - | 150pF @ 16V | 225mW | -65°C ~ 150°C (TJ) | - | - | Surface Mount | SOT-26 |
|
AOSD32334CMOSFET 2N-CH 30V 7A 8SOIC |
110,880 |
|
Datasheet |
- | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | MOSFET (Metal Oxide) | 2 N-Channel (Dual) | - | 30V | 7A (Ta) | 20mOhm @ 7A, 10V | 2.3V @ 250µA | 20nC @ 10V | 600pF @ 15V | 1.7W | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 8-SOIC |
|
DMC31D5UDJ-7MOSFET N/P-CH 30V 0.22A SOT963 |
28,423 |
|
Datasheet |
- | SOT-963 | Tape & Reel (TR) | Active | MOSFET (Metal Oxide) | N and P-Channel | Logic Level Gate | 30V | 220mA, 200mA | 1.5Ohm @ 100mA, 4.5V | 1V @ 250µA | 0.38nC @ 4.5V | 22.6pF @ 15V | 350mW | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SOT-963 |
|
|
NDC7002NMOSFET 2N-CH 50V 0.51A SSOT6 |
91,170 |
|
Datasheet |
- | SOT-23-6 Thin, TSOT-23-6 | Tape & Reel (TR) | Active | MOSFET (Metal Oxide) | 2 N-Channel (Dual) | Logic Level Gate | 50V | 510mA | 2Ohm @ 510mA, 10V | 2.5V @ 250µA | 1nC @ 10V | 20pF @ 25V | 700mW | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SuperSOT™-6 |
|
|
AO4629MOSFET N/P-CH 30V 6A/5.5A 8SOIC |
186,438 |
|
Datasheet |
- | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | MOSFET (Metal Oxide) | N and P-Channel, Common Drain | Logic Level Gate | 30V | 6A, 5.5A | 30mOhm @ 6A, 10V | 2.4V @ 250µA | 6.3nC @ 10V | 310pF @ 15V | 2W | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 8-SOIC |
|
DMC3025LSD-13MOSFET N/P-CH 30V 6.5A/4.2A 8SO |
8,646 |
|
Datasheet |
- | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | MOSFET (Metal Oxide) | N and P-Channel | Logic Level Gate | 30V | 6.5A, 4.2A | 20mOhm @ 7.4A, 10V | 2V @ 250µA | 9.8nC @ 10V | 501pF @ 15V | 1.2W | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 8-SO |
