FET, MOSFET Arrays
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Technology | Configuration | FET Feature | Drain to Source Voltage (Vdss) | Current - Continuous Drain (Id) @ 25°C | Rds On (Max) @ Id, Vgs | Vgs(th) (Max) @ Id | Gate Charge (Qg) (Max) @ Vgs | Input Capacitance (Ciss) (Max) @ Vds | Power - Max | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SP8K3FD5TB1MOSFET 2N-CH 30V 8SOP |
8,440 |
|
- |
- | - | Tape & Reel (TR) | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
SP8K3TB1MOSFET 2N-CH 30V 7A 8SOP |
9,042 |
|
- |
- | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Obsolete | MOSFET (Metal Oxide) | 2 N-Channel (Dual) | Logic Level Gate, 4V Drive | 30V | 7A (Ta) | 24mOhm @ 7A, 10V | 2.5V @ 1mA | 11.8nC @ 5V | 600pF @ 10V | 2W (Ta) | 150°C | - | - | Surface Mount | 8-SOP |
|
BSC150N03LDMOSFET 2N-CH 30V 8A 8TDSON |
9,890 |
|
Datasheet |
OptiMOS™ 3 | 8-PowerVDFN | Bulk | Active | MOSFET (Metal Oxide) | 2 N-Channel (Dual) | Logic Level Gate | 30V | 8A | 15mOhm @ 20A, 10V | 2.2V @ 250µA | 6.4nC @ 10V | 1100pF @ 15V | 26W | -55°C ~ 150°C (TJ) | - | - | Surface Mount | PG-TDSON-8-4 |
|
DF11MR12W1M1PB11BPSA1MOSFET 2N-CH 1200V 50A AG-EASY1B |
4,323 |
|
Datasheet |
EasyPACK™ | Module | Tray | Obsolete | Silicon Carbide (SiC) | 2 N-Channel (Dual) | - | 1200V (1.2kV) | 50A (Tj) | 22.5mOhm @ 50A, 15V | 5.55V @ 20mA | 124nC @ 15V | 3680pF @ 800V | - | -40°C ~ 150°C (TJ) | - | - | Chassis Mount | AG-EASY1B-2 |
|
|
IRF7313TRPBF-1MOSFET 2N-CH 30V 6.5A 8SOIC |
5,947 |
|
Datasheet |
HEXFET® | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Obsolete | MOSFET (Metal Oxide) | 2 N-Channel (Dual) | - | 30V | 6.5A (Ta) | 29mOhm @ 5.8A, 10V | 1V @ 250µA | 33nC @ 10V | 650pF @ 25V | 2W (Ta) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 8-SOIC |
|
|
MSCMC120AM02CT6LIAGMOSFET 2N-CH 1200V 742A SP6C LI |
6,766 |
|
Datasheet |
- | Module | Tube | Last Time Buy | Silicon Carbide (SiC) | 2 N Channel (Phase Leg) | - | 1200V (1.2kV) | 742A (Tc) | 2.85mOhm @ 600A, 20V | 4V @ 180mA | 1932nC @ 20V | 33500pF @ 1000V | 3200W (Tc) | -40°C ~ 175°C (TJ) | - | - | Chassis Mount | SP6C LI |
|
|
MSCMC120AM04CT6LIAGMOSFET 2N-CH 1200V 388A SP6C LI |
5,991 |
|
Datasheet |
- | Module | Tube | Last Time Buy | Silicon Carbide (SiC) | 2 N Channel (Phase Leg) | - | 1200V (1.2kV) | 388A (Tc) | 5.7mOhm @ 300A, 20V | 4V @ 90mA | 966nC @ 20V | 16700pF @ 1000V | 1754W (Tc) | -40°C ~ 175°C (TJ) | - | - | Chassis Mount | SP6C LI |
|
|
MSCMC120AM03CT6LIAGMOSFET 2N-CH 1200V 631A SP6C LI |
7,657 |
|
Datasheet |
- | Module | Tube | Last Time Buy | Silicon Carbide (SiC) | 2 N Channel (Phase Leg) | - | 1200V (1.2kV) | 631A (Tc) | 3.4mOhm @ 500A, 20V | 4V @ 150mA | 1610nC @ 20V | 27900pF @ 1000V | 2778W (Tc) | -40°C ~ 175°C (TJ) | - | - | Chassis Mount | SP6C LI |
|

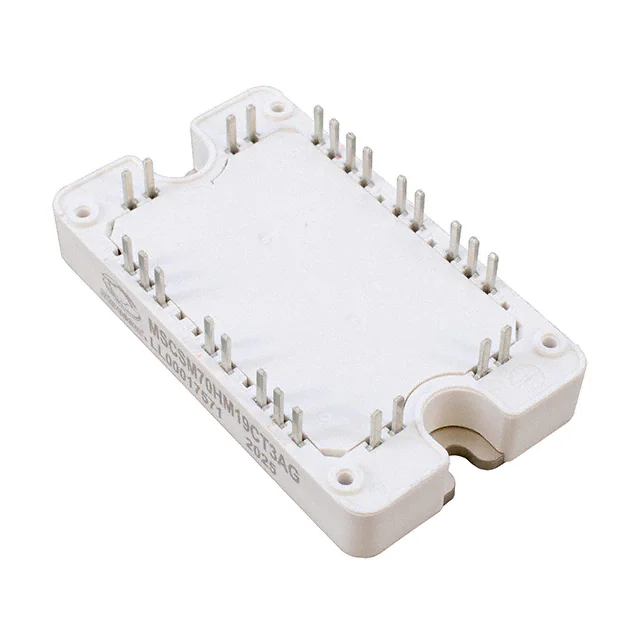

MSCMC90AM12C3AGMOSFET 900V 110A SP3F |
2,313 |
|
Datasheet |
- | Module | Tube | Active | Silicon Carbide (SiC) | - | - | 900V | 110A (Tc) | - | - | - | - | - | - | - | - | Chassis Mount | SP3F |
|
|
MSCMC120AM07CT6LIAGMOSFET 2N-CH 1200V 264A SP6C LI |
2,593 |
|
Datasheet |
- | Module | Tube | Last Time Buy | Silicon Carbide (SiC) | 2 N Channel (Phase Leg) | - | 1200V (1.2kV) | 264A (Tc) | 8.7mOhm @ 240A, 20V | 4V @ 60mA | 690nC @ 20V | 11400pF @ 1000V | 1350W (Tc) | -40°C ~ 175°C (TJ) | - | - | Chassis Mount | SP6C LI |
|
|
MSCMC170AM08CT6LIAGMOSFET 2N-CH 1700V 280A SP6C LI |
4,025 |
|
Datasheet |
- | Module | Tube | Active | Silicon Carbide (SiC) | 2 N Channel (Phase Leg) | - | 1700V (1.7kV) | 280A (Tc) | 11.7mOhm @ 300A, 20V | 4V @ 108mA | 1128nC @ 20V | 22000pF @ 1000V | 1780W (Tc) | -40°C ~ 150°C (TJ) | - | - | Chassis Mount | SP6C LI |
|
|
IRF9910TRPBF-1MOSFET 2N-CH 20V 10A 8SOIC |
2,349 |
|
Datasheet |
HEXFET® | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Obsolete | MOSFET (Metal Oxide) | 2 N-Channel (Dual) | - | 20V | 10A (Ta), 12A (Ta) | 13.4mOhm @ 10A, 10V, 9.3mOhm @ 12A, 10V | 2.55V @ 250µA | 11nC @ 4.5V, 23nC @ 4.5V | 900pF @ 10V, 1860pF @ 10V | 2W (Ta) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 8-SOIC |
|
|
NTMFD5875NLT1GMOSFET 2N-CH 60V 7A 8DFN |
5,672 |
|
- |
- | 8-PowerTDFN | Tape & Reel (TR) | Obsolete | MOSFET (Metal Oxide) | 2 N-Channel (Dual) | Logic Level Gate | 60V | 7A (Ta), 22A (Tc) | 33mOhm @ 7.5A, 10V | 3V @ 250µA | 5.9nC @ 4.5V | 540pF @ 25V | 3.2W (Ta), 32W (Tc) | -55°C ~ 175°C (TJ) | - | - | Surface Mount | 8-DFN (5x6) Dual Flag (SO8FL-Dual) |
|
AO4914MOSFET 2N-CH 30V 8A 8SOIC |
3,310 |
|
- |
- | 8-SOIC (0.154", 3.90mm Width) | Tube | Obsolete | MOSFET (Metal Oxide) | 2 N-Channel (Dual), Schottky | - | 30V | 8A (Ta) | 20.5mOhm @ 8A, 10V | 2.4V @ 250µA | 18nC @ 10V | 865pF @ 15V | 2W (Ta) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 8-SOIC |
|
FF6MR12KM1PHOSA1MOSFET 2N-CH 1200V 250A AG-62MM |
5,538 |
|
Datasheet |
CoolSiC™ | Module | Tray | Obsolete | Silicon Carbide (SiC) | 2 N-Channel (Half Bridge) | - | 1200V (1.2kV) | 250A (Tc) | 5.81mOhm @ 250A, 15V | 5.15V @ 80mA | 496nC @ 15V | 14700pF @ 800V | - | -40°C ~ 150°C (TJ) | - | - | Chassis Mount | AG-62MM |
|
|
FF3MR12KM1PHOSA1MOSFET 2N-CH 1200V 375A AG-62MM |
7,759 |
|
Datasheet |
CoolSiC™ | Module | Tray | Obsolete | Silicon Carbide (SiC) | 2 N-Channel (Half Bridge) | - | 1200V (1.2kV) | 375A (Tc) | 2.83mOhm @ 375A, 15V | 5.15V @ 168mA | 1000nC @ 15V | 29800pF @ 25V | - | -40°C ~ 150°C (TJ) | - | - | Chassis Mount | AG-62MM |
|
FF3MR12KM1HOSA1MOSFET 2N-CH 1200V 375A AG-62MM |
4,181 |
|
Datasheet |
CoolSiC™ | Module | Tray | Obsolete | Silicon Carbide (SiC) | 2 N-Channel (Half Bridge) | - | 1200V (1.2kV) | 375A (Tc) | 2.83mOhm @ 375A, 15V | 5.15V @ 168mA | 1000nC @ 15V | 29800pF @ 25V | - | -40°C ~ 150°C (TJ) | - | - | Chassis Mount | AG-62MM |
|
|
FF2MR12KM1PHOSA1MOSFET 2N-CH 1200V 500A AG-62MM |
3,630 |
|
Datasheet |
CoolSiC™ | Module | Tray | Obsolete | Silicon Carbide (SiC) | 2 N-Channel (Half Bridge) | - | 1200V (1.2kV) | 500A (Tc) | 2.13mOhm @ 500A, 15V | 5.15V @ 224mA | 1340nC @ 15V | 39700pF @ 800V | - | -40°C ~ 150°C (TJ) | - | - | Chassis Mount | AG-62MM |
|
HUFA76407DK8TF085PMOSFET 2N-CH 60V 3.8A 8SOIC |
3,605 |
|
- |
UltraFET™ | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Obsolete | MOSFET (Metal Oxide) | 2 N-Channel (Dual) | Logic Level Gate | 60V | 3.8A (Ta) | 90mOhm @ 3.8A, 10V | 3V @ 250µA | - | 330pF @ 25V | 2.5W (Ta) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 8-SOIC |
|
PMDPB95XNE2115MOSFET 2N-CH 30V 2.7A 6HUSON |
5,135 |
|
Datasheet |
- | 6-UDFN Exposed Pad | Bulk | Active | MOSFET (Metal Oxide) | 2 N-Channel | - | 30V | 2.7A (Ta) | 99mOhm @ 2.8A, 4.5V | 1.25V @ 250µA | 4.5nC @ 4.5V | 258pF @ 15V | 510mW (Ta), 8.33W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 6-HUSON (2x2) |
