FET, MOSFET Arrays
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Technology | Configuration | FET Feature | Drain to Source Voltage (Vdss) | Current - Continuous Drain (Id) @ 25°C | Rds On (Max) @ Id, Vgs | Vgs(th) (Max) @ Id | Gate Charge (Qg) (Max) @ Vgs | Input Capacitance (Ciss) (Max) @ Vds | Power - Max | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MCB20P1200LB-TRRMOSFET 2N-CH 1200V 9SMPD |
5,523 |
|
Datasheet |
MCB20P1200LB | 9-PowerSMD | Tape & Reel (TR) | Active | Silicon Carbide (SiC) | 2 N-Channel (Dual) | - | 1200V (1.2kV) | - | - | - | - | - | - | - | - | - | Surface Mount | 9-SMPD-B |
|
|
MCB20P1200LB-TUBMOSFET 2N-CH 1200V 9SMPD |
4,208 |
|
Datasheet |
MCB20P1200LB | 9-PowerSMD | Tube | Active | Silicon Carbide (SiC) | 2 N-Channel (Dual) | - | 1200V (1.2kV) | - | - | - | - | - | - | - | - | - | Surface Mount | 9-SMPD-B |
|
|
MCB40P1200LB-TRRMOSFET 2N-CH 1200V 58A 9SMPD |
2,475 |
|
Datasheet |
- | 9-PowerSMD | Tape & Reel (TR) | Active | Silicon Carbide (SiC) | 2 N-Channel (Dual) | - | 1200V (1.2kV) | 58A | - | - | - | - | - | - | - | - | Surface Mount | 9-SMPD-B |
|

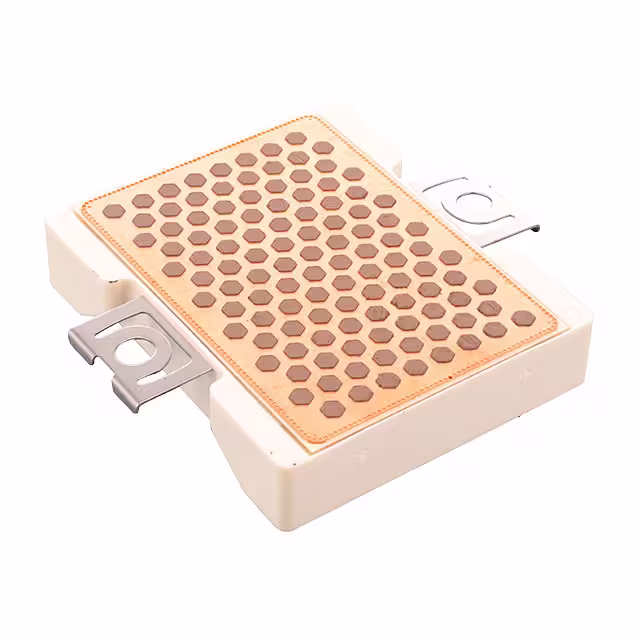

FF6MR12W2M1PB11BPSA1MOSFET 2N-CH 1200V 200A |
5,752 |
|
Datasheet |
CoolSiC™+ | Module | Tray | Obsolete | Silicon Carbide (SiC) | 2 N-Channel (Dual) | - | 1200V (1.2kV) | 200A (Tj) | 5.63mOhm @ 200A, 15V | 5.55V @ 80mA | 496nC @ 15V | 14700pF @ 800V | - | -40°C ~ 150°C (TJ) | - | - | Chassis Mount | - |
|
FF23MR12W1M1PB11BPSA1MOSFET 2 IND 1200V AG-EASY1BM-2 |
3,335 |
|
Datasheet |
CoolSiC™+ | Module | Tray | Obsolete | MOSFET (Metal Oxide) | 2 Independent | - | 1200V (1.2kV) | 50A | 22.5mOhm @ 50A, 15V | 5.5V @ 20mA | 124nC @ 15V | 3680pF @ 800V | - | -40°C ~ 150°C (TJ) | - | - | Chassis Mount | AG-EASY1BM-2 |
|
|
KGF16N05D-400WMOSFET 2N-CH 5.5V 16A 20WLCSP |
5,420 |
|
- |
- | 20-UFLGA, CSP | Tape & Reel (TR) | Obsolete | MOSFET (Metal Oxide) | 2 N-Channel (Dual) Common Source | - | 5.5V | 16A (Tj) | 1.9mOhm @ 8A, 4.5V | 900mV @ 250µA | 5.5nC @ 4.5V | 600pF @ 5V | 2.5W (Ta) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 20-WLCSP (2.48x1.17) |
|
|
KGF20N035DMOSFET N-CH 20WLCSP |
7,096 |
|
- |
- | - | Tape & Reel (TR) | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
KGF20N05DMOSFET 2N-CH 5.5V 20A 20WLCSP |
9,220 |
|
Datasheet |
- | 20-UFLGA, CSP | Tape & Reel (TR) | Obsolete | MOSFET (Metal Oxide) | 2 N-Channel (Dual) Common Source | - | 5.5V | 20A (Tj) | 1.6mOhm @ 10A, 4.5V | 900mV @ 250µA | 6.7nC @ 4.5V | 865pF @ 5V | 2.5W (Ta) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 20-WLCSP (2.48x1.17) |
|
AO4801MOSFET 2P-CH 30V 5A 8SOIC |
6,814 |
|
Datasheet |
- | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Obsolete | MOSFET (Metal Oxide) | 2 P-Channel (Dual) | - | 30V | 5A (Ta) | 48mOhm @ 5A, 10V | 1.3V @ 250µA | 7nC @ 4.5V | 645pF @ 15V | 2W (Ta) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 8-SOIC |
|

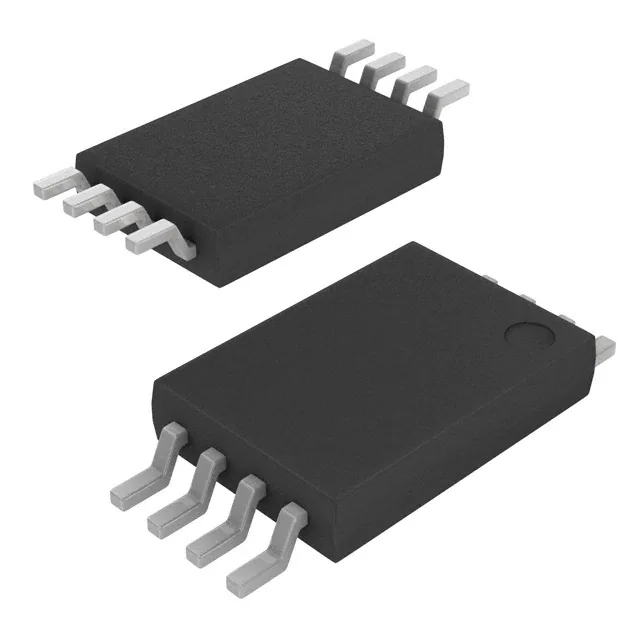

AO8801A_001MOSFET 2P-CH 20V 4.5A 8TSSOP |
4,410 |
|
Datasheet |
- | 8-TSSOP (0.173", 4.40mm Width) | Tape & Reel (TR) | Obsolete | MOSFET (Metal Oxide) | 2 P-Channel (Dual) | - | 20V | 4.5A (Ta) | 42mOhm @ 4.5A, 4.5V | 900mV @ 250µA | 11nC @ 4.5V | 905pF @ 10V | 1.5W (Ta) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 8-TSSOP |
|
|
AO4800BLMOSFET 2N-CH 30V 6.9A 8SOIC |
7,609 |
|
Datasheet |
- | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Obsolete | MOSFET (Metal Oxide) | 2 N-Channel (Dual) | - | 30V | 6.9A (Ta) | 27mOhm @ 6.9A, 10V | 1.5V @ 250µA | 12nC @ 4.5V | 1100pF @ 15V | 1.9W (Ta) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 8-SOIC |
|
|
AO4807L_102MOSFET 2P-CH 30V 6A 8SOIC |
6,815 |
|
Datasheet |
- | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Obsolete | MOSFET (Metal Oxide) | 2 P-Channel (Dual) | - | 30V | 6A (Ta) | 35mOhm @ 6A, 10V | 2.4V @ 250µA | 16nC @ 10V | 760pF @ 15V | 2W (Ta) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 8-SOIC |
|
|
SP8M3FD5TB1MOSFET N/P-CH 30V 8SOP |
9,248 |
|
- |
- | - | Tape & Reel (TR) | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
SP8M3FU6TB1MOSFET N/P-CH 30V 5A 8SOP |
7,796 |
|
- |
- | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Obsolete | MOSFET (Metal Oxide) | N and P-Channel | - | 30V | 5A (Ta), 4.5A (Ta) | 51mOhm @ 5A, 10V, 56mOhm @ 4.5A, 10V | 2.5V @ 1mA | 3.9nC @ 5V, 8.5nC @ 5V | 230pF @ 10V, 850pF @ 10V | 2W (Ta) | 150°C | - | - | Surface Mount | 8-SOP |
|
|
LP8M3FP8TB1MOSFET N-CH SOP8G |
9,236 |
|
- |
- | - | Tape & Reel (TR) | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
SP8M8FD5TB1MOSFET N/P-CH 30V 6A 8SOP |
4,794 |
|
- |
- | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Obsolete | MOSFET (Metal Oxide) | N and P-Channel | Logic Level Gate, 4V Drive | 30V | 6A (Ta), 4.5A (Ta) | 30mOhm @ 6A, 10V, 56mOhm @ 4.5A, 10V | 2.5V @ 1mA | 7.2nC @ 5V, 8.5nC @ 5V | 520pF @ 10V, 850pF @ 10V | 2W (Ta) | 150°C | - | - | Surface Mount | 8-SOP |
|
|
SP8J62TB1MOSFET 2P-CH 30V 8SOP |
2,261 |
|
Datasheet |
- | - | Tape & Reel (TR) | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
SP8M3FU7TB1MOSFET N/P-CH 30V 5A 8SOP |
2,922 |
|
- |
- | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Obsolete | MOSFET (Metal Oxide) | N and P-Channel | - | 30V | 5A (Ta), 4.5A (Ta) | 51mOhm @ 5A, 10V, 56mOhm @ 4.5A, 10V | 2.5V @ 1mA | 3.9nC @ 5V, 8.5nC @ 5V | 230pF @ 10V, 850pF @ 10V | 2W (Ta) | 150°C | - | - | Surface Mount | 8-SOP |
|
|
SP8K33TB1MOSFET 2N-CH 60V 8SOP |
5,831 |
|
- |
- | - | Tape & Reel (TR) | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
SP8K32TB1MOSFET 2N-CH 60V 4.5A 8SOP |
2,386 |
|
- |
- | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Obsolete | MOSFET (Metal Oxide) | 2 N-Channel (Dual) | Logic Level Gate, 4V Drive | 60V | 4.5A (Ta) | 65mOhm @ 4.5A, 10V | 2.5V @ 1mA | 10nC @ 5V | 500pF @ 10V | 2W (Ta) | 150°C | - | - | Surface Mount | 8-SOP |
