FET, MOSFET Arrays
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Technology | Configuration | FET Feature | Drain to Source Voltage (Vdss) | Current - Continuous Drain (Id) @ 25°C | Rds On (Max) @ Id, Vgs | Vgs(th) (Max) @ Id | Gate Charge (Qg) (Max) @ Vgs | Input Capacitance (Ciss) (Max) @ Vds | Power - Max | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
BSS84AKS/ZLXMOSFET 2P-CH 50V 0.16A 6TSSOP |
8,037 |
|
Datasheet |
TrenchMOS™ | 6-TSSOP, SC-88, SOT-363 | Tape & Reel (TR) | Obsolete | MOSFET (Metal Oxide) | 2 P-Channel (Dual) | Logic Level Gate | 50V | 160mA (Ta) | 7.5Ohm @ 100mA, 10V | 2.1V @ 250µA | 0.35nC @ 5V | 36pF @ 25V | 445mW | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | 6-TSSOP |
|
|
NX7002AKS/ZLXMOSFET 2N-CH 60V 0.17A 6TSSOP |
6,336 |
|
Datasheet |
- | 6-TSSOP, SC-88, SOT-363 | Tape & Reel (TR) | Obsolete | MOSFET (Metal Oxide) | 2 N-Channel (Dual) | - | 60V | 170mA (Ta) | 4.5Ohm @ 100mA, 10V | 2.1V @ 250µA | 0.43nC @ 4.5V | 17pF @ 10V | 1.06W | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 6-TSSOP |
|
AON6884LMOSFET 2N-CH 40V 34A 8DFN |
5,568 |
|
- |
- | 8-PowerSMD, Flat Leads | Tape & Reel (TR) | Active | MOSFET (Metal Oxide) | 2 N-Channel (Dual) | - | 40V | 34A (Tc) | 11.3mOhm @ 10A, 10V | 2.7V @ 250µA | 16nC @ 4.5V | 1950pF @ 20V | 21W | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 8-DFN (5x6) |
|
|
AON6884L_002MOSFET 2N-CH 40V 34A 8DFN |
6,833 |
|
- |
- | 8-PowerSMD, Flat Leads | Tape & Reel (TR) | Obsolete | MOSFET (Metal Oxide) | 2 N-Channel (Dual) | - | 40V | 34A (Tc) | 11.3mOhm @ 10A, 10V | 2.7V @ 250µA | 16nC @ 4.5V | 1950pF @ 20V | 21W | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 8-DFN (5x6) |
|
SI1539DDL-T1-GE3MOSFET N/P-CH 30V 0.7A SC70-6 |
7,460 |
|
Datasheet |
TrenchFET® | 6-TSSOP, SC-88, SOT-363 | Tape & Reel (TR) | Obsolete | MOSFET (Metal Oxide) | N and P-Channel | - | 30V | 700mA (Tc), 460mA (Tc) | 388mOhm @ 600mA, 10V, 1.07Ohm @ 400mA, 10V | 2.5V @ 250µA, 3V @ 250µA | 1.1nC @ 4.5V, 1.2nC @ 4.5V | 28pF @ 15V, 21pF @ 15V | 340mW | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SC-70-6 |
|
|
APTMC120HM17CT3AGMOSFET 4N-CH 1200V 147A SP3 |
6,801 |
|
Datasheet |
- | Module | Bulk | Active | Silicon Carbide (SiC) | 4 N-Channel | - | 1200V (1.2kV) | 147A (Tc) | 17mOhm @ 100A, 20V | 4V @ 30mA | 332nC @ 5V | 5576pF @ 1000V | 750W | -40°C ~ 175°C (TJ) | - | - | Chassis Mount | SP3 |
|
|
APTMC120HR11CT3AGMOSFET 2N-CH 1200V 26A SP3 |
9,628 |
|
Datasheet |
- | Module | Bulk | Active | Silicon Carbide (SiC) | 2 N-Channel (Dual) | - | 1200V (1.2kV) | 26A (Tc) | 98mOhm @ 20A, 20V | 3V @ 5mA | 62nC @ 20V | 950pF @ 1000V | 125W | -40°C ~ 150°C (TJ) | - | - | Chassis Mount | SP3 |
|
|
APTMC120TAM34CT3AGMOSFET 6N-CH 1200V 74A SP3 |
9,736 |
|
- |
- | Module | Bulk | Last Time Buy | Silicon Carbide (SiC) | 6 N-Channel (3-Phase Bridge) | - | 1200V (1.2kV) | 74A (Tc) | 34mOhm @ 50A, 20V | 4V @ 15mA | 161nC @ 5V | 2788pF @ 1000V | 375W | -40°C ~ 175°C (TJ) | - | - | Chassis Mount | SP3 |
|
|
FDG6303N_GMOSFET 2N-CH 25V 0.5A SC88 |
9,799 |
|
- |
- | 6-TSSOP, SC-88, SOT-363 | Bulk | Obsolete | MOSFET (Metal Oxide) | 2 N-Channel (Dual) | Logic Level Gate | 25V | 500mA | 450mOhm @ 500mA, 4.5V | 1.5V @ 250µA | 2.3nC @ 4.5V | 50pF @ 10V | 300mW | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SC-88 (SC-70-6) |
|

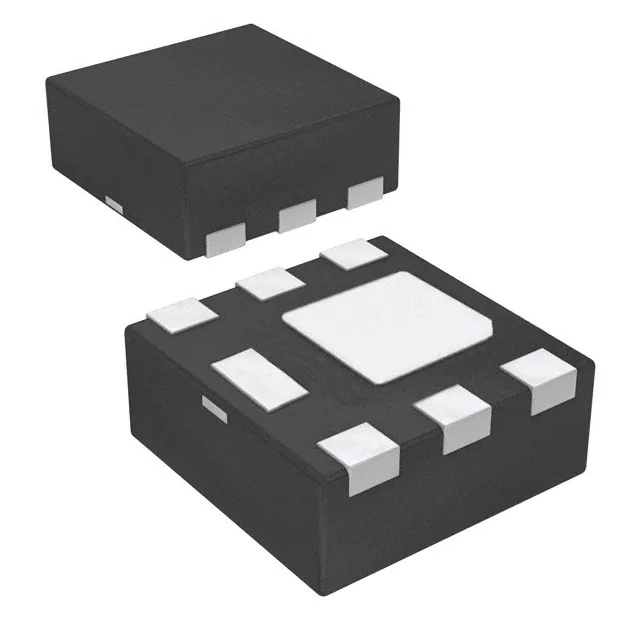

FDMA2002NZ_F130MOSFET 2N-CH 30V 2.9A 6MICROFET |
9,786 |
|
- |
PowerTrench® | 6-VDFN Exposed Pad | Bulk | Obsolete | MOSFET (Metal Oxide) | 2 N-Channel (Dual) | Logic Level Gate | 30V | 2.9A | 123mOhm @ 2.9A, 4.5V | 1.5V @ 250µA | 3nC @ 4.5V | 220pF @ 15V | 650mW | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 6-MicroFET (2x2) |
|
|
FDMC8010AMOSFET |
9,534 |
|
- |
* | - | Bulk | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
FDPC1002SMOSFET |
8,312 |
|
Datasheet |
- | - | Bulk | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
FDS8984_F123MOSFET 2N-CH 30V 8-SOIC |
2,959 |
|
- |
* | - | Tape & Reel (TR) | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
AOC2804BMOSFET 2N-CH 4DFN |
3,860 |
|
Datasheet |
AlphaMOS | 4-XDFN | Tape & Reel (TR) | Obsolete | MOSFET (Metal Oxide) | 2 N-Channel (Dual) Common Drain | - | - | - | - | 1.3V @ 250µA | 9.5nC @ 4.5V | - | 1.3W | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 4-DFN (1.5x1.5) |
|
|
AOC3860MOSFET 2N-CH 6DFN |
8,422 |
|
Datasheet |
- | 6-XDFN | Tape & Reel (TR) | Obsolete | MOSFET (Metal Oxide) | 2 N-Channel (Dual) Common Drain | - | - | - | - | 900mV @ 250µA | 44nC @ 4.5V | - | 2.5W | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 6-DFN (3.05x1.77) |
|
|
AOC3864MOSFET 2N-CH 6DFN |
4,533 |
|
Datasheet |
AlphaMOS | 6-XDFN | Tape & Reel (TR) | Obsolete | MOSFET (Metal Oxide) | 2 N-Channel (Dual) Common Drain | - | - | - | - | 1.3V @ 250µA | 38nC @ 4.5V | - | 2.4W | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 6-DFN (2.7x1.8) |
|
AON3820MOSFET 2N-CH 24V 8A 8DFN |
3,398 |
|
Datasheet |
AlphaMOS | 8-SMD, Flat Leads | Tape & Reel (TR) | Obsolete | MOSFET (Metal Oxide) | 2 N-Channel (Dual) | - | 24V | 8A (Ta) | 8.9mOhm @ 8A, 4.5V | 1.3V @ 250µA | 20nC @ 4.5V | 1325pF @ 12V | 2W | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 8-DFN (3x3) |
|
|
EFC2J022NUZTCGMOSFET N-CH 12V 2.2MOHM WLCSP10 |
9,392 |
|
- |
* | - | Tape & Reel (TR) | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
BSZ0910NDXTMA1MOSFET 2N-CH 30V 9.5A WISON-8 |
2,767 |
|
Datasheet |
OptiMOS™ | 8-PowerVDFN | Tape & Reel (TR) | Obsolete | MOSFET (Metal Oxide) | 2 N-Channel (Dual) | Logic Level Gate, 4.5V Drive | 30V | 9.5A (Ta), 25A (Tc) | 9.5mOhm @ 9A, 10V | 2V @ 250µA | 5.6nC @ 4.5V | 800pF @ 15V | 1.9W (Ta), 31W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | PG-WISON-8 |
|
|
FDG6301N-F085PMOSFET 2N-CH 25V 0.22A SC70-6 |
7,660 |
|
Datasheet |
- | 6-TSSOP, SC-88, SOT-363 | Tape & Reel (TR) | Obsolete | MOSFET (Metal Oxide) | 2 N-Channel (Dual) | Logic Level Gate | 25V | 220mA (Ta) | 4Ohm @ 220mA, 4.5V | 1.5V @ 250µA | 0.4nC @ 4.5V | 9.5pF @ 10V | 300mW | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | SC-70-6 |
FET, MOSFET Arrays Electronic Components
Explore FET, MOSFET Arrays electronic components, related subcategories, product specifications, datasheets and sourcing options. We support original component procurement, BOM sourcing and RFQ services for engineers, distributors and global buyers.
