FET, MOSFET Arrays
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Technology | Configuration | FET Feature | Drain to Source Voltage (Vdss) | Current - Continuous Drain (Id) @ 25°C | Rds On (Max) @ Id, Vgs | Vgs(th) (Max) @ Id | Gate Charge (Qg) (Max) @ Vgs | Input Capacitance (Ciss) (Max) @ Vds | Power - Max | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
AO4606LMOSFET N/P-CH 30V 6A 8SOIC |
3,815 |
|
Datasheet |
- | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Obsolete | MOSFET (Metal Oxide) | N and P-Channel Complementary | - | 30V | 6A | 30mOhm @ 6A, 10V | 2.4V @ 250µA | 6nC @ 10V | 310pF @ 15V | 2W | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 8-SOIC |
|
|
AO4606L_DELTAMOSFET N/P-CH 30V 6A 8SOIC |
5,752 |
|
- |
- | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Obsolete | MOSFET (Metal Oxide) | N and P-Channel Complementary | - | 30V | 6A | 30mOhm @ 6A, 10V | 2.4V @ 250µA | 6nC @ 10V | 310pF @ 15V | 2W | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 8-SOIC |
|
TPD3215MMOSFET 2N-CH 600V 70A MODULE |
7,312 |
|
Datasheet |
- | Module | Bulk | Obsolete | GaNFET (Gallium Nitride) | 2 N-Channel (Half Bridge) | - | 600V | 70A (Tc) | 34mOhm @ 30A, 8V | - | 28nC @ 8V | 2260pF @ 100V | 470W | -40°C ~ 150°C (TJ) | - | - | Through Hole | Module |
|

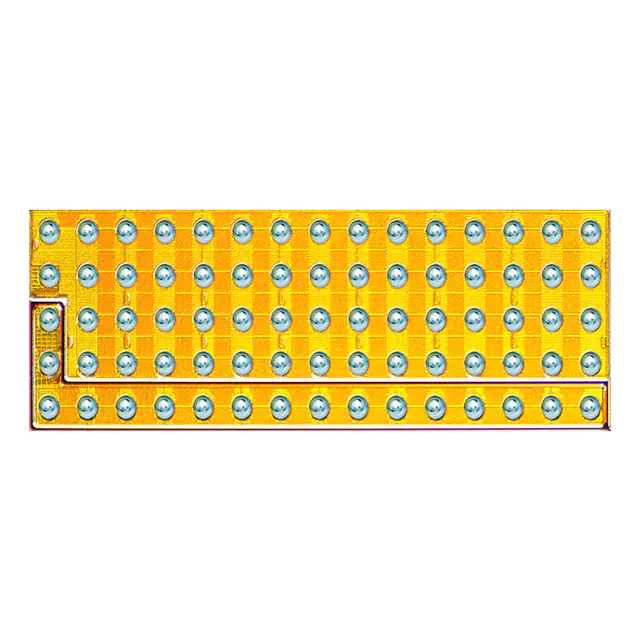

EPC2101ENGRTMOSFET 2N-CH 60V 9.5A/38A DIE |
9,308 |
|
Datasheet |
eGaN® | Die | Tape & Reel (TR) | Discontinued at Digi-Key | GaNFET (Gallium Nitride) | 2 N-Channel (Half Bridge) | - | 60V | 9.5A, 38A | 11.5mOhm @ 20A, 5V | 2.5V @ 2mA | 2.7nC @ 5V | 300pF @ 30V | - | -40°C ~ 150°C (TJ) | - | - | Surface Mount | Die |
|
EPC2102ENGRTMOSFET 2N-CH 60V 23A DIE |
6,601 |
|
Datasheet |
eGaN® | Die | Tape & Reel (TR) | Discontinued at Digi-Key | GaNFET (Gallium Nitride) | 2 N-Channel (Half Bridge) | - | 60V | 23A (Tj) | 4.4mOhm @ 20A, 5V | 2.5V @ 7mA | 6.8nC @ 5V | 830pF @ 30V | - | -40°C ~ 150°C (TJ) | - | - | Surface Mount | Die |
|
|
AO4813_002MOSFET 2P-CH 30V 7.1A 8SOIC |
3,085 |
|
Datasheet |
- | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Obsolete | MOSFET (Metal Oxide) | 2 P-Channel (Dual) | - | 30V | 7.1A (Ta) | 25mOhm @ 7A, 10V | 2.5V @ 250µA | 19nC @ 10V | 1250pF @ 15V | 2W | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 8-SOIC |
|
AO5804ELMOSFET 2N-CH 20V 0.5A SC89-6 |
9,621 |
|
- |
- | SOT-563, SOT-666 | Tape & Reel (TR) | Obsolete | MOSFET (Metal Oxide) | 2 N-Channel (Dual) | - | 20V | 500mA | 550mOhm @ 500mA, 4.5V | 1V @ 250µA | 1nC @ 4.5V | 45pF @ 10V | 280mW | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SC-89-6 |
|
AO7600_001MOSFET N/P-CH 20V 0.9A SC70-6 |
4,850 |
|
- |
- | 6-TSSOP, SC-88, SOT-363 | Tape & Reel (TR) | Obsolete | MOSFET (Metal Oxide) | N and P-Channel Complementary | - | 20V | 900mA | 300mOhm @ 900mA, 4.5V | 900mV @ 250µA | 1.9nC @ 4.5V | 120pF @ 10V | 300mW | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SC-70-6 |
|
AO8801MOSFET 2P-CH 20V 4.7A 8TSSOP |
9,390 |
|
Datasheet |
- | 8-TSSOP (0.173", 4.40mm Width) | Tape & Reel (TR) | Obsolete | MOSFET (Metal Oxide) | 2 P-Channel (Dual) | - | 20V | 4.7A | 42mOhm @ 4.7A, 4.5V | 1V @ 250µA | 17.2nC @ 4.5V | 1450pF @ 10V | 1.4W | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 8-TSSOP |
|
|
AO9926BL_101MOSFET 2N-CH 20V 7.6A 8SOIC |
6,397 |
|
Datasheet |
- | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Obsolete | MOSFET (Metal Oxide) | 2 N-Channel (Dual) | - | 20V | 7.6A | 23mOhm @ 7.6A, 10V | 1.1V @ 250µA | 12.5nC @ 10V | 630pF @ 15V | 2W | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 8-SOIC |
|
AOC2802_001MOSFET 2N-CH 20V 6A 4WLCSP |
9,819 |
|
- |
- | 4-UFBGA, WLCSP | Tape & Reel (TR) | Obsolete | MOSFET (Metal Oxide) | 2 N-Channel (Dual) Common Drain | - | 20V | 6A | 35mOhm @ 3A, 4.5V | 1.5V @ 250µA | 10.4nC @ 4.5V | 1200pF @ 10V | 1.3W | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 4-WLCSP (1.57x1.57) |
|
AON5802ALSMOSFET N-CH DUAL DFN |
3,902 |
|
- |
* | 6-WFDFN Exposed Pad | Tape & Reel (TR) | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | Surface Mount | 6-DFN-EP (2x5) |
|
|
AON5802B_101MOSFET N-CH DUAL DFN |
4,053 |
|
Datasheet |
- | 6-WFDFN Exposed Pad | Tape & Reel (TR) | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | Surface Mount | 6-DFN-EP (2x5) |
|
ECH8601M-P-TL-HMOSFET 2N-CH ECH8 |
6,561 |
|
- |
- | - | Tape & Reel (TR) | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
BUK7K6R2-40E/CXMOSFET 2N-CH 56LFPAK |
2,645 |
|
- |
* | - | Tape & Reel (TR) | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
BSD340NH6327XTSA1MOSFET P-CH SOT363-6 |
7,545 |
|
Datasheet |
OptiMOS™ | 6-VSSOP, SC-88, SOT-363 | Tape & Reel (TR) | Obsolete | - | - | - | - | - | - | - | - | - | - | - | Automotive | AEC-Q101 | Surface Mount | PG-SOT363-6 |
|
BSZ0909NDXTMA1MOSFET 2N-CH 30V 20A WISON-8 |
3,788 |
|
Datasheet |
OptiMOS™ | 8-PowerVDFN | Tape & Reel (TR) | Obsolete | MOSFET (Metal Oxide) | 2 N-Channel (Dual) | Logic Level Gate, 4.5V Drive | 30V | 20A (Tc) | 18mOhm @ 9A, 10V | 2V @ 250µA | 2.6nC @ 4.5V | 360pF @ 15V | 17W | -55°C ~ 150°C (TJ) | - | - | Surface Mount | PG-WISON-8 |
|
AOD607_001MOSFET N/P-CH 30V 12A TO252-4L |
2,307 |
|
Datasheet |
- | TO-252-5, DPAK (4 Leads + Tab), TO-252AD | Tape & Reel (TR) | Obsolete | MOSFET (Metal Oxide) | N and P-Channel Complementary | - | 30V | 12A (Tc) | - | - | - | - | - | -55°C ~ 175°C (TJ) | - | - | Surface Mount | TO-252-4L |
|
|
AOD607_DELTAMOSFET N/P-CH 30V 12A TO252-4L |
6,172 |
|
Datasheet |
- | TO-252-5, DPAK (4 Leads + Tab), TO-252AD | Tape & Reel (TR) | Obsolete | MOSFET (Metal Oxide) | N and P-Channel Complementary | - | 30V | 12A (Tc) | 25mOhm @ 12A, 10V, 37mOhm @ 12A, 10V | 2.5V @ 250µA, 2.4V @ 250µA | 12.5nC @ 4.5V, 11.7nC @ 4.5V | 1250pF @ 15V, 1100pF @ 15V | 25W (Tc) | -55°C ~ 175°C (TJ) | - | - | Surface Mount | TO-252-4L |
|
PMGD175XNEAXMOSFET 2N-CH 30V 0.9A 6TSSOP |
5,940 |
|
Datasheet |
- | 6-TSSOP, SC-88, SOT-363 | Tape & Reel (TR) | Active | MOSFET (Metal Oxide) | 2 N-Channel (Dual) | - | 30V | 900mA (Ta) | 252mOhm @ 900mA, 4.5V | 1.25V @ 250µA | 1.65nC @ 4.5V | 81pF @ 15V | 390mW | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 6-TSSOP |
