FET, MOSFET Arrays
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Technology | Configuration | FET Feature | Drain to Source Voltage (Vdss) | Current - Continuous Drain (Id) @ 25°C | Rds On (Max) @ Id, Vgs | Vgs(th) (Max) @ Id | Gate Charge (Qg) (Max) @ Vgs | Input Capacitance (Ciss) (Max) @ Vds | Power - Max | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
NTLJD3119CTAGMOSFET N/P-CH 20V 2.6A 6WDFN |
7,340 |
|
Datasheet |
µCool™ | 6-WDFN Exposed Pad | Tape & Reel (TR) | Obsolete | MOSFET (Metal Oxide) | N and P-Channel | Logic Level Gate | 20V | 2.6A, 2.3A | 65mOhm @ 3.8A, 4.5V | 1V @ 250µA | 3.7nC @ 4.5V | 271pF @ 10V | 710mW | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 6-WDFN (2x2) |
|
NTZD5110NT5GMOSFET 2N-CH 60V 0.294A SOT563 |
9,589 |
|
Datasheet |
- | SOT-563, SOT-666 | Tape & Reel (TR) | Obsolete | MOSFET (Metal Oxide) | 2 N-Channel (Dual) | Logic Level Gate | 60V | 294mA | 1.6Ohm @ 500mA, 10V | 2.5V @ 250µA | 0.7nC @ 4.5V | 24.5pF @ 20V | 250mW | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SOT-563 |
|
IRF7507PBFMOSFET N/P-CH 20V 2.4A MICRO8 |
7,923 |
|
Datasheet |
HEXFET® | 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) | Tube | Discontinued at Digi-Key | MOSFET (Metal Oxide) | N and P-Channel | Logic Level Gate | 20V | 2.4A, 1.7A | 140mOhm @ 1.7A, 4.5V | 700mV @ 250µA (Min) | 8nC @ 4.5V | 260pF @ 15V | 1.25W | - | - | - | Surface Mount | Micro8™ |
|
MTM684100LBFMOSFET 2P-CH 12V 4.8A WMINI8-F1 |
8,850 |
|
Datasheet |
- | 8-SMD, Flat Leads | Tape & Reel (TR) | Obsolete | MOSFET (Metal Oxide) | 2 P-Channel (Dual) | - | 12V | 4.8A | 42mOhm @ 1A, 4V | 1V @ 1mA | - | 1200pF @ 10V | 1W | -40°C ~ 85°C (TJ) | - | - | Surface Mount | WMini8-F1 |
|
|
MTMC8E2A0LBFMOSFET 2N-CH 20V 7A WMINI8-F1 |
2,483 |
|
Datasheet |
- | 8-SMD, Flat Leads | Tape & Reel (TR) | Obsolete | MOSFET (Metal Oxide) | 2 N-Channel (Dual) | - | 20V | 7A | 21mOhm @ 2A, 4.5V | 1.3V @ 1mA | - | 1450pF @ 10V | 1W | 150°C (TJ) | - | - | Surface Mount | WMini8-F1 |
|
FD6M043N08MOSFET 2N-CH 75V 65A EPM15 |
7,864 |
|
Datasheet |
Power-SPM™ | EPM15 | Tube | Obsolete | MOSFET (Metal Oxide) | 2 N-Channel (Dual) | - | 75V | 65A | 4.3mOhm @ 40A, 10V | 4V @ 250µA | 148nC @ 10V | 6180pF @ 25V | - | -40°C ~ 150°C (TJ) | - | - | Through Hole | EPM15 |
|

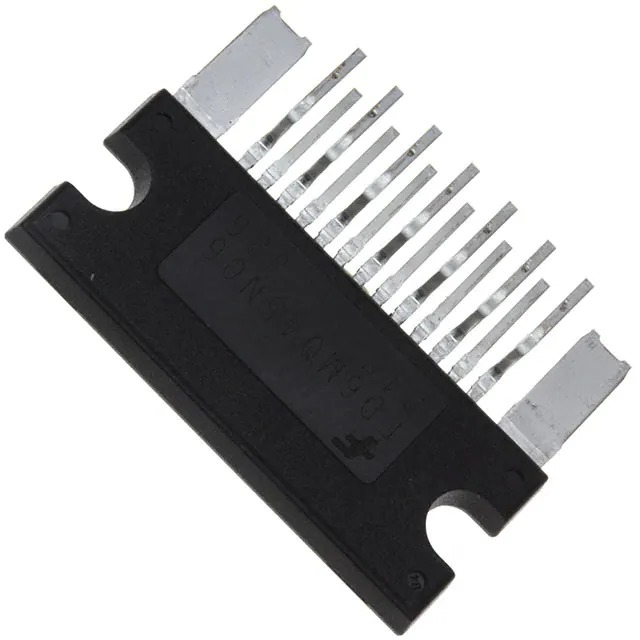

FD6M045N06MOSFET 2N-CH 60V 60A EPM15 |
5,873 |
|
Datasheet |
Power-SPM™ | EPM15 | Tube | Obsolete | MOSFET (Metal Oxide) | 2 N-Channel (Dual) | - | 60V | 60A | 4.5mOhm @ 40A, 10V | 4V @ 250µA | 87nC @ 10V | 3890pF @ 25V | - | -40°C ~ 150°C (TJ) | - | - | Through Hole | EPM15 |
|
FDS9933BZMOSFET 2P-CH 20V 4.9A 8SOIC |
3,774 |
|
Datasheet |
PowerTrench® | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Obsolete | MOSFET (Metal Oxide) | 2 P-Channel (Dual) | Logic Level Gate | 20V | 4.9A | 46mOhm @ 4.9A, 4.5V | 1.5V @ 250µA | 15nC @ 4.5V | 985pF @ 10V | 900mW | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 8-SOIC |
|
AO4622MOSFET N/P-CH 20V 8SOIC |
7,251 |
|
Datasheet |
- | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Obsolete | MOSFET (Metal Oxide) | N and P-Channel | Logic Level Gate | 20V | - | 23mOhm @ 7.3A, 10V | 2V @ 250µA | 18nC @ 10V | 1100pF @ 10V | 2W | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 8-SOIC |
|
|
AO4826MOSFET 2N-CH 60V 8SOIC |
6,935 |
|
Datasheet |
- | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Obsolete | MOSFET (Metal Oxide) | 2 N-Channel (Dual) | Logic Level Gate | 60V | - | 25mOhm @ 6.3A, 10V | 3V @ 250µA | 58nC @ 10V | 2300pF @ 30V | 2W | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 8-SOIC |
|
|
AO4932MOSFET 2N-CH 30V 11A/8A 8SOIC |
2,922 |
|
Datasheet |
SRFET™ | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Obsolete | MOSFET (Metal Oxide) | 2 N-Channel (Dual) | Logic Level Gate | 30V | 11A, 8A | 12.5mOhm @ 11A, 10V | 2.1V @ 250µA | 24nC @ 10V | 1400pF @ 15V | 2W | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 8-SOIC |
|
AO8830MOSFET 2N-CH 20V 8TSSOP |
7,804 |
|
Datasheet |
- | 8-TSSOP (0.173", 4.40mm Width) | Tape & Reel (TR) | Obsolete | MOSFET (Metal Oxide) | 2 N-Channel (Dual) Common Drain | Logic Level Gate | 20V | - | 27mOhm @ 6A, 10V | 1V @ 1mA | 5.2nC @ 4.5V | 290pF @ 10V | 1.5W | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 8-TSSOP |
|

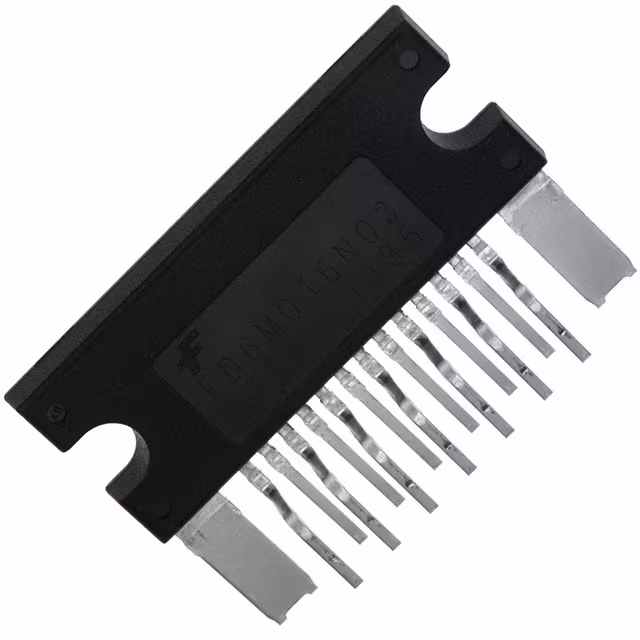

FD6M016N03MOSFET 2N-CH 30V 80A EPM15 |
4,256 |
|
Datasheet |
Power-SPM™ | EPM15 | Tube | Obsolete | MOSFET (Metal Oxide) | 2 N-Channel (Dual) | - | 30V | 80A | 1.6mOhm @ 40A, 10V | 3V @ 250µA | 295nC @ 10V | 11535pF @ 15V | - | -40°C ~ 150°C (TJ) | - | - | Through Hole | EPM15 |
|
APTC60AM18SCGMOSFET 2N-CH 600V 143A SP6 |
3,869 |
|
Datasheet |
CoolMOS™ | SP6 | Bulk | Obsolete | MOSFET (Metal Oxide) | 2 N-Channel (Half Bridge) | - | 600V | 143A | 18mOhm @ 71.5A, 10V | 3.9V @ 4mA | 1036nC @ 10V | 28000pF @ 25V | 833W | -40°C ~ 150°C (TJ) | - | - | Chassis Mount | SP6 |
|
APTC60HM35T3GMOSFET 4N-CH 600V 72A SP3 |
4,577 |
|
Datasheet |
- | SP3 | Bulk | Obsolete | MOSFET (Metal Oxide) | 4 N-Channel (Full Bridge) | - | 600V | 72A | 35mOhm @ 72A, 10V | 3.9V @ 5.4mA | 518nC @ 10V | 14000pF @ 25V | 416W | -40°C ~ 150°C (TJ) | - | - | Chassis Mount | SP3 |
|

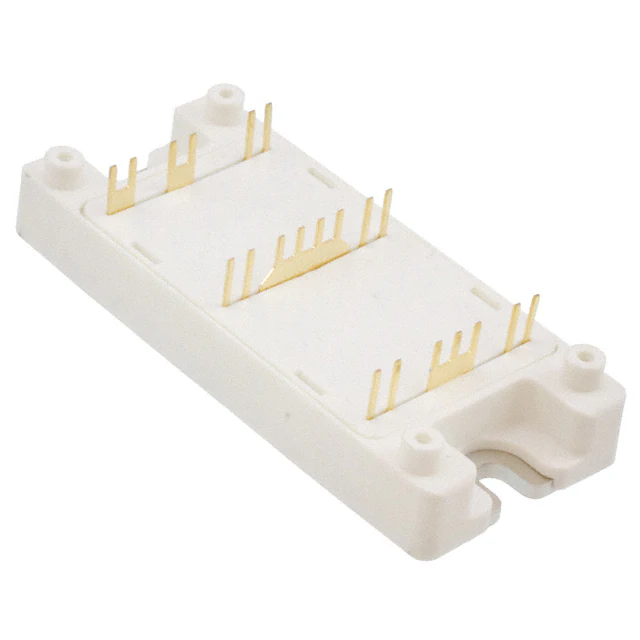

APTC60HM70SCTGMOSFET 4N-CH 600V 39A SP4 |
9,279 |
|
Datasheet |
CoolMOS™ | SP4 | Bulk | Obsolete | MOSFET (Metal Oxide) | 4 N-Channel (Full Bridge) | - | 600V | 39A | 70mOhm @ 39A, 10V | 3.9V @ 2.7mA | 259nC @ 10V | 7000pF @ 25V | 250W | -40°C ~ 150°C (TJ) | - | - | Chassis Mount | SP4 |
|
APTC60HM70T1GMOSFET 4N-CH 600V 39A SP1 |
6,662 |
|
Datasheet |
- | SP1 | Bulk | Obsolete | MOSFET (Metal Oxide) | 4 N-Channel (Full Bridge) | - | 600V | 39A | 70mOhm @ 39A, 10V | 3.9V @ 2.7mA | 259nC @ 10V | 7000pF @ 25V | 250W | -40°C ~ 150°C (TJ) | - | - | Chassis Mount | SP1 |
|
IRF7379QTRPBFMOSFET N/P-CH 30V 5.8A/4.3A 8SO |
3,477 |
|
Datasheet |
- | 8-SOIC (0.154", 3.90mm Width) | Cut Tape (CT) | Obsolete | MOSFET (Metal Oxide) | N and P-Channel | Logic Level Gate | 30V | 5.8A, 4.3A | 45mOhm @ 5.8A, 10V | 1V @ 250µA | 25nC @ 10V | 520pF @ 25V | 2.5W | - | - | - | Surface Mount | 8-SO |
|
|
IRF7309QTRPBFMOSFET N/P-CH 30V 4A/3A 8SO |
3,397 |
|
Datasheet |
- | 8-SOIC (0.154", 3.90mm Width) | Cut Tape (CT) | Obsolete | MOSFET (Metal Oxide) | N and P-Channel | - | 30V | 4A, 3A | 50mOhm @ 2.4A, 10V | 1V @ 250µA | 25nC @ 4.5V | 520pF @ 15V | 1.4W | - | - | - | Surface Mount | 8-SO |
|
|
IRF7306QTRPBFMOSFET 2P-CH 30V 3.6A 8SO |
4,555 |
|
Datasheet |
- | 8-SOIC (0.154", 3.90mm Width) | Cut Tape (CT) | Obsolete | MOSFET (Metal Oxide) | 2 P-Channel (Dual) | - | 30V | 3.6A | 100mOhm @ 1.8A, 10V | 1V @ 250µA | 25nC @ 10V | 440pF @ 25V | 2W | - | - | - | Surface Mount | 8-SO |
FET, MOSFET Arrays Electronic Components
Explore FET, MOSFET Arrays electronic components, related subcategories, product specifications, datasheets and sourcing options. We support original component procurement, BOM sourcing and RFQ services for engineers, distributors and global buyers.
