FET, MOSFET Arrays
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Technology | Configuration | FET Feature | Drain to Source Voltage (Vdss) | Current - Continuous Drain (Id) @ 25°C | Rds On (Max) @ Id, Vgs | Vgs(th) (Max) @ Id | Gate Charge (Qg) (Max) @ Vgs | Input Capacitance (Ciss) (Max) @ Vds | Power - Max | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

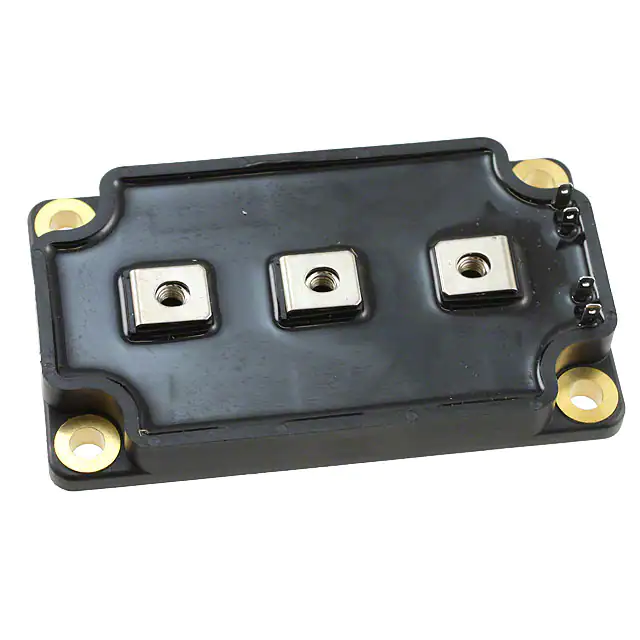

APTM20DUM04GMOSFET 2N-CH 200V 372A SP6 |
5,791 |
|
Datasheet |
- | SP6 | Bulk | Active | MOSFET (Metal Oxide) | 2 N-Channel (Dual) | - | 200V | 372A | 5mOhm @ 186A, 10V | 5V @ 10mA | 560nC @ 10V | 28900pF @ 25V | 1250W | -40°C ~ 150°C (TJ) | - | - | Chassis Mount | SP6 |
|
APTM50AM19FGMOSFET 2N-CH 500V 163A SP6 |
4,054 |
|
Datasheet |
- | SP6 | Bulk | Active | MOSFET (Metal Oxide) | 2 N-Channel (Half Bridge) | - | 500V | 163A | 22.5mOhm @ 81.5A, 10V | 5V @ 10mA | 492nC @ 10V | 22400pF @ 25V | 1136W | -40°C ~ 150°C (TJ) | - | - | Chassis Mount | SP6 |
|
VMM650-01FMOSFET 2N-CH 100V 680A Y3-LI |
8,899 |
|
- |
HiPerFET™ | Y3-Li | Box | Obsolete | MOSFET (Metal Oxide) | 2 N-Channel (Dual) | - | 100V | 680A | 2.2mOhm @ 500A, 10V | 4V @ 30mA | 1440nC @ 10V | - | - | -40°C ~ 150°C (TJ) | - | - | Chassis Mount | Y3-Li |
|
|
APTM10DUM02GMOSFET 2N-CH 100V 495A SP6 |
6,334 |
|
Datasheet |
- | SP6 | Bulk | Active | MOSFET (Metal Oxide) | 2 N-Channel (Dual) | - | 100V | 495A | 2.5mOhm @ 200A, 10V | 4V @ 10mA | 1360nC @ 10V | 40000pF @ 25V | 1250W | -40°C ~ 150°C (TJ) | - | - | Chassis Mount | SP6 |
|
|
APTM120A20DGMOSFET 2N-CH 1200V 50A SP6 |
2,973 |
|
Datasheet |
- | SP6 | Bulk | Active | MOSFET (Metal Oxide) | 2 N-Channel (Half Bridge) | - | 1200V (1.2kV) | 50A | 240mOhm @ 25A, 10V | 5V @ 6mA | 600nC @ 10V | 15200pF @ 25V | 1250W | -40°C ~ 150°C (TJ) | - | - | Chassis Mount | SP6 |
|
|
APTM50HM38FGMOSFET 4N-CH 500V 90A SP6 |
9,865 |
|
Datasheet |
- | SP6 | Bulk | Active | MOSFET (Metal Oxide) | 4 N-Channel (Full Bridge) | - | 500V | 90A | 45mOhm @ 45A, 10V | 5V @ 5mA | 246nC @ 10V | 11200pF @ 25V | 694W | -40°C ~ 150°C (TJ) | - | - | Chassis Mount | SP6 |
|
|
APTM120A20SGMOSFET 2N-CH 1200V 50A SP6 |
6,405 |
|
Datasheet |
- | SP6 | Bulk | Active | MOSFET (Metal Oxide) | 2 N-Channel (Half Bridge) | - | 1200V (1.2kV) | 50A | 240mOhm @ 25A, 10V | 5V @ 6mA | 600nC @ 10V | 15200pF @ 25V | 1250W | -40°C ~ 150°C (TJ) | - | - | Chassis Mount | SP6 |
|
|
MSCC60VRM45TAPGMOSFET 600V 40A SP6-P |
8,432 |
|
Datasheet |
- | Module | Tube | Active | - | - | - | 600V | 40A (Tc) | - | - | - | - | - | - | - | - | Chassis Mount | SP6-P |
|
APTM120DU15GMOSFET 2N-CH 1200V 60A SP6 |
4,944 |
|
Datasheet |
- | SP6 | Bulk | Active | MOSFET (Metal Oxide) | 2 N-Channel (Dual) | - | 1200V (1.2kV) | 60A | 175mOhm @ 30A, 10V | 5V @ 10mA | 748nC @ 10V | 20600pF @ 25V | 1250W | -40°C ~ 150°C (TJ) | - | - | Chassis Mount | SP6 |
|
APTM10AM02FGMOSFET 2N-CH 100V 495A SP6 |
5,423 |
|
Datasheet |
- | SP6 | Bulk | Active | MOSFET (Metal Oxide) | 2 N-Channel (Half Bridge) | - | 100V | 495A | 2.5mOhm @ 200A, 10V | 4V @ 10mA | 1360nC @ 10V | 40000pF @ 25V | 1250W | -40°C ~ 150°C (TJ) | - | - | Chassis Mount | SP6 |
|
|
APTM20HM08FGMOSFET 4N-CH 200V 208A SP6 |
2,285 |
|
Datasheet |
- | SP6 | Bulk | Active | MOSFET (Metal Oxide) | 4 N-Channel (Full Bridge) | - | 200V | 208A | 10mOhm @ 104A, 10V | 5V @ 5mA | 280nC @ 10V | 14400pF @ 25V | 781W | -40°C ~ 150°C (TJ) | - | - | Chassis Mount | SP6 |
|
|
APTM50AM24SCGMOSFET 2N-CH 500V 150A SP6 |
9,155 |
|
Datasheet |
- | SP6 | Bulk | Active | Silicon Carbide (SiC) | 2 N-Channel (Half Bridge) | - | 500V | 150A | 28mOhm @ 75A, 10V | 5V @ 6mA | 434nC @ 10V | 19600pF @ 25V | 1250W | -40°C ~ 150°C (TJ) | - | - | Chassis Mount | SP6 |
|

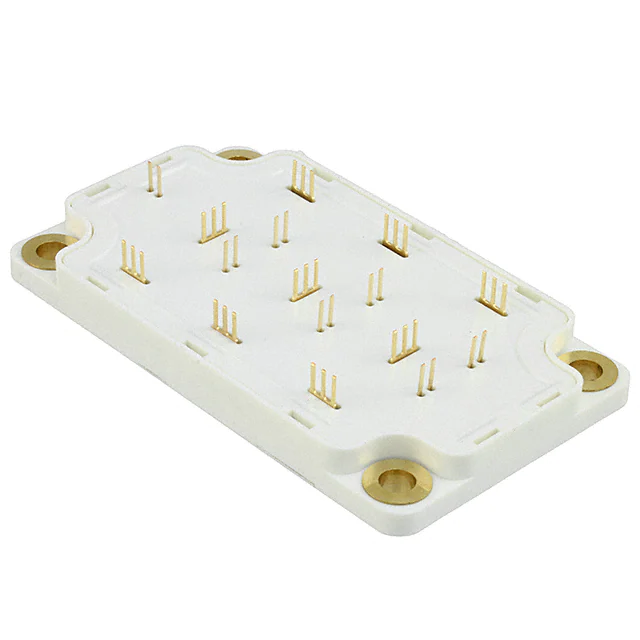

APTC60TAM24TPGMOSFET 6N-CH 600V 95A SP6-P |
4,923 |
|
Datasheet |
CoolMOS™ | SP6 | Tray | Active | MOSFET (Metal Oxide) | 6 N-Channel (3-Phase Bridge) | - | 600V | 95A | 24mOhm @ 47.5A, 10V | 3.9V @ 5mA | 300nC @ 10V | 14400pF @ 25V | 462W | -40°C ~ 150°C (TJ) | - | - | Chassis Mount | SP6-P |
|
APTM10HM05FGMOSFET 4N-CH 100V 278A SP6 |
3,148 |
|
Datasheet |
- | SP6 | Bulk | Active | MOSFET (Metal Oxide) | 4 N-Channel (Full Bridge) | - | 100V | 278A | 5mOhm @ 125A, 10V | 4V @ 5mA | 700nC @ 10V | 20000pF @ 25V | 780W | -40°C ~ 150°C (TJ) | - | - | Chassis Mount | SP6 |
|
|
APTM50AM17FGMOSFET 2N-CH 500V 180A SP6 |
6,970 |
|
Datasheet |
- | SP6 | Bulk | Active | MOSFET (Metal Oxide) | 2 N-Channel (Half Bridge) | - | 500V | 180A | 20mOhm @ 90A, 10V | 5V @ 10mA | 560nC @ 10V | 28000pF @ 25V | 1250W | -40°C ~ 150°C (TJ) | - | - | Chassis Mount | SP6 |
|
|
APTM50HM35FGMOSFET 4N-CH 500V 99A SP6 |
7,410 |
|
Datasheet |
- | SP6 | Bulk | Active | MOSFET (Metal Oxide) | 4 N-Channel (Full Bridge) | - | 500V | 99A | 39mOhm @ 49.5A, 10V | 5V @ 5mA | 280nC @ 10V | 14000pF @ 25V | 781W | -40°C ~ 150°C (TJ) | - | - | Chassis Mount | SP6 |
|
APTM100AM90FGMOSFET 2N-CH 1000V 78A SP6 |
6,139 |
|
Datasheet |
- | SP6 | Bulk | Active | MOSFET (Metal Oxide) | 2 N-Channel (Half Bridge) | - | 1000V (1kV) | 78A | 105mOhm @ 39A, 10V | 5V @ 10mA | 744nC @ 10V | 20700pF @ 25V | 1250W | -40°C ~ 150°C (TJ) | - | - | Chassis Mount | SP6 |
|
|
APTM120A15FGMOSFET 2N-CH 1200V 60A SP6 |
6,464 |
|
Datasheet |
- | SP6 | Bulk | Active | MOSFET (Metal Oxide) | 2 N-Channel (Half Bridge) | - | 1200V (1.2kV) | 60A | 175mOhm @ 30A, 10V | 5V @ 10mA | 748nC @ 10V | 20600pF @ 25V | 1250W | -40°C ~ 150°C (TJ) | - | - | Chassis Mount | SP6 |
|
APTM100H18FGMOSFET 4N-CH 1000V 43A SP6 |
3,903 |
|
Datasheet |
- | SP6 | Bulk | Active | MOSFET (Metal Oxide) | 4 N-Channel (Full Bridge) | - | 1000V (1kV) | 43A | 210mOhm @ 21.5A, 10V | 5V @ 5mA | 372nC @ 10V | 10400pF @ 25V | 780W | -40°C ~ 150°C (TJ) | - | - | Chassis Mount | SP6 |
|
|
CAB5R0A23GM4TMOSFET 2N-CH 2300V 150A |
6,127 |
|
Datasheet |
- | Module | Box | Active | Silicon Carbide (SiC) | 2 N-Channel (Half Bridge) | Silicon Carbide (SiC) | 2300V (2.3kV) | 150A | 7mOhm @ 240A, 15V | 4V @ 114mA | 880nC @ 15V | 36600pF @ 1.5kV | 710W | -40°C ~ 150°C (TJ) | - | - | Chassis Mount | - |
