FET, MOSFET Arrays
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Technology | Configuration | FET Feature | Drain to Source Voltage (Vdss) | Current - Continuous Drain (Id) @ 25°C | Rds On (Max) @ Id, Vgs | Vgs(th) (Max) @ Id | Gate Charge (Qg) (Max) @ Vgs | Input Capacitance (Ciss) (Max) @ Vds | Power - Max | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
APTM100A18FTGMOSFET 2N-CH 1000V 43A SP4 |
7,540 |
|
Datasheet |
- | SP4 | Bulk | Active | MOSFET (Metal Oxide) | 2 N-Channel (Half Bridge) | - | 1000V (1kV) | 43A | 210mOhm @ 21.5A, 10V | 5V @ 5mA | 372nC @ 10V | 10400pF @ 25V | 780W | -40°C ~ 150°C (TJ) | - | - | Chassis Mount | SP4 |
|
APTM20AM05FTGMOSFET 2N-CH 200V 333A SP4 |
5,903 |
|
Datasheet |
- | SP4 | Bulk | Discontinued at Digi-Key | MOSFET (Metal Oxide) | 2 N-Channel (Half Bridge) | - | 200V | 333A | 5mOhm @ 166.5A, 10V | 4V @ 8mA | 1184nC @ 10V | 40800pF @ 25V | 1250W | -40°C ~ 150°C (TJ) | - | - | Chassis Mount | SP4 |
|
|
APTM100H35FTGMOSFET 4N-CH 1000V 22A SP4 |
4,896 |
|
Datasheet |
- | SP4 | Bulk | Active | MOSFET (Metal Oxide) | 4 N-Channel (Full Bridge) | - | 1000V (1kV) | 22A | 420mOhm @ 11A, 10V | 5V @ 2.5mA | 186nC @ 10V | 5200pF @ 25V | 390W | -40°C ~ 150°C (TJ) | - | - | Chassis Mount | SP4 |
|
|
APTM120A29FTGMOSFET 2N-CH 1200V 34A SP4 |
4,773 |
|
Datasheet |
- | SP4 | Bulk | Active | MOSFET (Metal Oxide) | 2 N-Channel (Half Bridge) | - | 1200V (1.2kV) | 34A | 348mOhm @ 17A, 10V | 5V @ 5mA | 374nC @ 10V | 10300pF @ 25V | 780W | -40°C ~ 150°C (TJ) | - | - | Chassis Mount | SP4 |
|
|
APTM50HM75SCTGMOSFET 4N-CH 500V 46A SP4 |
7,178 |
|
- |
- | SP4 | Bulk | Active | Silicon Carbide (SiC) | 4 N-Channel (Full Bridge) | - | 500V | 46A | 90mOhm @ 23A, 10V | 5V @ 2.5mA | 123nC @ 10V | 5590pF @ 25V | 357W | -40°C ~ 150°C (TJ) | - | - | Chassis Mount | SP4 |
|
|
APTC60HM45SCTGMOSFET 4N-CH 600V 49A SP4 |
3,571 |
|
Datasheet |
CoolMOS™ | SP4 | Bulk | Active | MOSFET (Metal Oxide) | 4 N-Channel (Full Bridge) | - | 600V | 49A | 45mOhm @ 22.5A, 10V | 3.9V @ 3mA | 150nC @ 10V | 7200pF @ 25V | 250W | -40°C ~ 150°C (TJ) | - | - | Chassis Mount | SP4 |
|
|
UHB100SC12E1BC3NMOSFET 2P-CH 1200V 100A MODULE |
2,320 |
|
Datasheet |
- | Module | Bulk | Active | SiCFET (Silicon Carbide) | 2 P-Channel (Half Bridge) | Silicon Carbide (SiC) | 1200V (1.2kV) | 100A (Tc) | 12mOhm @ 70A, 12V | 6V @ 40mA | 170nC @ 15V | 5859pF @ 800V | 417W (Tc) | -55°C ~ 150°C (TJ) | - | - | Chassis Mount | Module |
|
|
APTC60HM24T3GMOSFET 4N-CH 600V 95A SP3 |
6,888 |
|
Datasheet |
CoolMOS™ | SP3 | Tray | Active | MOSFET (Metal Oxide) | 4 N-Channel (Full Bridge) | - | 600V | 95A | 24mOhm @ 47.5A, 10V | 3.9V @ 5mA | 300nC @ 10V | 14400pF @ 25V | 462W | -40°C ~ 150°C (TJ) | - | - | Chassis Mount | SP3 |
|
|
APTC60AM24SCTGMOSFET 2N-CH 600V 95A SP4 |
9,482 |
|
Datasheet |
CoolMOS™ | SP4 | Bulk | Active | MOSFET (Metal Oxide) | 2 N Channel (Phase Leg) | - | 600V | 95A | 24mOhm @ 47.5A, 10V | 3.9V @ 5mA | 300nC @ 10V | 14400pF @ 25V | 462W | -40°C ~ 150°C (TJ) | - | - | Chassis Mount | SP4 |
|
|
APTM100A23SCTGMOSFET 2N-CH 1000V 36A SP4 |
8,744 |
|
Datasheet |
- | SP4 | Bulk | Obsolete | Silicon Carbide (SiC) | 2 N-Channel (Half Bridge) | - | 1000V (1kV) | 36A | 270mOhm @ 18A, 10V | 5V @ 5mA | 308nC @ 10V | 8700pF @ 25V | 694W | -40°C ~ 150°C (TJ) | - | - | Chassis Mount | SP4 |
|
VMM1500-0075PMOSFET 2N-CH 75V 1500A Y3-LI |
5,277 |
|
Datasheet |
- | Y3-Li | Box | Obsolete | MOSFET (Metal Oxide) | 2 N-Channel (Dual) | - | 75V | 1500A | 0.8mOhm @ 1200A, 10V | 4V @ 10mA | 2480nC @ 10V | - | - | -40°C ~ 175°C (TJ) | - | - | Chassis Mount | Y3-Li |
|
APTM100H45SCTGMOSFET 4N-CH 1000V 18A SP4 |
1 |
|
Datasheet |
POWER MOS 7® | SP4 | Bulk | Active | MOSFET (Metal Oxide) | 4 N-Channel (Full Bridge) | - | 1000V (1kV) | 18A | 540mOhm @ 9A, 10V | 5V @ 2.5mA | 154nC @ 10V | 4350pF @ 25V | 357W | -40°C ~ 150°C (TJ) | - | - | Chassis Mount | SP4 |
|
|
VMM90-09FMOSFET 2N-CH 900V 85A Y3-LI |
6,153 |
|
- |
HiPerFET™ | Y3-Li | Box | Obsolete | MOSFET (Metal Oxide) | 2 N-Channel (Dual) | - | 900V | 85A | 76mOhm @ 65A, 10V | 5V @ 30mA | 960nC @ 10V | - | - | -40°C ~ 150°C (TJ) | - | - | Chassis Mount | Y3-Li |
.jpg)
|
MSCSM120AM16CT1AGMOSFET 2N-CH 1200V 173A SP1F |
4,936 |
|
Datasheet |
- | Module | Tube | Active | Silicon Carbide (SiC) | 2 N Channel (Phase Leg) | - | 1200V (1.2kV) | 173A (Tc) | 16mOhm @ 80A, 20V | 2.8V @ 2mA | 464nC @ 20V | 6040pF @ 1000V | 745W (Tc) | -40°C ~ 175°C (TJ) | - | - | Chassis Mount | SP1F |
|
|
APTM50DHM38GMOSFET 2N-CH 500V 90A SP6 |
4,219 |
|
Datasheet |
- | SP6 | Bulk | Active | MOSFET (Metal Oxide) | 2 N-Channel (Dual) Asymmetrical | - | 500V | 90A | 45mOhm @ 45A, 10V | 5V @ 5mA | 246nC @ 10V | 11200pF @ 25V | 694W | -40°C ~ 150°C (TJ) | - | - | Chassis Mount | SP6 |
|
|
APTM50AM38SCTGMOSFET 2N-CH 500V 90A SP4 |
4,289 |
|
- |
- | SP4 | Bulk | Active | Silicon Carbide (SiC) | 2 N-Channel (Half Bridge) | - | 500V | 90A | 45mOhm @ 45A, 10V | 5V @ 5mA | 246nC @ 10V | 11200pF @ 25V | 694W | -40°C ~ 150°C (TJ) | - | - | Chassis Mount | SP4 |
|
|
MMPA60P1000TLAMOSFET 2N-CH 1000V Y3-LI |
6,790 |
|
- |
MMPA60P1000TLA | Y3-Li | Box | Obsolete | MOSFET (Metal Oxide) | 2 N Channel (Phase Leg) | - | 1000V (1kV) | - | - | - | - | - | - | - | - | - | Chassis Mount | Y3-Li |
|
VMM300-03FMOSFET 2N-CH 300V 290A Y3-DCB |
3,083 |
|
- |
HiPerFET™ | Y3-DCB | Box | Obsolete | MOSFET (Metal Oxide) | 2 N-Channel (Dual) | - | 300V | 290A | 8.6mOhm @ 145A, 10V | 4V @ 30mA | 1440nC @ 10V | 40000pF @ 25V | 1500W | -40°C ~ 150°C (TJ) | - | - | Chassis Mount | Y3-DCB |
|
|
CAB7R5A23GM4TMOSFET 2N-CH 2300V 150A |
9,044 |
|
Datasheet |
- | Module | Box | Active | Silicon Carbide (SiC) | 2 N-Channel (Half Bridge) | Silicon Carbide (SiC) | 2300V (2.3kV) | 150A | 10.5mOhm @ 160A, 15V | 4V @ 76mA | 590nC @ 15V | 24400pF @ 1.5kV | 510W | -40°C ~ 150°C (TJ) | - | - | Chassis Mount | - |
|

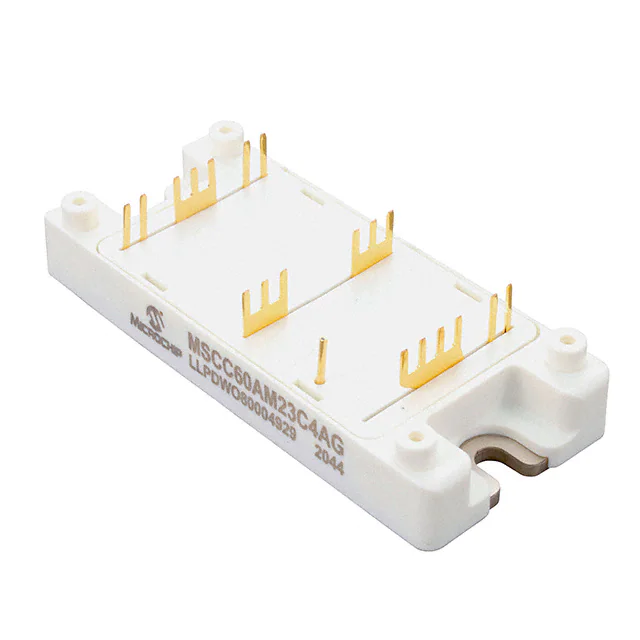

MSCC60AM23C4AGMOSFET 2N-CH 600V 81A SP4 |
9,971 |
|
Datasheet |
- | Module | Tube | Active | MOSFET (Metal Oxide) | 2 N-Channel | - | 600V | 81A (Tc) | - | - | - | - | - | - | - | - | Chassis Mount | SP4 |
