FET, MOSFET Arrays
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Technology | Configuration | FET Feature | Drain to Source Voltage (Vdss) | Current - Continuous Drain (Id) @ 25°C | Rds On (Max) @ Id, Vgs | Vgs(th) (Max) @ Id | Gate Charge (Qg) (Max) @ Vgs | Input Capacitance (Ciss) (Max) @ Vds | Power - Max | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
FMM150-0075X2FMOSFET 2N-CH 75V 120A I4-PAC |
7,765 |
|
- |
HiPerFET™, TrenchT2™ | ISOPLUSi5-PAK™ | Tube | Active | MOSFET (Metal Oxide) | 2 N-Channel (Dual) Asymmetrical | - | 75V | 120A | 5.8mOhm @ 100A, 10V | 4V @ 250µA | 178nC @ 10V | 10500pF @ 25V | 170W | -55°C ~ 175°C (TJ) | - | - | Through Hole | ISOPLUS i4-PAC™ |
|
MSCSM120AM50CT1AGMOSFET 2N-CH 1200V 55A SP1F |
8,032 |
|
Datasheet |
- | Module | Tube | Active | Silicon Carbide (SiC) | 2 N Channel (Phase Leg) | - | 1200V (1.2kV) | 55A (Tc) | 50mOhm @ 40A, 20V | 2.7V @ 1mA | 137nC @ 20V | 1990pF @ 1000V | 245W (Tc) | -40°C ~ 175°C (TJ) | - | - | Chassis Mount | SP1F |
|
MSCSM70AM10CT3AGMOSFET 2N-CH 700V 241A SP3F |
6,864 |
|
Datasheet |
- | Module | Tube | Active | Silicon Carbide (SiC) | 2 N Channel (Phase Leg) | - | 700V | 241A (Tc) | 9.5mOhm @ 80A, 20V | 2.4V @ 8mA | 430nC @ 20V | 9000pF @ 700V | 690W (Tc) | -40°C ~ 175°C (TJ) | - | - | Chassis Mount | SP3F |
|
MSCSM170AM23CT1AGMOSFET 2N-CH 1700V 124A |
8,228 |
|
Datasheet |
- | Module | Bulk | Active | Silicon Carbide (SiC) | 2 N Channel (Phase Leg) | - | 1700V (1.7kV) | 124A (Tc) | 22.5mOhm @ 60A, 20V | 3.2V @ 5mA | 356nC @ 20V | 6600pF @ 1000V | 602W (Tc) | -40°C ~ 175°C (TJ) | - | - | Chassis Mount | - |
|
MSCSM170AM11CT3AGMOSFET 2N-CH 1700V 240A |
2,547 |
|
Datasheet |
- | Module | Bulk | Active | Silicon Carbide (SiC) | 2 N Channel (Phase Leg) | - | 1700V (1.7kV) | 240A (Tc) | 11.3mOhm @ 120A, 20V | 3.2V @ 10mA | 712nC @ 20V | 13200pF @ 1000V | 1.14kW (Tc) | -40°C ~ 175°C (TJ) | - | - | Chassis Mount | - |
|
|
MSCSM170DUM058AGMOSFET 2N-CH 1700V 353A |
1 |
|
Datasheet |
- | Module | Bulk | Active | Silicon Carbide (SiC) | 2 N-Channel (Dual) Common Source | - | 1700V (1.7kV) | 353A (Tc) | 7.5mOhm @ 180A, 20V | 3.3V @ 15mA | 1068nC @ 20V | 19800pF @ 1000V | 1642W (Tc) | -40°C ~ 175°C (TJ) | - | - | Chassis Mount | - |
|
|
MSCSM170DUM039AGMOSFET 2N-CH 1700V 523A |
2,053 |
|
- |
- | Module | Bulk | Active | Silicon Carbide (SiC) | 2 N-Channel (Dual) Common Source | - | 1700V (1.7kV) | 523A (Tc) | 5mOhm @ 270A, 20V | 3.3V @ 22.5mA | 1602nC @ 20V | 29700pF @ 1000V | 2400W (Tc) | -40°C ~ 175°C (TJ) | - | - | Chassis Mount | - |
|
CAS300M12BM2MOSFET 2N-CH 1200V 423A MODULE |
1 |
|
Datasheet |
Z-FET™ | Module, Screw Terminals | Bulk | Not For New Designs | Silicon Carbide (SiC) | 2 N-Channel (Half Bridge) | - | 1200V (1.2kV) | 423A (Tc) | 5.7mOhm @ 300A, 20V | 2.3V @ 15mA (Typ) | 1025nC @ 20V | 19500pF @ 800V | 1660W | 150°C (TJ) | - | - | Chassis Mount | Module |
|
|
MSCSM120DUM027AGMOSFET 2N-CH 1200V 733A |
1 |
|
- |
- | Module | Bulk | Active | Silicon Carbide (SiC) | 2 N-Channel (Dual) Common Source | - | 1200V (1.2kV) | 733A (Tc) | 3.5mOhm @ 360A, 20V | 2.8V @ 9mA | 2088nC @ 20V | 27000pF @ 1000V | 2968W (Tc) | -40°C ~ 175°C (TJ) | - | - | Chassis Mount | - |
.jpg)
|
MSCSM120AM02CT6LIAGMOSFET 2N-CH 1200V 947A SP6C LI |
1 |
|
Datasheet |
- | Module | Tube | Active | Silicon Carbide (SiC) | 2 N Channel (Phase Leg) | - | 1200V (1.2kV) | 947A (Tc) | 2.6mOhm @ 480A, 20V | 2.8V @ 12mA | 2784nC @ 20V | 36240pF @ 1000V | 3.75kW (Tc) | -40°C ~ 175°C (TJ) | - | - | Chassis Mount | SP6C LI |
|

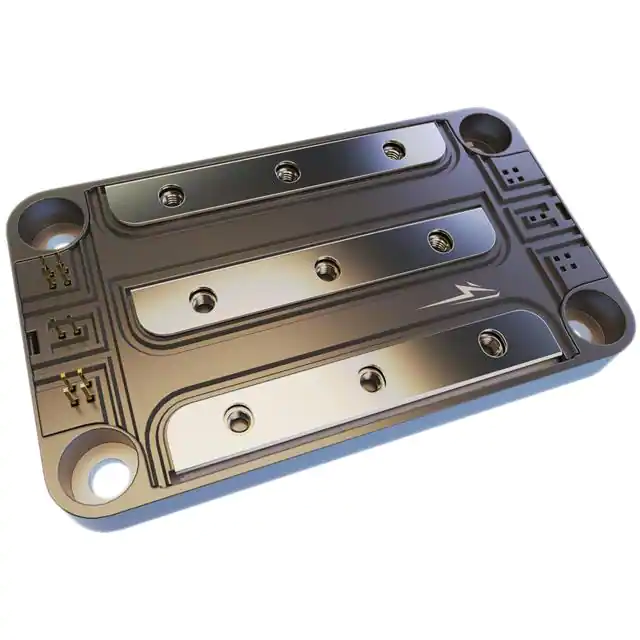

CAB760M12HM3RMOSFET 2N-CH 1200V 1.015KA MODUL |
8,623 |
|
Datasheet |
- | Module | Box | Active | Silicon Carbide (SiC) | 2 N-Channel (Half Bridge) | - | 1200V (1.2kV) | 1.015kA (Tc) | 1.73mOhm @ 760A, 15V | 3.6V @ 280mA | 2724nC @ 15V | 79400pF @ 800V | - | -40°C ~ 175°C (TJ) | - | - | Chassis Mount | Module |
|
SSM6N35FE,LMMOSFET 2N-CH 20V 0.18A ES6 |
2,959 |
|
Datasheet |
- | SOT-563, SOT-666 | Tape & Reel (TR) | Active | MOSFET (Metal Oxide) | 2 N-Channel (Dual) | Logic Level Gate | 20V | 180mA | 3Ohm @ 50mA, 4V | 1V @ 1mA | - | 9.5pF @ 3V | 150mW | 150°C (TJ) | - | - | Surface Mount | ES6 |
|
PJT7812_R1_00001MOSFET 2N-CH 30V 0.5A SOT363 |
2,924 |
|
Datasheet |
- | 6-TSSOP, SC-88, SOT-363 | Tape & Reel (TR) | Not For New Designs | MOSFET (Metal Oxide) | 2 N-Channel (Dual) | - | 30V | 500mA (Ta) | 1.2Ohm @ 500mA, 4.5V | 1.1V @ 250µA | 0.87nC @ 4.5V | 34pF @ 15V | 350mW (Ta) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SOT-363 |
|
PJX8812_R1_00001MOSFET 2N-CH 30V 0.35A SOT563 |
3,742 |
|
- |
- | SOT-563, SOT-666 | Tape & Reel (TR) | Not For New Designs | MOSFET (Metal Oxide) | 2 N-Channel (Dual) | - | 30V | 350mA (Ta) | 1.2Ohm @ 350mA, 4.5V | 1.1V @ 250µA | 0.87nC @ 4.5V | 34pF @ 15V | 300mW (Ta) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SOT-563 |
|
SSM6N62TU,LXHFMOSFET 2N-CH 20V 0.8A UF6 |
7,941 |
|
Datasheet |
- | 6-SMD, Flat Leads | Tape & Reel (TR) | Active | MOSFET (Metal Oxide) | 2 N-Channel (Dual) | Logic Level Gate, 1.2V Drive | 20V | 800mA (Ta) | 85mOhm @ 800mA, 4.5V | 1V @ 1mA | 2nC @ 4.5V | 177pF @ 10V | 500mW (Ta) | 150°C | Automotive | AEC-Q101 | Surface Mount | UF6 |
|
US6M2GTRMOSFET N/P-CH 30V/20V 1.5A TUMT6 |
2,477 |
|
Datasheet |
- | 6-SMD, Flat Leads | Tape & Reel (TR) | Active | MOSFET (Metal Oxide) | N and P-Channel | - | 30V, 20V | 1.5A, 1A | 240mOhm @ 1.5A, 4.5V, 390mOhm @ 1A, 4.5V | 1.5V @ 1mA, 2V @ 1mA | 2.2nC @ 4.5V, 2.1nC @ 4.5V | 80pF @ 10V, 150pF @ 10V | 1W | 150°C | - | - | Surface Mount | TUMT6 |
|
AOD609GMOSFET N/P-CH 40V 12A TO252-4L |
2,564 |
|
Datasheet |
- | TO-252-5, DPAK (4 Leads + Tab), TO-252AD | Tape & Reel (TR) | Active | MOSFET (Metal Oxide) | N and P-Channel Complementary | - | 40V | 12A (Tc) | 30mOhm @ 12A, 10V, 45mOhm @ 12A, 10V | 3V @ 250µA | 13nC @ 10V, 21nC @ 10V | 545pF @ 20V, 890pF @ 20V | 2W (Ta), 27W (Tc), 2W (Ta), 30W (Tc) | -55°C ~ 175°C (TJ) | - | - | Surface Mount | TO-252-4L |
|
SSM6N951L,EFFMOSFET 2N-CH 12V 8A 6TCSPA |
3,387 |
|
Datasheet |
- | 6-SMD, No Lead | Tape & Reel (TR) | Active | MOSFET (Metal Oxide) | 2 N-Channel (Dual) Common Drain | - | 12V | 8A | 5.1mOhm @ 8A, 4.5V | - | - | - | - | - | - | - | Surface Mount | 6-TCSPA (2.14x1.67) |
|
ZXMN2AMCTAMOSFET 2N-CH 20V 3.7A 8DFN |
4 |
|
Datasheet |
- | 8-WDFN Exposed Pad | Tape & Reel (TR) | Active | MOSFET (Metal Oxide) | 2 N-Channel (Dual) | - | 20V | 3.7A (Ta) | 120mOhm @ 4A, 4.5V | 3V @ 250µA | 3.1nC @ 4.5V | 299pF @ 15V | 1.7W | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | DFN3020B-8 |
|
SIZ200DT-T1-GE3MOSFET 2N-CH 30V 22A 8POWERPAIR |
7,247 |
|
Datasheet |
TrenchFET® Gen IV | 8-PowerWDFN | Tape & Reel (TR) | Active | MOSFET (Metal Oxide) | 2 N-Channel (Dual) | - | 30V | 22A (Ta), 61A (Tc), 22A (Ta), 60A (Tc) | 5.5mOhm @ 10A, 10V, 5.8mOhm @ 10A, 10V | 2.4V @ 250µA | 28nC @ 10V, 30nC @ 10V | 1510pF @ 15V, 1600pF @ 15V | 4.3W (Ta), 33W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 8-PowerPair® (3.3x3.3) |
