Ferrite Beads and Chips
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Filter Type | Number of Lines | Impedance @ Frequency | Current Rating (Max) | DC Resistance (DCR) (Max) | Ratings | Operating Temperature | Mounting Type | Height (Max) | Size / Dimension | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
BLE32PN260SH1LFERRITE BEAD 26 OHM 1210 1LN |
515 |
|
Datasheet |
EMIFIL®, BLE18 | 1210 (3225 Metric) | Tape & Reel (TR) | Active | Power Line | 1 | 26 Ohms @ 100 MHz | 10A | 1.6mOhm | AEC-Q200 | -55°C ~ 125°C | Surface Mount | 0.063" (1.60mm) | 0.126" L x 0.098" W (3.20mm x 2.50mm) | - |
|
74279224401FERRITE BEAD 400 OHM 2220 1LN |
1,178 |
|
Datasheet |
WE-MPSB | 2220 (5650 Metric) | Tape & Reel (TR) | Active | - | 1 | 400 Ohms @ 100 MHz | 4.5A | 20mOhm | - | -55°C ~ 125°C | Surface Mount | 0.136" (3.45mm) | 0.220" L x 0.200" W (5.59mm x 5.08mm) | - |
|
2944776101FERRITE BEAD 302 OHM 6-THD 3LN |
53,358 |
|
Datasheet |
- | 6-THD | Bulk | Active | - | 3 | 302 Ohms @ 100 MHz | - | - | - | -55°C ~ 125°C | Through Hole | 0.465" (11.80mm) | 0.315" L x 0.299" W (8.00mm x 7.60mm) | - |
|
HI2220R301R-10FERRITE BEAD 300 OHM 2220 1LN |
92,809 |
|
Datasheet |
2220 | 2220 (5650 Metric) | Tape & Reel (TR) | Active | Power Line | 1 | 300 Ohms @ 100 MHz | 5A | 20mOhm | - | -40°C ~ 125°C | Surface Mount | 0.136" (3.45mm) | 0.220" L x 0.200" W (5.59mm x 5.08mm) | - |
|
DA1206C121R-10FERRITE BEAD 120 OHM 1206 4LN |
58,574 |
|
Datasheet |
1206 | 1206 (3216 Metric), Array, 8 PC Pad | Tape & Reel (TR) | Active | Power, Signal Line | 4 | 120 Ohms @ 100 MHz | 300mA | 200mOhm | - | -40°C ~ 125°C | Surface Mount | 0.043" (1.10mm) | 0.126" L x 0.063" W (3.20mm x 1.60mm) | - |
|
2944777741FERRITE BEAD 1.4K OHM AXIAL 1LN |
2,680 |
|
Datasheet |
- | Axial | Box | Active | - | 1 | 1.4 kOhms @ 100 MHz | - | - | - | -55°C ~ 125°C | Through Hole | - | 0.394" Dia x 0.394" L (10.00mm x 10.00mm) | - |
|
2533121018Y10FERRITE BEAD 100 OHM 3312 1LN |
30,690 |
|
Datasheet |
- | 3312 (8531 Metric) | Tape & Reel (TR) | Active | Signal Line | 1 | 100 Ohms @ 100 MHz | 10A | 4mOhm | - | -55°C ~ 125°C | Surface Mount | 0.098" (2.48mm) | 0.335" L x 0.120" W (8.50mm x 3.05mm) | - |
|
2743014221FERRITE BEAD 460 OHM AXIAL 1LN |
1,210 |
|
Datasheet |
- | Axial | Bulk | Active | - | 1 | 460 Ohms @ 100 MHz | - | - | - | -55°C ~ 125°C | Through Hole | - | 0.386" Dia x 0.650" L (9.80mm x 16.50mm) | - |
|

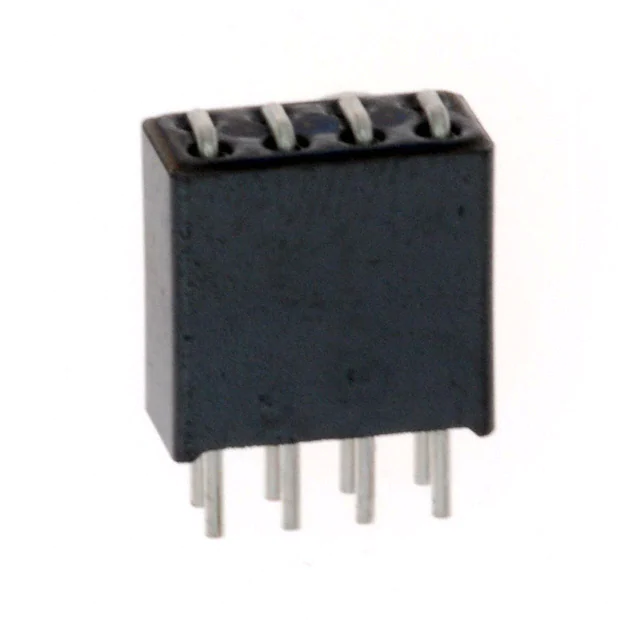

29F0429-0T0-10FERRITE BEAD 245 OHM 8-THD 4LN |
20,651 |
|
Datasheet |
29 | 8-THD | Bulk | Active | Power Line | 4 | 245 Ohms @ 100 MHz | 8A | 10mOhm | - | -40°C ~ 125°C | Through Hole | 0.411" (10.44mm) | 0.428" L x 0.216" W (10.88mm x 5.49mm) | - |
|
29F0303-0T0-10FERRITE BEAD 266 OHM 6-THD 3LN |
14,215 |
|
Datasheet |
29F | 6-THD | Bulk | Active | Power Line | 3 | 266 Ohms @ 100 MHz | 8A | 10mOhm | - | -40°C ~ 125°C | Through Hole | 0.411" (10.44mm) | 0.300" L x 0.200" W (7.62mm x 5.08mm) | - |
|
|
DA1206B102R-10FERRITE BEAD 1K OHM 1206 4LN |
27,526 |
|
Datasheet |
1206 | 1206 (3216 Metric), Array, 8 PC Pad | Tape & Reel (TR) | Active | Power, Signal Line | 4 | 1 kOhms @ 100 MHz | 200mA | 800mOhm | - | -40°C ~ 125°C | Surface Mount | 0.043" (1.10mm) | 0.126" L x 0.063" W (3.20mm x 1.60mm) | - |
|
|
HR2220P601R-10FERRITE BEAD 600 OHM 2220 1LN |
23,688 |
|
Datasheet |
2220 | 2220 (5650 Metric) | Tape & Reel (TR) | Active | Power Line | 1 | 600 Ohms @ 100 MHz | 4A | 25mOhm | - | -40°C ~ 125°C | Surface Mount | 0.136" (3.45mm) | 0.220" L x 0.200" W (5.59mm x 5.08mm) | - |
|
LB4X2X8UFERRITE BEAD AXIAL RAD 1LN |
1,256 |
|
Datasheet |
Amobeads® | Axial, Kinked Radial Bend | Bulk | Active | - | 1 | - | 8A (Typ) | - | - | - | Through Hole | - | 0.236" Dia x 0.472" L (6.00mm x 12.00mm) | - |
|
7427929115FERRITE BEAD 185 OHM 2SMD 1LN |
1,092 |
|
Datasheet |
WE-PF | 2-SMD, J-Lead | Tape & Reel (TR) | Active | - | 1 | 185 Ohms @ 100 MHz | 4.5A | 30mOhm | - | -40°C ~ 125°C | Surface Mount | 0.315" (8.00mm) | 0.472" L x 0.472" W (12.00mm x 12.00mm) | - |
|
|
742792903FERRITE BEAD 6000 OHM 2SMD 1LN |
517 |
|
Datasheet |
WE-PF | 2-SMD, J-Lead | Tape & Reel (TR) | Active | - | 1 | 6000 Ohms @ 37 MHz | 10A | 9mOhm | - | -40°C ~ 125°C | Surface Mount | 0.315" (8.00mm) | 0.472" L x 0.472" W (12.00mm x 12.00mm) | - |
|
SMB2.5-1FERRITE BEAD 385 OHM 2SMD 1LN |
1,028 |
|
Datasheet |
SMB2.5 | 2-SMD, J-Lead | Tape & Reel (TR) | Active | - | 1 | 385 Ohms @ 100 MHz | 9.5A | 5mOhm | - | -40°C ~ 125°C | Surface Mount | 0.200" (5.08mm) | 0.460" L x 0.283" W (11.68mm x 7.20mm) | - |
|
29F0418-1SR-10FERRITE BEAD 119 OHM 8SMD 4LN |
33,858 |
|
Datasheet |
29F | 8-SMD, Flat Lead | Tape & Reel (TR) | Active | Power Line | 4 | 119 Ohms @ 100 MHz | 6A | 10mOhm | - | -40°C ~ 125°C | Surface Mount | 0.165" (4.19mm) | 0.240" L x 0.177" W (6.10mm x 4.50mm) | - |
|
29F0330-2SR-10FERRITE BEAD 200 OHM 6SMD 3LN |
785 |
|
Datasheet |
29 | 6-SMD, Flat Leads | Tape & Reel (TR) | Active | Power Line | 3 | 200 Ohms @ 100 MHz | 9A | 10mOhm | - | -40°C ~ 125°C | Surface Mount | 0.250" (6.35mm) | 0.428" L x 0.328" W (10.87mm x 8.33mm) | - |
|
|

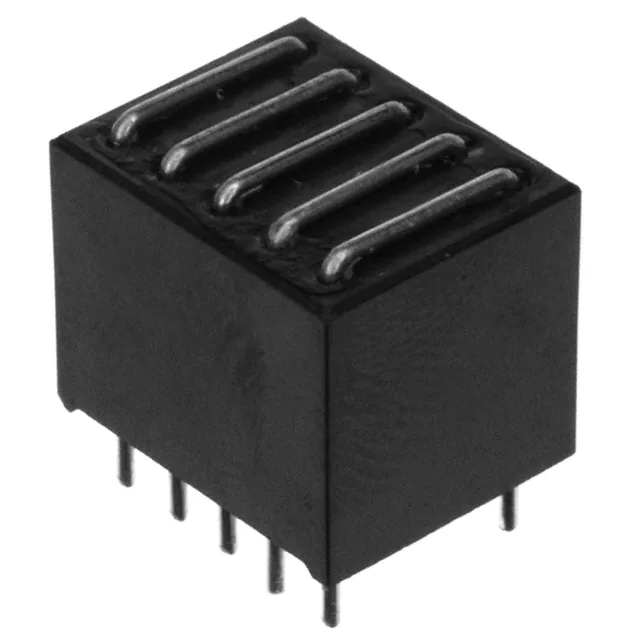

29F0528-0T0-10FERRITE BEAD 342 OHM 10-THD 5LN |
16,904 |
|
Datasheet |
29 | 10-THD | Bulk | Active | Power Line | 5 | 342 Ohms @ 100 MHz | 10A | 10mOhm | - | -40°C ~ 125°C | Through Hole | 0.416" (10.57mm) | 0.528" L x 0.428" W (13.42mm x 10.88mm) | - |
|
29F0818-0SR-10FERRITE BEAD 75 OHM 16SMD 8LN |
890 |
|
Datasheet |
29 | 16-SMD, Flat Leads | Tape & Reel (TR) | Active | Power Line | 8 | 75 Ohms @ 100 MHz | 6A | 10mOhm | - | -40°C ~ 125°C | Surface Mount | 0.115" (2.92mm) | 0.450" L x 0.177" W (11.43mm x 4.50mm) | - |
Ferrite Beads and Chips Electronic Components
Explore Ferrite Beads and Chips electronic components, related subcategories, product specifications, datasheets and sourcing options. We support original component procurement, BOM sourcing and RFQ services for engineers, distributors and global buyers.
