Ferrite Beads and Chips
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Filter Type | Number of Lines | Impedance @ Frequency | Current Rating (Max) | DC Resistance (DCR) (Max) | Ratings | Operating Temperature | Mounting Type | Height (Max) | Size / Dimension | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
2944666681FERRITE BEAD 570 OHM AXIAL 2LN |
4,700 |
|
Datasheet |
- | Axial - 4 Leads | Box | Active | - | 2 | 570 Ohms @ 100 MHz | - | - | - | -55°C ~ 125°C | Through Hole | - | 0.236" Dia x 0.394" L (6.00mm x 10.00mm) | - |
|
2961666631FERRITE BEAD 1.13K OHM RAD 1LN |
8,785 |
|
Datasheet |
- | Radial | Box | Active | - | 1 | 1.13 kOhms @ 100 MHz | - | - | - | -55°C ~ 125°C | Through Hole | 0.394" (10.00mm) | 0.236" Dia (6.00mm) | - |
|
B-02-RFERRITE BEAD 4 OHM AXIAL RAD 1LN |
5,752 |
|
Datasheet |
BEAD L | Axial, Split Radial Bend | Bulk | Active | Signal Line | 1 | 4 Ohms @ 1 MHz | 5A | - | - | -20°C ~ 70°C | Through Hole | 0.236" (6.00mm) | 0.165" Dia x 0.236" L (4.20mm x 6.00mm) | - |
2.22H.jpg)
|
78279224551FERRITE BEAD 550 OHM 2220 1LN |
2,205 |
|
Datasheet |
WE-MPSA | 2220 (5750 Metric) | Tape & Reel (TR) | Active | Power Line | 1 | 550 Ohms @ 100 MHz | 4A | 35mOhm | AEC-Q200 | -55°C ~ 125°C | Surface Mount | 0.087" (2.22mm) | 0.220" L x 0.200" W (5.59mm x 5.08mm) | - |
|
|
B-03-RFERRITE BEAD 5 OHM AXIAL RAD 1LN |
1,582 |
|
Datasheet |
BEAD L | Axial, Split Radial Bend | Bulk | Active | Signal Line | 1 | 5 Ohms @ 1 MHz | 5A | - | - | -20°C ~ 70°C | Through Hole | 0.315" (8.00mm) | 0.094" Dia x 0.335" L (2.40mm x 8.50mm) | - |
|
B-06-R-25FERRITE BEAD 40 OHM RADIAL 1LN |
1,262 |
|
Datasheet |
BEAD L | Radial | Bulk | Active | Signal Line | 1 | 40 Ohms @ 10 MHz | 5A | - | - | -20°C ~ 70°C | Through Hole | 0.236" (6.00mm) | 0.236" L x 0.276" W (6.00mm x 7.00mm) | - |
|
74273002FERRITE BEAD 249 OHM RADIAL 4LN |
2,070 |
|
Datasheet |
WE-MLS | Radial | Bulk | Active | - | 4 | 249 Ohms @ 100 MHz | - | - | - | -25°C ~ 125°C | Through Hole | 0.209" (5.30mm) | 0.441" L x 0.441" W (11.20mm x 11.20mm) | - |
|
28C0236-0BW-10FERRITE BEAD 835 OHM AXIAL 1LN |
34,461 |
|
Datasheet |
28C0236 | Axial | Bulk | Active | Power Line | 1 | 835 Ohms @ 100 MHz | 5A | 10mOhm | - | -40°C ~ 125°C | Through Hole | 0.394" (10.00mm) | 0.236" Dia x 3.404" L (6.00mm x 84.46mm) | - |
|
HI2220P171R-10FERRITE BEAD 170 OHM 2220 1LN |
16,463 |
|
Datasheet |
2220 | 2220 (5650 Metric) | Tape & Reel (TR) | Active | Power Line | 1 | 170 Ohms @ 100 MHz | 4A | 30mOhm | - | -40°C ~ 125°C | Surface Mount | 0.136" (3.45mm) | 0.220" L x 0.200" W (5.59mm x 5.08mm) | - |
|
74279224101FERRITE BEAD 100 OHM 2220 1LN |
17,488 |
|
Datasheet |
WE-MPSB | 2220 (5650 Metric) | Tape & Reel (TR) | Active | - | 1 | 100 Ohms @ 100 MHz | 7A | 5mOhm | - | -55°C ~ 125°C | Surface Mount | 0.081" (2.05mm) | 0.220" L x 0.200" W (5.59mm x 5.08mm) | - |
|
74279224251FERRITE BEAD 250 OHM 2220 1LN |
4,255 |
|
Datasheet |
WE-MPSB | 2220 (5650 Metric) | Tape & Reel (TR) | Active | - | 1 | 250 Ohms @ 100 MHz | 4A | 12mOhm | - | -55°C ~ 125°C | Surface Mount | 0.081" (2.05mm) | 0.220" L x 0.200" W (5.59mm x 5.08mm) | - |
|
BLE32SN120SN1LFERRITE BEAD 12 OHM 1210 1LN |
2,782 |
|
Datasheet |
EMIFIL®, BLE32 | 1210 (3225 Metric) | Tape & Reel (TR) | Active | Power Line | 1 | 12 Ohms @ 100 MHz | 20A | 0.6mOhm | - | -55°C ~ 125°C | Surface Mount | 0.087" (2.20mm) | 0.126" L x 0.098" W (3.20mm x 2.50mm) | - |
|
|
7427928601WE-CBF SMT EMI SUPPRESSION FERRI |
2,221 |
|
Datasheet |
WE-CBF | 2220 (5750 Metric) | Tape & Reel (TR) | Active | Signal Line | 1 | 600 Ohms @ 100 MHz | 4A | 25mOhm | AEC-Q200 | -55°C ~ 125°C | Surface Mount | 0.128" (3.25mm) | 0.220" L x 0.200" W (5.59mm x 5.08mm) | Automotive |
|
|
7427928801WE-CBF SMT EMI SUPPRESSION FERRI |
1,142 |
|
Datasheet |
WE-CBF | 2220 (5750 Metric) | Tape & Reel (TR) | Active | Signal Line | 1 | 800 Ohms @ 100 MHz | 8A | 10mOhm | AEC-Q200 | -55°C ~ 125°C | Surface Mount | 0.152" (3.85mm) | 0.220" L x 0.200" W (5.59mm x 5.08mm) | Automotive |
|

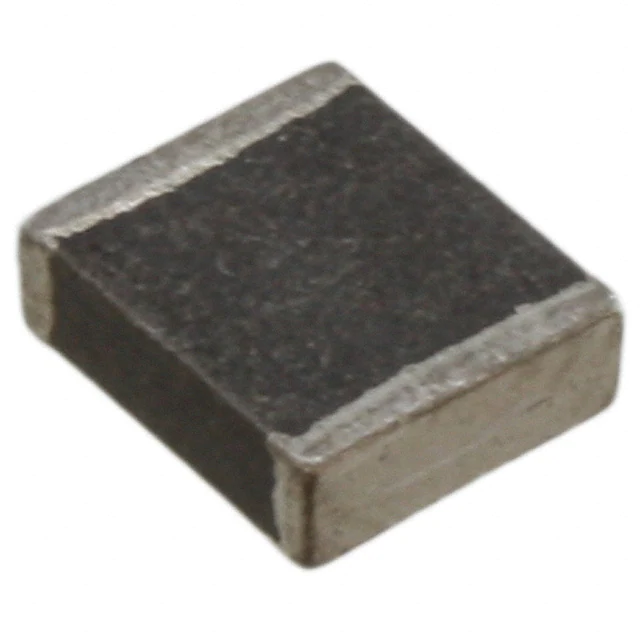

74279224181FERRITE BEAD 180 OHM 2220 1LN |
849 |
|
Datasheet |
WE-MPSB | 2220 (5650 Metric) | Tape & Reel (TR) | Active | - | 1 | 180 Ohms @ 100 MHz | 5A | 10mOhm | - | -55°C ~ 125°C | Surface Mount | 0.081" (2.05mm) | 0.220" L x 0.200" W (5.59mm x 5.08mm) | - |
|
|
BLE32SN120BN1LFERRITE BEAD 12 OHM 1210 1LN |
3,510 |
|
Datasheet |
EMIFIL®, BLE32 | 1210 (3225 Metric) | Tape & Reel (TR) | Active | Power Line | 1 | 12 Ohms @ 100 MHz | 20A | 0.6mOhm | - | -55°C ~ 150°C | Surface Mount | 0.087" (2.20mm) | 0.126" L x 0.098" W (3.20mm x 2.50mm) | - |
|
|
HI2220P251R-10FERRITE BEAD 250 OHM 2220 1LN |
81,817 |
|
Datasheet |
2220 | 2220 (5650 Metric) | Tape & Reel (TR) | Active | Power Line | 1 | 250 Ohms @ 100 MHz | 4A | 15mOhm | - | -40°C ~ 125°C | Surface Mount | 0.136" (3.45mm) | 0.220" L x 0.200" W (5.59mm x 5.08mm) | - |
.jpg)
|
78279225101FERRITE BEAD 100 OHM 3312 1LN |
2,341 |
|
Datasheet |
WE-MPSA | 3312 (8531 Metric) | Tape & Reel (TR) | Active | Power Line | 1 | 100 Ohms @ 100 MHz | 10A | 4mOhm | AEC-Q200 | -55°C ~ 125°C | Surface Mount | 0.098" (2.48mm) | 0.335" L x 0.120" W (8.50mm x 3.05mm) | - |
|
|
BLE32SN120SH1LFERRITE BEAD 12 OHM 1210 1LN |
954 |
|
Datasheet |
EMIFIL®, BLE32 | 1210 (3225 Metric) | Tape & Reel (TR) | Active | Power Line | 1 | 12 Ohms @ 100 MHz | 20A | 0.6mOhm | AEC-Q200 | -55°C ~ 125°C | Surface Mount | 0.087" (2.20mm) | 0.126" L x 0.098" W (3.20mm x 2.50mm) | Automotive |
|
|
BLE32SN120BH1LFERRITE BEAD 12 OHM 1210 1LN |
999 |
|
Datasheet |
EMIFIL®, BLE32 | 1210 (3225 Metric) | Tape & Reel (TR) | Active | Power Line | 1 | 12 Ohms @ 100 MHz | 20A | 0.6mOhm | AEC-Q200 | -55°C ~ 150°C | Surface Mount | 0.087" (2.20mm) | 0.126" L x 0.098" W (3.20mm x 2.50mm) | Automotive |
