Ferrite Beads and Chips
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Filter Type | Number of Lines | Impedance @ Frequency | Current Rating (Max) | DC Resistance (DCR) (Max) | Ratings | Operating Temperature | Mounting Type | Height (Max) | Size / Dimension | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

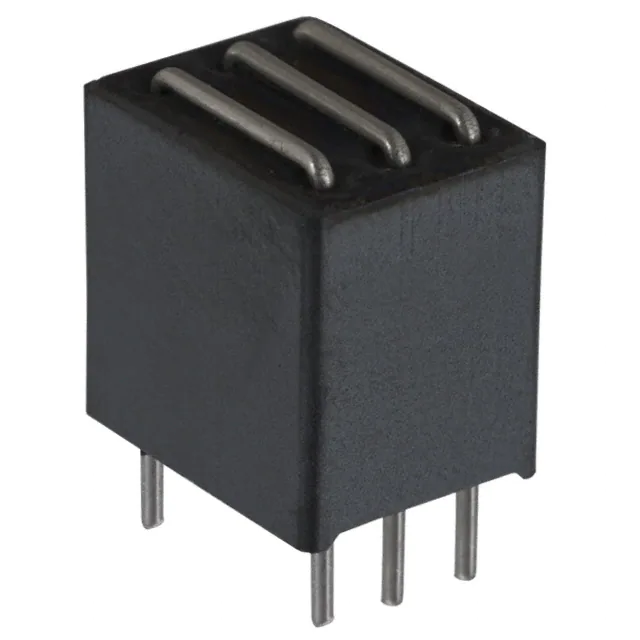

29F0328-0T0-10FERRITE BEAD 342 OHM 6THD 3LN |
5,844 |
|
Datasheet |
29 | 6-THD | Bulk | Active | Power Line | 3 | 342 Ohms @ 100 MHz | 10A | 10mOhm | - | -40°C ~ 125°C | Through Hole | 0.416" (10.57mm) | 0.428" L x 0.328" W (10.88mm x 8.34mm) | - |
|

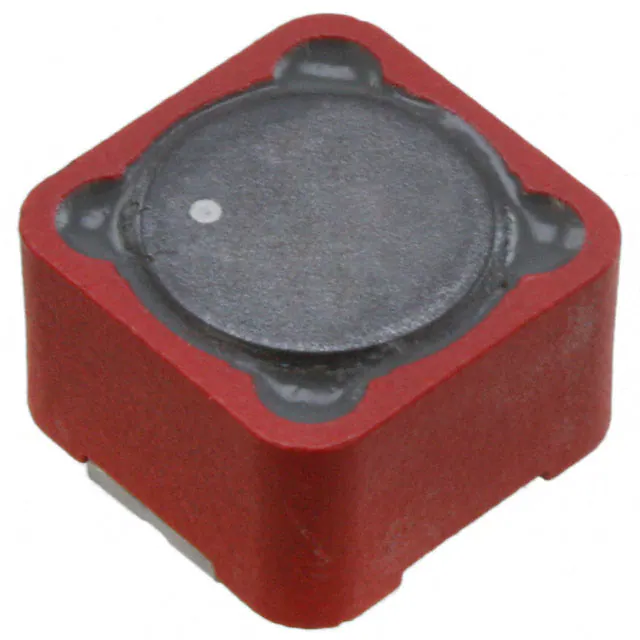

742792901FERRITE BEAD 1.18K OHM 2SMD 1LN |
2,548 |
|
Datasheet |
WE-PF | 2-SMD, J-Lead | Tape & Reel (TR) | Active | - | 1 | 1.18 kOhms @ 100 MHz | 10A | 9mOhm | - | -40°C ~ 125°C | Surface Mount | 0.315" (8.00mm) | 0.472" L x 0.472" W (12.00mm x 12.00mm) | - |
|
SMB2.5R-1FERRITE BEAD 385 OHM 2SMD 1LN |
51,021 |
|
Datasheet |
SMB2.5R | 2-SMD, J-Lead | Tape & Reel (TR) | Active | - | 1 | 385 Ohms @ 100 MHz | 9.5A | 5mOhm | - | -40°C ~ 125°C | Surface Mount | 0.200" (5.08mm) | 0.460" L x 0.283" W (11.68mm x 7.20mm) | - |
|
SMB2.5R-2FERRITE BEAD 490 OHM 2SMD 1LN |
6,734 |
|
Datasheet |
SMB2.5R | 2-SMD, J-Lead | Tape & Reel (TR) | Active | - | 1 | 490 Ohms @ 100 MHz | 9.5A | 5mOhm | - | -40°C ~ 125°C | Surface Mount | 0.200" (5.08mm) | 0.460" L x 0.283" W (11.68mm x 7.20mm) | - |
|

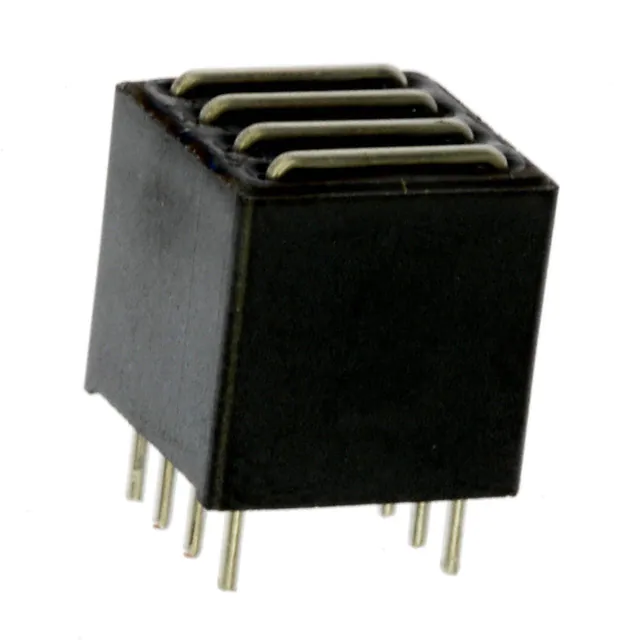

29F0428-0T0-10FERRITE BEAD 342 OHM 8THD 4LN |
68,999 |
|
Datasheet |
29 | 8-THD | Bulk | Active | Power Line | 4 | 342 Ohms @ 100 MHz | 10A | 10mOhm | - | -40°C ~ 125°C | Through Hole | 0.416" (10.57mm) | 0.428" L x 0.428" W (10.88mm x 10.88mm) | - |
|
BLH03HA400SN1DFERRITE BEAD 40 OHM 0201 1LN |
8,002 |
|
Datasheet |
BLH03 | 0201 (0603 Metric) | Tape & Reel (TR) | Active | Signal Line | 1 | 40 Ohms @ 100 MHz | 150mA | 2.2Ohm | - | -40°C ~ 125°C | Surface Mount | 0.013" (0.33mm) | 0.024" L x 0.012" W (0.60mm x 0.30mm) | - |
|
29F0318-1SR-10FERRITE BEAD 119 OHM 6SMD 3LN |
2,526 |
|
Datasheet |
29 | 6-SMD, Flat Leads | Tape & Reel (TR) | Active | Power Line | 3 | 119 Ohms @ 100 MHz | 6A | 10mOhm | - | -40°C ~ 125°C | Surface Mount | 0.165" (4.19mm) | 0.190" L x 0.177" W (4.83mm x 4.50mm) | - |
|
HR2220V801R-10FERRITE BEAD 800 OHM 2220 1LN |
228,350 |
|
Datasheet |
2220 | 2220 (5650 Metric) | Tape & Reel (TR) | Active | Power Line | 1 | 800 Ohms @ 100 MHz | 8A | 10mOhm | - | -40°C ~ 125°C | Surface Mount | 0.136" (3.45mm) | 0.220" L x 0.200" W (5.59mm x 5.08mm) | - |
|
29F0818-1SR-10FERRITE BEAD 119 OHM 16SMD 8LN |
10,923 |
|
Datasheet |
29 | 16-SMD, Flat Leads | Tape & Reel (TR) | Active | Power Line | 8 | 119 Ohms @ 100 MHz | 6A | 10mOhm | - | -40°C ~ 125°C | Surface Mount | 0.165" (4.19mm) | 0.450" L x 0.177" W (11.43mm x 4.50mm) | - |
.JPG)
|
FBMJ1608HS280NTRFERRITE BEAD 28 OHM 0603 1LN |
5,550,728 |
|
Datasheet |
FB | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Power Line | 1 | 28 Ohms @ 100 MHz | 6A | 6mOhm | - | -40°C ~ 125°C | Surface Mount | 0.039" (1.00mm) | 0.063" L x 0.032" W (1.60mm x 0.80mm) | - |
|
PE-0603PFB121STFERRITE BEAD 120 OHM 0603 1LN |
1,417,656 |
|
Datasheet |
PFB | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Power Line | 1 | 120 Ohms @ 100 MHz | 2A | 50mOhm | - | -40°C ~ 105°C | Surface Mount | 0.041" (1.05mm) | 0.063" L x 0.032" W (1.60mm x 0.80mm) | - |
|
MPZ1608S181ATAH0FERRITE BEAD 180 OHM 0603 1LN |
1,197,573 |
|
Datasheet |
MPZ | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Power Line | 1 | 180 Ohms @ 100 MHz | 2A | 50mOhm | - | -55°C ~ 125°C | Surface Mount | 0.030" (0.75mm) | 0.063" L x 0.032" W (1.60mm x 0.80mm) | - |
|
MPZ1608Y101BTA00FERRITE BEAD 100 OHM 0603 1LN |
984,929 |
|
Datasheet |
MPZ | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Power Line | 1 | 100 Ohms @ 100 MHz | 2A | 40mOhm | - | -55°C ~ 125°C | Surface Mount | 0.037" (0.95mm) | 0.063" L x 0.032" W (1.60mm x 0.80mm) | - |
|
MZ1608-102YFERRITE BEAD 1 KOHM 0603 1LN |
928,439 |
|
Datasheet |
MZ | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Power, Signal Line | 1 | 1 kOhms @ 100 MHz | 100mA | 600mOhm | - | -55°C ~ 125°C | Surface Mount | 0.039" (1.00mm) | 0.063" L x 0.032" W (1.60mm x 0.80mm) | - |
|
BLM15BB470SN1DFERRITE BEAD 47 OHM 0402 1LN |
831,722 |
|
Datasheet |
EMIFIL®, BLM15 | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Signal Line | 1 | 47 Ohms @ 100 MHz | 300mA | 350mOhm | - | -55°C ~ 125°C | Surface Mount | 0.022" (0.55mm) | 0.039" L x 0.022" W (1.00mm x 0.55mm) | - |
-2x1,25x0,9.JPG)
|
2508056017Y0FERRITE BEAD 600 OHM 0805 1LN |
831,352 |
|
Datasheet |
- | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Signal Line | 1 | 600 Ohms @ 100 MHz | 300mA | 350mOhm | - | -55°C ~ 125°C | Surface Mount | 0.043" (1.10mm) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | - |
|
|
BLM15BD121SN1DFERRITE BEAD 120 OHM 0402 1LN |
719,687 |
|
Datasheet |
EMIFIL®, BLM15 | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Signal Line | 1 | 120 Ohms @ 100 MHz | 300mA | 300mOhm | - | -55°C ~ 125°C | Surface Mount | 0.022" (0.55mm) | 0.039" L x 0.022" W (1.00mm x 0.55mm) | - |
|
|
MPZ1608B471ATA00FERRITE BEAD 470 OHM 0603 1LN |
703,726 |
|
Datasheet |
MPZ | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Power Line | 1 | 470 Ohms @ 100 MHz | 1A | 150mOhm | - | -55°C ~ 125°C | Surface Mount | 0.037" (0.95mm) | 0.063" L x 0.032" W (1.60mm x 0.80mm) | - |
|
MMZ1608B301CTAH0FERRITE BEAD 300 OHM 0603 1LN |
632,025 |
|
Datasheet |
MMZ | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Signal Line | 1 | 300 Ohms @ 100 MHz | 500mA | 250mOhm | - | -55°C ~ 125°C | Surface Mount | 0.030" (0.75mm) | 0.063" L x 0.032" W (1.60mm x 0.80mm) | - |
|
|
2508051527Y0FERRITE BEAD 1.5K OHM 0805 1LN |
609,634 |
|
Datasheet |
- | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Signal Line | 1 | 1.5 kOhms @ 100 MHz | 300mA | 700mOhm | - | -55°C ~ 125°C | Surface Mount | 0.043" (1.10mm) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | - |
Ferrite Beads and Chips Electronic Components
Explore Ferrite Beads and Chips electronic components, related subcategories, product specifications, datasheets and sourcing options. We support original component procurement, BOM sourcing and RFQ services for engineers, distributors and global buyers.
