Ferrite Beads and Chips
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Filter Type | Number of Lines | Impedance @ Frequency | Current Rating (Max) | DC Resistance (DCR) (Max) | Ratings | Operating Temperature | Mounting Type | Height (Max) | Size / Dimension | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
HI2220Q401R-10FERRITE BEAD 400 OHM 2220 1LN |
102,366 |
|
Datasheet |
2220 | 2220 (5650 Metric) | Tape & Reel (TR) | Active | Power Line | 1 | 400 Ohms @ 100 MHz | 4A | 30mOhm | - | -40°C ~ 125°C | Surface Mount | 0.136" (3.45mm) | 0.220" L x 0.200" W (5.59mm x 5.08mm) | - |
|
|
HI2220R151R-10FERRITE BEAD 150 OHM 2220 1LN |
61,883 |
|
Datasheet |
2220 | 2220 (5650 Metric) | Tape & Reel (TR) | Active | Power Line | 1 | 150 Ohms @ 100 MHz | 5A | 15mOhm | - | -40°C ~ 125°C | Surface Mount | 0.136" (3.45mm) | 0.220" L x 0.200" W (5.59mm x 5.08mm) | - |
|
28C0236-0JW-10FERRITE BEAD 998 OHM RADIAL 1LN |
86,039 |
|
Datasheet |
28C0236 | Radial | Bulk | Active | Power Line | 1 | 998 Ohms @ 100 MHz | 5A | 10mOhm | - | -40°C ~ 125°C | Through Hole | 0.394" (10.00mm) | 0.236" Dia x 0.825" L (6.00mm x 20.96mm) | - |
|
2744555577FERRITE BEAD 724 OHM 2SMD 1LN |
68,260 |
|
Datasheet |
- | 2-SMD, J-Lead | Tape & Reel (TR) | Active | Signal Line | 1 | 724 Ohms @ 100 MHz | - | 6.2mOhm | - | -55°C ~ 125°C | Surface Mount | 0.197" (5.00mm) | 0.433" L x 0.197" W (11.00mm x 5.00mm) | - |
|
BLE32PN300SN1LFERRITE BEAD 30 OHM 1210 1LN |
19,080 |
|
Datasheet |
EMIFIL®, BLE32 | 1210 (3225 Metric) | Tape & Reel (TR) | Active | Power Line | 1 | 30 Ohms @ 100 MHz | 10A | 1.6mOhm | - | -55°C ~ 125°C | Surface Mount | 0.087" (2.20mm) | 0.126" L x 0.098" W (3.20mm x 2.50mm) | - |
|
|
BLE32PN300SZ1LFERRITE BEAD 30 OHM 1210 1LN |
3,745 |
|
Datasheet |
BLE32P | 1210 (3225 Metric) | Tape & Reel (TR) | Active | Power Line | 1 | 30 Ohms @ 100 MHz | 10A | 1.6mOhm | AEC-Q200 | -55°C ~ 125°C | Surface Mount | 0.087" (2.20mm) | 0.126" L x 0.098" W (3.20mm x 2.50mm) | - |
|
28C0236-0BS-10FERRITE BEAD 835 OHM AXIAL 1LN |
1,375 |
|
Datasheet |
28C0236 | Axial, Radial Bend | Bulk | Active | Power Line | 1 | 835 Ohms @ 100 MHz | 5A | 10mOhm | - | -40°C ~ 125°C | Through Hole | 0.394" (10.00mm) | 0.236" Dia x 0.590" L (6.00mm x 15.00mm) | - |
|
HI3312X101R-10FERRITE BEAD 100 OHM 3312 1LN |
51,233 |
|
Datasheet |
3312 | 3312 (8531 Metric) | Tape & Reel (TR) | Active | Power Line | 1 | 100 Ohms @ 100 MHz | 10A | 4mOhm | - | -40°C ~ 125°C | Surface Mount | 0.090" (2.28mm) | 0.335" L x 0.120" W (8.50mm x 3.05mm) | - |
|

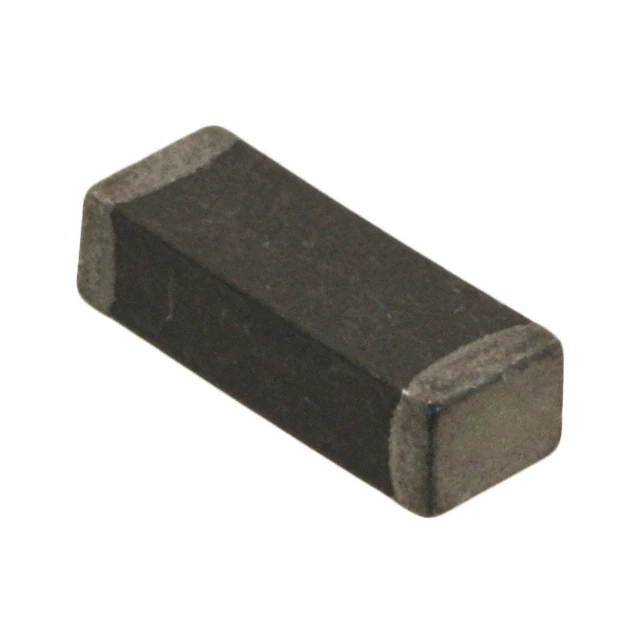

74279225101FERRITE BEAD 100 OHM 3312 1LN |
9,899 |
|
Datasheet |
WE-MPSB | 3312 (8531 Metric) | Tape & Reel (TR) | Active | - | 1 | 100 Ohms @ 100 MHz | 10A | 4mOhm | - | -55°C ~ 125°C | Surface Mount | 0.098" (2.48mm) | 0.335" L x 0.120" W (8.50mm x 3.05mm) | - |
|
74279224551FERRITE BEAD 550 OHM 2220 1LN |
6,394 |
|
Datasheet |
WE-MPSB | 2220 (5650 Metric) | Tape & Reel (TR) | Active | - | 1 | 550 Ohms @ 100 MHz | 4A | 35mOhm | - | -55°C ~ 125°C | Surface Mount | 0.087" (2.22mm) | 0.220" L x 0.200" W (5.59mm x 5.08mm) | - |
|
7427511FERRITE BEAD 416 OHM 2020 1LN |
4,657 |
|
Datasheet |
WE-SUKW | 2020 (5050 Metric) | Tape & Reel (TR) | Active | - | 1 | 416 Ohms @ 100 MHz | 9A | 11mOhm | - | -40°C ~ 125°C | Surface Mount | 0.201" (5.10mm) | 0.217" L x 0.197" W (5.50mm x 5.00mm) | - |
|
7427512FERRITE BEAD 580 OHM 3318 1LN |
3,346 |
|
Datasheet |
WE-SUKW | 3318 (8546 Metric) | Tape & Reel (TR) | Active | - | 1 | 580 Ohms @ 100 MHz | 5A | 12mOhm | - | -40°C ~ 125°C | Surface Mount | 0.217" (5.50mm) | 0.335" L x 0.183" W (8.50mm x 4.65mm) | - |
|
|
HI2220P601R-10FERRITE BEAD 600 OHM 2220 1LN |
74,833 |
|
Datasheet |
2220 | 2220 (5650 Metric) | Tape & Reel (TR) | Active | Power Line | 1 | 600 Ohms @ 100 MHz | 4A | 25mOhm | - | -40°C ~ 125°C | Surface Mount | 0.136" (3.45mm) | 0.220" L x 0.200" W (5.59mm x 5.08mm) | - |
|
|
DM3312X101R-10FERRITE BEAD 100 OHM 3312 1LN |
10,902 |
|
Datasheet |
3312 | 3312 (8531 Metric) | Tape & Reel (TR) | Active | Power Line | 1 | 100 Ohms @ 100 MHz | 10A | 4mOhm | - | -40°C ~ 125°C | Surface Mount | 0.090" (2.28mm) | 0.335" L x 0.120" W (8.50mm x 3.05mm) | - |
|
|
HI2220P701R-10FERRITE BEAD 700 OHM 2220 1LN |
7,069 |
|
Datasheet |
2220 | 2220 (5650 Metric) | Tape & Reel (TR) | Active | Power Line | 1 | 700 Ohms @ 100 MHz | 4A | 25mOhm | - | -40°C ~ 125°C | Surface Mount | 0.136" (3.45mm) | 0.220" L x 0.200" W (5.59mm x 5.08mm) | - |
|
AB3X2X3SMFERRITE BEAD 2SMD GW 1LN |
21,849 |
|
Datasheet |
Amobeads® | 2-SMD, Gull Wing | Tape & Reel (TR) | Active | - | 1 | - | 6A (Typ) | - | - | - | Surface Mount | 0.169" (4.30mm) | 0.197" L x 0.197" W (5.00mm x 5.00mm) | - |
|
AB4X2X6SMFERRITE BEAD 2SMD GW 1LN |
2,058 |
|
Datasheet |
Amobeads® | 2-SMD, Gull Wing | Tape & Reel (TR) | Active | - | 1 | - | 9A (Typ) | - | - | - | Surface Mount | 0.209" (5.30mm) | 0.315" L x 0.236" W (8.00mm x 6.00mm) | - |
|
DA1206B601R-10FERRITE BEAD 600 OHM 1206 4LN |
202,128 |
|
Datasheet |
1206 | 1206 (3216 Metric), Array, 8 PC Pad | Tape & Reel (TR) | Active | Power, Signal Line | 4 | 600 Ohms @ 100 MHz | 200mA | 350mOhm | - | -40°C ~ 125°C | Surface Mount | 0.043" (1.10mm) | 0.126" L x 0.063" W (3.20mm x 1.60mm) | - |
|
|
DA1206D301R-10FERRITE BEAD 300 OHM 1206 4LN |
64,839 |
|
Datasheet |
1206 | 1206 (3216 Metric), Array, 8 PC Pad | Tape & Reel (TR) | Active | Power, Signal Line | 4 | 300 Ohms @ 100 MHz | 400mA | 400mOhm | - | -40°C ~ 125°C | Surface Mount | 0.043" (1.10mm) | 0.126" L x 0.063" W (3.20mm x 1.60mm) | - |
|
4221R-2FERRITE BEAD 95 OHM 2SMD 1LN |
18,058 |
|
Datasheet |
4221R | 2-SMD, J-Lead | Tape & Reel (TR) | Active | - | 1 | 95 Ohms @ 100 MHz | 5A | - | - | -55°C ~ 125°C | Surface Mount | 0.128" (3.25mm) | 0.374" L x 0.120" W (9.50mm x 3.05mm) | - |
