Feed Through Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Capacitance | Tolerance | Voltage - Rated | Current | DC Resistance (DCR) (Max) | Operating Temperature | Insertion Loss | Temperature Coefficient | Ratings | Mounting Type | Size / Dimension | Height (Max) | Thread Size |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
4404-003LFCAP FEEDTHRU 100V AXIAL |
0 |
|
Datasheet |
4404 | Axial, Bushing | Bulk | Active | - | - | 100V | 10 A | - | -55°C ~ 125°C | 47dB @ 100MHz | - | - | - | 0.187" Dia x 0.389" L (4.75mm x 9.88mm) | - | 8-32 |
|
4310-020LFCAP FEEDTHRU 10000PF 100V AXIAL |
0 |
|
Datasheet |
4310 | Axial, Press Fit | Bulk | Active | 10000 pF | 0%, +100% | 100V | 1 A | - | -55°C ~ 125°C | 35dB @ 100MHz | - | - | Chassis Mount | 0.094" Dia x 0.098" L (2.39mm x 2.49mm) | - | - |
|

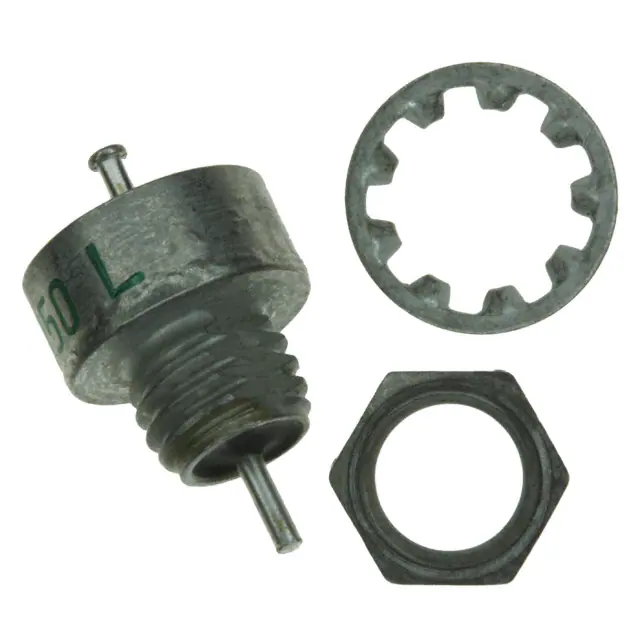

4600-050LFCAP FEEDTHRU 1.4UF 70V AXIAL |
0 |
|
Datasheet |
4600 | Axial, Bushing, 1 Turret Lead | Tray | Active | 1.4 µF | - | 70V | 15 A | - | -55°C ~ 125°C | 70dB @ 1GHz | X7W | - | Chassis Mount | 0.385" Dia x 0.362" L (9.78mm x 9.20mm) | - | 1/4"-28 |
|

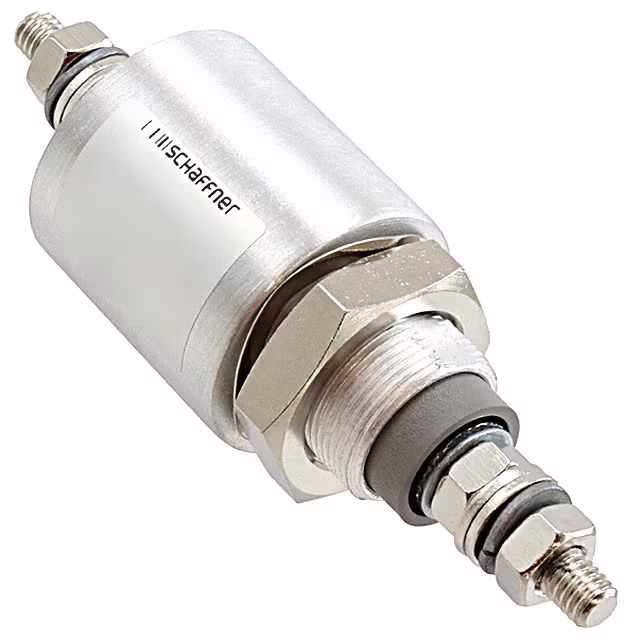

FN7563-63-M6CAP FEEDTHRU 0.47UF 650V AXIAL |
0 |
|
Datasheet |
FN 756X | Axial - Threaded Terminals | Tray | Active | 0.47 µF | ±20% | 650V | 63 A | 0.43mOhm (Typ) | -40°C ~ 100°C | - | - | Y4 | - | 1.260" Dia x 3.898" L (32.00mm x 99.00mm) | - | M20x1 |
|
YFF18PH0J106MT00HECOMMERCIAL GRADE FEED THROUGH FI |
6 |
|
Datasheet |
YFF-P | 0603 (1608 Metric), 4 PC Pad | Tape & Reel (TR) | Active | 10 µF | ±20% | 6.3V | 4 A | 10mOhm | -55°C ~ 125°C | 40dB @ 90kHz ~ 1.8GHz | - | - | Surface Mount | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.043" (1.10mm) | - |
|
4300-002LFCAP FEEDTHRU 200V AXIAL |
0 |
|
Datasheet |
4300 | Axial | Bulk | Active | - | - | 200V | 5 A | - | -55°C ~ 125°C | 20dB @ 100MHz | - | - | - | 0.156" Dia x 0.110" L (3.96mm x 2.79mm) | - | - |
|
4300-014LFCAP FEEDTHRU 50V AXIAL |
0 |
|
Datasheet |
4300 | Axial | Bulk | Active | - | - | 50V | 5 A | - | -55°C ~ 125°C | 45dB @ 100MHz | - | - | - | 0.156" Dia x 0.110" L (3.96mm x 2.79mm) | - | - |
|
4400-038LFCAP FEEDTHRU 200V AXIAL |
0 |
|
Datasheet |
4400 | Axial, Bushing | Bulk | Active | - | - | 200V | 10 A | - | -55°C ~ 125°C | 5dB @ 1GHz | - | - | - | 0.156" Dia x 0.340" L (3.97mm x 8.64mm) | - | 4-40 |
|
4400-076LFCAP FEEDTHRU 200V AXIAL |
0 |
|
Datasheet |
4400 | Axial, Bushing | Bulk | Active | - | - | 200V | 10 A | - | -55°C ~ 125°C | 3dB @ 100MHz | - | - | - | 0.157" Dia x 0.276" L (3.98mm x 7.00mm) | - | M3x0.5 |
|
4400-094LFCAP FEEDTHRU 100V AXIAL |
0 |
|
Datasheet |
4400 | Axial, Bushing | Bulk | Active | - | - | 100V | 10 A | - | -55°C ~ 125°C | 30dB @ 100MHz | - | - | - | 0.157" Dia x 0.276" L (4.00mm x 7.00mm) | - | M3x0.5 |
|
4400-095LFCAP FEEDTHRU 200V AXIAL |
0 |
|
Datasheet |
4400 | Axial, Bushing | Bulk | Active | - | - | 200V | 10 A | - | -55°C ~ 125°C | 20dB @ 100MHz | - | - | - | 0.157" Dia x 0.276" L (4.00mm x 7.00mm) | - | M3x0.5 |
|
4400-683LFCAP FEEDTHRU 200V AXIAL |
0 |
|
Datasheet |
4400 | Axial, Bushing | Bulk | Active | - | - | 200V | 10 A | - | -55°C ~ 125°C | - | - | - | - | 0.157" Dia x 0.276" L (4.00mm x 7.00mm) | - | M3x0.5 |
|
FN7562-16-M4CAP FEEDTHRU 0.1UF 650V AXIAL |
0 |
|
Datasheet |
FN 756X | Axial - Threaded Terminals | Tray | Active | 0.1 µF | ±20% | 650V | 16 A | 0.62mOhm (Typ) | -40°C ~ 100°C | - | - | Y4 | - | 0.787" Dia x 2.953" L (20.00mm x 75.00mm) | - | M12x1 |
|

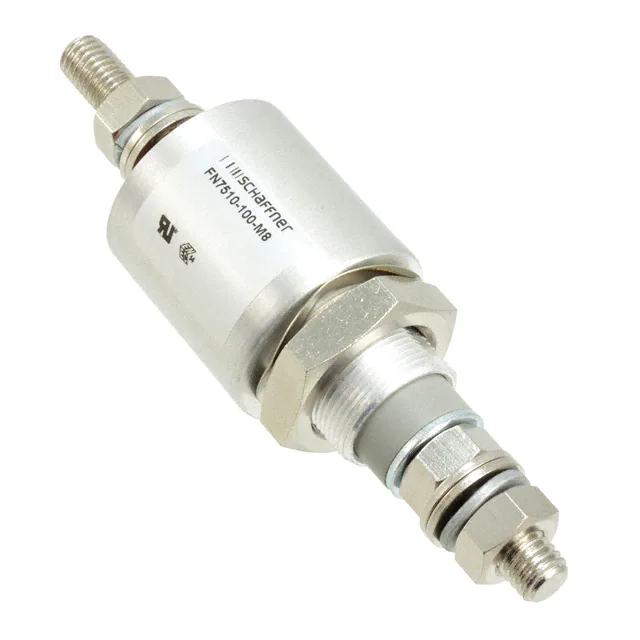

FN7510-100-M8CAP FEEDTHRU 0.047UF 1KV AXIAL |
0 |
|
Datasheet |
FN 751X | Axial - Threaded Terminals | Tray | Active | 0.047 µF | ±20% | 1000V (1kV) | 100 A | 0.23mOhm (Typ) | -40°C ~ 100°C | - | - | Y2 | - | 1.260" Dia x 4.449" L (32.00mm x 113.00mm) | - | M20x1 |
|
FN7562-200-M10CAP FEEDTHRU 1UF 20% 650V AXIAL |
0 |
|
Datasheet |
FN 756X | Axial - Threaded Terminals | Tray | Active | 1 µF | ±20% | 650V | 200 A | 0.18mOhm (Typ) | -40°C ~ 100°C | - | - | Y4 | - | 1.496" Dia x 5.787" L (38.00mm x 147.00mm) | - | M24x1 |
|
FN7563-200-M10CAP FEEDTHRU 4.7UF 650V AXIAL |
0 |
|
Datasheet |
FN 756X | Axial - Threaded Terminals | Tray | Active | 4.7 µF | ±20% | 650V | 200 A | 0.14mOhm (Typ) | -40°C ~ 100°C | - | - | Y4 | - | 2.126" Dia x 6.496" L (54.00mm x 165.00mm) | - | M27x1.5 |
|
W3F11A4708AT1FCAP FEEDTHRU 47PF 100V 1206 |
0 |
|
Datasheet |
W3F | 1206 (3216 Metric), 4 PC Pad | Tape & Reel (TR) | Active | 47 pF | -20%, +50% | 100V | 300 mA | 600mOhm | -55°C ~ 125°C | - | C0G, NP0 | - | Surface Mount | 0.126" L x 0.063" W (3.20mm x 1.60mm) | 0.050" (1.27mm) | - |
|
4300-025LFCAP FEEDTHRU 50V AXIAL |
5 |
|
Datasheet |
4300 | Axial | Bulk | Active | - | - | 50V | 5 A | - | -55°C ~ 125°C | 35dB @ 100MHz | - | - | - | 0.156" Dia x 0.110" L (3.96mm x 2.79mm) | - | - |
|
2461-000-X7V0-102PLFCAP FEEDTHRU 1000PF 100V AXIAL |
0 |
|
Datasheet |
2461 | Axial, Shoulder - No Leads | Bulk | Active | 1000 pF | 0%, +100% | 100V | - | - | -55°C ~ 125°C | 20dB @ 100MHz | X7V | - | Chassis Mount | 0.165" Dia x 0.165" L (4.19mm x 4.19mm) | - | - |
|
2499-003-X5W0-502PLFCAP FEEDTHRU 5000PF 500V AXIAL |
0 |
|
Datasheet |
2499 | Axial, Bushing | Bulk | Active | 5000 pF | 0%, +100% | 500V | 20 A | - | -55°C ~ 85°C | 30dB @ 100MHz | X5W | - | - | 0.250" Dia x 0.468" L (6.35mm x 11.89mm) | - | 12-28 |
