Feed Through Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Capacitance | Tolerance | Voltage - Rated | Current | DC Resistance (DCR) (Max) | Operating Temperature | Insertion Loss | Temperature Coefficient | Ratings | Mounting Type | Size / Dimension | Height (Max) | Thread Size |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
W2F15C2228AT1FCAP FEEDTHRU 2200PF 50V 0805 |
814 |
|
Datasheet |
W2F | 0805 (2012 Metric), 4 PC Pad | Tape & Reel (TR) | Active | 2200 pF | -20%, +50% | 50V | 300 mA | 600mOhm | -55°C ~ 125°C | - | X7R | - | Surface Mount | 0.079" L x 0.049" W (2.01mm x 1.25mm) | 0.045" (1.14mm) | - |
|
W2F15C1028AT1FCAP FEEDTHRU 1000PF 50V 0805 |
28 |
|
Datasheet |
W2F | 0805 (2012 Metric), 4 PC Pad | Tape & Reel (TR) | Active | 1000 pF | -20%, +50% | 50V | 300 mA | 600mOhm | -55°C ~ 125°C | - | X7R | - | Surface Mount | 0.079" L x 0.049" W (2.01mm x 1.25mm) | 0.045" (1.14mm) | - |
|
YFF18AC0G106MT0YHEAUTOMOTIVE GRADE FEED THROUGH FI |
728 |
|
Datasheet |
YFF-AC | 0603 (1608 Metric), 4 PC Pad | Tape & Reel (TR) | Active | 10 µF | ±20% | 4V | 4 A | 10mOhm | -55°C ~ 125°C | 40dB @ 90MHz ~ 1.8GHz | - | - | Surface Mount | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.028" (0.70mm) | - |
|
4300-008LFCAP FEEDTHRU 200V AXIAL |
92 |
|
Datasheet |
4300 | Axial | Bulk | Active | - | - | 200V | 5 A | - | -55°C ~ 125°C | 5dB @ 1GHz | - | - | - | 0.156" Dia x 0.110" L (3.96mm x 2.79mm) | - | - |
|
SBSGC0500224MXBCAP CER |
75 |
|
Datasheet |
SBSG | 1812 (4532 Metric) | Bulk | Active | 0.22 µF | ±20% | 50V | 10 A | - | -55°C ~ 125°C | 39dB @ 100MHz | X7R | - | Surface Mount | 0.179" L x 0.126" W x 0.104" H (4.55mm x 3.20mm x 2.65mm) | 0.104" (2.65mm) | - |
|
2461-001-X7V0-102PLFCAP FEEDTHRU 1000PF 100V AXIAL |
61 |
|
Datasheet |
2461 | Axial, Shoulder | Bulk | Active | 1000 pF | 0%, +100% | 100V | 20 A | - | -55°C ~ 125°C | - | X7V | - | Chassis Mount | 0.165" Dia x 0.165" L (4.19mm x 4.19mm) | - | - |
,-3-PC-Pad.jpg)
|
SBSGC5000473MXBCAP CER |
9 |
|
Datasheet |
SBSG | 1812 (4532 Metric) | Bulk | Active | 0.047 µF | ±20% | 500V | 10 A | - | -55°C ~ 125°C | 39dB @ 100MHz | X7R | - | Surface Mount | 0.179" L x 0.126" W x 0.104" H (4.55mm x 3.20mm x 2.65mm) | 0.104" (2.65mm) | - |
|
2425-018-X7R0-101MLFCAP FEEDTHRU 100PF 100V AXIAL |
50 |
|
Datasheet |
2425 | Axial, Bushing, 1 Turret Lead | Bulk | Active | 100 pF | ±20% | 100V | 20 A | - | -55°C ~ 125°C | - | X7R | - | - | 0.187" Dia x 0.359" L (4.75mm x 9.12mm) | - | 8-32 |
|
4300-005LFCAP FEEDTHRU 50V AXIAL |
100 |
|
Datasheet |
4300 | Axial | Bulk | Active | - | - | 50V | 5 A | - | -55°C ~ 125°C | 35dB @ 100MHz | - | - | - | 0.156" Dia x 0.110" L (3.96mm x 2.79mm) | - | - |
|
4403-030LFCAP FEEDTHRU 200V AXIAL |
73 |
|
Datasheet |
4403 | Axial, Bushing | Tray | Active | - | - | 200V | 10 A | - | -55°C ~ 125°C | 3dB @ 100MHz | - | - | - | 0.125" Dia x 0.215" L (3.18mm x 5.47mm) | - | 4-40 |
|
FN7510-10-M3CAP FEEDTHRU 2200PF 1KV AXIAL |
20 |
|
Datasheet |
FN 751X | Axial - Threaded Terminals | Tray | Active | 2200 pF | ±20% | 1000V (1kV) | 10 A | 0.8mOhm (Typ) | -40°C ~ 100°C | - | - | Y2 | - | 0.663" Dia x 2.244" L (16.85mm x 57.00mm) | - | M10x1 |
|
FN7562-32-M4CAP FEEDTHRU 0.1UF 650V AXIAL |
10 |
|
Datasheet |
FN 756X | Axial - Threaded Terminals | Tray | Active | 0.1 µF | ±20% | 650V | 32 A | 0.62mOhm (Typ) | -40°C ~ 100°C | - | - | Y4 | Bolt Mount | 0.787" Dia x 1.654" L (20.00mm x 42.00mm) | - | - |
|

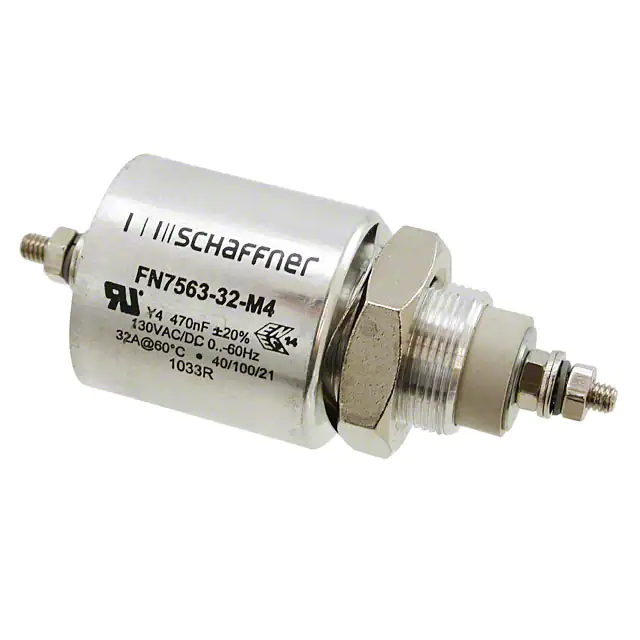

FN7563-32-M4CAP FEEDTHRU 0.47UF 650V AXIAL |
10 |
|
Datasheet |
FN 756X | Axial - Threaded Terminals | Tray | Active | 0.47 µF | ±20% | 650V | 32 A | 0.63mOhm (Typ) | -40°C ~ 100°C | - | - | Y4 | - | 1.260" Dia x 3.228" L (32.00mm x 82.00mm) | - | M20x1 |
|
B85321A2205A630FILTER LC(PI) 1UF TH |
7 |
|
Datasheet |
B85321 | Axial - Threaded Terminals | Tray | Active | - | - | 600V | 63 A | - | -40°C ~ 85°C | - | - | - | Bolt Mount | - | - | - |
|

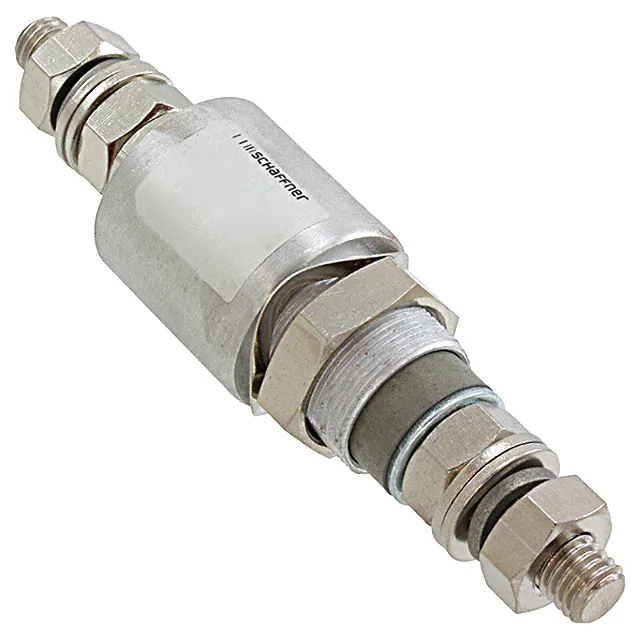

FN7561-200-M10CAP FEEDTHRU 0.47UF 650V AXIAL |
7 |
|
Datasheet |
FN 756X | Axial - Threaded Terminals | Tray | Active | 0.47 µF | ±20% | 650V | 200 A | 0.16mOhm (Typ) | -40°C ~ 100°C | - | - | Y4 | - | 1.260" Dia x 5.118" L (32.00mm x 130.00mm) | - | M24x1 |
|
W3F15C1028AT1FCAP FEEDTHRU 1000PF 50V 1206 |
297 |
|
Datasheet |
W3F | 1206 (3216 Metric), 4 PC Pad | Tape & Reel (TR) | Active | 1000 pF | -20%, +50% | 50V | 300 mA | 600mOhm | -55°C ~ 125°C | - | X7R | - | Surface Mount | 0.126" L x 0.063" W (3.20mm x 1.60mm) | 0.050" (1.27mm) | - |
|
YFF18PC0J224MT0H0NCAP FEEDTHRU 0.22UF 6.3V 0603 |
36 |
|
Datasheet |
YFF-P | 0603 (1608 Metric), 4 PC Pad | Tape & Reel (TR) | Active | 0.22 µF | ±20% | 6.3V | 4 A | 30mOhm | -55°C ~ 125°C | 40dB @ 3MHz ~ 1GHz | - | - | Surface Mount | 0.063" L x 0.032" W (1.60mm x 0.80mm) | 0.035" (0.90mm) | - |
|
|
W3F15C2228AT1FCAP FEEDTHRU 2200PF 50V 1206 |
120 |
|
Datasheet |
W3F | 1206 (3216 Metric), 4 PC Pad | Tape & Reel (TR) | Active | 2200 pF | -20%, +50% | 50V | 300 mA | 600mOhm | -55°C ~ 125°C | - | X7R | - | Surface Mount | 0.126" L x 0.063" W (3.20mm x 1.60mm) | 0.050" (1.27mm) | - |
|
4403-033LFCAP FEEDTHRU 100V AXIAL |
99 |
|
Datasheet |
4403 | Axial, Bushing | Tray | Active | - | - | 100V | 10 A | - | -55°C ~ 125°C | 25dB @ 100MHz | - | - | - | 0.125" Dia x 0.215" L (3.18mm x 5.47mm) | - | 4-40 |
|
2425-001-X5W0-502AALFCAP FEEDTHRU 200V AXIAL |
67 |
|
Datasheet |
2425 | Axial, Bushing, 1 Turret Lead | Bulk | Active | - | - | 200V | 20 A | - | -55°C ~ 85°C | - | X5W | - | - | 0.187" Dia x 0.359" L (4.75mm x 9.12mm) | - | 8-32 |
