Feed Through Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Capacitance | Tolerance | Voltage - Rated | Current | DC Resistance (DCR) (Max) | Operating Temperature | Insertion Loss | Temperature Coefficient | Ratings | Mounting Type | Size / Dimension | Height (Max) | Thread Size |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
4403-039LFCAP FEEDTHRU 200V AXIAL |
0 |
|
Datasheet |
4403 | Axial, Bushing | Tray | Active | - | - | 200V | 10 A | - | -55°C ~ 125°C | 10dB @ 1GHz | - | - | - | 0.125" Dia x 0.215" L (3.18mm x 5.47mm) | - | 4-40 |
, 3 PC Pad.JPG)
|
NFM3DCC220U1H3LCAP FEEDTHRU 22PF 50V 1205 |
0 |
|
Datasheet |
EMIFIL®, NFM3 | 1205 (3212 Metric), 3 PC Pad | Tape & Reel (TR) | Obsolete | 22 pF | -20%, +50% | 50V | 300 mA | - | -55°C ~ 125°C | - | - | - | Surface Mount | 0.126" L x 0.049" W (3.20mm x 1.25mm) | 0.035" (0.90mm) | - |
|
|
NFM3DCC470U1H3LCAP FEEDTHRU 47PF 50V 1205 |
0 |
|
Datasheet |
EMIFIL®, NFM3 | 1205 (3212 Metric), 3 PC Pad | Tape & Reel (TR) | Obsolete | 47 pF | -20%, +50% | 50V | 300 mA | - | -55°C ~ 125°C | - | - | - | Surface Mount | 0.126" L x 0.049" W (3.20mm x 1.25mm) | 0.035" (0.90mm) | - |
|
NFM41CC220U2A3LCAP FEEDTHRU 22PF 100V 1806 |
0 |
|
Datasheet |
EMIFIL®, NFM41 | 1806 (4516 Metric), 3 PC Pad | Tape & Reel (TR) | Obsolete | 22 pF | -20%, +50% | 100V | 300 mA | - | -55°C ~ 125°C | - | - | - | Surface Mount | 0.177" L x 0.063" W (4.50mm x 1.60mm) | 0.047" (1.20mm) | - |
|
|
NFM41CC470U2A3LCAP FEEDTHRU 47PF 100V 1806 |
0 |
|
Datasheet |
EMIFIL®, NFM41 | 1806 (4516 Metric), 3 PC Pad | Tape & Reel (TR) | Obsolete | 47 pF | -20%, +50% | 100V | 300 mA | - | -55°C ~ 125°C | - | - | - | Surface Mount | 0.177" L x 0.063" W (4.50mm x 1.60mm) | 0.047" (1.20mm) | - |
|
YFF21PC1A225MT000NCAP FEEDTHRU 2.2UF 20% 10V 0805 |
0 |
|
Datasheet |
YFF-P | 0805 (2012 Metric), 4 PC Pad | Tape & Reel (TR) | Obsolete | 2.2 µF | ±20% | 10V | 2 A | 12mOhm | -55°C ~ 85°C | 40dB @ 300kHz ~ 1GHz | - | - | Surface Mount | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.039" (1.00mm) | - |
|
|
YFF21PC0J106MT000NCAP FEEDTHRU 10UF 20% 6.3V 0805 |
0 |
|
Datasheet |
YFF-P | 0805 (2012 Metric), 4 PC Pad | Tape & Reel (TR) | Obsolete | 10 µF | ±20% | 6.3V | 4 A | 5mOhm | -55°C ~ 85°C | 40dB @ 80kHz ~ 1GHz | - | - | Surface Mount | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.039" (1.00mm) | - |
|
YFF31PC0J226MT000NCAP FEEDTHRU 22UF 20% 6.3V 1206 |
0 |
|
Datasheet |
YFF-P | 1206 (3216 Metric), 4 PC Pad | Tape & Reel (TR) | Obsolete | 22 µF | ±20% | 6.3V | 4 A | 12mOhm | -55°C ~ 85°C | 40dB @ 40kHz ~ 1GHz | - | - | Surface Mount | 0.126" L x 0.063" W (3.20mm x 1.60mm) | 0.057" (1.45mm) | - |
|
2499-003-X7R0-101MLFCAP FEEDTHRU 100PF 250V AXIAL |
0 |
|
Datasheet |
2499 | Axial, Bushing | Bulk | Active | 100 pF | ±20% | 250V | 20 A | - | -55°C ~ 125°C | - | X7R | - | - | 0.250" Dia x 0.468" L (6.35mm x 11.89mm) | - | 12-28 |
|
2499-540-X7R0-102PLFCAP FEEDTHRU 1000PF 500V AXIAL |
0 |
|
Datasheet |
2499 | Axial, Bushing | Bulk | Active | 1000 pF | 0%, +100% | 500V | 10 A | - | -55°C ~ 125°C | - | X7R | - | - | 0.236" Dia x 0.610" L (6.00mm x 15.50mm) | - | M5x0.8 |
|

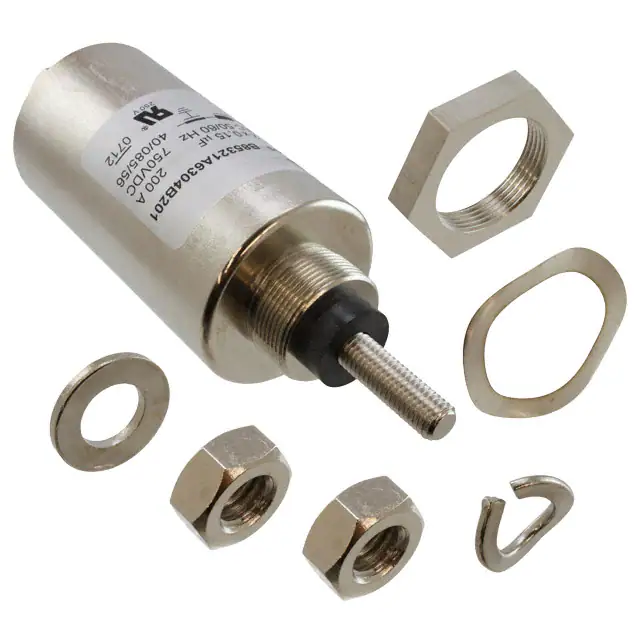

B85321A6304B201FILTER LC(PI) 0.15UF TH |
0 |
|
Datasheet |
B85321 | Axial - Threaded Terminals | Tray | Obsolete | - | - | 750V | 200 A | - | -40°C ~ 85°C | - | - | - | Through Hole | - | - | - |
|
B85321A4205B630FILTER LC(PI) 1UF TH |
0 |
|
Datasheet |
B85321 | Axial - Threaded Terminals | Tray | Active | - | - | 600V | 63 A | - | -40°C ~ 85°C | - | - | - | Through Hole | - | - | - |
|
B85321A2363G300FILTER LC(PI) 0.018UF TH |
0 |
|
Datasheet |
B85321 | Axial - Threaded Terminals | Tray | Obsolete | - | - | 600V | 30 A | - | -40°C ~ 85°C | - | - | - | Through Hole | - | - | - |
|
B85121A2504A101CAP FEEDTHRU 0.5UF 600V AXIAL |
0 |
|
Datasheet |
B85121 | Axial - Threaded Terminals | Tray | Obsolete | 0.5 µF | ±20% | 600V | 100 A | - | -40°C ~ 85°C | 80dB @ 100MHz | - | - | - | 2.165" Dia x 1.181" L (55.00mm x 30.00mm) | - | M8 |
|
B85121A2502C160CAP FEEDTHRU 5000PF 600V AXIAL |
0 |
|
Datasheet |
B85121 | Axial, Bushing | Tray | Obsolete | 5000 pF | ±20% | 600V | 16 A | - | -40°C ~ 85°C | 40dB @ 100MHz | - | - | - | 0.630" Dia x 1.181" L (16.00mm x 30.00mm) | - | M10x0.75 |
|
B85121A2475A630CAP FEEDTHRU 4.7UF 600V AXIAL |
0 |
|
Datasheet |
B85121 | Axial - Threaded Terminals | Tray | Obsolete | 4.7 µF | ±20% | 600V | 63 A | - | -40°C ~ 85°C | 90dB @ 100MHz | - | - | - | 2.165" Dia x 2.362" L (55.00mm x 60.00mm) | - | M6 |
|
B85121A2253C160CAP FEEDTHRU 0.025UF 600V AXIAL |
0 |
|
Datasheet |
B85121 | Axial, Bushing | Tray | Obsolete | 0.025 µF | ±20% | 600V | 16 A | - | -40°C ~ 85°C | 55dB @ 100MHz | - | - | - | 0.630" Dia x 1.181" L (16.00mm x 30.00mm) | - | M10x0.75 |
|

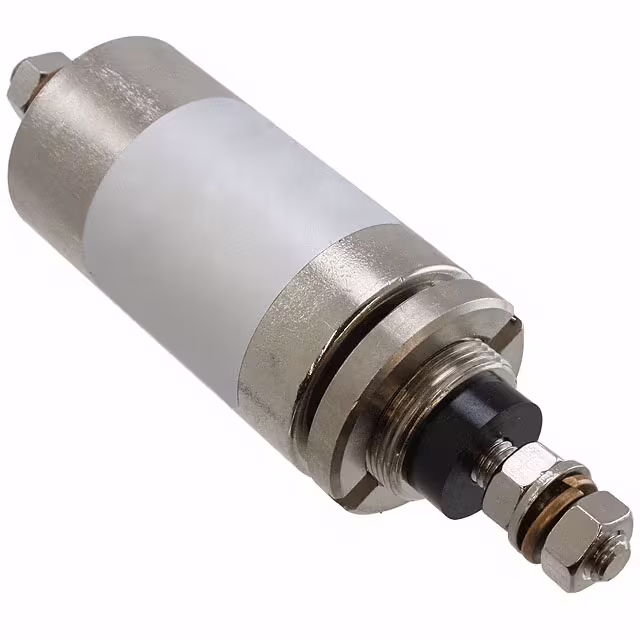

B85121A2105A750CAP FEEDTHRU 1UF 20% 600V AXIAL |
0 |
|
Datasheet |
B85121 | Axial - Threaded Terminals | Tray | Obsolete | 1 µF | ±20% | 600V | 75 A | - | -40°C ~ 85°C | 85dB @ 100MHz | - | - | - | 1.181" Dia x 2.165" L (30.00mm x 55.00mm) | - | M6 |
|
B85121A2105A630CAP FEEDTHRU 1UF 20% 600V AXIAL |
0 |
|
Datasheet |
B85121 | Axial - Threaded Terminals | Tray | Obsolete | 1 µF | ±20% | 600V | 63 A | - | -40°C ~ 85°C | 85dB @ 100MHz | - | - | - | 2.165" Dia x 1.181" L (55.00mm x 30.00mm) | - | M6 |
|
B85121A1104C160CAP FEEDTHRU 0.1UF 160V AXIAL |
0 |
|
Datasheet |
B85121 | Axial, Bushing | Tray | Obsolete | 0.1 µF | ±20% | 160V | 16 A | - | -40°C ~ 85°C | 60dB @ 100MHz | - | - | - | 0.630" Dia x 1.181" L (16.00mm x 30.00mm) | - | M10x0.75 |
Feed Through Capacitors Electronic Components
Explore Feed Through Capacitors electronic components, related subcategories, product specifications, datasheets and sourcing options. We support original component procurement, BOM sourcing and RFQ services for engineers, distributors and global buyers.
