Feed Through Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Capacitance | Tolerance | Voltage - Rated | Current | DC Resistance (DCR) (Max) | Operating Temperature | Insertion Loss | Temperature Coefficient | Ratings | Mounting Type | Size / Dimension | Height (Max) | Thread Size |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
DBF50180WV20236BK1CAP FEEDTHRU 2000PF 30KV AXIAL |
0 |
|
Datasheet |
DBF | Axial - Threaded Terminals | Bulk | Active | 2000 pF | ±10% | 30000V (30kV) | 87 A | - | -55°C ~ 100°C | - | - | - | Bolt Mount | 3.780" Dia x 7.087" L (96.01mm x 180.00mm) | - | M10 |
|
|
DBF50180WV10238BJ1CAP FEEDTHRU 1000PF 30KV AXIAL |
0 |
|
Datasheet |
DBF | Axial - Threaded Terminals | Bulk | Active | 1000 pF | ±20% | 30000V (30kV) | 87 A | - | -55°C ~ 100°C | - | - | - | Bolt Mount | 3.780" Dia x 7.087" L (96.01mm x 180.00mm) | - | M10 |
|
|
DBF50180WV10236BJ1CAP FEEDTHRU 1000PF 30KV AXIAL |
0 |
|
Datasheet |
DBF | Axial - Threaded Terminals | Bulk | Active | 1000 pF | ±10% | 30000V (30kV) | 87 A | - | -55°C ~ 100°C | - | - | - | Bolt Mount | 3.780" Dia x 7.087" L (96.01mm x 180.00mm) | - | M10 |
|
NFM41PC204F1H3LCAP FEEDTHRU 0.2UF 50V 1806 |
0 |
|
Datasheet |
EMIFIL®, NFM41 | 1806 (4516 Metric), 3 PC Pad | Tape & Reel (TR) | Obsolete | 0.2 µF | -20%, +50% | 50V | 2 A | 40mOhm | -55°C ~ 85°C | - | - | - | Surface Mount | 0.177" L x 0.063" W (4.50mm x 1.60mm) | 0.047" (1.20mm) | - |
|

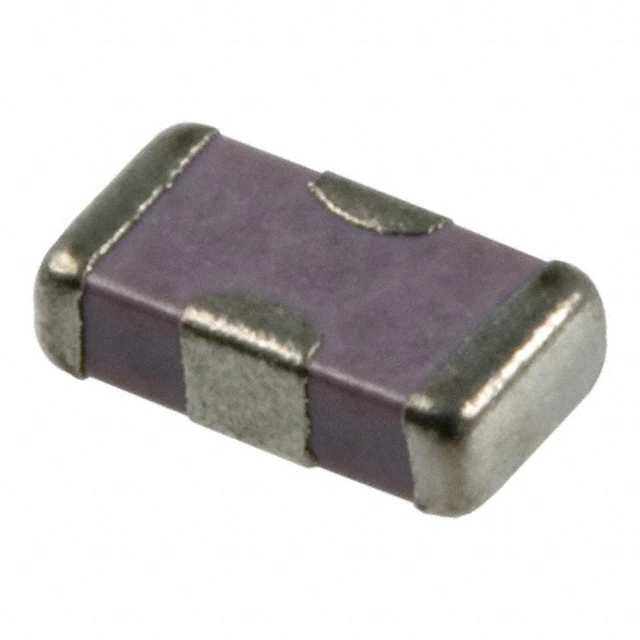

W3F41A2208AT1FCAP FEEDTHRU 22PF 100V 1206 |
0 |
|
Datasheet |
W3F4 | 1206 (3216 Metric), 4 PC Pad | Tape & Reel (TR) | Obsolete | 22 pF | -20%, +50% | 100V | 300 mA | 600mOhm | -55°C ~ 125°C | - | C0G, NP0 | - | Surface Mount | 0.128" L x 0.063" W (3.25mm x 1.60mm) | 0.048" (1.22mm) | - |
|
|
W3F45C2218AT1FCAP FEEDTHRU 220PF 50V 1206 |
0 |
|
Datasheet |
W3F4 | 1206 (3216 Metric), 4 PC Pad | Tape & Reel (TR) | Obsolete | 220 pF | -20%, +50% | 50V | 300 mA | 600mOhm | -55°C ~ 125°C | - | X7R | - | Surface Mount | 0.128" L x 0.063" W (3.25mm x 1.60mm) | 0.048" (1.22mm) | - |
|
YFF32SC1E222MCAP FEEDTHRU 2200PF 25V 1206 |
0 |
|
Datasheet |
YFF-SC | 1206 (3216 Metric), 4 PC Pad | Tape & Reel (TR) | Obsolete | 2200 pF | - | 25V | 200 mA | 600mOhm | -55°C ~ 125°C | - | - | - | Surface Mount | 0.126" L x 0.049" W (3.20mm x 1.25mm) | 0.039" (1.00mm) | - |
|
|
W3F41A1018AT1ACAP FEEDTHRU 100PF 100V 1206 |
0 |
|
Datasheet |
W3F4 | 1206 (3216 Metric), 4 PC Pad | Tape & Reel (TR) | Obsolete | 100 pF | -20%, +50% | 100V | 300 mA | 600mOhm | -55°C ~ 125°C | - | C0G, NP0 | - | Surface Mount | 0.128" L x 0.063" W (3.25mm x 1.60mm) | 0.048" (1.22mm) | - |
|
|
W3F41A2208AT1ACAP FEEDTHRU 22PF 100V 1206 |
0 |
|
Datasheet |
W3F4 | 1206 (3216 Metric), 4 PC Pad | Tape & Reel (TR) | Obsolete | 22 pF | -20%, +50% | 100V | 300 mA | 600mOhm | -55°C ~ 125°C | - | C0G, NP0 | - | Surface Mount | 0.128" L x 0.063" W (3.25mm x 1.60mm) | 0.048" (1.22mm) | - |
|
|
W3F45C2218AT1ACAP FEEDTHRU 220PF 50V 1206 |
0 |
|
Datasheet |
W3F4 | 1206 (3216 Metric), 4 PC Pad | Tape & Reel (TR) | Obsolete | 220 pF | -20%, +50% | 50V | 300 mA | 600mOhm | -55°C ~ 125°C | - | X7R | - | Surface Mount | 0.128" L x 0.063" W (3.25mm x 1.60mm) | 0.048" (1.22mm) | - |
|
|
W3F45C4718AT1ACAP FEEDTHRU 470PF 50V 1206 |
0 |
|
Datasheet |
W3F4 | 1206 (3216 Metric), 4 PC Pad | Tape & Reel (TR) | Obsolete | 470 pF | -20%, +50% | 50V | 300 mA | 600mOhm | -55°C ~ 125°C | - | X7R | - | Surface Mount | 0.128" L x 0.063" W (3.25mm x 1.60mm) | 0.048" (1.22mm) | - |
|
1-1609990-4CAP FEEDTHRU 0.01UF 250V AXIAL |
0 |
|
Datasheet |
AFC | Axial - Threaded Terminals | Bulk | Obsolete | 10000 pF | - | 250V | 63 A | - | -40°C ~ 60°C | 45dB @ 100MHz | - | Y2 | - | 0.984" Dia x 1.181" L (25.00mm x 30.00mm) | - | M6 |
|
1609990-2CAP FEEDTHRU 4700PF 250V AXIAL |
0 |
|
Datasheet |
AFC | Axial - Threaded Terminals | Bulk | Obsolete | 4700 pF | - | 250V | 10 A | - | -40°C ~ 60°C | 43dB @ 100MHz | - | Y2 | - | 0.591" Dia x 0.709" L (15.00mm x 18.00mm) | - | M3 |
|
1609990-5CAP FEEDTHRU 0.047UF 250V AXIAL |
0 |
|
Datasheet |
AFC | Axial - Threaded Terminals | Bulk | Obsolete | 0.047 µF | - | 250V | 16 A | - | -40°C ~ 60°C | 50dB @ 100MHz | - | Y2 | - | 0.787" Dia x 1.181" L (20.00mm x 30.00mm) | - | M4 |
|
1609990-8CAP FEEDTHRU 4700PF 250V AXIAL |
0 |
|
Datasheet |
AFC | Axial - Threaded Terminals | Bulk | Obsolete | 4700 pF | - | 250V | 32 A | - | -40°C ~ 60°C | 43dB @ 100MHz | - | Y2 | - | 0.787" Dia x 0.709" L (20.00mm x 18.00mm) | - | M4 |
|
1609990-9CAP FEEDTHRU 0.01UF 250V AXIAL |
0 |
|
Datasheet |
AFC | Axial - Threaded Terminals | Bulk | Obsolete | 10000 pF | - | 250V | 32 A | - | -40°C ~ 60°C | 45dB @ 100MHz | - | Y2 | - | 0.787" Dia x 0.709" L (20.00mm x 18.00mm) | - | M4 |
|
1609991-3CAP FEEDTHRU 0.01UF 130V AXIAL |
0 |
|
Datasheet |
FFA | Axial - Threaded Terminals | Bulk | Obsolete | 10000 pF | - | 130V | 32 A | 4mOhm | -40°C ~ 60°C | - | - | - | - | 0.787" Dia x 2.402" L (20.00mm x 61.00mm) | - | M4 |
|
1-1609991-1CAP FEEDTHRU 0.022UF 130V AXIAL |
0 |
|
Datasheet |
FFA | Axial - Threaded Terminals | Bulk | Obsolete | 0.022 µF | - | 130V | 16 A | 4mOhm | -40°C ~ 60°C | - | - | - | - | 0.984" Dia x 2.717" L (25.00mm x 69.00mm) | - | M4 |
|
2-1609991-1CAP FEEDTHRU 0.1UF 130V AXIAL |
0 |
|
Datasheet |
FFA | Axial - Threaded Terminals | Bulk | Obsolete | 0.1 µF | - | 130V | 32 A | 6mOhm | -40°C ~ 60°C | - | - | - | - | 0.984" Dia x 3.976" L (25.00mm x 101.00mm) | - | M4 |
|
2-1609991-3CAP FEEDTHRU 1UF 130V AXIAL |
0 |
|
Datasheet |
FFA | Axial - Threaded Terminals | Bulk | Obsolete | 1 µF | - | 130V | 100 A | 2mOhm | -40°C ~ 60°C | - | - | - | - | 2.126" Dia x 5.669" L (54.00mm x 144.00mm) | - | M8 |
