Encoders
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Programmable | Encoder Type | Output Type | Pulses per Revolution | Voltage - Supply | Actuator Type | Detent | Built in Switch | Mounting Type | Orientation | Termination Style | Rotational Life (Cycles Min) | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
EMS22Q33-D28-LT4ROTARY ENCODER MAGNETIC 256PPR |
0 |
|
Datasheet |
- | Tray | Active | Not Verified | Magnetic | Quadrature (Incremental) | 256 | 3.3V | 1/8" Dia Round End | No | - | Panel Mount | Vertical | PC Pin | 50M | - | - |
|
HEDS-5500#A12ROTARY ENCODER OPTICAL 500PPR |
0 |
|
Datasheet |
HEDS | Bulk | Active | Not Verified | Optical | Quadrature (Incremental) | 500 | 5V | 6mm Open Center | No | No | Chassis Mount, Motors | Vertical | Terminal Pins | - | - | - |
|
11CEY25F243AROTARY ENCODER MECHANICAL 24PPR |
14 |
|
Datasheet |
11CE | Tray | Active | Not Verified | Mechanical | Quadrature, 2-Bit | 24 | 5V | 6mm Dia Flatted End | Yes | No | Panel, PCB Through Hole | Right Angle | PC Pin | 30K | - | - |
|
11CEK25F243AROTARY ENCODER MECHANICAL 24PPR |
0 |
|
Datasheet |
11CE | Tray | Active | Not Verified | Mechanical | Quadrature, 2-Bit | 24 | 5V | 6mm Dia Flatted End | Yes | No | Panel, PCB Through Hole | Vertical | PC Pin | 30K | - | - |
|
3315C-101-016LROTARY ENCODER MECHANICAL 16PPR |
0 |
|
Datasheet |
3315 | Bulk | Active | Not Verified | Mechanical | Quadrature (Incremental) | 16 | - | 1/8" Dia Flatted End | No | No | Panel, PCB Through Hole | Right Angle | PC Pin | 25K | - | - |
|
|
11CEH20F122AROTARY ENCODER MECHANICAL 12PPR |
0 |
|
Datasheet |
11CE | Tray | Active | Not Verified | Mechanical | Quadrature, 2-Bit | 12 | 5V | 6mm Dia Flatted End | Yes | No | Panel, PCB Through Hole | Vertical | PC Pin | 30K | - | - |
|
EVQ-V5C00315BROTARY ENCODER MECHANICAL 9PPR |
0 |
|
Datasheet |
EVQV | Bulk | Not For New Designs | Not Verified | Mechanical | Quadrature (Incremental) | 9 | - | 27mm Open Center | Yes | No | PCB, Through Hole | Vertical | PC Pin | 30K | - | - |
|

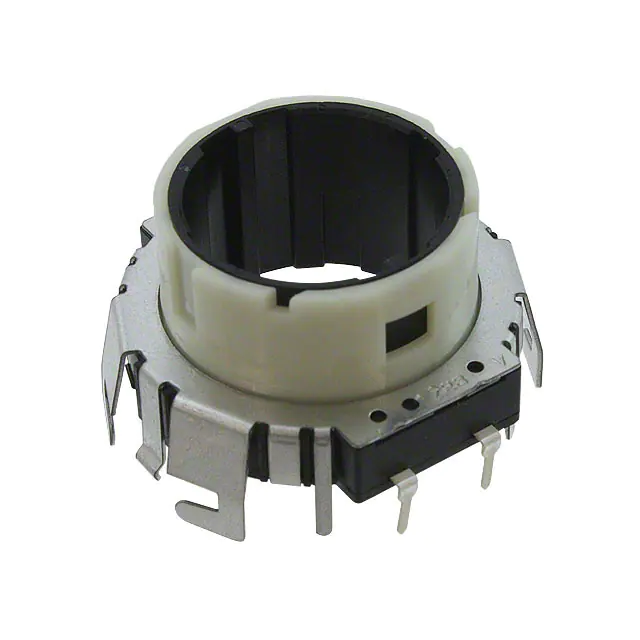

EVQ-V5H00415BROTARY ENCODER MECHANICAL 9PPR |
0 |
|
Datasheet |
EVQV | Tray | Active | Not Verified | Mechanical | Quadrature (Incremental) | 9 | - | 27mm Open Center | Yes | No | PCB, Through Hole | Vertical | PC Pin | 30K | - | - |
|

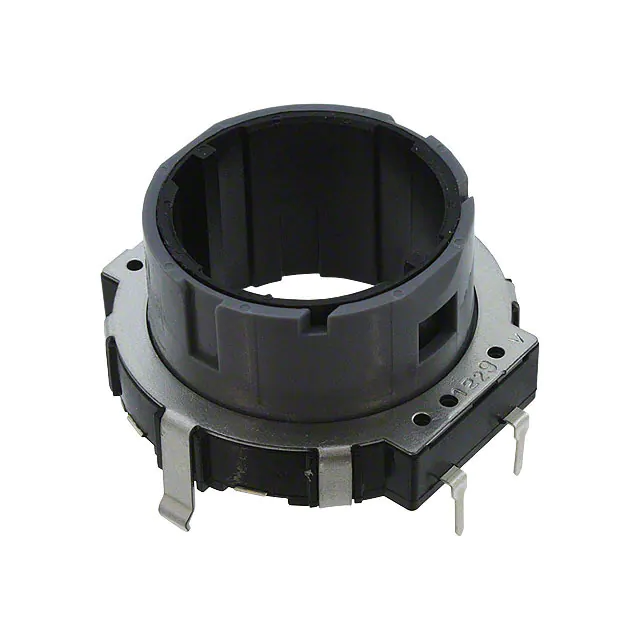

EVQ-V5B00215BROTARY ENCODER MECHANICAL 15PPR |
23 |
|
Datasheet |
EVQV | Bulk | Not For New Designs | Not Verified | Mechanical | Quadrature (Incremental) | 15 | - | 27mm Open Center | Yes | No | PCB, Through Hole | Vertical | PC Pin | 30K | - | - |
|
ECW1D-C28-BC0024LROTARY ENCODER MECHANICAL 24PPR |
0 |
|
Datasheet |
ECW | Bulk | Active | Not Verified | Mechanical | Quadrature (Incremental) | 24 | - | 1/4" Dia Flatted End | Yes | No | Panel, PCB Through Hole | Vertical | PC Pin | 200K | - | - |
|
ECW1D-R24-BC0024LROTARY ENCODER MECHANICAL 24PPR |
15 |
|
Datasheet |
ECW | Bulk | Active | Not Verified | Mechanical | Quadrature (Incremental) | 24 | - | 6mm Dia Slotted End | Yes | No | Panel, PCB Through Hole | Vertical | PC Pin | 200K | - | - |
|

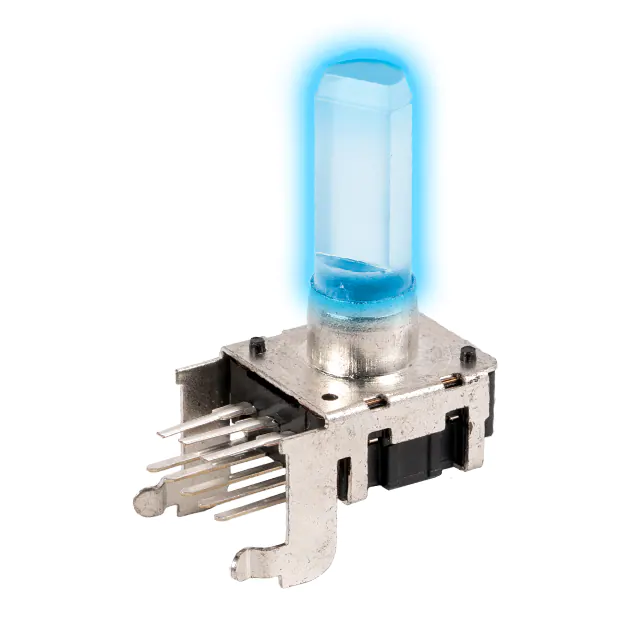

12CE3N26F24T24ROT ENC 24PPR GRN/RED/BLU LED |
0 |
|
Datasheet |
12CE | Tray | Active | Not Verified | Mechanical | Quadrature, 2-Bit | 24 | 5V | 6mm Dia Flatted End | Yes | Yes | Panel, PCB Through Hole | Right Angle | PC Pin | 30K | - | - |
|
|
291P1022F416ABROTARY ENCODER OPTICAL 4PPR |
0 |
|
Datasheet |
291 | Tray | Active | Not Verified | Optical | Quadrature (Incremental) | 4 | 4.75V ~ 5.25V | 1/4" Dia Flatted End | Yes | Yes | PCB, Through Hole | Vertical | PC Pin | 1M | - | - |
|
AR18-S11ROTARY ENCODER OPTICAL PROG |
0 |
|
Datasheet |
AR18 | Bulk | Active | Not Verified | Optical | Digital | Programmable | 3V ~ 3.6V, 4.5V ~ 5.5V | External Magnet, Not Included | No | No | Surface Mount | - | Surface Mount (SMD,SMT) | - | - | - |
|
EM14A0D-C24-L008NROTARY ENCODER OPTICAL 8PPR |
0 |
|
Datasheet |
EM14 | Bulk | Active | Not Verified | Optical | Quadrature (Incremental) | 8 | 5V | 1/4" Dia Flatted End | No | No | Panel, PCB Through Hole | Vertical | PC Pin | 1M | - | - |
|
EM14C0D-E24-L064NROTARY ENCODER OPTICAL 64PPR |
0 |
|
Datasheet |
EM14 | Bulk | Active | Not Verified | Optical | Quadrature (Incremental) | 64 | 5V | 1/8" Dia Slotted End | No | No | Panel, PCB Through Hole | Vertical | PC Pin | 1M | - | - |
|
25LB11-QROTARY ENCODER MECHANICAL 32PPR |
0 |
|
Datasheet |
25L | Bulk | Active | Not Verified | Mechanical | Quadrature (Incremental) | 32 | - | 1/4" Dia Flatted End | Yes | No | Panel, PCB Through Hole | Vertical | PC Pin | 100K | - | - |
|
AEAT-9966-Q3218B DUAL MAG ENC MULTIPLE AXIS T |
0 |
|
- |
* | Tube | Active | Not Verified | - | - | - | - | - | - | - | - | - | - | - | - | - |
|

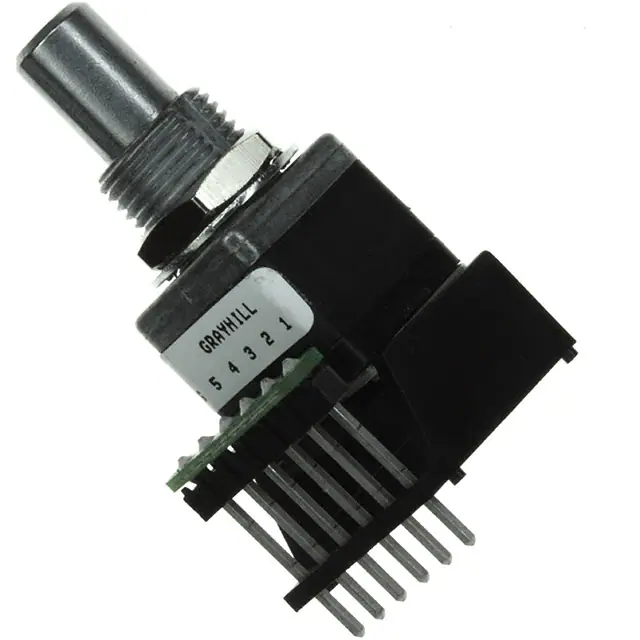

62A15-01-PROTARY ENCODER OPTICAL 24PPR |
3 |
|
Datasheet |
62A | Bulk | Active | Not Verified | Optical | Quadrature (Incremental) | 24 | 5V | 1/4" Dia Flatted End | Yes | No | PCB, Through Hole | User Selectable | PC Pin | 1M | - | - |
|
|
AEDS-9340-L00ROTARY ENCODER OPTICAL 1250PPR |
0 |
|
Datasheet |
AEDS-9340 | Tube | Active | Not Verified | Optical | Quadrature with Index (Incremental) | 1250 | 5V | Codewheel Not Included | No | No | Chassis Mount | - | Terminal Pins | - | - | - |
Encoders Electronic Components
Explore Encoders electronic components, related subcategories, product specifications, datasheets and sourcing options. We support original component procurement, BOM sourcing and RFQ services for engineers, distributors and global buyers.
