Encoders
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Programmable | Encoder Type | Output Type | Pulses per Revolution | Voltage - Supply | Actuator Type | Detent | Built in Switch | Mounting Type | Orientation | Termination Style | Rotational Life (Cycles Min) | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

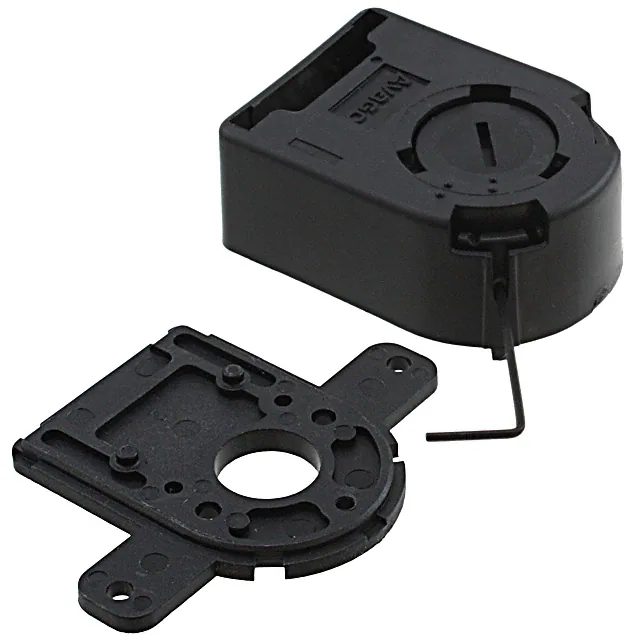

HEDS-5600#E06ROTARY ENCODER OPTICAL 200PPR |
0 |
|
Datasheet |
HEDS | Bulk | Active | Not Verified | Optical | Quadrature (Incremental) | 200 | 5V | 1/4" Open Center | No | No | Chassis Mount, Motors | Vertical | Terminal Pins | - | - | - |
|

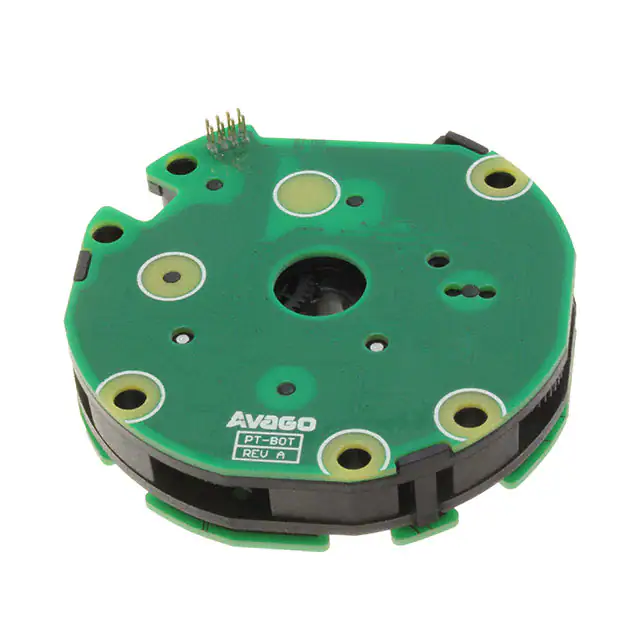

AEAT-84AD-LBSC0ROTARY ENCODER OPTICAL 4096PPR |
0 |
|
Datasheet |
AEAT-84AD | Bulk | Active | Not Verified | Optical | Gray Code (Absolute) | 4096 | 5V | 10mm Geared Center | No | No | Chassis Mount | - | Pin Strip | - | - | - |
|

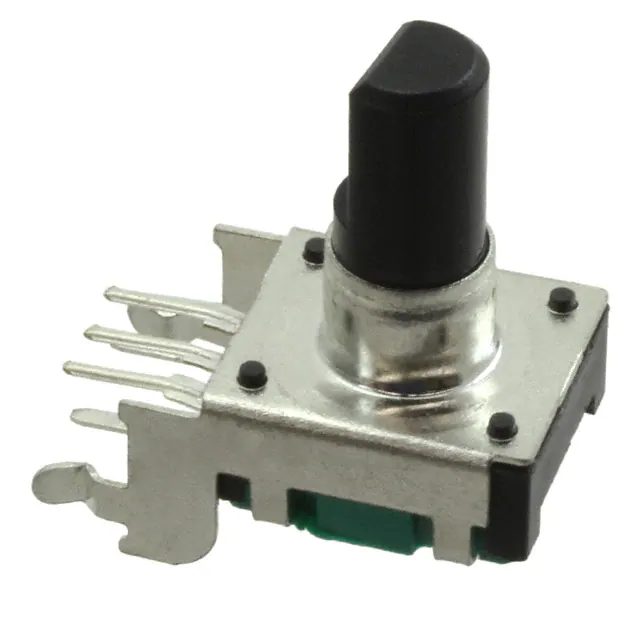

PEC12R-2120F-S0012ROTARY ENCODER MECHANICAL 12PPR |
0 |
|
Datasheet |
PEC12R | Tray | Active | Not Verified | Mechanical | Quadrature (Incremental) | 12 | - | 6mm Dia Flatted End | Yes | Yes | PCB, Through Hole | Right Angle | PC Pin | 30K | - | - |
|
PEC12R-3222F-S0024ROTARY ENCODER MECHANICAL 24PPR |
0 |
|
Datasheet |
PEC12R | Tray | Active | Not Verified | Mechanical | Quadrature (Incremental) | 24 | - | 6mm Dia Flatted End | Yes | Yes | PCB, Through Hole | Vertical | PC Pin | 30K | - | - |
|

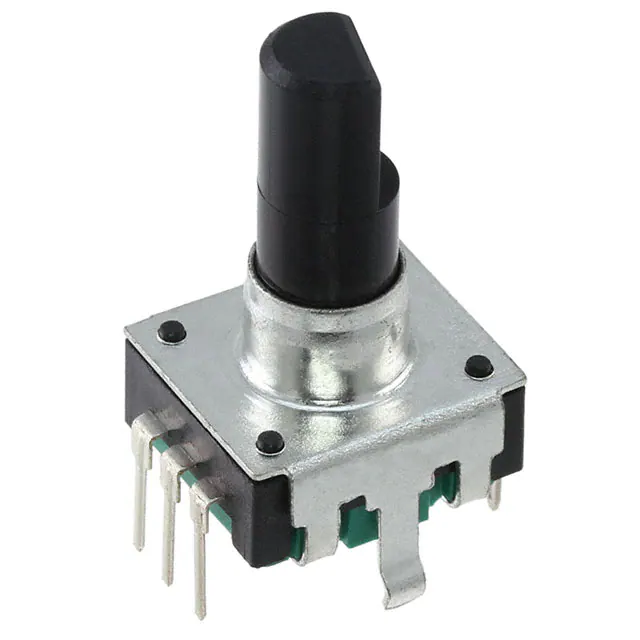

PEC12R-4222F-S0024ROTARY ENCODER MECHANICAL 24PPR |
0 |
|
Datasheet |
PEC12R | Tray | Active | Not Verified | Mechanical | Quadrature (Incremental) | 24 | - | 6mm Dia Flatted End | Yes | Yes | PCB, Through Hole | Vertical | PC Pin | 30K | - | - |
|
RIC11-22S16D5M-THINCR ENC, MECH, 20 PPR 20 DET, 5 |
0 |
|
Datasheet |
RIC11 | Box | Active | - | Incremental | Quadrature, 2-Bit | 20 | 5V | 6mm Dia Flatted End | Yes | Yes | PCB, Through Hole | Vertical | PC Pin | 100K | - | - |
|
|
EC05E1220202THROUGH SHAFT ENCODERS |
0 |
|
Datasheet |
EC05E | Tape & Reel (TR) | Active | - | Mechanical | Quadrature (Incremental) | 12 | 5V | Hole for Shaft | Yes | No | PCB, Through Hole | Vertical | PC Pin | 100K | - | - |
|
EVQ-V9C00116EROTARY ENCODER MECHANICAL 16PPR |
0 |
|
Datasheet |
- | Bulk | Active | Not Verified | Absolute | Gray Code (Absolute) | 16 | - | 1/4" Dia Flatted End | Yes | - | PCB, Through Hole | Vertical | PC Pin | 30K | - | - |
|
PEC11H-4115F-S0020ROTARY ENCODER WITH BALL/SPRING |
0 |
|
Datasheet |
PEC11H | Tray | Active | Not Verified | Mechanical | Quadrature (Incremental) | 20 | - | 6mm Dia Flatted End | Yes | Yes | Panel, PCB Through Hole | Vertical | PC Pin | 100K | - | - |
|
PEL12D-4225S-S2024ROTARY ENCODER MECHANICAL 24PPR |
25 |
|
Datasheet |
PEL12D | Tray | Active | Not Verified | Mechanical | Quadrature (Incremental) | 24 | - | 6mm Dia Knurled End, Illuminated | Yes | Yes | PCB, Through Hole | Vertical | PC Pin | 30K | - | - |
|
|
EC11E09244BSMETAL SHAFT ENCODERS |
2 |
|
Datasheet |
EC11E | Tray | Active | - | Incremental | Quadrature (Incremental) | 9 | 5V | 4.5mm Dia Flatted End | Yes | Yes | PCB, Through Hole | Vertical | PC Pin | 15K | - | - |
|
|
EC28A1870401RING TYP ENCODERS |
0 |
|
Datasheet |
EC28A | Tray | Active | - | - | - | 18 | 5V | 28mm Open Center | Yes | No | PCB, Through Hole | Vertical | PC Pin | 50K | - | - |
|
ECW1J-C24-AC0024LROTARY ENCODER MECHANICAL 24PPR |
0 |
|
Datasheet |
ECW | Tray | Active | Not Verified | Mechanical | Quadrature (Incremental) | 24 | - | 1/4" Dia Flatted End | Yes | No | Panel, PCB Through Hole | Vertical | PC Pin | 200K | - | - |
|
PEC11D-4120F-S0015ROTARY ENCDER WITH DUAL CONCENTR |
0 |
|
Datasheet |
PEC11D | Tray | Active | Not Verified | Mechanical | Quadrature (Incremental) | 15 | - | 6mm Dia Flatted End | Yes | Yes | Panel, PCB Through Hole | Vertical | PC Pin | 15K | - | - |
|
292V1X00AROTARY ENCODER OPTICAL 24PPR |
2 |
|
Datasheet |
292 | Tray | Active | Not Verified | Optical | Quadrature, 2-Bit | 24 | 4.95V ~ 5.5V | Hole for Shaft | No | Yes | PCB, Through Hole | User Selectable | PC Pin | 3M | - | - |
|
62AG22-L5-PROTARY ENCODER OPTICAL 16PPR |
0 |
|
Datasheet |
62AG | Bulk | Active | Not Verified | Optical | Quadrature (Incremental) | 16 | 5V | 1/4" Dia Flatted End | Yes | Yes | Panel Mount | Vertical | PC Pin | 1M | - | - |
|
62AG22-H5-PROTARY ENCODER OPTICAL 16PPR |
5 |
|
Datasheet |
62A | Bulk | Active | Not Verified | Optical | Quadrature (Incremental) | 16 | 5V | 1/4" Dia Flatted End | Yes | Yes | Panel Mount | Vertical | PC Pin | 1M | - | - |
|

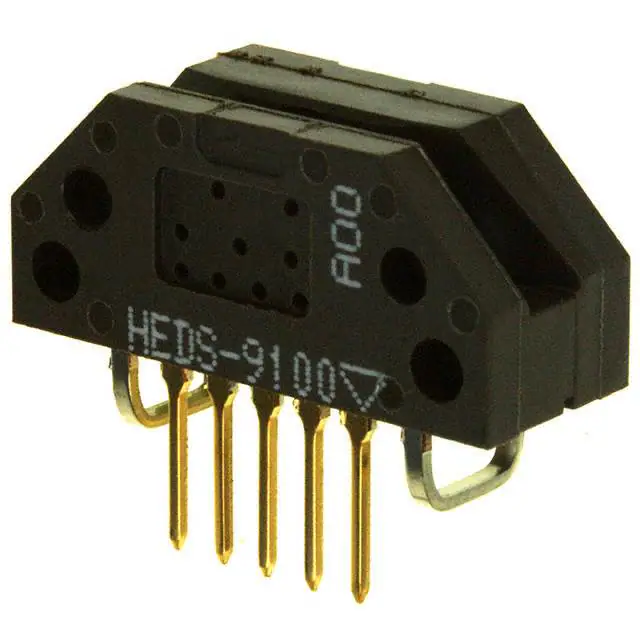

HEDS-9100#A00ROTARY ENCODER OPTICAL 500PPR |
0 |
|
Datasheet |
HEDS | Bulk | Active | Not Verified | Optical | Quadrature (Incremental) | 500 | 5V | Codewheel Not Included | No | No | Chassis Mount | Vertical | Terminal Pins | - | - | - |
|
ENA1J-B20-L00128LROTARY ENCODER OPTICAL 128PPR |
0 |
|
Datasheet |
EN | Bulk | Active | Not Verified | Optical | Quadrature (Incremental) | 128 | 5V | 1/4" Dia Round End | No | No | Panel, PCB Through Hole | Vertical | PC Pin | 10M | - | - |
|
EMS22Q31-B28-LS3ROTARY ENCODER MAGNETIC 128PPR |
0 |
|
Datasheet |
- | Tray | Active | Not Verified | Magnetic | Quadrature (Incremental) | 128 | 3.3V | 1/4" Dia Round End | No | - | Panel Mount | Vertical | PC Pin | 100M | - | - |
Encoders Electronic Components
Explore Encoders electronic components, related subcategories, product specifications, datasheets and sourcing options. We support original component procurement, BOM sourcing and RFQ services for engineers, distributors and global buyers.
