Encoders
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Programmable | Encoder Type | Output Type | Pulses per Revolution | Voltage - Supply | Actuator Type | Detent | Built in Switch | Mounting Type | Orientation | Termination Style | Rotational Life (Cycles Min) | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
HEDS-9700#D50ROTARY ENCODER OPTICAL 192PPR |
316 |
|
Datasheet |
HEDS | Bulk | Active | Not Verified | Optical | Quadrature (Incremental) | 192 | 5V | Codewheel Not Included | No | No | Chassis Mount | Vertical | Terminal Pins | - | - | - |
|
HEDS-9730#A50ROTARY ENCODER OPTICAL 500PPR |
294 |
|
Datasheet |
HEDS | Bulk | Active | Not Verified | Optical | Quadrature (Incremental) | 500 | 2.8V ~ 5.2V | Codewheel Not Included | No | No | Chassis Mount | Vertical | Terminal Pins | - | - | - |
|
292V1X00BROTARY ENCODER OPTICAL 24PPR |
137 |
|
Datasheet |
292 | Tray | Active | Not Verified | Optical | Quadrature, 2-Bit | 24 | 2.97V ~ 3.63V | Hole for Shaft | No | Yes | PCB, Through Hole | User Selectable | PC Pin | 3M | - | - |
|
EM14A0D-C24-L032NROTARY ENCODER OPTICAL 32PPR |
155 |
|
Datasheet |
EM14 | Bulk | Active | Not Verified | Optical | Quadrature (Incremental) | 32 | 5V | 1/4" Dia Flatted End | No | No | Panel, PCB Through Hole | Vertical | PC Pin | 1M | - | - |
|
|
EM14R0B-M25-L064NROTARY OPTICAL ENCODER - 14MM |
493 |
|
Datasheet |
EM14 | Tray | Active | Not Verified | Optical | Quadrature, 2-Bit | 64 | 4.75V ~ 5.25V | 6mm Dia Flatted End | No | No | Panel, PCB Through Hole | Vertical | PC Pin | 1M | - | - |
|
C14D32P-A2P15 MM, 32 PPR, 6.00 MM PLASTIC M |
173 |
|
Datasheet |
C14 | Tray | Active | Not Verified | Optical | Quadrature (Incremental) | 32 | 4.75V ~ 5.25V | 6mm Dia Round End | Yes | Yes | Panel Mount | Right Angle | Solder Lug | 1M | - | - |
|
EM14A1B-C24-L032SROTARY ENCODER OPTICAL 32PPR |
120 |
|
Datasheet |
EM14 | Tray | Active | Not Verified | Optical | Quadrature (Incremental) | 32 | 5V | 1/4" Dia Flatted End | Yes | Yes | Panel, PCB Through Hole | Vertical | PC Pin | 200K | - | - |
|
25LB15-QROTARY ENCODER MECHANICAL 24PPR |
230 |
|
Datasheet |
25L | Bulk | Active | Not Verified | Mechanical | Quadrature (Incremental) | 24 | - | 1/4" Dia Flatted End | Yes | No | Panel, PCB Through Hole | Vertical | PC Pin | 100K | - | - |
|

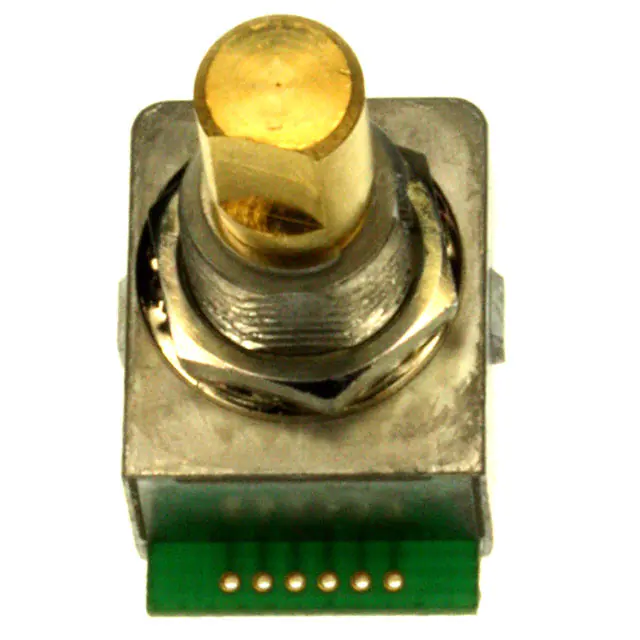

C14N32N-A3ROTARY ENCODER OPTICAL 32PPR |
204 |
|
Datasheet |
C14 | Box | Active | Not Verified | Optical | Quadrature (Incremental) | 32 | 5V | 1/4" Dia Flatted End | No | No | Panel Mount | Right Angle | Solder Lug | 1M | - | - |
|
HEDS-9100#I00ROTARY ENCODER OPTICAL 512PPR |
197 |
|
Datasheet |
HEDS | Bulk | Active | Not Verified | Optical | Quadrature (Incremental) | 512 | 5V | Codewheel Not Included | No | No | Chassis Mount | Vertical | Terminal Pins | - | - | - |
|
HEDS-9100#E00ROTARY ENCODER OPTICAL 200PPR |
140 |
|
Datasheet |
HEDS | Bulk | Active | Not Verified | Optical | Quadrature (Incremental) | 200 | 5V | Codewheel Not Included | No | No | Chassis Mount | Vertical | Terminal Pins | - | - | - |
|
|
AR25-AS0225BITS ABS UPTO 60MM SSI/485/ESL |
941 |
|
Datasheet |
- | Tray | Active | Not Verified | Absolute | Digital, SSI | - | - | - | No | No | - | - | - | - | - | - |
|
|
EM14A0D-C24-L032SROTARY ENCODER OPTICAL 32PPR |
283 |
|
Datasheet |
EM14 | Bulk | Active | Not Verified | Optical | Quadrature (Incremental) | 32 | 5V | 1/4" Dia Flatted End | No | Yes | Panel, PCB Through Hole | Vertical | PC Pin | 1M | - | - |
|
AMT11A2S-VKIT, AMT11A2S, INCREMENTAL ENCOD |
194 |
|
Datasheet |
AMT11A | Box | Active | Not Verified | Capacitive, Incremental | Voltage | - | 4.5V ~ 5.5V | - | No | No | Chassis Mount | Right Angle | Connector | - | - | - |
|
|
AR25-A12TALUM CW 512,THRU ID 6MM |
481 |
|
Datasheet |
- | Tray | Active | Not Verified | - | - | 512 | - | - | No | No | - | - | - | - | - | - |
|
AEDR-8712-102ROTARY ENCODER OPTICAL PROG |
1,126 |
|
Datasheet |
AEDR | Tape & Reel (TR) | Active | Not Verified | Optical | Digital | Programmable | 3.3V, 5V | Codewheel Not Included | No | No | Surface Mount | - | SMD (SMT) Tab | - | - | - |
|

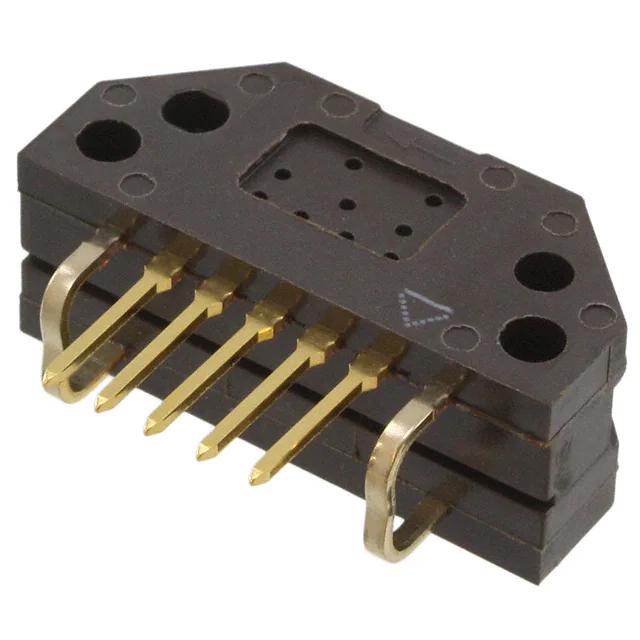

HEDS-9100#F00ROTARY ENCODER OPTICAL 256PPR |
218 |
|
Datasheet |
HEDS | Tube | Active | Not Verified | Optical | Quadrature (Incremental) | 256 | 5V | Codewheel Not Included | No | No | Chassis Mount | Vertical | Terminal Pins | - | - | - |
|

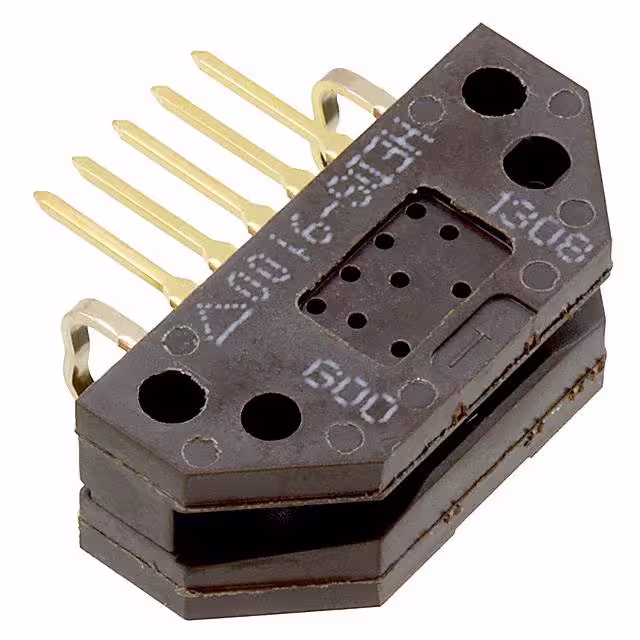

HEDS-9100#G00ROTARY ENCODER OPTICAL 360PPR |
199 |
|
Datasheet |
HEDS | Bulk | Active | Not Verified | Optical | Quadrature (Incremental) | 360 | 5V | Codewheel Not Included | No | No | Chassis Mount | Vertical | Terminal Pins | - | - | - |
|

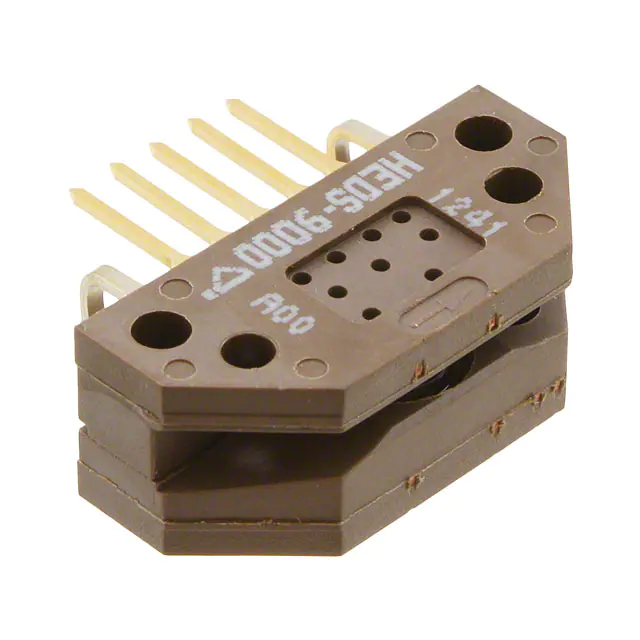

HEDS-9000#A00ROTARY ENCODER OPTICAL 500PPR |
198 |
|
Datasheet |
HEDS | Bulk | Active | Not Verified | Optical | Quadrature (Incremental) | 500 | 5V | Codewheel Not Included | No | No | Chassis Mount | Vertical | Terminal Pins | - | - | - |
|

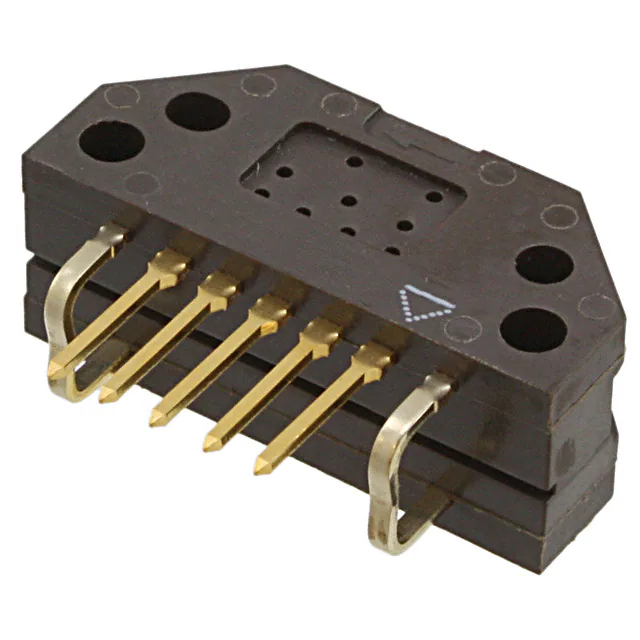

HEDS-9000#B00ROTARY ENCODER OPTICAL 1000PPR |
176 |
|
Datasheet |
HEDS | Bulk | Active | Not Verified | Optical | Quadrature (Incremental) | 1000 | 5V | Codewheel Not Included | No | No | Chassis Mount | Vertical | Terminal Pins | - | - | - |
