Encoders
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Programmable | Encoder Type | Output Type | Pulses per Revolution | Voltage - Supply | Actuator Type | Detent | Built in Switch | Mounting Type | Orientation | Termination Style | Rotational Life (Cycles Min) | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ECW0D-B24-BC0006LROTARY ENCODER MECHANICAL 6PPR |
213 |
|
Datasheet |
ECW | Bulk | Active | Not Verified | Mechanical | Quadrature (Incremental) | 6 | - | 1/4" Dia Slotted End | Yes | No | Panel, PCB Through Hole | Vertical | PC Pin | 200K | - | - |
|
EVE-RLCJL008BROTARY ENCODER MECHANICAL 8PPR |
109 |
|
Datasheet |
EVER | Tray | Not For New Designs | Not Verified | Mechanical | Quadrature (Incremental) | 8 | - | 6mm Dia Flatted End | Yes | Yes | Surface Mount | Vertical | Solder Tab | 30K | - | - |
|
ECW1J-R19-CC0024LROTARY ENCODER MECHANICAL 24PPR |
150 |
|
Datasheet |
ECW | Tray | Active | Not Verified | Mechanical | Quadrature (Incremental) | 24 | - | 6mm Dia Slotted End | Yes | No | Panel, PCB Through Hole | Vertical | PC Pin | 200K | - | - |
|
ECW0J-B24-BD0009LROTARY ENCODER MECHANICAL 9PPR |
143 |
|
Datasheet |
ECW | Tray | Active | Not Verified | Mechanical | Quadrature (Incremental) | 9 | - | 1/4" Dia Flatted End | Yes | No | Panel, PCB Through Hole | Vertical | PC Pin | 200K | - | - |
|

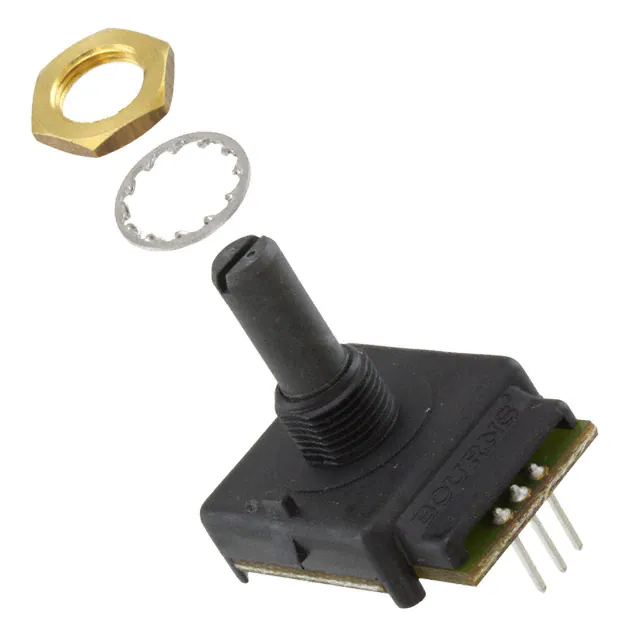

ECW1J-R19-AC0024LROTARY ENCODER MECHANICAL 24PPR |
109 |
|
Datasheet |
ECW | Tray | Active | Not Verified | Mechanical | Quadrature (Incremental) | 24 | - | 6mm Dia Slotted End | Yes | No | Panel, PCB Through Hole | Vertical | PC Pin | 200K | - | - |
|

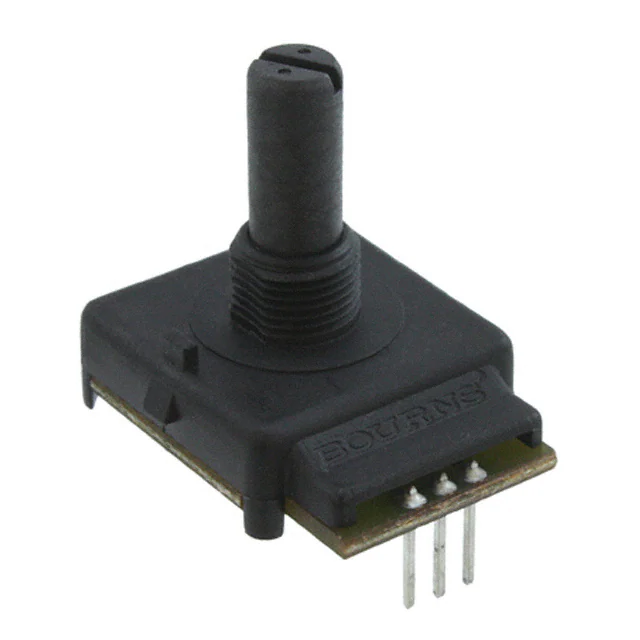

ECW0J-B24-BC0006LROTARY ENCODER MECHANICAL 6PPR |
289 |
|
Datasheet |
ECW | Tray | Active | Not Verified | Mechanical | Quadrature (Incremental) | 6 | - | 1/4" Dia Flatted End | Yes | No | Panel, PCB Through Hole | Vertical | PC Pin | 200K | - | - |
|
ECW1J-R19-BC0024LROTARY ENCODER MECHANICAL 24PPR |
260 |
|
Datasheet |
ECW | Tray | Active | Not Verified | Mechanical | Quadrature (Incremental) | 24 | - | 6mm Dia Slotted End | Yes | No | Panel, PCB Through Hole | Vertical | PC Pin | 200K | - | - |
|
|
ECW1D-C24-BC0024LROTARY ENCODER MECHANICAL 24PPR |
235 |
|
Datasheet |
ECW | Bulk | Active | Not Verified | Mechanical | Quadrature (Incremental) | 24 | - | 1/4" Dia Flatted End | Yes | No | Panel, PCB Through Hole | Vertical | PC Pin | 200K | - | - |
|
|
AS5134-ZSSTROTARY ENCODER MAGNETIC |
12,546 |
|
Datasheet |
- | Tape & Reel (TR) | Active | Not Verified | Magnetic | Quadrature (Incremental) | - | 4.4V ~ 5.5V | External Magnet, Not Included | No | No | Surface Mount | - | SMD (SMT) Tab | - | Automotive | AEC-Q100 |
|
PEL12T-4226F-S1024ROTARY ENCODER MECHANICAL 24PPR |
192 |
|
Datasheet |
PEL12T | Tray | Active | Not Verified | Mechanical | Quadrature (Incremental) | 24 | - | 6mm Dia Flatted End, Illuminated | Yes | Yes | PCB, Through Hole | Vertical | PC Pin | 30K | - | - |
|
|
AS5030-ATST TSSOP16 LF T&RDPROTARY ENCODER MAGNETIC |
2,048 |
|
Datasheet |
- | Tape & Reel (TR) | Active | Not Verified | Magnetic | PWM | - | 4.5V ~ 5.5V | External Magnet, Not Included | No | No | Surface Mount | - | SMD (SMT) Tab | - | - | - |
|
ESD0D-S00-GC0006LROTARY ENCODER MECHANICAL 6PPR |
191 |
|
Datasheet |
ES | Tray | Active | Not Verified | Mechanical | Quadrature (Incremental) | 6 | - | - | Yes | No | PCB, Surface Mount | Vertical | PC Pin | 200K | - | - |
|

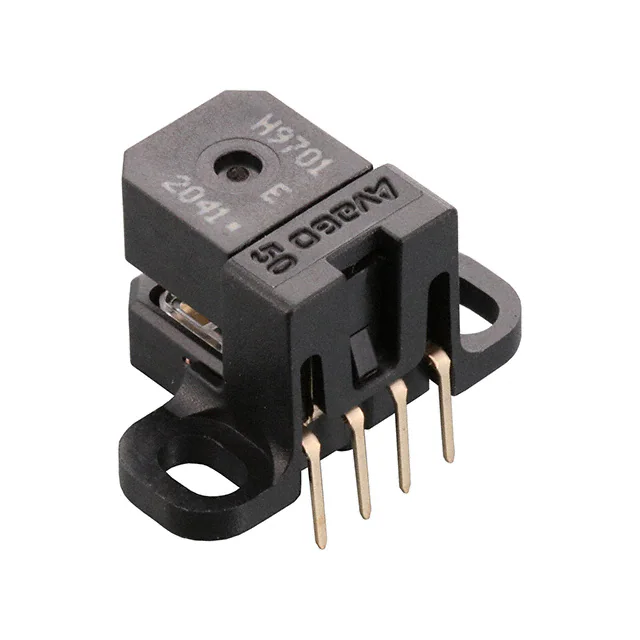

HEDS-9701-E50SMALL EN,2CH,200CPR,BT LDS,STD |
963 |
|
Datasheet |
HEDS | Tray | Active | Not Verified | Optical | Quadrature (Incremental) | 200 | 4.5V ~ 5.5V | Codewheel Not Included | No | No | Chassis Mount, Motors | Right Angle | Terminal Pins | - | - | - |
|

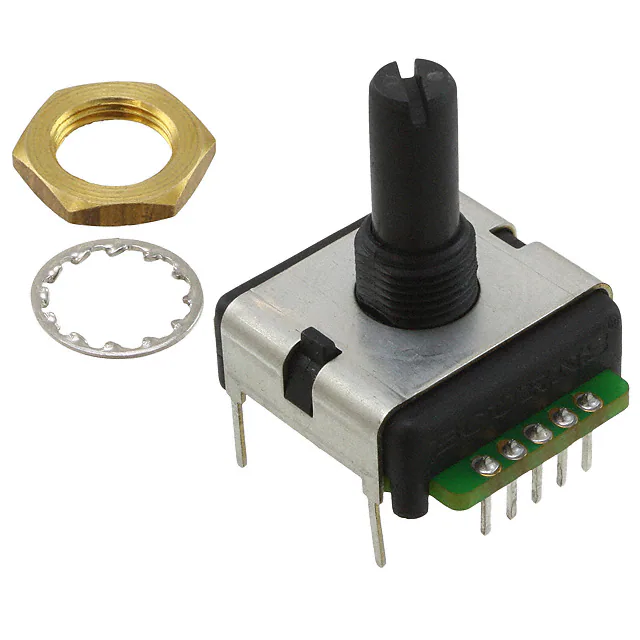

EAW0J-B24-CE0128LROTARY ENCODER MECHANICAL 128PPR |
266 |
|
Datasheet |
ACE™ | Tray | Active | Not Verified | Mechanical | Binary (Absolute) | 128 | - | 1/4" Dia Slotted End | No | No | Panel, PCB Through Hole | Vertical | PC Pin | 50K | - | - |
|

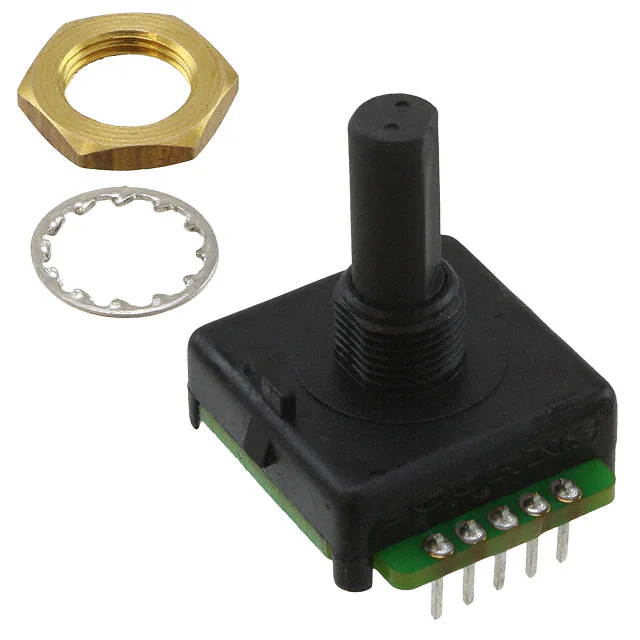

EAW0J-C24-AE0128LROTARY ENCODER MECHANICAL 128PPR |
163 |
|
Datasheet |
ACE™ | Tray | Active | Not Verified | Mechanical | Binary (Absolute) | 128 | - | 1/4" Dia Flatted End | No | No | Panel, PCB Through Hole | Vertical | PC Pin | 50K | - | - |
|
EPS1D-F19-AE0024LROTARY ENCODER MECHANICAL 24PPR |
312 |
|
Datasheet |
EPS | Tray | Active | Not Verified | Mechanical | Quadrature (Incremental) | 24 | - | 4.8mm Dia Flatted End | No | Yes | PCB, Through Hole | Vertical | PC Pin | 200K | - | - |
|
AEAT-8800-Q24TRPROG 16BITS MAGNETIC ENCODER QFN |
446 |
|
Datasheet |
- | Tape & Reel (TR) | Active | Not Verified | Magnetic | SSI | 4096 | 5.5V ~ 5.7V | External Magnet, Not Included | No | No | Surface Mount | Vertical | Surface Mount (SMD,SMT) | - | - | - |
|
HEDS-9700#E50ROTARY ENCODER OPTICAL 200PPR |
413 |
|
Datasheet |
HEDS | Bulk | Active | Not Verified | Optical | Quadrature (Incremental) | 200 | 5V | Codewheel Not Included | No | No | Chassis Mount | Vertical | Terminal Pins | - | - | - |
|
|
HEDS-9700-C545V, 2CH,100CPR, DIG |
734 |
|
Datasheet |
HEDS | Tray | Active | Not Verified | Optical | Quadrature (Incremental) | 100 | 4.5V ~ 5.5V | Codewheel Not Included | No | No | Chassis Mount, Motors | Right Angle | Terminal Pins | - | - | - |
|
|
HEDS-9731#B50ROTARY ENCODER OPTICAL 1000PPR |
390 |
|
Datasheet |
HEDS | Tube | Active | Not Verified | Optical | Quadrature (Incremental) | 1000 | 2.8V ~ 5.2V | Codewheel Not Included | No | No | Chassis Mount | Right Angle | Terminal Pins | - | - | - |
Encoders Electronic Components
Explore Encoders electronic components, related subcategories, product specifications, datasheets and sourcing options. We support original component procurement, BOM sourcing and RFQ services for engineers, distributors and global buyers.
