EMI/RFI Filters (LC, RC Networks)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Filter Order | Technology | Number of Channels | Center / Cutoff Frequency | Attenuation Value | Resistance - Channel (Ohms) | Current | Values | ESD Protection | Operating Temperature | Applications | Voltage - Rated | Grade | Qualification | Mounting Type | Size / Dimension | Height |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
4204-004FILTER LC(PI) 1500PF CHASSIS |
0 |
|
- |
4200 | Axial, Bushing | Bulk | Active | Low Pass | 3rd | LC (Pi) | 1 | - | 45dB @ 100MHz | - | 10 A | C = 1500pF | No | - | General Purpose | 200V | - | - | Chassis Mount | 0.250" Dia x 0.468" L (6.35mm x 11.89mm) | - |
|
|
4205-011FILTER LC(PI) 1500PF CHASSIS |
0 |
|
- |
4200 | Axial, Bushing | Bulk | Active | Low Pass | 3rd | LC (Pi) | 1 | - | 35dB @ 100MHz | - | 15 A | C = 1500pF | No | - | General Purpose | 125V | - | - | Chassis Mount | 0.187" Dia x 0.200" L (4.75mm x 5.08mm) | - |
|
|
4206-007FILTER LC(PI) 4500PF/9000PF CHAS |
0 |
|
- |
4200 | Axial, Bushing | Bulk | Active | Low Pass | 3rd | LC (Pi) | 1 | - | 65dB @ 100MHz | - | 25 A | C = 4500pF, 9000pF | No | - | General Purpose | 500V | - | - | Chassis Mount | 0.375" Dia x 0.687" L (9.53mm x 17.45mm) | - |
|
|
4206-007LFFILTER LC(PI) 4500PF/9000PF CHAS |
0 |
|
- |
4200 | Axial, Bushing | Bulk | Active | Low Pass | 3rd | LC (Pi) | 1 | - | 65dB @ 100MHz | - | 25 A | C = 4500pF, 9000pF | No | - | General Purpose | 500V | - | - | Chassis Mount | 0.375" Dia x 0.687" L (9.53mm x 17.45mm) | - |
|
|
4206-020FILTER LC(PI) 1500PF/3000PF CHAS |
0 |
|
- |
4200 | Axial, Bushing | Bulk | Active | Low Pass | 3rd | LC (Pi) | 1 | - | 45dB @ 100MHz | - | 25 A | C = 1500pF, 3000pF | No | - | General Purpose | 330V | - | - | Chassis Mount | 0.375" Dia x 0.687" L (9.53mm x 17.45mm) | - |
|
|
4206-020LFFILTER LC(PI) 1500PF/3000PF CHAS |
0 |
|
- |
4200 | Axial, Bushing | Bulk | Active | Low Pass | 3rd | LC (Pi) | 1 | - | 45dB @ 100MHz | - | 25 A | C = 1500pF, 3000pF | No | - | General Purpose | 330V | - | - | Chassis Mount | 0.375" Dia x 0.687" L (9.53mm x 17.45mm) | - |
|
|
4207-000FILTER LC(PI) 0.012UF CHASSIS |
0 |
|
- |
4200 | Axial, Bushing - 1 Turret Lead, 1 Hooked Lead | Bulk | Active | Low Pass | 3rd | LC (Pi) | 1 | - | 43dB @ 100MHz | - | 10 A | C = 0.012µF | No | -55°C ~ 125°C | Data Lines for Mobile Devices | 300V | - | - | Chassis Mount | 0.250" Dia x 0.686" L (6.35mm x 17.43mm) | - |
|
|
4207-001FILTER LC(PI) 4000PF CHASSIS |
0 |
|
- |
4200 | Axial, Bushing - 1 Turret Lead, 1 Hooked Lead | Bulk | Active | Low Pass | 3rd | LC (Pi) | 1 | - | 55dB @ 100MHz | - | 10 A | C = 4000pF | No | -55°C ~ 125°C | Data Lines for Mobile Devices | 300V | - | - | Chassis Mount | 0.250" Dia x 0.686" L (6.35mm x 17.43mm) | - |
|
|
4251-000FILTER LC(PI) 3000PF CHASSIS |
0 |
|
- |
4200 | Axial, Bushing | Bulk | Active | Low Pass | 3rd | LC (Pi) | 1 | - | 30dB @ 100MHz | - | 15 A | C = 3000pF | No | -55°C ~ 125°C | Data Lines for Mobile Devices | 125V | - | - | Chassis Mount | 0.187" Dia x 0.359" L (4.75mm x 9.12mm) | - |
|

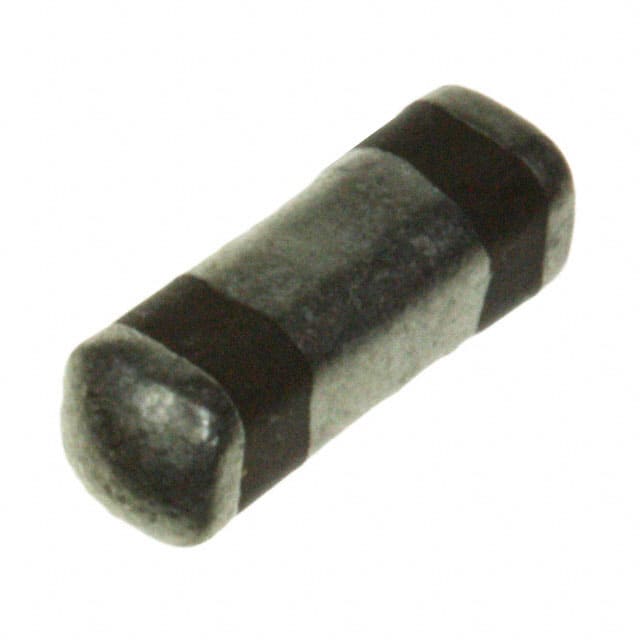

4700-003TFILTER LC(PI) 0.1UH/2000PF SMD |
0 |
|
- |
4700 | Pill, Square | Tape & Reel (TR) | Active | Low Pass | 3rd | LC (Pi) | 1 | - | 45dB @ 100MHz | - | 10 A | L = 0.1µH, C = 2000pF | No | -55°C ~ 125°C | General Purpose | 100V | - | - | Surface Mount | 0.315" L x 0.090" W (8.00mm x 2.29mm) | 0.095" (2.41mm) |
|
|
4700-003TLFFILTER LC(PI) 0.1UH/2000PF SMD |
0 |
|
- |
4700 | Pill, Square | Tape & Reel (TR) | Active | Low Pass | 3rd | LC (Pi) | 1 | - | 45dB @ 100MHz | - | 10 A | L = 0.1µH, C = 2000pF | No | -55°C ~ 125°C | General Purpose | 100V | - | - | Surface Mount | 0.315" L x 0.090" W (8.00mm x 2.29mm) | 0.095" (2.41mm) |
|
|
4700-005TFILTER LC(PI) 0.1UH/1000PF SMD |
0 |
|
- |
4700 | Pill, Square | Tape & Reel (TR) | Active | Low Pass | 3rd | LC (Pi) | 1 | - | 40dB @ 100MHz | - | 10 A | L = 0.1µH, C = 1000pF | No | -55°C ~ 125°C | General Purpose | 100V | - | - | Surface Mount | 0.315" L x 0.090" W (8.00mm x 2.29mm) | 0.095" (2.41mm) |
|
|
4700-005TLFFILTER LC(PI) 0.1UH/1000PF SMD |
0 |
|
- |
4700 | Pill, Square | Tape & Reel (TR) | Active | Low Pass | 3rd | LC (Pi) | 1 | - | 40dB @ 100MHz | - | 10 A | L = 0.1µH, C = 1000pF | No | -55°C ~ 125°C | General Purpose | 100V | - | - | Surface Mount | 0.315" L x 0.090" W (8.00mm x 2.29mm) | 0.095" (2.41mm) |
|
|
4700-006TLFFILTER LC(PI) 0.1UH/100PF SMD |
0 |
|
- |
4700 | Pill, Square | Tape & Reel (TR) | Active | Low Pass | 3rd | LC (Pi) | 1 | - | 3dB @ 100MHz | - | 10 A | L = 0.1µH, C = 100pF | No | -55°C ~ 125°C | General Purpose | 100V | - | - | Surface Mount | 0.315" L x 0.090" W (8.00mm x 2.29mm) | 0.095" (2.41mm) |
|
|
4700-008TFILTER LC(PI) 0.1UH/4000PF SMD |
0 |
|
- |
4700 | Pill, Square | Tape & Reel (TR) | Active | Low Pass | 3rd | LC (Pi) | 1 | - | 52dB @ 100MHz | - | 10 A | L = 0.1µH, C = 4000pF | No | -55°C ~ 125°C | General Purpose | 100V | - | - | Surface Mount | 0.315" L x 0.090" W (8.00mm x 2.29mm) | 0.095" (2.41mm) |
|
|
4700-008TLFFILTER LC(PI) 0.1UH/4000PF SMD |
0 |
|
- |
4700 | Pill, Square | Tape & Reel (TR) | Active | Low Pass | 3rd | LC (Pi) | 1 | - | 52dB @ 100MHz | - | 10 A | L = 0.1µH, C = 4000pF | No | -55°C ~ 125°C | General Purpose | 100V | - | - | Surface Mount | 0.315" L x 0.090" W (8.00mm x 2.29mm) | 0.095" (2.41mm) |
|
|
4700-009TFILTER LC(PI) 0.1UH/470PF SMD |
0 |
|
- |
4700 | Pill, Square | Tape & Reel (TR) | Active | Low Pass | 3rd | LC (Pi) | 1 | - | 16dB @ 100MHz | - | 10 A | L = 0.1µH, C = 470pF | No | -55°C ~ 125°C | General Purpose | 100V | - | - | Surface Mount | 0.315" L x 0.090" W (8.00mm x 2.29mm) | 0.095" (2.41mm) |
|
|
4700-053TFILTER LC(PI) 2000PF SMD |
0 |
|
- |
4700 | Pill, Round | Tape & Reel (TR) | Active | Low Pass | 3rd | LC (Pi) | 1 | - | 45dB @ 100MHz | - | - | C = 2000pF | No | -55°C ~ 125°C | General Purpose | 100V | - | - | Surface Mount | 0.085" Dia x 0.315" L (2.16mm x 8.00mm) | - |
|
|
4700-056TLFFILTER LC(PI) 0.1UH/5000PF SMD |
0 |
|
- |
4700 | Pill, Round | Tape & Reel (TR) | Active | Low Pass | 3rd | LC (Pi) | 1 | - | 55dB @ 100MHz | - | 10 A | L = 0.1µH, C = 5000pF | No | -55°C ~ 125°C | General Purpose | 100V | - | - | Surface Mount | 0.085" Dia x 0.315" L (2.16mm x 8.00mm) | - |
|
|
4700-058TFILTER LC(PI) 1000PF SMD |
0 |
|
- |
4700 | Pill, Round | Tape & Reel (TR) | Active | Low Pass | 3rd | LC (Pi) | 1 | - | 40dB @ 100MHz | - | - | C = 1000pF | No | -55°C ~ 125°C | General Purpose | 100V | - | - | Surface Mount | 0.085" Dia x 0.315" L (2.16mm x 8.00mm) | - |
