CPLDs (Complex Programmable Logic Devices)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Programmable | Programmable Type | Delay Time tpd(1) Max | Voltage Supply - Internal | Number of Logic Elements/Blocks | Number of Macrocells | Number of Gates | Number of I/O | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
EPM3128AFC256-10IC CPLD 128MC 10NS 256FBGA |
0 |
|
Datasheet |
MAX® 3000A | 256-BGA | Tray | Obsolete | Not Verified | In System Programmable | 10 ns | 3V ~ 3.6V | 8 | 128 | 2500 | 98 | 0°C ~ 70°C (TA) | - | - | Surface Mount | 256-FBGA (17x17) |
|
LC4064V-5TN44IIC CPLD 64MC 5NS 44TQFP |
0 |
|
Datasheet |
ispMACH® 4000V | 44-TQFP | Tray | Active | Verified | In System Programmable | 5 ns | 3V ~ 3.6V | 4 | 64 | - | 30 | -40°C ~ 105°C (TJ) | - | - | Surface Mount | 44-TQFP (10x10) |
|
XCR3064XL-10VQG100CIC CPLD 64MC 9.1NS 100VQFP |
0 |
|
Datasheet |
CoolRunner XPLA3 | 100-TQFP | Tray | Obsolete | Verified | In System Programmable (min 1K program/erase cycles) | 9.1 ns | 3V ~ 3.6V | 4 | 64 | 1500 | 68 | 0°C ~ 70°C (TA) | - | - | Surface Mount | 100-VQFP (14x14) |
|
XC9572XL-10CS48IIC CPLD 72MC 10NS 48CSBGA |
0 |
|
Datasheet |
XC9500XL | 48-FBGA, CSPBGA | Tray | Obsolete | Not Verified | In System Programmable (min 10K program/erase cycles) | 10 ns | 3V ~ 3.6V | 4 | 72 | 1600 | 38 | -40°C ~ 85°C (TA) | - | - | Surface Mount | 48-CSBGA (7x7) |
|
XC9572XL-10VQ64IIC CPLD 72MC 10NS 64VQFP |
0 |
|
Datasheet |
XC9500XL | 64-TQFP | Tray | Obsolete | Verified | In System Programmable (min 10K program/erase cycles) | 10 ns | 3V ~ 3.6V | 4 | 72 | 1600 | 52 | -40°C ~ 85°C (TA) | - | - | Surface Mount | 64-VQFP (10x10) |
|
|
XC9572XL-10CSG48IIC CPLD 72MC 10NS 48CSBGA |
0 |
|
Datasheet |
XC9500XL | 48-FBGA, CSPBGA | Tray | Obsolete | Not Verified | In System Programmable (min 10K program/erase cycles) | 10 ns | 3V ~ 3.6V | 4 | 72 | 1600 | 38 | -40°C ~ 85°C (TA) | - | - | Surface Mount | 48-CSBGA (7x7) |
|
CY37128P100-125AXCIC CPLD 128MC 10NS 100TQFP |
0 |
|
Datasheet |
Ultra37000™ | 100-LQFP | Tray | Obsolete | Verified | In-System Reprogrammable™ (ISR™) CMOS | 10 ns | 4.75V ~ 5.25V | - | 128 | - | 69 | 0°C ~ 70°C (TA) | - | - | Surface Mount | 100-TQFP (14x14) |
|
XC95288XV-7CS280CIC CPLD 288MC 7.5NS 280CSBGA |
0 |
|
Datasheet |
XC9500XV | 280-TFBGA, CSPBGA | Tray | Obsolete | Not Verified | In System Programmable | 7.5 ns | 2.37V ~ 2.62V | 16 | 288 | 6400 | 192 | 0°C ~ 70°C (TA) | - | - | Surface Mount | 280-CSBGA (16x16) |
|
EPM240GM100C5NIC CPLD 192MC 4.7NS 100MBGA |
0 |
|
Datasheet |
MAX® II | 100-TFBGA | Tray | Active | Not Verified | In System Programmable | 4.7 ns | 1.71V ~ 1.89V | 240 | 192 | - | 80 | 0°C ~ 85°C (TJ) | - | - | Surface Mount | 100-MBGA (6x6) |
|
|
EPM240M100C5NABIC CPLD 192MC 7.5NS 100MBGA |
0 |
|
- |
MAX® II | 100-TFBGA | Tray | Active | Not Verified | In System Programmable | 7.5 ns | 2.375V ~ 2.625V, 3V ~ 3.6V | 240 | 192 | - | 80 | 0°C ~ 85°C (TJ) | - | - | Surface Mount | 100-MBGA (6x6) |
|
XA9572XL-15TQG100IIC CPLD 72MC 15.5NS 100TQFP |
0 |
|
Datasheet |
XA9500XL XA | 100-LQFP | Tray | Obsolete | Not Verified | In System Programmable | 15.5 ns | 3V ~ 3.6V | 4 | 72 | 1600 | 72 | -40°C ~ 85°C (TA) | - | - | Surface Mount | 100-TQFP (14x14) |
|
|
XC2C64A-7VQ100IIC CPLD 64MC 6.7NS 100VQFP |
0 |
|
Datasheet |
CoolRunner II | 100-TQFP | Tray | Obsolete | Not Verified | In System Programmable | 6.7 ns | 1.7V ~ 1.9V | 4 | 64 | 1500 | 64 | -40°C ~ 85°C (TA) | - | - | Surface Mount | 100-VQFP (14x14) |
|

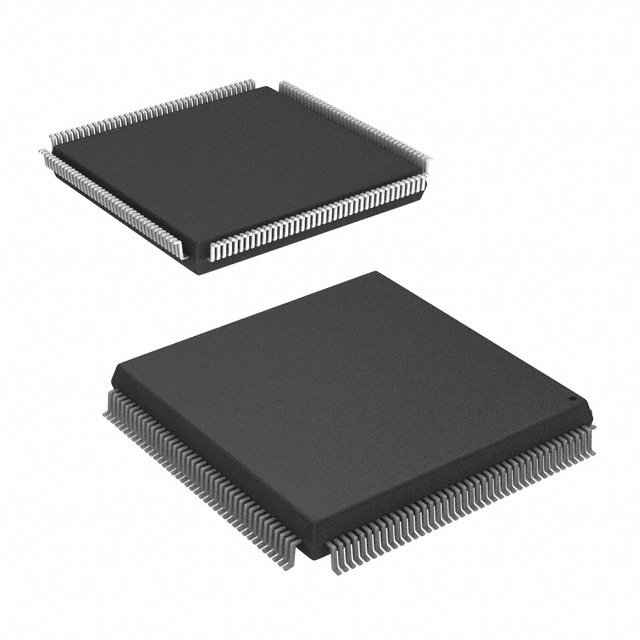

ATF1508ASL-25QC160IC CPLD 128MC 25NS 160QFP |
0 |
|
Datasheet |
ATF15xx | 160-BQFP | Tray | Obsolete | Not Verified | In System Programmable (min 10K program/erase cycles) | 25 ns | 4.75V ~ 5.25V | - | 128 | - | 96 | 0°C ~ 70°C (TA) | - | - | Surface Mount | 160-PQFP (28x28) |
|
EPM7032TC44-10IC CPLD 32MC 10NS 44TQFP |
0 |
|
Datasheet |
MAX® 7000 | 44-TQFP | Tray | Obsolete | Not Verified | EE PLD | 10 ns | 4.75V ~ 5.25V | 2 | 32 | 600 | 36 | 0°C ~ 70°C (TA) | - | - | Surface Mount | 44-TQFP (10x10) |
|
|
EPM7032TI44-15IC CPLD 32MC 15NS 44TQFP |
0 |
|
Datasheet |
MAX® 7000 | 44-TQFP | Tray | Obsolete | Not Verified | EE PLD | 15 ns | 4.5V ~ 5.5V | 2 | 32 | 600 | 36 | -40°C ~ 85°C (TA) | - | - | Surface Mount | 44-TQFP (10x10) |
.jpg)
|
EPM7032LI44-15IC CPLD 32MC 15NS 44PLCC |
0 |
|
Datasheet |
MAX® 7000 | 44-LCC (J-Lead) | Tube | Obsolete | Not Verified | EE PLD | 15 ns | 4.5V ~ 5.5V | 2 | 32 | 600 | 36 | -40°C ~ 85°C (TA) | - | - | Surface Mount | 44-PLCC (16.59x16.59) |
|
|
EPM240F100C5NABIC CPLD 192MC 7.5NS 100FBGA |
0 |
|
- |
MAX® II | 100-LBGA | Tray | Active | Not Verified | In System Programmable | 7.5 ns | 2.375V ~ 2.625V, 3V ~ 3.6V | 240 | 192 | - | 80 | 0°C ~ 85°C (TJ) | - | - | Surface Mount | 100-FBGA (11x11) |
|
|
EPM240T100C5IC CPLD 192MC 4.7NS 100TQFP |
0 |
|
Datasheet |
MAX® II | 100-TQFP | Tray | Obsolete | Not Verified | In System Programmable | 4.7 ns | 2.5V, 3.3V | 240 | 192 | - | 80 | 0°C ~ 85°C (TJ) | - | - | Surface Mount | 100-TQFP (14x14) |
|
XC9572XL-7VQG44IIC CPLD 72MC 7.5NS 44VQFP |
0 |
|
Datasheet |
XC9500XL | 44-TQFP | Tray | Obsolete | Verified | In System Programmable (min 10K program/erase cycles) | 7.5 ns | 3V ~ 3.6V | 4 | 72 | 1600 | 34 | -40°C ~ 85°C (TA) | - | - | Surface Mount | 44-VQFP (10x10) |
|
|
M4A3-96/48-10VNCIC CPLD 96MC 10NS 100TQFP |
0 |
|
Datasheet |
ispMACH® 4A | 100-TQFP | Tray | Obsolete | Not Verified | In System Programmable | 10 ns | 3V ~ 3.6V | - | 96 | - | 48 | 0°C ~ 70°C (TA) | - | - | Surface Mount | 100-TQFP (14x14) |
