CPLDs (Complex Programmable Logic Devices)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Programmable | Programmable Type | Delay Time tpd(1) Max | Voltage Supply - Internal | Number of Logic Elements/Blocks | Number of Macrocells | Number of Gates | Number of I/O | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
EPM7256AEQC208-7IC CPLD 256MC 7.5NS 208QFP |
0 |
|
Datasheet |
MAX® 7000A | 208-BFQFP | Tray | Obsolete | Not Verified | In System Programmable | 7.5 ns | 3V ~ 3.6V | 16 | 256 | 5000 | 164 | 0°C ~ 70°C (TA) | - | - | Surface Mount | 208-PQFP (28x28) |
|
EPM7256AETC100-7IC CPLD 256MC 7.5NS 100TQFP |
0 |
|
Datasheet |
MAX® 7000A | 100-TQFP | Tray | Obsolete | Not Verified | In System Programmable | 7.5 ns | 3V ~ 3.6V | 16 | 256 | 5000 | 84 | 0°C ~ 70°C (TA) | - | - | Surface Mount | 100-TQFP (14x14) |
|
|
EPM7256AETC100-7NIC CPLD 256MC 7.5NS 100TQFP |
0 |
|
Datasheet |
MAX® 7000A | 100-TQFP | Tray | Obsolete | Not Verified | In System Programmable | 7.5 ns | 3V ~ 3.6V | 16 | 256 | 5000 | 84 | 0°C ~ 70°C (TA) | - | - | Surface Mount | 100-TQFP (14x14) |
|
EPM7256AETC144-7IC CPLD 256MC 7.5NS 144TQFP |
0 |
|
Datasheet |
MAX® 7000A | 144-LQFP | Tray | Obsolete | Not Verified | In System Programmable | 7.5 ns | 3V ~ 3.6V | 16 | 256 | 5000 | 120 | 0°C ~ 70°C (TA) | - | - | Surface Mount | 144-TQFP (20x20) |
|
|
EPM7256AETC144-7NIC CPLD 256MC 7.5NS 144TQFP |
0 |
|
Datasheet |
MAX® 7000A | 144-LQFP | Tray | Obsolete | Not Verified | In System Programmable | 7.5 ns | 3V ~ 3.6V | 16 | 256 | 5000 | 120 | 0°C ~ 70°C (TA) | - | - | Surface Mount | 144-TQFP (20x20) |
|
EPM7256BFC256-7IC CPLD 256MC 7.5NS 256FBGA |
0 |
|
Datasheet |
MAX® 7000B | 256-BGA | Tray | Obsolete | Not Verified | In System Programmable | 7.5 ns | 2.375V ~ 2.625V | 16 | 256 | 5000 | 164 | 0°C ~ 70°C (TA) | - | - | Surface Mount | 256-FBGA (17x17) |
|

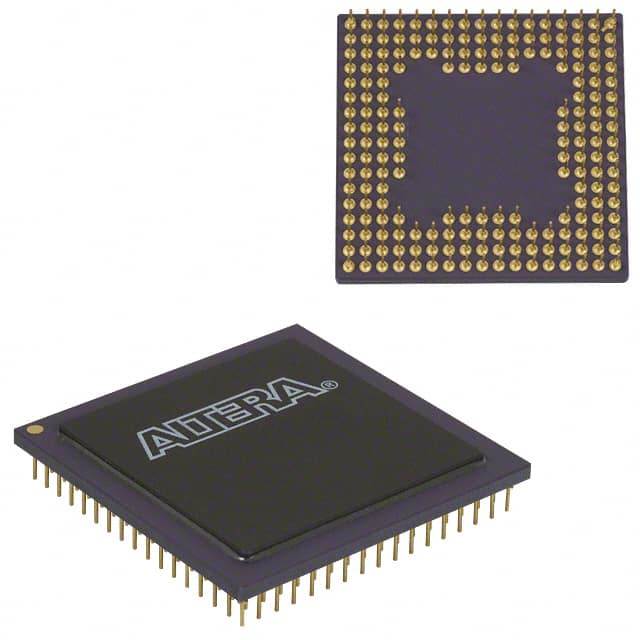

EPM7256EGI192-20IC CPLD 256MC 20NS 192PGA |
0 |
|
Datasheet |
MAX® 7000 | 192-BPGA | Tray | Obsolete | Not Verified | EE PLD | 20 ns | 4.5V ~ 5.5V | 16 | 256 | 5000 | 164 | -40°C ~ 85°C (TA) | - | - | Surface Mount | 192-PGA (44.7x44.7) |
|
|
EPM7512AEFC256-7IC CPLD 512MC 7.5NS 256FBGA |
0 |
|
Datasheet |
MAX® 7000A | 256-BGA | Tray | Obsolete | Not Verified | In System Programmable | 7.5 ns | 3V ~ 3.6V | 32 | 512 | 10000 | 212 | 0°C ~ 70°C (TA) | - | - | Surface Mount | 256-FBGA (17x17) |
|
|
EPM7512AEQC208-10IC CPLD 512MC 10NS 208QFP |
0 |
|
Datasheet |
MAX® 7000A | 208-BFQFP | Tray | Obsolete | Not Verified | In System Programmable | 10 ns | 3V ~ 3.6V | 32 | 512 | 10000 | 176 | 0°C ~ 70°C (TA) | - | - | Surface Mount | 208-PQFP (28x28) |
|
|
EPM7512AEQC208-7IC CPLD 512MC 7.5NS 208QFP |
0 |
|
Datasheet |
MAX® 7000A | 208-BFQFP | Tray | Obsolete | Not Verified | In System Programmable | 7.5 ns | 3V ~ 3.6V | 32 | 512 | 10000 | 176 | 0°C ~ 70°C (TA) | - | - | Surface Mount | 208-PQFP (28x28) |
|
|
EPM7512AETC144-7IC CPLD 512MC 7.5NS 144TQFP |
0 |
|
Datasheet |
MAX® 7000A | 144-LQFP | Tray | Obsolete | Not Verified | In System Programmable | 7.5 ns | 3V ~ 3.6V | 32 | 512 | 10000 | 120 | 0°C ~ 70°C (TA) | - | - | Surface Mount | 144-TQFP (20x20) |
|
|
EPM7512BFC256-5IC CPLD 512MC 5.5NS 256FBGA |
0 |
|
Datasheet |
MAX® 7000B | 256-BGA | Tray | Obsolete | Not Verified | In System Programmable | 5.5 ns | 2.375V ~ 2.625V | 32 | 512 | 10000 | 212 | 0°C ~ 70°C (TA) | - | - | Surface Mount | 256-FBGA (17x17) |
|
EPM9320LC84-15IC CPLD 320MC 15NS 84PLCC |
0 |
|
Datasheet |
MAX® 9000 | 84-LCC (J-Lead) | Tube | Obsolete | Not Verified | In System Programmable | 15 ns | 4.75V ~ 5.25V | 20 | 320 | 6000 | 60 | 0°C ~ 70°C (TA) | - | - | Surface Mount | 84-PLCC (29.31x29.31) |
|
EPM9560ARC208-10IC CPLD 560MC 10NS 208RQFP |
0 |
|
Datasheet |
MAX® 9000A | 208-BFQFP Exposed Pad | Tray | Obsolete | Not Verified | In System Programmable | 10 ns | 4.75V ~ 5.25V | 35 | 560 | 12000 | 153 | 0°C ~ 70°C (TA) | - | - | Surface Mount | 208-RQFP (28x28) |
|
|
EPM9560ARI208-10IC CPLD 560MC 10NS 208RQFP |
0 |
|
Datasheet |
MAX® 9000A | 208-BFQFP Exposed Pad | Tray | Obsolete | Not Verified | In System Programmable | 10 ns | 4.5V ~ 5.5V | 35 | 560 | 12000 | 153 | -40°C ~ 85°C (TA) | - | - | Surface Mount | 208-RQFP (28x28) |
|
EPM9560ARI240-10IC CPLD 560MC 10NS 240RQFP |
0 |
|
Datasheet |
MAX® 9000A | 240-BFQFP Exposed Pad | Tray | Obsolete | Not Verified | In System Programmable | 10 ns | 4.5V ~ 5.5V | 35 | 560 | 12000 | 191 | -40°C ~ 85°C (TA) | - | - | Surface Mount | 240-RQFP (32x32) |
|
|
EPM9560RC240-15IC CPLD 560MC 15NS 240RQFP |
0 |
|
Datasheet |
MAX® 9000 | 240-BFQFP Exposed Pad | Tray | Obsolete | Not Verified | In System Programmable | 15 ns | 4.75V ~ 5.25V | 35 | 560 | 12000 | 191 | 0°C ~ 70°C (TA) | - | - | Surface Mount | 240-RQFP (32x32) |
|
|
EPM9560RI240-20IC CPLD 560MC 20NS 240RQFP |
0 |
|
Datasheet |
MAX® 9000 | 240-BFQFP Exposed Pad | Tray | Obsolete | Not Verified | In System Programmable | 20 ns | 4.5V ~ 5.5V | 35 | 560 | 12000 | 191 | -40°C ~ 85°C (TA) | - | - | Surface Mount | 240-RQFP (32x32) |
.jpg)
|
CY37032VP44-100JXIIC CPLD 32MC 12NS 44PLCC |
0 |
|
Datasheet |
Ultra37000™ | 44-LCC (J-Lead) | Tray | Obsolete | Not Verified | In-System Reprogrammable™ (ISR™) CMOS | 12 ns | 3V ~ 3.6V | - | 32 | - | 37 | -40°C ~ 85°C (TA) | - | - | Surface Mount | 44-PLCC (16.61x16.61) |
|
|
XC9536XL-10PCG44CIC CPLD 36MC 10NS 44PLCC |
0 |
|
Datasheet |
XC9500XL | 44-LCC (J-Lead) | Tube | Obsolete | Not Verified | In System Programmable (min 10K program/erase cycles) | 10 ns | 3V ~ 3.6V | 2 | 36 | 800 | 34 | 0°C ~ 70°C (TA) | - | - | Surface Mount | 44-PLCC (16.59x16.59) |
