CPLDs (Complex Programmable Logic Devices)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Programmable | Programmable Type | Delay Time tpd(1) Max | Voltage Supply - Internal | Number of Logic Elements/Blocks | Number of Macrocells | Number of Gates | Number of I/O | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
XC95144-15PQG100CIC CPLD 144MC 15NS 100QFP |
0 |
|
Datasheet |
XC9500 | 100-BQFP | Tray | Obsolete | Not Verified | In System Programmable (min 10K program/erase cycles) | 15 ns | 4.75V ~ 5.25V | 8 | 144 | 3200 | 81 | 0°C ~ 70°C (TA) | - | - | Surface Mount | 100-PQFP (20x14) |
|
XC95144-15TQG100CIC CPLD 144MC 15NS 100TQFP |
0 |
|
Datasheet |
XC9500 | 100-LQFP | Tray | Obsolete | Not Verified | In System Programmable (min 10K program/erase cycles) | 15 ns | 4.75V ~ 5.25V | 8 | 144 | 3200 | 81 | 0°C ~ 70°C (TA) | - | - | Surface Mount | 100-TQFP (14x14) |
|
XC95216-10PQG160CIC CPLD 216MC 10NS 160QFP |
0 |
|
Datasheet |
XC9500 | 160-BQFP | Tray | Obsolete | Not Verified | In System Programmable (min 10K program/erase cycles) | 10 ns | 4.75V ~ 5.25V | 12 | 216 | 4800 | 133 | 0°C ~ 70°C (TA) | - | - | Surface Mount | 160-PQFP (28x28) |
|
|
XC95216-15PQG160CIC CPLD 216MC 15NS 160QFP |
0 |
|
Datasheet |
XC9500 | 160-BQFP | Tray | Obsolete | Not Verified | In System Programmable (min 10K program/erase cycles) | 15 ns | 4.75V ~ 5.25V | 12 | 216 | 4800 | 133 | 0°C ~ 70°C (TA) | - | - | Surface Mount | 160-PQFP (28x28) |
|
|
XC95216-20PQG160CIC CPLD 216MC 20NS 160QFP |
0 |
|
Datasheet |
XC9500 | 160-BQFP | Tray | Obsolete | Not Verified | In System Programmable (min 10K program/erase cycles) | 20 ns | 4.75V ~ 5.25V | 12 | 216 | 4800 | 133 | 0°C ~ 70°C (TA) | - | - | Surface Mount | 160-PQFP (28x28) |
.jpg)
|
XC9536-10PCG44CIC CPLD 36MC 10NS 44PLCC |
0 |
|
Datasheet |
XC9500 | 44-LCC (J-Lead) | Tray | Obsolete | Not Verified | In System Programmable (min 10K program/erase cycles) | 10 ns | 4.75V ~ 5.25V | 2 | 36 | 800 | 34 | 0°C ~ 70°C (TA) | - | - | Surface Mount | 44-PLCC (16.59x16.59) |
|
XC9536-10VQG44CIC CPLD 36MC 10NS 44VQFP |
0 |
|
Datasheet |
XC9500 | 44-TQFP | Tray | Obsolete | Verified | In System Programmable (min 10K program/erase cycles) | 10 ns | 4.75V ~ 5.25V | 2 | 36 | 800 | 34 | 0°C ~ 70°C (TA) | - | - | Surface Mount | 44-VQFP (10x10) |
|
|
XC9536-15PCG44CIC CPLD 36MC 15NS 44PLCC |
0 |
|
Datasheet |
XC9500 | 44-LCC (J-Lead) | Tray | Obsolete | Verified | In System Programmable (min 10K program/erase cycles) | 15 ns | 4.75V ~ 5.25V | 2 | 36 | 800 | 34 | 0°C ~ 70°C (TA) | - | - | Surface Mount | 44-PLCC (16.59x16.59) |
|
|
XC9536-15VQG44CIC CPLD 36MC 15NS 44VQFP |
0 |
|
Datasheet |
XC9500 | 44-TQFP | Tray | Obsolete | Verified | In System Programmable (min 10K program/erase cycles) | 15 ns | 4.75V ~ 5.25V | 2 | 36 | 800 | 34 | 0°C ~ 70°C (TA) | - | - | Surface Mount | 44-VQFP (10x10) |
|
|
XC9572-10PCG44CIC CPLD 72MC 10NS 44PLCC |
0 |
|
Datasheet |
XC9500 | 44-LCC (J-Lead) | Tray | Obsolete | Verified | In System Programmable (min 10K program/erase cycles) | 10 ns | 4.75V ~ 5.25V | 4 | 72 | 1600 | 34 | 0°C ~ 70°C (TA) | - | - | Surface Mount | 44-PLCC (16.59x16.59) |
|

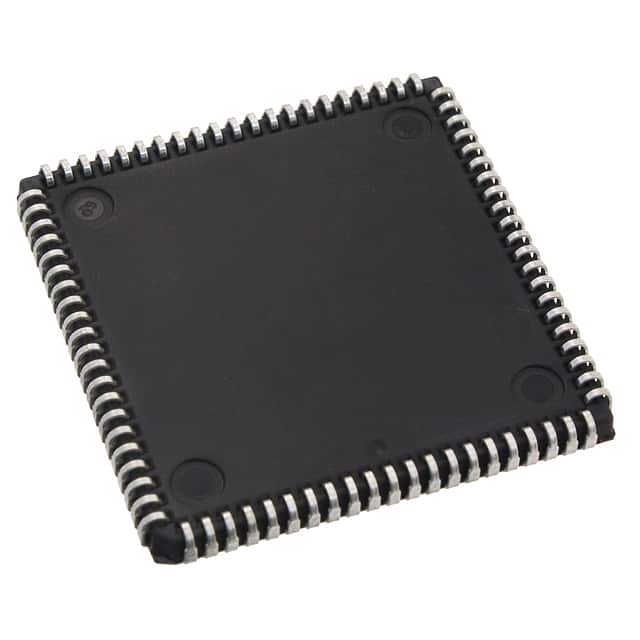

XC9572-10PCG84CIC CPLD 72MC 10NS 84PLCC |
0 |
|
Datasheet |
XC9500 | 84-LCC (J-Lead) | Tray | Obsolete | Not Verified | In System Programmable (min 10K program/erase cycles) | 10 ns | 4.75V ~ 5.25V | 4 | 72 | 1600 | 69 | 0°C ~ 70°C (TA) | - | - | Surface Mount | 84-PLCC (29.31x29.31) |
|
|
XC9572-10PQG100CIC CPLD 72MC 10NS 100QFP |
0 |
|
Datasheet |
XC9500 | 100-BQFP | Tray | Obsolete | Not Verified | In System Programmable (min 10K program/erase cycles) | 10 ns | 4.75V ~ 5.25V | 4 | 72 | 1600 | 72 | 0°C ~ 70°C (TA) | - | - | Surface Mount | 100-PQFP (20x14) |
|
|
XC9572-10TQG100CIC CPLD 72MC 10NS 100TQFP |
0 |
|
Datasheet |
XC9500 | 100-LQFP | Tray | Obsolete | Not Verified | In System Programmable (min 10K program/erase cycles) | 10 ns | 4.75V ~ 5.25V | 4 | 72 | 1600 | 72 | 0°C ~ 70°C (TA) | - | - | Surface Mount | 100-TQFP (14x14) |
|
|
XC9572-15PCG44CIC CPLD 72MC 15NS 44PLCC |
0 |
|
Datasheet |
XC9500 | 44-LCC (J-Lead) | Tray | Obsolete | Verified | In System Programmable (min 10K program/erase cycles) | 15 ns | 4.75V ~ 5.25V | 4 | 72 | 1600 | 34 | 0°C ~ 70°C (TA) | - | - | Surface Mount | 44-PLCC (16.59x16.59) |
|
|
XC9572-15PCG84CIC CPLD 72MC 15NS 84PLCC |
0 |
|
Datasheet |
XC9500 | 84-LCC (J-Lead) | Tray | Obsolete | Not Verified | In System Programmable (min 10K program/erase cycles) | 15 ns | 4.75V ~ 5.25V | 4 | 72 | 1600 | 69 | 0°C ~ 70°C (TA) | - | - | Surface Mount | 84-PLCC (29.31x29.31) |
|
|
XC9572-15PQG100CIC CPLD 72MC 15NS 100QFP |
0 |
|
Datasheet |
XC9500 | 100-BQFP | Tray | Obsolete | Not Verified | In System Programmable (min 10K program/erase cycles) | 15 ns | 4.75V ~ 5.25V | 4 | 72 | 1600 | 72 | 0°C ~ 70°C (TA) | - | - | Surface Mount | 100-PQFP (20x14) |
|
|
XC9572-15TQG100CIC CPLD 72MC 15NS 100TQFP |
0 |
|
Datasheet |
XC9500 | 100-LQFP | Tray | Obsolete | Not Verified | In System Programmable (min 10K program/erase cycles) | 15 ns | 4.75V ~ 5.25V | 4 | 72 | 1600 | 72 | 0°C ~ 70°C (TA) | - | - | Surface Mount | 100-TQFP (14x14) |
|
|
XC9572-7PQG100CIC CPLD 72MC 7.5NS 100QFP |
0 |
|
Datasheet |
XC9500 | 100-BQFP | Tray | Obsolete | Not Verified | In System Programmable (min 10K program/erase cycles) | 7.5 ns | 4.75V ~ 5.25V | 4 | 72 | 1600 | 72 | 0°C ~ 70°C (TA) | - | - | Surface Mount | 100-PQFP (20x14) |
|
|
XC9572XL-7PCG44CIC CPLD 72MC 7.5NS 44PLCC |
0 |
|
Datasheet |
XC9500XL | 44-LCC (J-Lead) | Tube | Obsolete | Not Verified | In System Programmable (min 10K program/erase cycles) | 7.5 ns | 3V ~ 3.6V | 4 | 72 | 1600 | 34 | 0°C ~ 70°C (TA) | - | - | Surface Mount | 44-PLCC (16.59x16.59) |
|
|
XC95108-15PCG84CIC CPLD 108MC 15NS 84PLCC |
0 |
|
Datasheet |
XC9500 | 84-LCC (J-Lead) | Tube | Obsolete | Not Verified | In System Programmable (min 10K program/erase cycles) | 15 ns | 4.75V ~ 5.25V | 6 | 108 | 2400 | 69 | 0°C ~ 70°C (TA) | - | - | Surface Mount | 84-PLCC (29.31x29.31) |
