Electrical, Specialty Fuses
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package / Case | Packaging | Product Status | Mounting Type | Fuse Type | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Response Time | Applications | Features | Class | Approval Agency | Operating Temperature | Breaking Capacity @ Rated Voltage | Size / Dimension | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ANE-400AFUSE STRIP 400A 125VAC/32VDC |
688 |
|
Datasheet |
ANE | Rectangular, Blade | Bulk | Active | Bolt Mount | Fuse Strip | 400A | 32 VAC | 32 VDC | Fast Blow | Automotive | - | - | - | - | 2.5kA AC | 1.453" L x 0.882" W x 0.276" H (36.90mm x 22.40mm x 7.00mm) | - | - |
|
F3T-60AClass T Fast, 300VAC 160VDC 60A |
278 |
|
Datasheet |
F3T | Cartridge | Bulk | Active | Requires Holder | Cartridge | 60A | 300 VAC | 160 VDC | Fast Blow | Electrical, Industrial | - | T | cULus | - | 200kA AC, 50kA DC | 0.560" Dia x 0.880" L (22.35mm x 14.22mm) | - | - |
|
PV-12A10FFUSE CARTRIDGE 12A 1KVDC 5AG |
8,838 |
|
Datasheet |
PV | 5AG, 10mm x 38mm (Midget) | Bulk | Active | Requires Holder | Cartridge | 12A | - | 1 kVDC | - | Solar (Photovoltaic) | - | - | CCC, CSA, UL | -40°C ~ 90°C | 50kA | 0.406" Dia x 1.496" L (10.30mm x 38.00mm) | - | - |
|
ANF-500AFUSE STRIP 500A 32VDC RECT BLADE |
1,046 |
|
Datasheet |
ANF | Rectangular, Blade | Bulk | Active | Bolt Mount | Fuse Strip | 500A | - | 32 VDC | Fast Blow | Automotive | - | - | - | - | 1kA | 1.390" L x 0.870" W x 0.327" H (35.30mm x 22.10mm x 8.30mm) | - | - |
|

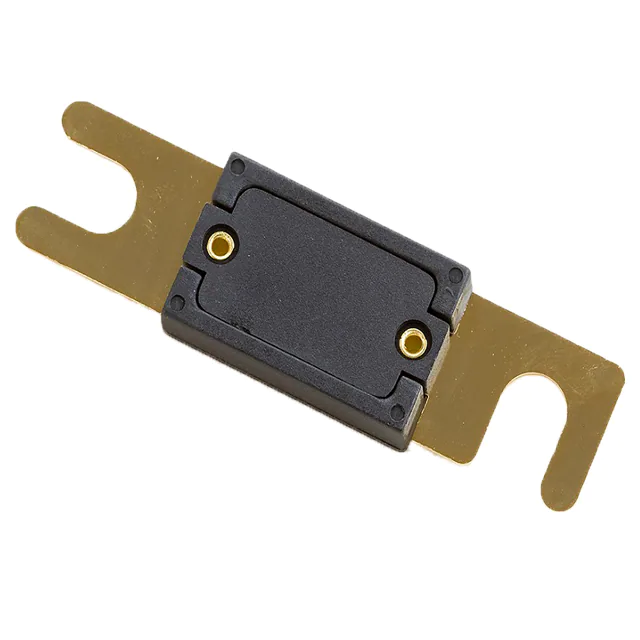

ANF-600AFUSE STRIP 600A 32VDC RECT BLADE |
772 |
|
Datasheet |
ANF | Rectangular, Blade | Bulk | Active | Bolt Mount | Fuse Strip | 600A | - | 32 VDC | Fast Blow | Automotive | - | - | - | - | 1kA | 1.390" L x 0.870" W x 0.327" H (35.30mm x 22.10mm x 8.30mm) | - | - |
|
|
FLU.440MFUS 1000V AC/DC QUICK ACTING MET |
977 |
|
Datasheet |
FLU | Cartridge, Non-Standard | Box | Active | Requires Holder | Cartridge | 440mA | 1 kVAC | 1 kVDC | Fast Blow | Multi-Meters | - | - | CSA, UR | - | 10kA | 0.406" Dia x 1.375" L (10.31mm x 34.93mm) | - | - |
|
C22G6FUSE CARTRIDGE 6A 690VAC |
2,162 |
|
Datasheet |
C22G | Cartridge, Non-Standard | Bulk | Obsolete | Requires Holder | Cartridge | 6A | 690 VAC | - | - | Electrical, Industrial | - | - | - | - | 80kA | 0.874" Dia x 2.283" L (22.20mm x 58.00mm) | - | - |
|
|
C22G20FUSE CARTRIDGE 20A 690VAC |
114 |
|
Datasheet |
C22G | Cartridge, Non-Standard | Bulk | Obsolete | Requires Holder | Cartridge | 20A | 690 VAC | - | - | Electrical, Industrial | - | - | - | - | 80kA | 0.874" Dia x 2.283" L (22.20mm x 58.00mm) | - | - |
|
|
C22G2FUSE CARTRIDGE 2A 690VAC |
90 |
|
Datasheet |
C22G | Cartridge, Non-Standard | Bulk | Obsolete | Requires Holder | Cartridge | 2A | 690 VAC | - | - | Electrical, Industrial | - | - | - | - | 80kA | 0.874" Dia x 2.283" L (22.20mm x 58.00mm) | - | - |
|
|
C22G16FUSE CARTRIDGE 16A 690VAC |
36 |
|
Datasheet |
C22G | Cartridge, Non-Standard | Bulk | Obsolete | Requires Holder | Cartridge | 16A | 690 VAC | - | - | Electrical, Industrial | - | - | - | - | 80kA | 0.874" Dia x 2.283" L (22.20mm x 58.00mm) | - | - |
|
|
A3T150FUSE CRTRDGE 150A 300VAC/125VDC |
267 |
|
Datasheet |
A3T | Cylindrical, Blade Terminal (Bolt) | Bulk | Active | Bolt Mount | Cartridge | 150A | 300 VAC | 160 VDC | Fast Blow | Electrical, Industrial | - | T | CSA, UL | - | 200kA AC, 50kA DC | 1.059" Dia x 2.441" L (26.90mm x 62.00mm) | - | - |
|
|
KAC-12FUSE CRTRDGE 12A 600VAC CYLINDR |
6,297 |
|
Datasheet |
KAC | Cylindrical, Blade Terminal (Bolt) | Bulk | Active | Bolt Mount | Cartridge | 12A | 600 VAC | - | - | Electrical, Industrial | - | - | UR | - | 200kA | 0.563" Dia x 1.875" L (14.30mm x 47.63mm) | - | - |
|
|
KAC-15FUSE CRTRDGE 15A 600VAC CYLINDR |
7,002 |
|
Datasheet |
KAC | Cylindrical, Blade Terminal (Bolt) | Bulk | Active | Bolt Mount | Cartridge | 15A | 600 VAC | - | - | Electrical, Industrial | - | - | UR | - | 200kA | 0.563" Dia x 1.875" L (14.30mm x 47.63mm) | - | - |
|
|
KAC-30FUSE CRTRDGE 30A 600VAC CYLINDR |
6,118 |
|
Datasheet |
KAC | Cylindrical, Blade Terminal (Bolt) | Bulk | Active | Bolt Mount | Cartridge | 30A | 600 VAC | - | - | Electrical, Industrial | - | - | UR | - | 200kA | 0.563" Dia x 1.875" L (14.30mm x 47.63mm) | - | - |
|
JLLN-350FUSE CRTRDGE 350A 300VAC/125VDC |
257 |
|
Datasheet |
JLLN | Cartridge, Non-Standard | - | Discontinued at Digi-Key | Bolt Mount | Cartridge | 350A | 300 VAC | 125 VDC | Fast Blow | Electrical, Industrial | - | T | CSA, UL | - | 200kA AC, 20kA DC | 1.312" Dia x 0.828" L (33.30mm x 21.00mm) | - | - |
|
|
50NHG01BFUSE SQUARE 50A 500VAC/250VDC |
7,582 |
|
Datasheet |
- | Rectangular, Blade | Bulk | Active | Requires Holder | Square | 50A | 500 VAC | 250 VDC | Fast Blow | Electrical, Industrial | Indicating | NH | VDE | - | 120kA | 2.953" L x 1.181" W x 1.969" H (75.00mm x 30.00mm x 50.00mm) | - | - |
|
|
20NHG01BFUSE SQUARE 20A 500VAC/250VDC |
9,560 |
|
Datasheet |
- | Rectangular, Blade | Bulk | Active | Requires Holder | Square | 20A | 500 VAC | 250 VDC | Fast Blow | Electrical, Industrial | Indicating | NH | VDE | - | 120kA | 2.953" L x 1.181" W x 1.969" H (75.00mm x 30.00mm x 50.00mm) | - | - |
|
|
K8F 100A 800VPOWER FUSE, 24.1*91.6MM, 100A, 8 |
100 |
|
- |
K8F | Cylindrical, Blade Terminal (Bolt) | Box | Active | Bolt Mount | Cartridge | 100A | 800 VAC | 800 VDC | Fast Blow | Electrical, Industrial | - | aR | cURus | -55°C ~ 125°C | 100kA AC, 50kA DC | 0.949" Dia x 2.717" L (24.10mm x 69.00mm) | - | - |
|
|
JLLN-400FUSE CRTRDGE 400A 300VAC/125VDC |
470 |
|
Datasheet |
JLLN | Cartridge, Non-Standard | - | Discontinued at Digi-Key | Bolt Mount | Cartridge | 400A | 300 VAC | 125 VDC | Fast Blow | Electrical, Industrial | - | T | CSA, UL | - | 200kA AC, 20kA DC | 1.312" Dia x 0.828" L (33.30mm x 21.00mm) | - | - |
|
|
JLLN-250FUSE CRTRDGE 250A 300VAC/125VDC |
581 |
|
Datasheet |
JLLN | Cartridge, Non-Standard | - | Discontinued at Digi-Key | Bolt Mount | Cartridge | 250A | 300 VAC | 125 VDC | Fast Blow | Electrical, Industrial | - | T | CSA, UL | - | 200kA AC, 20kA DC | 1.312" Dia x 0.828" L (33.30mm x 21.00mm) | - | - |
