Electrical, Specialty Fuses
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package / Case | Packaging | Product Status | Mounting Type | Fuse Type | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Response Time | Applications | Features | Class | Approval Agency | Operating Temperature | Breaking Capacity @ Rated Voltage | Size / Dimension | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
TPK-R-6AUL CLASS M FUSE, TIME DELAY 6A |
2,126 |
|
Datasheet |
TPK-R | 5AG, 10mm x 38mm (Midget) | Bulk | Active | Requires Holder | Cartridge | 6A | 600 VAC | 300 VDC | Slow Blow | Electrical, Industrial | - | CC | cULus, UL 248 | - | 200kA AC, 10kA DC | 0.406" Dia x 1.496" L (10.30mm x 38.00mm) | - | - |
|
TPK-R-1.6AUL CLASS M FUSE, TIME DELAY 1.6A |
2,069 |
|
Datasheet |
TPK-R | 5AG, 10mm x 38mm (Midget) | Bulk | Active | Requires Holder | Cartridge | 1.6A | 600 VAC | 300 VDC | Slow Blow | Electrical, Industrial | - | CC | cULus, UL 248 | - | 200kA AC, 10kA DC | 0.406" Dia x 1.496" L (10.30mm x 38.00mm) | - | - |
|
TPK-R-16AUL Class CC Fuse, Time Delay 16A |
1,894 |
|
Datasheet |
TPK-R | 5AG, 10mm x 38mm (Midget) | Bulk | Active | Requires Holder | Cartridge | 16A | 600 VAC | 300 VDC | Slow Blow | Electrical, Industrial | - | CC | cULus, UL 248 | - | 200kA AC, 10kA DC | 0.406" Dia x 1.496" L (10.30mm x 38.00mm) | - | - |
|
|
TPK-R-8AUL CLASS M FUSE, TIME DELAY 8A |
1,561 |
|
Datasheet |
TPK-R | 5AG, 10mm x 38mm (Midget) | Bulk | Active | Requires Holder | Cartridge | 8A | 600 VAC | 300 VDC | Slow Blow | Electrical, Industrial | - | CC | cULus, UL 248 | - | 200kA AC, 10kA DC | 0.406" Dia x 1.496" L (10.30mm x 38.00mm) | - | - |
|
TPK-R-7AUL CLASS M FUSE, TIME DELAY 7A |
1,395 |
|
Datasheet |
TPK-R | 5AG, 10mm x 38mm (Midget) | Bulk | Active | Requires Holder | Cartridge | 7A | 600 VAC | 300 VDC | Slow Blow | Electrical, Industrial | - | CC | cULus, UL 248 | - | 200kA AC, 10kA DC | 0.406" Dia x 1.496" L (10.30mm x 38.00mm) | - | - |
|
|
TPK-R-3.5AUL Class CC Fuse, Time Delay 3.5 |
858 |
|
Datasheet |
TPK-R | 5AG, 10mm x 38mm (Midget) | Bulk | Active | Requires Holder | Cartridge | 3.5A | 600 VAC | 300 VDC | Slow Blow | Electrical, Industrial | - | CC | cULus, UL 248 | - | 200kA AC, 10kA DC | 0.406" Dia x 1.496" L (10.30mm x 38.00mm) | - | - |
|
TPK-R-1.5AUL CLASS M FUSE, TIME DELAY 1.5A |
673 |
|
Datasheet |
TPK-R | 5AG, 10mm x 38mm (Midget) | Bulk | Active | Requires Holder | Cartridge | 1.5A | 600 VAC | 300 VDC | Slow Blow | Electrical, Industrial | - | CC | cULus, UL 248 | - | 200kA AC, 10kA DC | 0.406" Dia x 1.496" L (10.30mm x 38.00mm) | - | - |
|
0HEV050.ZXPCB2FUSE CRTRDGE 50A 275VAC BLADE |
272 |
|
Datasheet |
LC HEV | Cylindrical, Blade Terminals | Bulk | Active | Requires Holder | Cartridge | 50A | 275 VAC | - | - | Lift Trucks | - | - | - | -40°C ~ 125°C | 10kA | 0.406" Dia x 1.532" L (10.30mm x 38.90mm) | - | - |
|
|
PF-KB1-30FUSE 275VAC 500VDC BD 30A |
218 |
|
Datasheet |
POWrFuse™ PF-K | 5AG, 10mm x 38mm (Midget) | Box | Active | Bolt Mount | Cartridge | 30A | 275 VAC | 500 VDC | - | Automotive | - | - | - | - | 10kA AC, 20kA DC | 0.406" Dia x 1.496" L (10.30mm x 38.00mm) | Automotive | ISO 8820-8 |
|
|
0HEV050.ZXPCBL2FUSE CARTRIDGE 50A 275VAC RADIAL |
350 |
|
Datasheet |
LC HEV | Radial Bend Cylinder | Bulk | Active | Through Hole | Cartridge | 50A | 275 VAC | - | - | Lift Trucks | - | - | - | -40°C ~ 125°C | 10kA | 0.406" Dia x 1.530" L (10.31mm x 38.86mm) | - | - |
|
ANE-350AFUSE STRIP 350A 125VAC/32VDC |
1,275 |
|
Datasheet |
ANE | Rectangular, Blade | Bulk | Active | Bolt Mount | Fuse Strip | 350A | 32 VAC | 32 VDC | Fast Blow | Automotive | - | - | - | - | 2.5kA AC | 1.453" L x 0.882" W x 0.276" H (36.90mm x 22.40mm x 7.00mm) | - | - |
|
ANF-325AFUSE STRIP 325A 32VDC RECT |
530 |
|
Datasheet |
ANF | Rectangular, Blade | Bulk | Active | Bolt Mount | Fuse Strip | 325A | - | 32 VDC | Fast Blow | Automotive | - | - | - | - | 1kA | 1.390" L x 0.870" W x 0.327" H (35.30mm x 22.10mm x 8.30mm) | - | - |
|
|
TPK-R-30AUL CLASS M FUSE, TIME DELAY 30A |
3,209 |
|
Datasheet |
TPK-R | 5AG, 10mm x 38mm (Midget) | Bulk | Active | Requires Holder | Cartridge | 30A | 600 VAC | 300 VDC | Slow Blow | Electrical, Industrial | - | CC | cULus, UL 248 | - | 200kA AC, 10kA DC | 0.406" Dia x 1.496" L (10.30mm x 38.00mm) | - | - |
|
TPK-R-25AUL CLASS M FUSE, TIME DELAY 25A |
2,376 |
|
Datasheet |
TPK-R | 5AG, 10mm x 38mm (Midget) | Bulk | Active | Requires Holder | Cartridge | 25A | 600 VAC | 300 VDC | Slow Blow | Electrical, Industrial | - | CC | cULus, UL 248 | - | 200kA AC, 10kA DC | 0.406" Dia x 1.496" L (10.30mm x 38.00mm) | - | - |
|
|
PF-KB1-50FUSE 275VAC 500VDC BD 50A |
195 |
|
Datasheet |
POWrFuse™ PF-K | 5AG, 10mm x 38mm (Midget) | Box | Active | Bolt Mount | Cartridge | 50A | 275 VAC | 500 VDC | - | Automotive | - | - | - | - | 10kA AC, 20kA DC | 0.406" Dia x 1.496" L (10.30mm x 38.00mm) | Automotive | ISO 8820-8 |
|

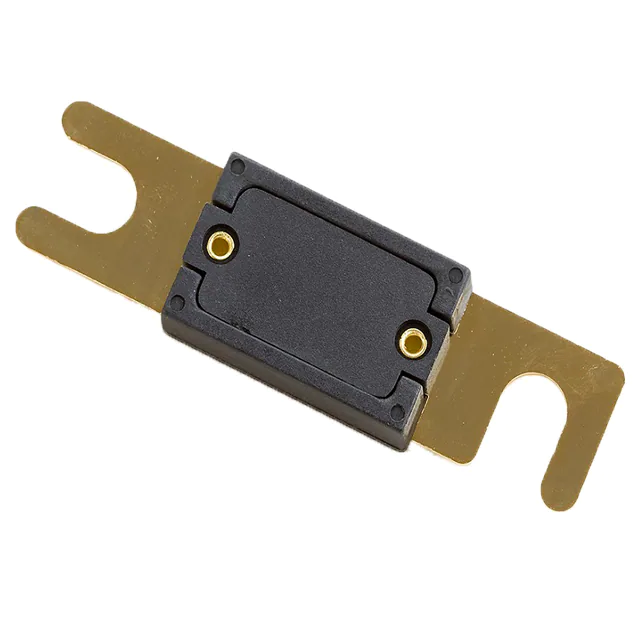

ANF-350AFUSE STRIP 350A 32VDC RECT |
1,030 |
|
Datasheet |
ANF | Rectangular, Blade | Bulk | Active | Bolt Mount | Fuse Strip | 350A | - | 32 VDC | Fast Blow | Automotive | - | - | - | - | 1kA | 1.390" L x 0.870" W x 0.327" H (35.30mm x 22.10mm x 8.30mm) | - | - |
|
C14G8FUSE CARTRIDGE 8A 690VAC |
8,009 |
|
Datasheet |
C14G | Cartridge, Non-Standard | Bulk | Obsolete | Requires Holder | Cartridge | 8A | 690 VAC | - | - | Electrical, Industrial | - | - | - | - | 80kA | 0.563" Dia x 2.008" L (14.30mm x 51.00mm) | - | - |
|
SPXV016.LFUSE SOLAR 1500VDC 16A |
550 |
|
Datasheet |
POWR-GARD® SPXV | Cartridge, Non-Standard | Box | Active | Requires Holder | Cartridge | 16A | - | 1.5 kVDC | Fast Blow | Solar (Photovoltaic) | - | - | CE, gPV, UL | - | 50kA | 0.406" Dia x 3.333" L (10.31mm x 84.65mm) | - | - |
|
|
PF-KB1-40FUSE 275VAC 500VDC BD 40A |
213 |
|
Datasheet |
POWrFuse™ PF-K | 5AG, 10mm x 38mm (Midget) | Box | Active | Bolt Mount | Cartridge | 40A | 275 VAC | 500 VDC | - | Automotive | - | - | - | - | 10kA AC, 20kA DC | 0.406" Dia x 1.496" L (10.30mm x 38.00mm) | Automotive | ISO 8820-8 |
|
|
ANF-400AFUSE STRIP 400A 32VDC RECT |
782 |
|
Datasheet |
ANF | Rectangular, Blade | Bulk | Active | Bolt Mount | Fuse Strip | 400A | - | 32 VDC | Fast Blow | Automotive | - | - | - | - | 1kA | 1.390" L x 0.870" W x 0.327" H (35.30mm x 22.10mm x 8.30mm) | - | - |
