Electrical, Specialty Fuses
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package / Case | Packaging | Product Status | Mounting Type | Fuse Type | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Response Time | Applications | Features | Class | Approval Agency | Operating Temperature | Breaking Capacity @ Rated Voltage | Size / Dimension | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
A6D400R600V 400A RK1 TD FUSE |
6,597 |
|
Datasheet |
A6D-R | Cylindrical, Blade Terminals | Box | Active | Requires Holder | Cartridge | 400A | 600 VAC | 600 VDC | Slow Blow | Electrical, Industrial | - | RK1 | CSA, UL | - | 200kA AC, 100kA DC | 2.598" Dia x 11.614" L (66.00mm x 295.00mm) | - | - |
|
0JTD200.XFUSE CRTRDGE 200A 600VAC/500VDC |
1 |
|
Datasheet |
POWR-GARD®, POWR-PRO® JTD | Cylindrical, Blade Terminals | Bulk | Active | Requires Holder | Cartridge | 200A | 600 VAC | 500 VDC | Slow Blow | Transformer Protection | - | J | CE, CSA, UL | - | 200kA AC, 20kA DC | 1.500" Dia x 3.000" L (38.10mm x 76.20mm) | - | - |
|
0JTD150.XFUSE CRTRDGE 150A 600VAC/500VDC |
1 |
|
Datasheet |
POWR-GARD®, POWR-PRO® JTD | Cylindrical, Blade Terminals | Bulk | Active | Requires Holder | Cartridge | 150A | 600 VAC | 500 VDC | Slow Blow | Transformer Protection | - | J | CE, CSA, UL | - | 200kA AC, 20kA DC | 1.500" Dia x 3.000" L (38.10mm x 76.20mm) | - | - |
|
LPS-RK-200SPFUSE CRTRDGE 200A 600VAC/300VDC |
1 |
|
Datasheet |
Low-Peak™ LPS | Cylindrical, Blade Terminal (Bolt) | Bulk | Active | Bolt Mount | Cartridge | 200A | 600 VAC | 300 VDC | Slow Blow | Motor Protection, Transformer Protection | - | RK1 | CE, CSA, UL | - | 300kA AC, 100kA DC | 1.610" Dia x 9.630" L (40.89mm x 244.60mm) | - | - |
|
|
L75QS250.X750VDC HIGHSPEED SEMICONDUCTOR F |
8,223 |
|
Datasheet |
POWR-SPEED® L75QS | Cylindrical, Blade Terminal (Bolt) | Box | Active | Bolt Mount | Cartridge | 250A | - | 750 VDC | Fast Blow | Electrical, Industrial | - | - | CE, cURus, UL | -55°C ~ 125°C | 50kA | 2.000" Dia x 2.844" L (50.80mm x 72.24mm) | - | - |
|
|
FLNR600.XXIDFUSE CRTRDGE 600A 250VAC/125VDC |
1 |
|
Datasheet |
POWR-GARD® FLNR_ID | Cylindrical, Blade Terminals | Box | Active | Requires Holder | Cartridge | 600A | 250 VAC | 125 VDC | Slow Blow | Electrical, Industrial | Indicating | RK5 | CE, CSA, QPL, UL | - | 200kA AC, 20kA DC | 2.594" Dia x 10.374" L (65.90mm x 263.50mm) | - | - |
|
|
A50QS800-4FUSE,FAST ACTING,NO BLOWN INDICA |
1 |
|
Datasheet |
A50QS | Cylindrical, Blade Terminal (Bolt) | Box | Active | Bolt Mount | Cartridge | 800A | 500 VAC | 500 VDC | Fast Blow | Electrical, Industrial | - | - | CSA, UR | - | 200kA AC, 87kA DC | 2.374" Dia x 6.469" L (60.30mm x 164.30mm) | - | - |
|
|
PSR031FL0630ZFUSE SQUARE 630A 700VAC/600VDC |
3,328 |
|
Datasheet |
POWR-SPEED® PSR | - | Box | Active | Bolt Mount | Square | 630A | 700 VAC | 600 VDC | Fast Blow | Semiconductors | Indicating | - | CCC, CE, cURus, UL | -55°C ~ 125°C | 200kA AC, 150kA DC | 1.969" L x 2.028" W x 2.264" H (50.00mm x 51.50mm x 57.50mm) | - | - |
|
|
FLSR300.XFUSE CRTRDGE 300A 600VAC/300VDC |
1 |
|
Datasheet |
POWR-GARD® FLSR | Cylindrical, Blade Terminals | Box | Active | Requires Holder | Cartridge | 300A | 600 VAC | 300 VDC | Slow Blow | Electrical, Industrial | - | RK5 | CE, CSA, QPL, UL | - | 200kA AC, 20kA DC | 2.594" Dia x 11.626" L (65.90mm x 295.30mm) | - | - |
|
|
A4J225FUSE,CLASS J,HIGH SPEED,200KA AC |
1 |
|
Datasheet |
A4J | Cylindrical, Blade Terminal (Bolt) | Box | Active | Bolt Mount | Cartridge | 225A | 600 VAC | 300 VDC | Fast Blow | Electrical, Industrial | - | J | CSA, UL | - | 200kA AC, 100kA DC | 2.126" Dia x 7.126" L (54.00mm x 181.00mm) | - | - |
|
|
A6T600FUSE,CLASS T,FAST ACTING,200KA A |
1 |
|
Datasheet |
A6T600 | Cylindrical, Blade Terminal (Bolt) | Box | Active | Bolt Mount | Cartridge | 600A | 600 VAC | 300 VDC | Fast Blow | Electrical, Industrial | - | T | CSA, UL | - | 200kA AC, 100kA DC | 2.063" Dia x 3.984" L (52.40mm x 101.20mm) | - | - |
|
PSR071FS0350ZFUSE SQUARE 350A 1.3KVAC/1KVDC |
1 |
|
Datasheet |
POWR-SPEED® PSR | - | Bulk | Active | Bolt Mount | Square | 350A | 1.3 kVAC | 1 kVDC | Fast Blow | Semiconductors | - | - | CCC, CE, cURus, UL | -55°C ~ 125°C | 100kA AC, 150kA DC | 2.913" L x 2.028" W x 2.264" H (74.00mm x 51.50mm x 57.50mm) | - | - |
|

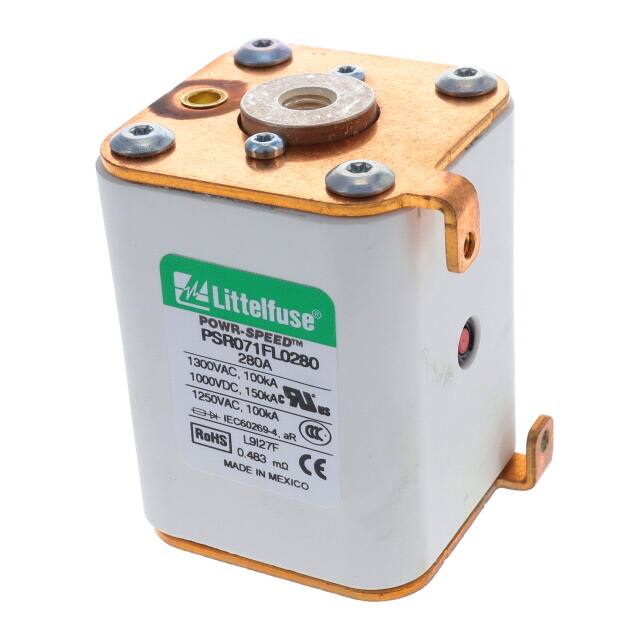

PSR071FL0280ZPOWR-SPEED SQB SIZE 71 FLUSH MET |
1 |
|
Datasheet |
POWR-SPEED® PSR | Rectangular, Blade | Box | Active | Bolt Mount | Square | 280A | 1.3 kVAC | 1 kVDC | Fast Blow | Semiconductors | - | - | CCC, CE, cURus, IEC, UL | -55°C ~ 125°C | 100kA AC, 150kA DC | 2.913" L x 2.028" W x 2.264" H (74.00mm x 51.50mm x 57.50mm) | - | - |
|
|
A6D350R600V 350A RK1 TD FUSE |
5,970 |
|
Datasheet |
A6D-R | Cylindrical, Blade Terminals | Box | Active | Requires Holder | Cartridge | 350A | 600 VAC | 600 VDC | Slow Blow | Electrical, Industrial | - | RK1 | CSA, UL | - | 200kA AC, 100kA DC | 2.598" Dia x 11.614" L (66.00mm x 295.00mm) | - | - |
|
|
A6D225R600V 225A RK1 TD FUSE |
9,865 |
|
Datasheet |
A6D-R | Cylindrical, Blade Terminals | Box | Active | Requires Holder | Cartridge | 225A | 600 VAC | 600 VDC | Slow Blow | Electrical, Industrial | - | RK1 | CSA, UL | - | 200kA AC, 100kA DC | 2.598" Dia x 11.614" L (66.00mm x 295.00mm) | - | - |
|
|
9F60BHH001PT EJ-1 FI 15.5KV 1E |
5,418 |
|
Datasheet |
9F60 | Cartridge, Non-Standard | Box | Active | Requires Holder | Cartridge | 1A | 15.5 kVAC | - | Slow Blow | Transformer Protection | Indicating | - | - | - | 120kA | 1.575" Dia x 12.874" L (40.00mm x 327.00mm) | - | - |
|
|
9F60BHH905PT EJ-1 FI 15.5KV 0.5E |
3,495 |
|
Datasheet |
9F60 | Cartridge, Non-Standard | Box | Active | Requires Holder | Cartridge | 500mA | 15.5 kVAC | - | Slow Blow | Transformer Protection | - | - | - | - | 120kA | 1.575" Dia x 12.874" L (40.00mm x 327.00mm) | - | - |
|
170M5808DFUSE SQUARE 400A 700VAC RECT |
1 |
|
Datasheet |
- | Rectangular, Blade | Bulk | Active | Requires Holder | Square | 400A | 700 VAC | - | - | Electrical, Industrial | Indicating | - | CE, UR | - | 200kA | 2.717" L x 2.165" W x 2.795" H (69.00mm x 55.00mm x 71.00mm) | - | - |
|
PSR032UL0900XFUSE SQUARE 900A 700VAC/600VDC |
7,219 |
|
Datasheet |
POWR-SPEED® PSR | - | Box | Active | Bolt Mount | Square | 900A | 700 VAC | 600 VDC | Fast Blow | Semiconductors | Indicating | - | CE, cURus, UL | -55°C ~ 125°C | 200kA AC, 150kA DC | 1.898" L x 2.362" W x 2.598" H (48.20mm x 60.00mm x 66.00mm) | - | - |
|
|
A3T800300V 800A T FUSE |
1 |
|
Datasheet |
A3T | Cylindrical, Blade Terminal (Bolt) | Box | Active | Bolt Mount | Cartridge | 800A | 300 VAC | 160 VDC | Fast Blow | Electrical, Industrial | - | T | CSA, UL | - | 200kA AC, 50kA DC | 2.079" Dia x 3.378" L (52.80mm x 85.80mm) | - | - |
