Electrical, Specialty Fuses
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package / Case | Packaging | Product Status | Mounting Type | Fuse Type | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Response Time | Applications | Features | Class | Approval Agency | Operating Temperature | Breaking Capacity @ Rated Voltage | Size / Dimension | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
JLLS125.XFUSE CRTRDGE 125A 600VAC/300VDC |
1 |
|
Datasheet |
POWR-GARD® JLLS | Cylindrical, Blade Terminal (Bolt) | Box | Active | Bolt Mount | Cartridge | 125A | 600 VAC | 300 VDC | Fast Blow | Electrical, Industrial | - | T | CE, CSA, UL | - | 200kA | 1.063" Dia x 1.657" L (27.00mm x 42.10mm) | - | - |
|
AJT100N600VAC 100A CLASS J TD FUSE |
7,801 |
|
Datasheet |
AJT | Cylindrical, Blade Terminal (Bolt) | Bulk | Active | Bolt Mount | Cartridge | 100A | 600 VAC | 500 VDC | Slow Blow | Electrical, Industrial | - | J | CSA, UL | - | 200kA AC, 100kA DC | 1.063" Dia x 4.606" L (27.00mm x 117.00mm) | - | - |
|
PF-FB2-125FUSE BOLT MNT 800VAC 800VDC 125A |
5,890 |
|
Datasheet |
POWrFuse™ PF-F | Cylindrical, Blade Terminal (Bolt) | Box | Active | Bolt Mount | Cartridge | 125A | 800 VAC | 800 VDC | - | Semiconductors | - | aR | cURus | -55°C ~ 125°C | 100kA AC, 50kA DC | 0.949" Dia x 2.598" L (24.10mm x 66.00mm) | - | - |
|
|
HSJ70FUSE,CLASS J,HIGH SPEED,200KA AC |
1 |
|
Datasheet |
HSJ | Cylindrical, Blade Terminal (Bolt) | Box | Active | Bolt Mount | Cartridge | 70A | 600 VAC | 500 VDC | Fast Blow | Electrical, Industrial | - | J | CSA, UL | - | 200kA AC, 100kA DC | 1.142" Dia x 4.606" L (29.00mm x 117.00mm) | - | - |
|
|
A480T1/2EFUSE,POTENTIAL TRANSFORMER,4.8KV |
4,045 |
|
Datasheet |
9F60 | Cartridge, Non-Standard | Box | Active | Requires Holder | Cartridge | 500mA | 4.8 kVAC | - | Fast Blow | Transformer Protection | - | - | - | - | 80kA | 0.811" Dia x 5.630" L (20.60mm x 143.00mm) | - | - |
|
|
TRS200R600V 200A 9 5/8X1 13/16 T |
1 |
|
Datasheet |
TRS-R | Cylindrical, Blade Terminal (Bolt) | Bulk | Active | Bolt Mount | Cartridge | 200A | 600 VAC | 600 VDC | Slow Blow | Electrical, Industrial | - | RK5 | CSA, UL | - | 200kA AC, 100kA DC | 1.811" Dia x 9.606" L (46.00mm x 244.00mm) | - | - |
|
|
TRS110R600V 110A 9 5/8X1 13/16 T |
8,558 |
|
Datasheet |
TRS-R | Cartridge, Non-Standard | Box | Active | Requires Holder | Cartridge | 100mA | 600 VAC | 600 VDC | Slow Blow | Electrical, Industrial | - | RK5 | CSA, UL | - | 200kA AC, 20kA DC | 0.827" Dia x 5.000" L (21.00mm x 127.00mm) | - | - |
|
|
FLNR200.XFUSE CRTRDGE 200A 250VAC/125VDC |
1 |
|
Datasheet |
POWR-GARD® FLNR | Cylindrical, Blade Terminals | Box | Active | Requires Holder | Cartridge | 200A | 250 VAC | 125 VDC | Slow Blow | Electrical, Industrial | - | RK5 | CE, CSA, QPL, UL | - | 200kA AC, 20kA DC | 1.594" Dia x 7.126" L (40.50mm x 181.00mm) | - | - |
|
L15S090.TFUSE CARTRIDGE 90A 150VAC/100VDC |
1 |
|
Datasheet |
POWR-GARD® L15S | Cylindrical, Blade Terminal (Bolt) | Box | Active | Bolt Mount | Cartridge | 90A | 150 VAC | 100 VDC | Fast Blow | Semiconductors | - | - | CE, CSA, UR | - | 100kA AC, 20kA DC | 1.000" Dia x 1.157" L (25.40mm x 29.40mm) | - | - |
|

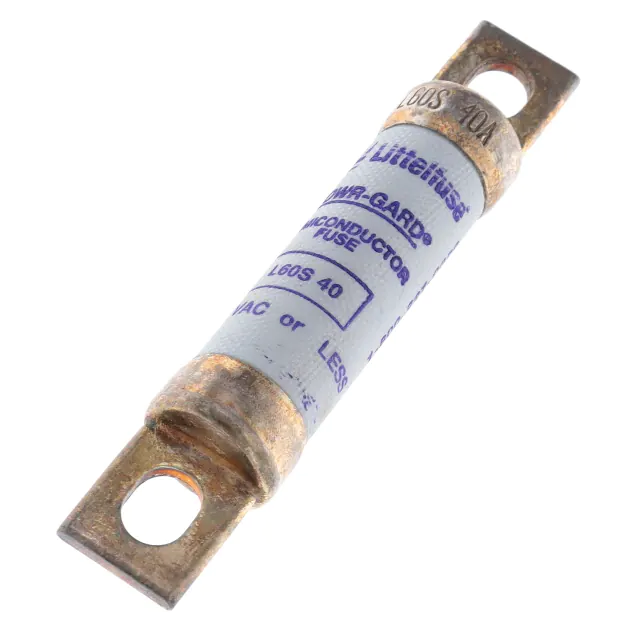

L60S040.TFUSE CRTRDGE 40A 600VAC CYLINDR |
4,652 |
|
Datasheet |
POWR-GARD® L60S | Cylindrical, Blade Terminal (Bolt) | Box | Active | Bolt Mount | Cartridge | 40A | 600 VAC | - | Fast Blow | Semiconductors | - | - | CE, CSA, UR | - | 200kA AC, 20kA DC | 0.811" Dia x 2.780" L (20.60mm x 70.60mm) | - | - |
|
|
A3T300FUSE,CLASS T,FAST ACTING,200KA A |
1 |
|
Datasheet |
A3T | Cylindrical, Blade Terminal (Bolt) | Box | Active | Bolt Mount | Cartridge | 300A | 300 VAC | 160 VDC | Fast Blow | Electrical, Industrial | - | T | CSA, UL | - | 200kA AC, 50kA DC | 1.331" Dia x 2.748" L (33.80mm x 69.80mm) | - | - |
|
|
TR350R250V 350A 8 5/8X2 1/10 TD |
1 |
|
Datasheet |
TR-R | Cylindrical, Blade Terminals | Box | Active | Requires Holder | Cartridge | 350A | 250 VAC | 250 VDC | Slow Blow | Electrical, Industrial | - | RK5 | CSA, UL | - | 200kA AC, 20kA DC | 2.087" Dia x 8.622" L (53.00mm x 219.00mm) | - | - |
|
|
170H3027FUSE 2A 250V MICROSWITCH K1 |
1 |
|
Datasheet |
- | - | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
0JLS100.VFUSE CRTRDGE 100A 600VAC CYLINDR |
3,590 |
|
Datasheet |
POWR-GARD® JLS | Cylindrical, Blade Terminals | Bulk | Active | Requires Holder | Cartridge | 100A | 600 VAC | - | Fast Blow | Electrical, Industrial | - | J | CE, CSA, QPL, UL | - | 200kA | 1.000" Dia x 2.626" L (25.40mm x 66.70mm) | - | - |
|
|
A3T600300V 600A T FUSE |
1 |
|
Datasheet |
A3T | Cylindrical, Blade Terminal (Bolt) | Box | Active | Bolt Mount | Cartridge | 600A | 300 VAC | 160 VDC | Fast Blow | Electrical, Industrial | - | T | CSA, UL | - | 200kA AC, 50kA DC | 1.618" Dia x 3.059" L (41.10mm x 77.70mm) | - | - |
|
L70S050.TFUSE CARTRIDGE 50A 700VAC/650VDC |
1 |
|
Datasheet |
POWR-GARD® L70S | Cylindrical, Blade Terminal (Bolt) | Box | Active | Bolt Mount | Cartridge | 50A | 700 VAC | 650 VDC | Fast Blow | Semiconductors | - | - | CE, CSA, UR | - | 200kA AC, 20kA DC | 1.000" Dia x 2.874" L (25.40mm x 73.00mm) | - | - |
|
|
L70S035.TFUSE CARTRIDGE 35A 700VAC/650VDC |
1 |
|
Datasheet |
POWR-GARD® L70S | Cylindrical, Blade Terminal (Bolt) | Box | Active | Bolt Mount | Cartridge | 35A | 700 VAC | 650 VDC | Fast Blow | Semiconductors | - | - | CE, CSA, UR | - | 200kA AC, 20kA DC | 1.000" Dia x 2.874" L (25.40mm x 73.00mm) | - | - |
|
L25S175.VFUSE CARTRIDGE 175A 250VAC/VDC |
1 |
|
Datasheet |
POWR-GARD® L25S | Cylindrical, Blade Terminal (Bolt) | Box | Active | Bolt Mount | Cartridge | 175A | 250 VAC | 250 VDC | Fast Blow | Semiconductors | - | - | CE, CSA, UR | - | 200kA AC, 20kA DC | 1.220" Dia x 1.626" L (31.00mm x 41.30mm) | - | - |
|
|
0JLS080.VFUSE CRTRDGE 80A 600VAC CYLINDR |
1 |
|
Datasheet |
POWR-GARD® JLS | Cylindrical, Blade Terminals | Bulk | Active | Requires Holder | Cartridge | 80A | 600 VAC | - | Fast Blow | Electrical, Industrial | - | J | CE, CSA, QPL, UL | - | 200kA | 1.000" Dia x 2.626" L (25.40mm x 66.70mm) | - | - |
|
|
TRS150R600V 150A 9 5/8X1 13/16 T |
9,995 |
|
Datasheet |
TRS-R | Cylindrical, Blade Terminals | Box | Active | Requires Holder | Cartridge | 150A | 600 VAC | 600 VDC | Slow Blow | Electrical, Industrial | Indicating | RK5 | CSA, UL | - | 200kA AC, 100kA DC | 1.811" Dia x 9.606" L (46.00mm x 244.00mm) | - | - |
