Electrical, Specialty Fuses
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package / Case | Packaging | Product Status | Mounting Type | Fuse Type | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Response Time | Applications | Features | Class | Approval Agency | Operating Temperature | Breaking Capacity @ Rated Voltage | Size / Dimension | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
0AKHBK350-BAFUSE 350A 1000V STUD MNT |
8,209 |
|
Datasheet |
0AKH | Rectangular, Blade | Box | Active | Bolt Mount | Square | 350A | - | 1 kVDC | Fast Blow | Electrical, Industrial | - | aR | - | - | 50kA | 2.827" L x 1.850" W x 1.890" H (71.80mm x 47.00mm x 48.00mm) | - | - |
|
FWH-100BCFUSE CARTRIDGE 100A 500VAC/VDC |
1 |
|
Datasheet |
FWH | Cylindrical, Blade Terminal (Bolt) | Bulk | Active | Bolt Mount | Cartridge | 100A | 500 VAC | 500 VDC | Fast Blow | Electrical, Industrial | - | aR | CE, CSA, UL | - | 200kA AC, 50kA DC | 0.950" Dia x 1.740" L (24.13mm x 44.20mm) | - | - |
|
100FEFUSE CRTRDGE 100A 690VAC/500VDC |
3,195 |
|
Datasheet |
FE | Cylindrical, Blade Terminal (Bolt) | Bulk | Active | Bolt Mount | Cartridge | 100A | 690 VAC | 500 VDC | - | Electrical, Industrial | - | - | CE, UR | - | 200kA | 0.673" Dia x 1.890" L (17.10mm x 48.00mm) | - | - |
|
L50QS300.VFUSE CRTRDGE 300A 500VAC/VDC |
5,350 |
|
Datasheet |
POWR-SPEED™ L50QS | Cylindrical, Blade Terminal (Bolt) | Box | Active | Bolt Mount | Cartridge | 300A | 500 VAC | 500 VDC | Fast Blow | Semiconductors | - | - | CE, cURus, UR | -55°C ~ 125°C | 200kA AC, 50kA DC | 1.500" Dia x 4.343" L (38.10mm x 110.31mm) | - | - |
|

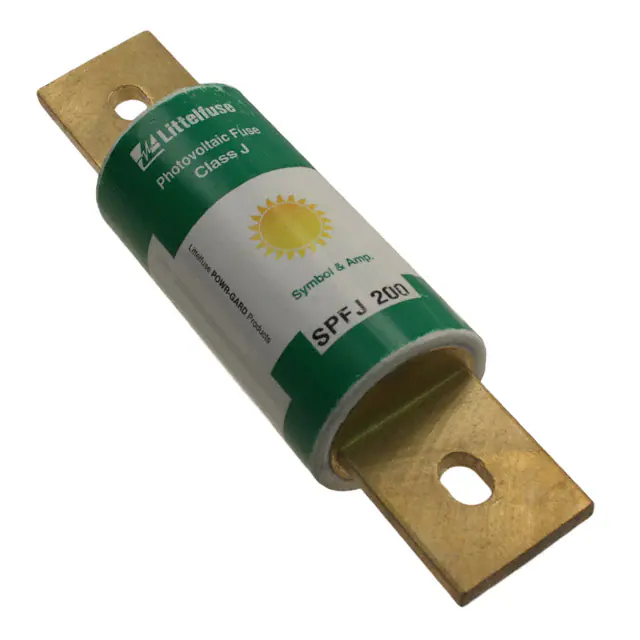

SPFJ200.XFUSE CARTRIDGE 200A 600VAC/1KVDC |
7,165 |
|
Datasheet |
POWR-GARD® SPFJ | Cylindrical, Blade Terminals | Bulk | Active | Requires Holder | Cartridge | 200A | 600 VAC | 1 kVDC | Fast Blow | Solar (Photovoltaic) | - | J | CE, cULus, UL, VDE | - | 200kA AC, 20kA DC | 1.500" Dia x 5.670" L (38.10mm x 144.02mm) | - | - |
|
|
L50QS600.XFUSE CRTRDGE 600A 500VAC/VDC |
9,774 |
|
Datasheet |
POWR-SPEED™ L50QS | Cylindrical, Blade Terminal (Bolt) | Box | Active | Bolt Mount | Cartridge | 600A | 500 VAC | 500 VDC | Fast Blow | Semiconductors | - | - | CE, cURus, UR | -55°C ~ 125°C | 200kA AC, 50kA DC | 2.000" Dia x 4.468" L (50.80mm x 113.49mm) | - | - |
|
|
HSJ300600V 300A CLASS J HS FUSE |
1 |
|
Datasheet |
HSJ | Cylindrical, Blade Terminal (Bolt) | Box | Active | Bolt Mount | Cartridge | 300A | 600 VAC | 500 VDC | Fast Blow | Electrical, Industrial | - | J | CSA, UL | - | 200kA AC, 100kA DC | 2.126" Dia x 7.126" L (54.00mm x 181.00mm) | - | - |
|
PSR073DL0800XFUSES POWR-SPEED |
1 |
|
Datasheet |
POWR-SPEED® PSR | Rectangular, Blade | Bulk | Active | Bolt Mount | Square | 800A | 1.3 kVAC | 1 kVDC | Fast Blow | Semiconductors | Indicating | - | CE, cURus, UL | -55°C ~ 125°C | 100kA AC, 150kA DC | 2.921" L x 2.894" W x 3.130" H (74.20mm x 73.50mm x 79.50mm) | - | - |
|
|
M200J30SWITCH.FUS 200A J R 3+0 POS. |
1 |
|
Datasheet |
- | - | Box | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
PSX3XLUB0800XFUSE SEMI 1500VDC 3XL SIZE 800A |
9,376 |
|
Datasheet |
POWR-SPEED® PSX | Rectangular, Blade | Box | Active | Bolt Mount | Square | 800A | - | 1.5 kVDC | Fast Blow | Semiconductors | Indicating | - | CE, cURus, UL | -55°C ~ 125°C | 200kA | 5.067" L x 2.894" W x 3.130" H (128.70mm x 73.50mm x 79.50mm) | - | - |
|
156.5610.5301FUSE STRIP 30A 36VDC BOLT MOUNT |
7,559 |
|
Datasheet |
- | Metal Strip | Bulk | Active | Bolt Mount | Fuse Strip | 30A | - | 36 VDC | - | Lift Trucks | - | - | - | -40°C ~ 125°C | - | 1.614" L x 0.433" W x 0.043" H (41.00mm x 11.00mm x 1.08mm) | - | - |
|
0001.2025FUSE CARTRIDGE 16A 500VAC |
7,666 |
|
Datasheet |
DTII | Cartridge, Non-Standard | - | Active | Requires Holder | Cartridge | 16A | 500 VAC | - | - | Cable Protection | Indicating | - | - | - | 50kA | - | - | - |
|
0308001.URFUSE BRD MNT 1A 24VAC/30VDC 2SMD |
1 |
|
Datasheet |
308 | 2-SMD, J-Lead | Tape & Reel (TR) | Active | Surface Mount | Board Mount | 1A | 24 VAC | 30 VDC | Slow Blow | Hazardous Locations | Intrinsically Safe | - | cURus, Ex, IEC, IECEx | -40°C ~ 70°C | 50A | 0.213" L x 0.150" W x 0.144" H (5.40mm x 3.80mm x 3.65mm) | - | - |
|
|
GBC-30FUSE AUTOMOTIVE 30A 32VAC/VDC |
15 |
|
Datasheet |
GBC | Torpedo | Bulk | Active | Requires Holder | Cartridge | 30A | 32 VAC | 32 VDC | - | Automotive | Indicating | - | - | - | - | 0.236" Dia x 0.984" L (6.00mm x 25.00mm) | - | - |
|
0LGR005.VFUSE CARTRIDGE 5A 300VAC IN LINE |
25 |
|
Datasheet |
POWR-GARD® LGR | In-Line | Bulk | Active | Requires Holder | Cartridge | 5A | 300 VAC | - | Fast Blow | Electrical, Industrial | - | - | CE, CSA, UL | - | 10kA | 0.610" Dia x 1.820" L (15.49mm x 46.23mm) | - | - |
|
0LGR003.VFUSE CARTRIDGE 3A 300VAC IN LINE |
5 |
|
Datasheet |
POWR-GARD® LGR | In-Line | Bulk | Active | Requires Holder | Cartridge | 3A | 300 VAC | - | Fast Blow | Electrical, Industrial | - | - | CE, CSA, UL | - | 10kA | 0.610" Dia x 1.820" L (15.49mm x 46.23mm) | - | - |
|
SCF9550-45-10FUSE TRIGGERABLE 45A 80V 9-10 CL |
5,655 |
|
Datasheet |
SCF9550 | Nonstandard SMD | Tape & Reel (TR) | Active | Surface Mount | Board Mount | 45A | - | 80 VDC | Fast Blow | Battery Protection | 33 ~ 47V Triggerable | - | cURus | -20°C ~ 60°C | 120A | 0.374" L x 0.197" W x 0.091" H (9.50mm x 5.00mm x 2.30mm) | - | - |
|
0NLN015.TFUSE CARTRIDGE 15A 250VAC/VDC |
5 |
|
Datasheet |
POWR-GARD® NLN | Cartridge, Non-Standard | Bulk | Active | Requires Holder | Cartridge | 15A | 250 VAC | 250 VDC | Fast Blow | Electrical, Industrial | - | K5 | CE, CSA, UL | - | 50kA AC, 20kA DC | 0.563" Dia x 2.000" L (14.30mm x 50.80mm) | - | - |
|

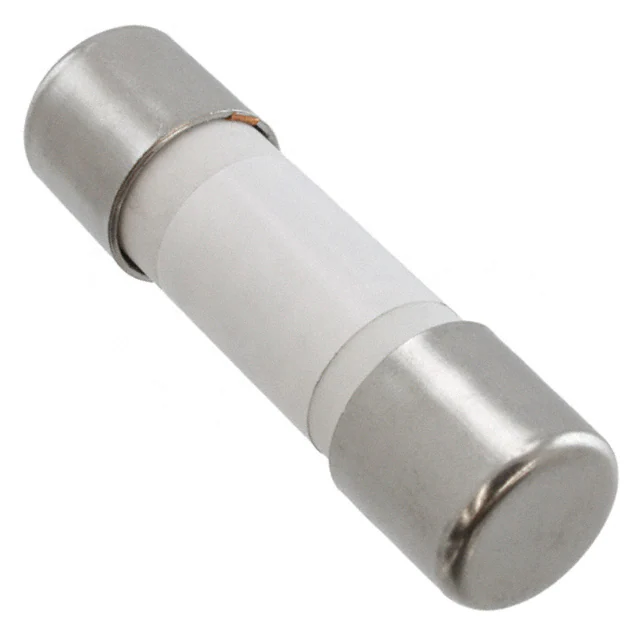

0NLN020.TFUSE CARTRIDGE 20A 250VAC/VDC |
3,276 |
|
Datasheet |
POWR-GARD® NLN | Cartridge, Non-Standard | Bulk | Active | Requires Holder | Cartridge | 20A | 250 VAC | 250 VDC | Fast Blow | Electrical, Industrial | - | K5 | CE, CSA, UL | - | 50kA AC, 20kA DC | 0.563" Dia x 2.000" L (14.30mm x 50.80mm) | - | - |
|
0NLN030.TFUSE CARTRIDGE 30A 250VAC/VDC |
5,414 |
|
Datasheet |
POWR-GARD® NLN | Cartridge, Non-Standard | Bulk | Active | Requires Holder | Cartridge | 30A | 250 VAC | 250 VDC | Fast Blow | Electrical, Industrial | - | K5 | CE, CSA, UL | - | 50kA AC, 20kA DC | 0.563" Dia x 2.000" L (14.30mm x 50.80mm) | - | - |
