Electrical, Specialty Fuses
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package / Case | Packaging | Product Status | Mounting Type | Fuse Type | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Response Time | Applications | Features | Class | Approval Agency | Operating Temperature | Breaking Capacity @ Rated Voltage | Size / Dimension | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
JJS-90FUSE CRTRDGE 90A 600VAC CYLINDR |
8,473 |
|
Datasheet |
Limitron™ JJS | Cylindrical, Blade Terminal (Bolt) | Bulk | Active | Bolt Mount | Cartridge | 90A | 600 VAC | - | Fast Blow | Electrical, Industrial | - | T | CE, CSA, UL | - | 200kA | 1.660" L x 0.880" W (42.16mm x 22.35mm) | - | - |
|
|
K8F 400A 800VPOWER FUSE, 35.2*95MM, 400A, 800 |
10 |
|
Datasheet |
K8F | Cylindrical, Blade Terminal (Bolt) | Box | Active | Bolt Mount | Cartridge | 400A | 800 VAC | 800 VDC | Fast Blow | Electrical, Industrial | - | aR | cURus | -55°C ~ 125°C | 100kA AC, 50kA DC | 1.386" Dia x 2.724" L (35.20mm x 69.20mm) | - | - |
|
|
ACK-250FUSE CARTRIDGE 250A 48VDC |
8,513 |
|
Datasheet |
- | Cylindrical, Blade Terminal (Bolt) | Bulk | Active | Bolt Mount | Cartridge | 250A | - | 48 VDC | Slow Blow | - | - | - | UL | - | 10kA | - | - | - |
|
|
004236106FUSEHVVVTD192MM10A 6/12KVD=53STR |
11 |
|
- |
- | - | Bulk | Active | - | - | 10A | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
100K07CRFUSE CRTRDGE 100A 600VAC/250VDC |
7,145 |
|
Datasheet |
HRC II | Cylindrical, Blade Terminal (Alternating) | Bulk | Active | Bolt Mount | Cartridge | 100A | 600 VAC | 250 VDC | - | Electrical, Industrial | - | - | CE, CSA | - | 200kA | 0.866" Dia x 2.205" L (22.00mm x 56.00mm) | - | - |
|
|
315NHG03BFUSE SQUARE 315A 500VAC/250VDC |
8,187 |
|
Datasheet |
- | Rectangular, Blade | Bulk | Active | Requires Holder | Square | 315A | 500 VAC | 250 VDC | Fast Blow | Electrical, Industrial | Indicating | NH | VDE | - | 120kA | 2.953" L x 2.362" W x 2.480" H (75.00mm x 60.00mm x 63.00mm) | - | - |
|

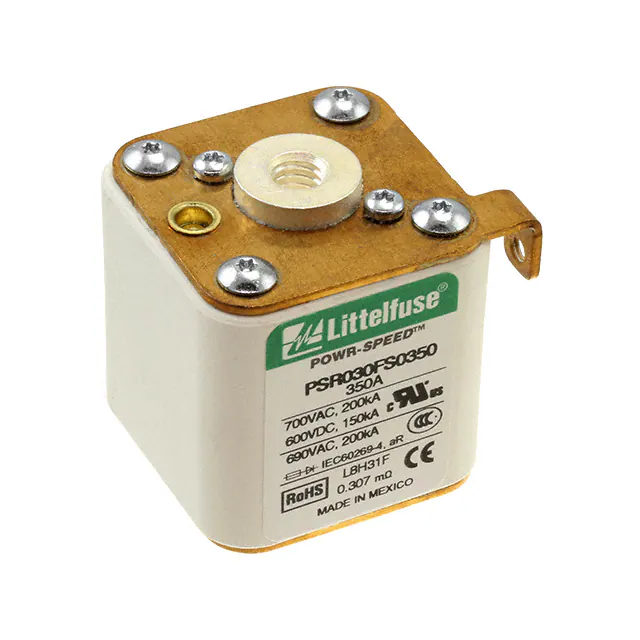

PSR030FS0350ZFUSE SQUARE 350A 700VAC/600VDC |
3 |
|
Datasheet |
POWR-SPEED® PSR | - | Bulk | Active | Bolt Mount | Square | 350A | 700 VAC | 600 VDC | Fast Blow | Semiconductors | - | - | CCC, CE, cURus, UL | -55°C ~ 125°C | 200kA AC, 150kA DC | 1.969" L x 1.693" W x 1.929" H (50.00mm x 43.00mm x 49.00mm) | - | - |
|
|
ACH-40FUSE STRIP 40A 280VAC/125VDC |
5 |
|
Datasheet |
- | Blade Type, Module | Bulk | Discontinued at Digi-Key | Requires Holder | Fuse Strip | 40A | 280 VAC | 125 VDC | Fast Blow | - | - | - | - | - | 6kA | 1.450" L x 0.550" W x 0.984" H (36.83mm x 13.97mm x 25.00mm) | - | - |
|
|
ACH-50FUSE STRIP 50A 280VAC/125VDC |
10 |
|
Datasheet |
- | Blade Type, Module | Bulk | Discontinued at Digi-Key | Requires Holder | Fuse Strip | 50A | 280 VAC | 125 VDC | Fast Blow | - | - | - | - | - | 6kA | 1.450" L x 0.550" W x 0.984" H (36.83mm x 13.97mm x 25.00mm) | - | - |
|

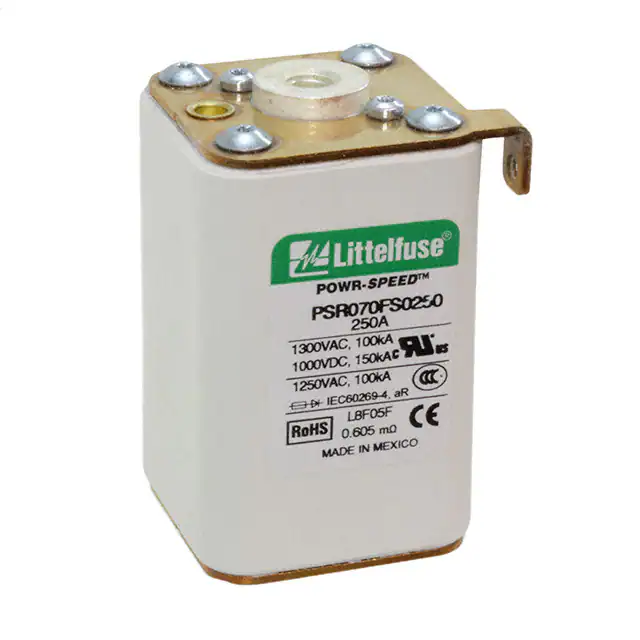

PSR070FS0250ZFUSE SQUARE 250A 1.3KVAC/1KVDC |
2 |
|
Datasheet |
POWR-SPEED® PSR | - | Bulk | Active | Bolt Mount | Square | 250A | 1.3 kVAC | 1 kVDC | Fast Blow | Semiconductors | - | - | CCC, CE, cURus, UL | -55°C ~ 125°C | 100kA AC, 150kA DC | 2.913" L x 1.693" W x 1.929" H (74.00mm x 43.00mm x 49.00mm) | - | - |
|
|
FBP-125FUSE CARTRIDGE 125A 700VAC/VDC |
9,500 |
|
Datasheet |
FBP | Cylindrical, Blade Terminal (Bolt) | Bulk | Active | Bolt Mount | Cartridge | 125A | 700 VAC | 700 VDC | - | Semiconductors | - | - | UR | - | 200kA | 1.343" Dia x 2.126" L (34.10mm x 54.00mm) | - | - |
|
|
FBP-150FUSE CARTRIDGE 150A 700VAC/VDC |
4,942 |
|
Datasheet |
FBP | Cylindrical, Blade Terminal (Bolt) | Bulk | Active | Bolt Mount | Cartridge | 150A | 700 VAC | 700 VDC | - | Semiconductors | - | - | UR | - | 200kA | 1.343" Dia x 2.126" L (34.10mm x 54.00mm) | - | - |
|
500LMMTFUSE CRTRDGE 500A 240VAC/150VDC |
2,209 |
|
Datasheet |
LMMT | Cylindrical, Blade Terminal (Bolt) | Bulk | Active | Bolt Mount | Cartridge | 500A | 240 VAC | 150 VDC | - | Electrical, Industrial | - | - | CE, UR | - | 200kA | 1.220" L x 1.496" W x 3.268" H (31.00mm x 38.00mm x 83.00mm) | - | - |
|
400FMMFUSE CRTRDGE 400A 690VAC/500VDC |
2,218 |
|
Datasheet |
FMM | Cylindrical, Blade Terminal (Bolt) | Bulk | Active | Bolt Mount | Cartridge | 400A | 690 VAC | 500 VDC | - | Electrical, Industrial | - | - | CE, UR | - | 200kA | 1.969" L x 1.500" W x 3.268" H (50.00mm x 38.00mm x 83.00mm) | - | - |
|
LA100P8004FUSE CARTRIDGE 800A 1KVAC/750VDC |
12 |
|
Datasheet |
POWR-GARD® LA100P | Cylindrical, Blade Terminal (Bolt) | Bulk | Active | Bolt Mount | Cartridge | 800A | 1 kVAC | 750 VDC | Fast Blow | Electrical, Industrial | - | - | UR | - | 100kA | 2.882" Dia x 3.937" L (73.20mm x 100.00mm) | - | - |
|
|
170M2107FUSE SQUARE 100A 1.2KV RECT |
2,466 |
|
- |
170M | Rectangular, Blade | Bulk | Active | Requires Holder | Square | - | - | - | - | Electrical, Industrial | - | - | UL | - | - | - | - | - |
|
PSX1XLUB0630XFUSE SEMI 1500VDC 1XL SIZE 630A |
6 |
|
Datasheet |
POWR-SPEED® PSX | Rectangular, Blade | Box | Active | Bolt Mount | Square | 630A | - | 1.5 kVDC | Fast Blow | Semiconductors | Indicating | - | CE, cURus, UL | -55°C ~ 125°C | 200kA | 4.988" L x 2.028" W x 2.264" H (126.70mm x 51.50mm x 57.50mm) | - | - |
|
|
8BHLE-65EFUSE CARTRIDGE 65A 8.3KVAC BOLT |
3,675 |
|
- |
HLE | Cylindrical, Blade Terminal (Bolt) | Bulk | Active | Bolt Mount | Cartridge | 65A | 8.3 kVAC | - | - | Transformer Protection | Indicating | - | UL | - | 50kA | 3.000" Dia x 19.250" L (76.20mm x 488.95mm) | - | - |
|
FWP-1000AFUSE CARTRIDGE 1KA 700VAC/VDC |
8,977 |
|
Datasheet |
FWP | Cylindrical, Blade Terminal (Bolt) | Bulk | Active | Bolt Mount | Cartridge | 1kA | 700 VAC | 700 VDC | - | Electrical, Industrial | - | - | CE, UR | - | 200kA AC, 50kA DC | 3.500" Dia x 7.594" L (88.90mm x 192.89mm) | - | - |
|
|
JCL-4RFUSE CARTRIDGE 130A 4.8KVAC |
3 |
|
Datasheet |
JCL | - | Bulk | Active | Requires Holder | Cartridge | 130A | 4.8 kVAC | - | - | Motor Protection | Indicating | R | UR | - | 50kA | - | - | - |
