Electrical, Specialty Fuses
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package / Case | Packaging | Product Status | Mounting Type | Fuse Type | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Response Time | Applications | Features | Class | Approval Agency | Operating Temperature | Breaking Capacity @ Rated Voltage | Size / Dimension | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
TRS600RID600V 600A TD RK5 FUSE SMARTSPO |
3 |
|
Datasheet |
TRS-R | Cylindrical, Blade Terminals | Box | Active | Requires Holder | Cartridge | 600A | 600 VAC | 600 VDC | Slow Blow | Electrical, Industrial | Indicating | RK5 | CSA, UL | - | 200kA AC, 100kA DC | 3.150" Dia x 13.386" L (80.00mm x 340.00mm) | - | - |
|
|
A6D600R600V 600A RK1 TD FUSE |
3 |
|
Datasheet |
A6D-R | Cylindrical, Blade Terminals | Box | Active | Requires Holder | Cartridge | 600A | 600 VAC | 600 VDC | Slow Blow | Electrical, Industrial | - | RK1 | CSA, UL | - | 200kA AC, 100kA DC | 3.150" Dia x 13.386" L (80.00mm x 340.00mm) | - | - |
|
|
A4J600600V 600A CLASS J FUSE |
3 |
|
Datasheet |
A4J | Cylindrical, Blade Terminal (Bolt) | Box | Active | Bolt Mount | Cartridge | 600A | 600 VAC | 300 VDC | Fast Blow | Electrical, Industrial | - | J | CSA, UL | - | 200kA AC, 100kA DC | 2.520" Dia x 7.992" L (64.00mm x 203.00mm) | - | - |
|
|
PSR072FL0550ZFUSE SQUARE 550A 1.3KVAC/1KVDC |
2 |
|
Datasheet |
POWR-SPEED® PSR | - | Bulk | Active | Bolt Mount | Square | 550A | 1.3 kVAC | 1 kVDC | Fast Blow | Semiconductors | - | - | CCC, CE, cURus, UL | -55°C ~ 125°C | 100kA AC, 150kA DC | 2.953" L x 2.362" W x 2.598" H (75.00mm x 60.00mm x 66.00mm) | - | - |
|
L50QS700.XFUSE CRTRDGE 700A 500VAC/VDC |
8 |
|
Datasheet |
POWR-SPEED™ L50QS | Cylindrical, Blade Terminal (Bolt) | Box | Active | Bolt Mount | Cartridge | 700A | 500 VAC | 500 VDC | Fast Blow | Semiconductors | - | - | CE, cURus, UR | -55°C ~ 125°C | 200kA AC, 50kA DC | 2.500" Dia x 6.187" L (63.50mm x 157.15mm) | - | - |
|
170M3744FUSE SQUARE 200A 1.3KVAC RECT |
2 |
|
Datasheet |
- | Rectangular, Blade | Bulk | Active | Bolt Mount | Square | 200A | 1.3 kVAC | - | - | Electrical, Industrial | Indicating | - | CSA, UR | - | 100kA | 2.913" L x 1.772" W x 2.323" H (74.00mm x 45.00mm x 59.00mm) | - | - |
|
|
A6D500R600V 500A RK1 TD FUSE |
3 |
|
Datasheet |
A6D-R | Cylindrical, Blade Terminals | Box | Active | Requires Holder | Cartridge | 500A | 600 VAC | 600 VDC | Slow Blow | Electrical, Industrial | - | RK1 | CSA, UL | - | 200kA AC, 100kA DC | 3.150" Dia x 13.386" L (80.00mm x 340.00mm) | - | - |
|
|
A3T1200FUSE,CLASS T,FAST ACTING,200KA A |
3 |
|
Datasheet |
A3T | Cylindrical, Blade Terminal (Bolt) | Box | Active | Bolt Mount | Cartridge | 1.2kA | 300 VAC | 160 VDC | Fast Blow | Electrical, Industrial | - | T | CSA, UL | - | 200kA AC, 50kA DC | 2.520" Dia x 4.016" L (64.00mm x 102.00mm) | - | - |
|
|
A6K400RFUSE,FAST ACTING,CLASSRK1,REJECT |
3 |
|
Datasheet |
A6K-R | Cylindrical, Blade Terminals | Box | Active | Requires Holder | Cartridge | 400A | 600 VAC | 300 VDC | Fast Blow | Electrical, Industrial | - | RK1 | CSA, UL | - | 200kA AC, 20kA DC | 2.598" Dia x 11.614" L (66.00mm x 295.00mm) | - | - |
|
|
PSR073FL0700ZFUSE SQUARE 700A 1.3KVAC/1KVDC |
2 |
|
Datasheet |
POWR-SPEED® PSR | - | Box | Active | Bolt Mount | Square | 700A | 1.3 kVAC | 1 kVDC | Fast Blow | Semiconductors | Indicating | - | CCC, CE, cURus, UL | -55°C ~ 125°C | 100kA AC, 150kA DC | 2.953" L x 2.894" W x 3.130" H (75.00mm x 73.50mm x 79.50mm) | - | - |
|
|
A480R3R-1FUSE,MOTOR PROTECTION,FERRULE MO |
3 |
|
Datasheet |
9F60 | Cartridge, Non-Standard | Box | Active | Requires Holder | Cartridge | 3A | 4.8 kVAC | - | Fast Blow | Motor Protection | Indicating | - | UR | - | 65kA | 3.000" Dia x 15.866" L (76.20mm x 403.00mm) | - | - |
|
|
A480R4R-1FUSE,MOTOR PROTECTION,FERRULE MO |
3 |
|
Datasheet |
9F60 | Cartridge, Non-Standard | Box | Active | Requires Holder | Cartridge | 4A | 4.8 kVAC | - | Fast Blow | Motor Protection | Indicating | - | UR | - | 65kA | 3.000" Dia x 15.866" L (76.20mm x 403.00mm) | - | - |
|
|
A4BQ1200L TD FUSE 600V 1200A A4BQ |
3 |
|
Datasheet |
A4BQ | Cylindrical, Blade Terminal (Bolt) | Box | Active | Bolt Mount | Cartridge | 1.2kA | 600 VAC | 500 VDC | Slow Blow | Electrical, Industrial | Indicating | L | CSA, UL | - | 200kA AC, 100kA DC | 2.480" Dia x 10.748" L (63.00mm x 273.00mm) | - | - |
|
|
A4BY1200L TD FUSE 600V 1200A A4BY |
3 |
|
Datasheet |
A4BY | Cylindrical, Blade Terminal (Bolt) | Box | Active | Bolt Mount | Cartridge | 1.2kA | 600 VAC | 300 VDC | Slow Blow | Electrical, Industrial | - | L | CSA, UL | - | 200kA AC, 100kA DC | 2.480" Dia x 10.748" L (63.00mm x 273.00mm) | - | - |
|
|
A4BY800L TD FUSE 600V 800A A4BY |
7 |
|
Datasheet |
A4BY | Cylindrical, Blade Terminal (Bolt) | Box | Active | Bolt Mount | Cartridge | 800A | 600 VAC | 300 VDC | Slow Blow | Electrical, Industrial | - | L | CSA, UL | - | 200kA AC, 100kA DC | 2.480" Dia x 8.622" L (63.00mm x 219.00mm) | - | - |
|
|
A4BY1000FUSE,CLASS L,TIME DELAY,200KA AC |
3 |
|
Datasheet |
A4BY | Cylindrical, Blade Terminal (Bolt) | Box | Active | Bolt Mount | Cartridge | 1kA | 600 VAC | 300 VDC | Slow Blow | Electrical, Industrial | - | L | CSA, UL | - | 200kA AC, 100kA DC | 2.480" Dia x 10.748" L (63.00mm x 273.00mm) | - | - |
|

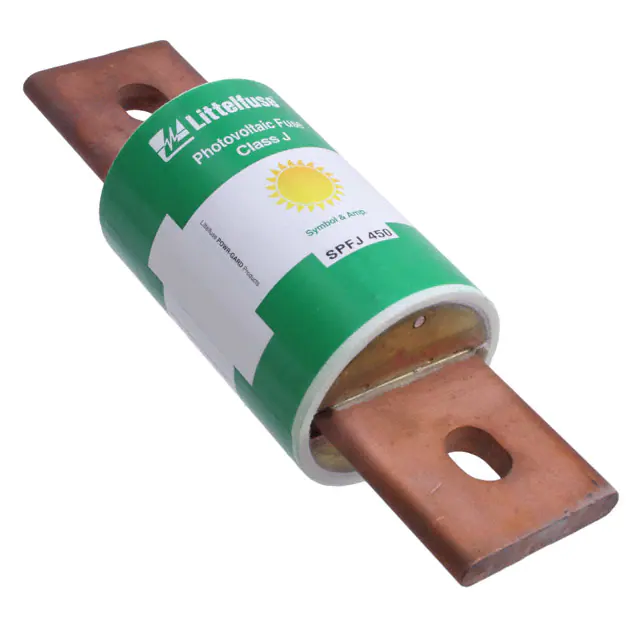

SPFJ450.XFUSE CARTRIDGE 450A 600VAC/1KVDC |
2 |
|
Datasheet |
POWR-GARD® SPFJ | Cylindrical, Blade Terminals | Box | Active | Requires Holder | Cartridge | 450A | 600 VAC | 1 kVDC | Fast Blow | Solar (Photovoltaic) | - | J | CE, cULus, UL, VDE | - | 200kA AC, 20kA DC | 2.500" Dia x 8.000" L (63.50mm x 203.20mm) | - | - |
|
|
A4BY600FUSE,CLASS L,TIME DELAY,200KA AC |
3 |
|
Datasheet |
A4BY | Cylindrical, Blade Terminal (Bolt) | Box | Active | Bolt Mount | Cartridge | 600A | 600 VAC | 300 VDC | Slow Blow | Electrical, Industrial | - | L | CSA, UL | - | 200kA AC, 100kA DC | 2.008" Dia x 8.622" L (51.00mm x 219.00mm) | - | - |
|
|
A4BT800FUSE,CLASS L,TIME DELAY,200KA AC |
3 |
|
Datasheet |
A4BT | Cylindrical, Blade Terminal (Bolt) | Box | Active | Bolt Mount | Cartridge | 800A | 600 VAC | 500 VDC | Slow Blow | Electrical, Industrial | - | L | CSA, UL | - | 200kA AC, 100kA DC | 2.480" Dia x 8.622" L (63.00mm x 219.00mm) | - | - |
|
|
A4BT1200FUSE,CLASS L,TIME DELAY,200KA AC |
3 |
|
Datasheet |
A4BT | Cylindrical, Blade Terminal (Bolt) | Box | Active | Bolt Mount | Cartridge | 1.2kA | 600 VAC | 500 VDC | Slow Blow | Electrical, Industrial | - | L | CSA, UL | - | 200kA AC, 100kA DC | 2.480" Dia x 10.748" L (63.00mm x 273.00mm) | - | - |
