Electrical, Specialty Fuses
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package / Case | Packaging | Product Status | Mounting Type | Fuse Type | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Response Time | Applications | Features | Class | Approval Agency | Operating Temperature | Breaking Capacity @ Rated Voltage | Size / Dimension | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
A4J150FUSE,CLASS J,HIGH SPEED,200KA AC |
3 |
|
Datasheet |
A4J | Cylindrical, Blade Terminal (Bolt) | Box | Active | Bolt Mount | Cartridge | 150A | 600 VAC | 300 VDC | Fast Blow | Electrical, Industrial | - | J | CSA, UL | - | 200kA AC, 100kA DC | 1.614" Dia x 5.748" L (41.00mm x 146.00mm) | - | - |
|

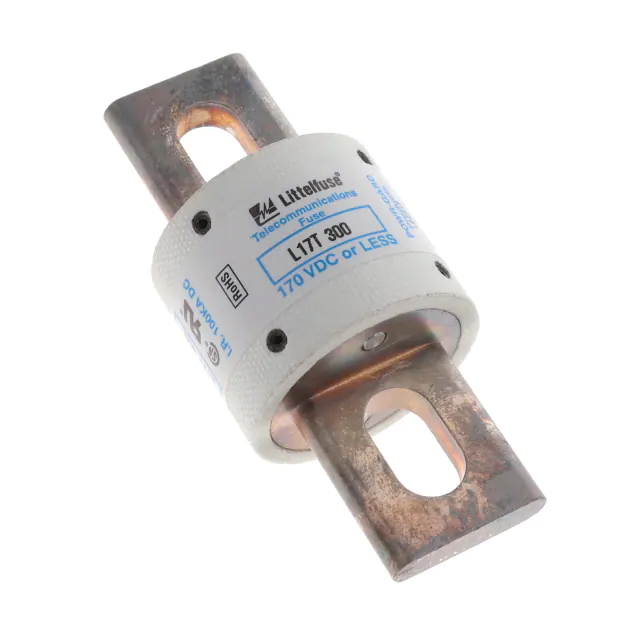

L17T300.VFUSE CRTRDGE 300A 170VDC CYLINDR |
2 |
|
Datasheet |
POWR-GARD® L17T | Cylindrical, Blade Terminal (Bolt) | Box | Active | Bolt Mount | Cartridge | 300A | - | 170 VDC | Fast Blow | Telecom | - | - | CE, CSA, UR | - | 100kA | 1.500" Dia x 1.252" L (38.10mm x 31.80mm) | - | - |
|
170M1566DFUSE SQUARE 80A 690VAC RECT |
2 |
|
Datasheet |
- | Rectangular, Blade | Bulk | Active | Requires Holder | Square | 80A | 690 VAC | - | - | Electrical, Industrial | Indicating | - | CE, CSA, UR | - | 200kA | 2.087" L x 0.807" W x 2.047" H (53.00mm x 20.50mm x 52.00mm) | - | - |
|
|
A70P400-4SC FUSE 700V 400A P BLADE |
2 |
|
Datasheet |
A70P | Cylindrical, Blade Terminal (Bolt) | Box | Active | Bolt Mount | Cartridge | 400A | 700 VAC | 650 VDC | Fast Blow | Electrical, Industrial | Indicating | - | UR | - | 100kA | 2.000" Dia x 5.079" L (50.80mm x 129.00mm) | - | - |
|
|
A6D110R600V 110A RK1 TD FUSE |
3 |
|
Datasheet |
A6D-R | Cartridge, Non-Standard | Box | Active | Requires Holder | Cartridge | 100mA | 600 VAC | 600 VDC | Slow Blow | Electrical, Industrial | - | RK1 | CSA, UL | - | 200kA AC, 100kA DC | 0.811" Dia x 5.000" L (20.60mm x 127.00mm) | - | - |
|
|
HSJ150600V 150A CLASS J HS FUSE |
4 |
|
Datasheet |
HSJ | Cylindrical, Blade Terminal (Bolt) | Box | Active | Bolt Mount | Cartridge | 150A | 600 VAC | 500 VDC | Fast Blow | Electrical, Industrial | - | J | CSA, UL | - | 200kA AC, 100kA DC | 1.614" Dia x 5.748" L (41.00mm x 146.00mm) | - | - |
|
|
0581500.XFUSE STRIP 500A 48VAC/VDC RECT |
3 |
|
Datasheet |
POWR-GARD® HAZGARD | Rectangular, Blade | Bulk | Active | Bolt Mount | Fuse Strip | 500A | 48 VAC | 48 VDC | Fast Blow | Lift Trucks | - | - | UR | - | 2.5kA | 3.228" L x 1.195" W x 0.683" H (82.00mm x 30.35mm x 17.35mm) | - | - |
|
|
A2D300R250V 300A RK1 TD FUSE |
3 |
|
Datasheet |
A2D-R | Cylindrical, Blade Terminals | Box | Active | Requires Holder | Cartridge | 300A | 250 VAC | 250 VDC | Slow Blow | Electrical, Industrial | - | RK1 | CSA, UL | - | 200kA AC, 100kA DC | 2.087" Dia x 8.622" L (53.00mm x 219.00mm) | - | - |
|
|
A2D225R250V 225A RK1 TD FUSE |
3 |
|
Datasheet |
A2D-R | Cylindrical, Blade Terminals | Box | Active | Requires Holder | Cartridge | 225A | 250 VAC | 250 VDC | Slow Blow | Electrical, Industrial | - | RK1 | CSA, UL | - | 200kA AC, 100kA DC | 2.087" Dia x 8.622" L (53.00mm x 219.00mm) | - | - |
|
|
0581800.XFUSE STRIP 800A 48VAC/VDC RECT |
3 |
|
Datasheet |
POWR-GARD® HAZGARD | Rectangular, Blade | Bulk | Active | Bolt Mount | Fuse Strip | 800A | 48 VAC | 48 VDC | Fast Blow | Lift Trucks | - | - | UR | - | 2.5kA | 3.228" L x 1.195" W x 0.683" H (82.00mm x 30.35mm x 17.35mm) | - | - |
|
|
A2D400R250V 400A RK1 TD FUSE |
5 |
|
Datasheet |
A2D-R | Cylindrical, Blade Terminals | Box | Active | Requires Holder | Cartridge | 400A | 250 VAC | 250 VDC | Slow Blow | Electrical, Industrial | - | RK1 | CSA, UL | - | 200kA AC, 100kA DC | 2.087" Dia x 8.622" L (53.00mm x 219.00mm) | - | - |
|
|
M30J12SWITCH.FUS 30A J 1+2 POS. |
2 |
|
Datasheet |
- | - | Box | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
TR450RFUSE,TIME DELAY,CLASS RK5,REJECT |
3 |
|
Datasheet |
TR-R | Cylindrical, Blade Terminals | Box | Active | Requires Holder | Cartridge | 450A | 250 VAC | 160 VDC | Slow Blow | Electrical, Industrial | - | RK5 | CSA, UL | - | 200kA AC, 20kA DC | 2.598" Dia x 10.394" L (66.00mm x 264.00mm) | - | - |
|
|
A70P300-4SC FUSE 700V 300A P BLADE |
2 |
|
Datasheet |
A70P | Cylindrical, Blade Terminal (Bolt) | Box | Active | Bolt Mount | Cartridge | 300A | 700 VAC | 650 VDC | Fast Blow | Electrical, Industrial | Indicating | - | UR | - | 100kA | 2.000" Dia x 5.079" L (50.80mm x 129.00mm) | - | - |
|
|
A70QS350-4FUSE,HIGH SPEED,NO BLOWN INDICAT |
5 |
|
Datasheet |
A70QS | Cylindrical, Blade Terminal (Bolt) | Box | Active | Bolt Mount | Cartridge | 350A | 700 VAC | 700 VDC | Fast Blow | Motor Protection | - | - | CSA, UL | - | 200kA AC, 100kA DC | 1.500" Dia x 5.079" L (38.10mm x 129.00mm) | - | - |
|
|
TR600R250V 600A 10 3/8X2 9/16 T |
3 |
|
Datasheet |
TR-R | Cylindrical, Blade Terminals | Box | Active | Requires Holder | Cartridge | 600A | 250 VAC | 160 VDC | Slow Blow | Electrical, Industrial | - | RK5 | CSA, UL | - | 200kA AC, 20kA DC | 2.598" Dia x 10.394" L (66.00mm x 264.00mm) | - | - |
|
|
A2K200RFUSE,FAST ACTING,CLASS RK1,REJEC |
3 |
|
Datasheet |
A2K-R | Cylindrical, Blade Terminal (Bolt) | Box | Active | Bolt Mount | Cartridge | 200A | 250 VAC | 250 VDC | Fast Blow | Electrical, Industrial | - | RK1 | CSA, UL | - | 200kA AC, 20kA DC | 1.575" Dia x 7.126" L (40.00mm x 181.00mm) | - | - |
|
JLLS400.XFUSE CRTRDGE 400A 600VAC/300VDC |
3 |
|
Datasheet |
POWR-GARD® JLLS | Cylindrical, Blade Terminal (Bolt) | Box | Active | Bolt Mount | Cartridge | 400A | 600 VAC | 300 VDC | Fast Blow | Electrical, Industrial | - | T | CE, CSA, UL | - | 200kA | 1.594" Dia x 1.720" L (40.50mm x 43.70mm) | - | - |
|
|
SPFJ080.XFUSE CARTRIDGE 80A 1KVDC CYLINDR |
6 |
|
Datasheet |
POWR-GARD® SPFJ | Cylindrical, Blade Terminal (Bolt) | Box | Active | Bolt Mount | Cartridge | 80A | - | 1 kVDC | Fast Blow | Solar (Photovoltaic) | - | J | CE, UL | - | 20kA | 1.500" Dia x 3.012" L (38.10mm x 76.50mm) | - | - |
|
|
TRS250R600V 250A 11 5/8X2 9/16 T |
4 |
|
Datasheet |
TRS-R | Cylindrical, Blade Terminals | Box | Active | Requires Holder | Cartridge | 250A | 600 VAC | 600 VDC | Slow Blow | Electrical, Industrial | - | RK5 | CSA, UL | - | 200kA AC, 100kA DC | 2.598" Dia x 11.614" L (66.00mm x 295.00mm) | - | - |
