Electric Double Layer Capacitors (EDLC), Supercapacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Capacitance | Tolerance | Voltage - Rated | ESR (Equivalent Series Resistance) | Lifetime @ Temp. | Termination | Mounting Type | Package / Case | Lead Spacing | Size / Dimension | Height - Seated (Max) | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
DGH705Q2R7CAPACITOR 7F -10%, +30% 2.7V TH |
4,590 |
|
Datasheet |
DGH | Bulk | Active | 7 F | -10%, +30% | 2.7 V | 55mOhm @ 1kHz | 1500 Hrs @ 85°C | PC Pins | Through Hole | Radial, Can | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 1.063" (27.00mm) | -40°C ~ 85°C |
|
FM0H473ZFCAP 47MF -20% +80% 5.5V T/H |
1,907 |
|
Datasheet |
FM | Bulk | Active | 47 mF | -20%, +80% | 5.5 V | 200Ohm | 1000 Hrs @ 70°C | PC Pins | Through Hole | Radial | 0.197" (5.00mm) | 0.413" L x 0.197" W (10.50mm x 5.00mm) | 0.453" (11.50mm) | -25°C ~ 70°C |
|
TPLH-3R0/12WR10X30CAP 12F 3.0V T/H |
107 |
|
Datasheet |
TPLH-Radial 3V | Bulk | Active | 12 F | ±5% | 3 V | 40mOhm @ 1kHz | 1000 Hrs @ 65°C | PC Pins | Through Hole | Radial, Can | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 1.240" (31.50mm) | -40°C ~ 65°C |
|
|
FM0H103ZFCAP 10MF -20% +80% 5.5V T/H |
1,951 |
|
Datasheet |
FM | Bulk | Active | 10 mF | -20%, +80% | 5.5 V | 300Ohm @ 1kHz | - | PC Pins | Through Hole | Radial | 0.197" (5.00mm) | 0.413" L x 0.197" W (10.50mm x 5.00mm) | 0.472" (12.00mm) | -25°C ~ 70°C |
|
SCAP,PBL-1.0/5.4CAP 1F 5.4V THROUGH HOLE UCAP PK |
220 |
|
Datasheet |
PBL | Bulk | Active | 1 F | - | 5.4 V | 360mOhm @ 1kHz | 1000 Hrs @ 85°C | PC Pins | Through Hole | Radial, Can | 0.472" (12.00mm) | 0.866" L x 0.394" W (22.00mm x 10.00mm) | 0.827" (21.00mm) | -40°C ~ 85°C |
|
FYH0H224ZFCAP 220MF -20% +80% 5.5V T/H |
993 |
|
Datasheet |
FYH | Bulk | Active | 220 mF | -20%, +80% | 5.5 V | 60Ohm @ 1kHz | - | PC Pins | Through Hole | Radial, Can | 0.200" (5.08mm) | 0.650" Dia (16.50mm) | 0.374" (9.50mm) | -25°C ~ 70°C |
|
|
DGH106Q2R7BCAPACITOR 10F -10%, +30% 2.7V TH |
138 |
|
Datasheet |
DGH | Bulk | Active | 10 F | -10%, +30% | 2.7 V | 40mOhm @ 1kHz | 1500 Hrs @ 85°C | PC Pins | Through Hole | Radial, Can | 0.197" (5.00mm) | 0.492" Dia (12.50mm) | 1.063" (27.00mm) | -40°C ~ 85°C |
|
EDC473Z5R5H0.047F, 5.5V |
7,806 |
|
Datasheet |
EDC | Bulk | Active | 47 mF | -20%, +80% | 5.5 V | 120Ohm @ 1kHz | 1000 Hrs @ 70°C | PC Pins | Through Hole | Axial, Can - Horizontal | 0.394" (10.00mm) | 0.453" Dia (11.50mm) | 0.236" (6.00mm) | -25°C ~ 70°C |
|
DSF156Q3R0CAPACITOR 15F -10%, +30% 3V TH |
1,339 |
|
Datasheet |
DSF | Bulk | Active | 15 F | -10%, +30% | 3 V | 55mOhm @ 1kHz | 1000 Hrs @ 85°C | PC Pins | Through Hole | Radial, Can | 0.197" (5.00mm) | 0.492" Dia (12.50mm) | 1.260" (32.00mm) | -40°C ~ 85°C |
|
DSF116Q3R0CAPACITOR 11F -10%, +30% 3V TH |
500 |
|
Datasheet |
DSF | Bulk | Active | 11 F | -10%, +30% | 3 V | 50mOhm @ 1kHz | 1000 Hrs @ 85°C | PC Pins | Through Hole | Radial, Can | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 1.260" (32.00mm) | -40°C ~ 85°C |
|
|
BCAP0003 P270 X01CAP 3F -10% +20% 2.7V T/H |
6,028 |
|
Datasheet |
XP | Bulk | Active | 3 F | -10%, +20% | 2.7 V | 70mOhm | - | PC Pins | Through Hole | Radial, Can | 0.138" (3.50mm) | 0.315" Dia (8.00mm) | 0.807" (20.50mm) | -40°C ~ 65°C |
|
TPL-8.0/10X25FCAP 8F -10% +20% 2.7V T/H |
4,429 |
|
Datasheet |
TPL | Bulk | Active | 8 F | -10%, +20% | 2.7 V | 60mOhm @ 1kHz | 1000 Hrs @ 85°C | PC Pins | Through Hole | Radial, Can | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 1.043" (26.50mm) | -40°C ~ 85°C |
|
BCAP0003 P300 X11CAP 3F 3V THROUGH HOLE |
216 |
|
Datasheet |
XP | Bulk | Active | 3 F | - | 3 V | 95mOhm | - | PC Pins | Through Hole | Radial, Can | 0.138" (3.50mm) | 0.315" Dia (8.00mm) | 0.807" (20.50mm) | -40°C ~ 65°C |
|

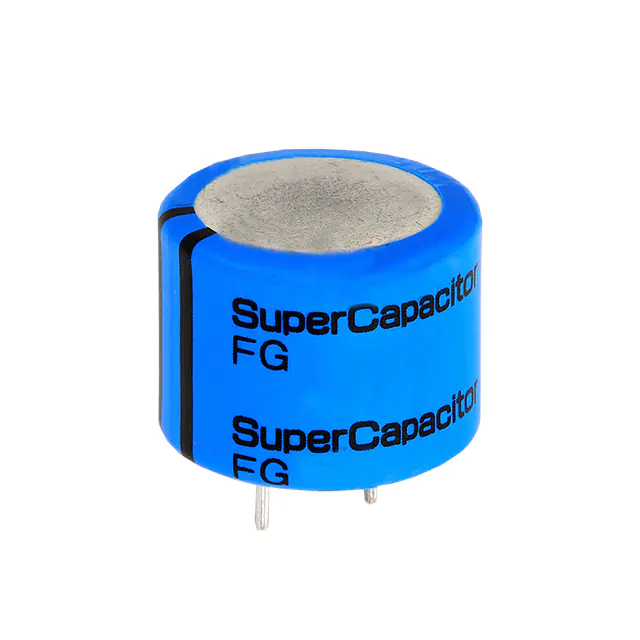

FG0H224ZFCAP 220MF -20% +80% 5.5V T/H |
735 |
|
Datasheet |
FG | Bulk | Active | 220 mF | -20%, +80% | 5.5 V | 100Ohm @ 1kHz | - | PC Pins | Through Hole | Radial, Can | 0.200" (5.08mm) | 0.512" Dia (13.00mm) | 0.354" (9.00mm) | -25°C ~ 70°C |
|
FGH0H104ZFCAP 100MF -20% +80% 5.5V T/H |
2,058 |
|
Datasheet |
FG | Bulk | Active | 100 mF | -20%, +80% | 5.5 V | 100Ohm @ 1kHz | 1000 Hrs @ 70°C | PC Pins | Through Hole | Radial, Can | 0.200" (5.08mm) | 0.433" Dia (11.00mm) | 0.217" (5.50mm) | -25°C ~ 70°C |
|
TPLC-3R8/25MR8X20CAP LITH HYBRID 25F 3.8V T/H |
1,273 |
|
Datasheet |
TPLC | Tray | Active | 25 F | ±20% | 3.8 V | 300mOhm @ 1kHz | 1000 Hrs @ 70°C | PC Pins | Through Hole | Radial, Can | 0.138" (3.50mm) | 0.315" Dia (8.00mm) | 0.866" (22.00mm) | -15°C ~ 70°C |
|

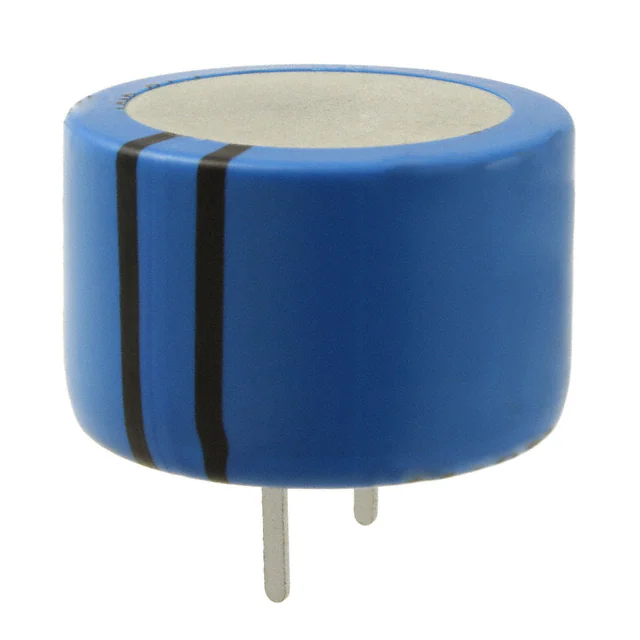

FYD0H223ZFCAP 22MF -20% +80% 5.5V T/H |
588 |
|
Datasheet |
FYD | Bulk | Active | 22 mF | -20%, +80% | 5.5 V | 220Ohm @ 1kHz | - | PC Pins | Through Hole | Radial, Can | 0.200" (5.08mm) | 0.453" Dia (11.50mm) | 0.335" (8.50mm) | -25°C ~ 70°C |
|

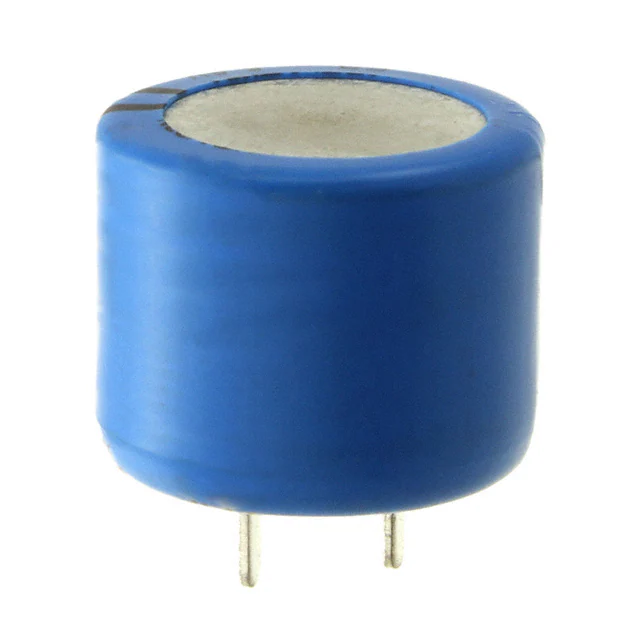

FR0H473ZFCAP 47MF -20% +80% 5.5V T/H |
373 |
|
Datasheet |
FR | Bulk | Active | 47 mF | -20%, +80% | 5.5 V | 110Ohm @ 1kHz | - | PC Pins | Through Hole | Radial, Can | 0.300" (7.62mm) | 0.846" Dia (21.50mm) | 0.866" (22.00mm) | -40°C ~ 85°C |
|
RSCHL2245R5G09014GTCAP 220MF -20% +80% 5.5V T/H |
7,015 |
|
Datasheet |
DHL | Bulk | Not For New Designs | 220 mF | -20%, +80% | 5.5 V | - | 1000 Hrs @ 85°C | PC Pins | Through Hole | Radial, Can | 0.197" (5.00mm) | 0.531" Dia (13.50mm) | 0.386" (9.80mm) | -40°C ~ 85°C |
|

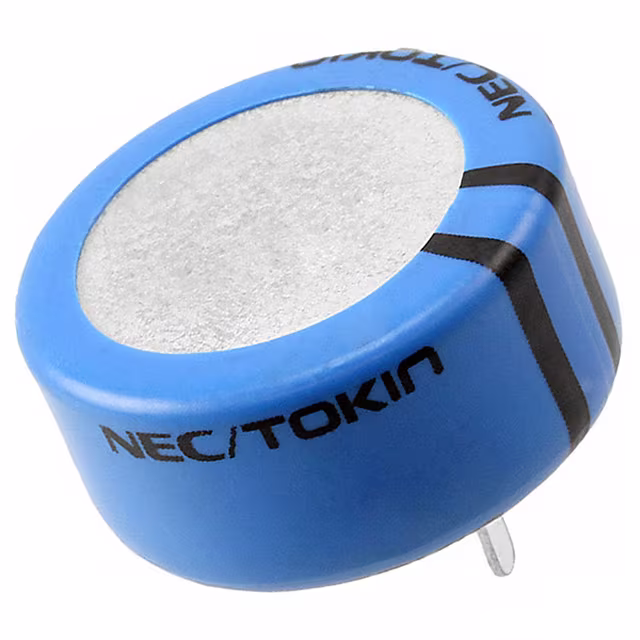

FS0H104ZFCAP 100MF -20% +80% 5.5V T/H |
529 |
|
Datasheet |
FS | Bulk | Active | 100 mF | -20%, +80% | 5.5 V | 25Ohm @ 1kHz | - | PC Pins | Through Hole | Radial, Can | 0.200" (5.08mm) | 0.650" Dia (16.50mm) | 0.335" (8.50mm) | -25°C ~ 70°C |
