Electric Double Layer Capacitors (EDLC), Supercapacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Capacitance | Tolerance | Voltage - Rated | ESR (Equivalent Series Resistance) | Lifetime @ Temp. | Termination | Mounting Type | Package / Case | Lead Spacing | Size / Dimension | Height - Seated (Max) | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PHV-5R4H255-RCAP 2.5F -10% +30% 5.4V T/H |
399 |
|
Datasheet |
PHV | Bulk | Active | 2.5 F | -10%, +30% | 5.4 V | 80mOhm @ 100Hz | 1000 Hrs @ 65°C | PC Pins | Through Hole | Radial, Can, Horizontal | 0.209" (5.30mm) | 0.906" L x 0.839" W (23.00mm x 21.30mm) | 0.433" (11.00mm) | -40°C ~ 65°C |
|
PM-5R0H105-RCAP 1F -20% +80% 5V T/H |
1,704 |
|
Datasheet |
PM | Bulk | Active | 1 F | -20%, +80% | 5 V | 200mOhm | 1000 Hrs @ 60°C | PC Pins | Through Hole | Radial, Can, Horizontal | 0.465" (11.80mm) | 0.866" L x 0.681" W (22.00mm x 17.30mm) | 0.354" (9.00mm) | -40°C ~ 60°C |
|
PHV-5R4H505-RCAP 5F -10% +30% 5.4V T/H |
1,467 |
|
Datasheet |
PHV | Bulk | Active | 5 F | -10%, +30% | 5.4 V | 70mOhm @ 100Hz | 1000 Hrs @ 65°C | PC Pins | Through Hole | Radial, Can, Horizontal | 0.209" (5.30mm) | 1.280" L x 0.839" W (32.50mm x 21.30mm) | 0.433" (11.00mm) | -40°C ~ 65°C |
|
PHB-5R0V505-RCAP 5F -10% +30% 5V T/H |
2,489 |
|
Datasheet |
PHB | Bulk | Active | 5 F | -10%, +30% | 5 V | 130mOhm @ 100Hz | 1000 Hrs @ 70°C | PC Pins | Through Hole | Radial, Can | 0.209" (5.30mm) | 0.839" L x 0.433" W (21.30mm x 11.00mm) | 1.280" (32.50mm) | -25°C ~ 70°C |
|
MAL219691154E3CAP 4F -20% +80% 5.6V SMD |
764 |
|
Datasheet |
ENYCAP™ 196HVC | Tray | Last Time Buy | 4 F | -20%, +80% | 5.6 V | 10Ohm @ 1kHz | 1000 Hrs @ 70°C | SMD (SMT) Tabs | Surface Mount | Coin, Wide Terminals Same Side | - | 0.551" L x 0.551" W (14.00mm x 14.00mm) | 0.150" (3.80mm) | -20°C ~ 70°C |
|
|
MAL219691254E3CAP 15F -20% +80% 5.6V SMD |
373 |
|
Datasheet |
ENYCAP™ 196HVC | Tray | Last Time Buy | 15 F | -20%, +80% | 5.6 V | 2.4Ohm @ 1kHz | 1000 Hrs @ 85°C | SMD (SMT) Tabs | Surface Mount | Coin, Wide Terminals Same Side | - | 0.945" L x 0.945" W (24.00mm x 24.00mm) | 0.150" (3.80mm) | -20°C ~ 85°C |
|
KR-5R5V155-RCAP 1.5F -20% +80% 5.5V T/H |
974 |
|
Datasheet |
KR | Bulk | Active | 1.5 F | -20%, +80% | 5.5 V | 30Ohm @ 1kHz | 1000 Hrs @ 70°C | PC Pins | Through Hole | Axial, Can - Vertical | 0.197" (5.00mm) | 0.748" Dia (19.00mm) | 0.768" (19.50mm) | -25°C ~ 70°C |
|
HV1860-2R7107-RCAP 100F -10% +30% 2.7V T/H |
365 |
|
Datasheet |
HV | Bulk | Active | 100 F | -10%, +30% | 2.7 V | 12mOhm @ 100Hz | 1000 Hrs @ 65°C | PC Pins | Through Hole | Radial, Can | 0.295" (7.50mm) | 0.709" Dia (18.00mm) | 2.382" (60.50mm) | -40°C ~ 65°C |
|
MAL219691253E3CAP 15F -20% +80% 4.2V SMD |
220 |
|
Datasheet |
ENYCAP™ 196HVC | Tray | Last Time Buy | 15 F | -20%, +80% | 4.2 V | 1.8Ohm @ 1kHz | 1000 Hrs @ 85°C | SMD (SMT) Tabs | Surface Mount | Coin, Wide Terminals Same Side | - | 0.945" L x 0.866" W (24.00mm x 22.00mm) | 0.150" (3.80mm) | -20°C ~ 85°C |
|
TPLC-3R8/220MR16X25CAP LITH HYBRID 220F 3.8V T/H |
682 |
|
Datasheet |
TPLC | Tray | Active | 220 F | ±20% | 3.8 V | 65mOhm @ 1kHz | 1000 Hrs @ 70°C | PC Pins | Through Hole | Radial, Can | 0.295" (7.50mm) | 0.630" Dia (16.00mm) | 1.063" (27.00mm) | -15°C ~ 70°C |
|
PHV-5R4V505-RCAP 5F -10% +30% 5.4V T/H |
722 |
|
Datasheet |
PHV | Bulk | Active | 5 F | -10%, +30% | 5.4 V | 70mOhm @ 100Hz | 1000 Hrs @ 65°C | PC Pins | Through Hole | Radial, Can | 0.209" (5.30mm) | 0.839" L x 0.433" W (21.30mm x 11.00mm) | 1.280" (32.50mm) | -40°C ~ 65°C |
|
PHV-5R4H305-RCAP 3F -10% +30% 5.4V T/H |
405 |
|
Datasheet |
PHV | Bulk | Active | 3 F | -10%, +30% | 5.4 V | 80mOhm @ 100Hz | 1000 Hrs @ 65°C | PC Pins | Through Hole | Radial, Can, Horizontal | 0.465" (11.80mm) | 1.280" L x 0.681" W (32.50mm x 17.30mm) | 0.354" (9.00mm) | -40°C ~ 65°C |
|
TPLH-3R0/450SS35X71CAP 450F 3V THROUGH HOLE |
1,022 |
|
Datasheet |
TPLH-Snap-In | Bulk | Active | 450 F | - | 3 V | 3.6mOhm | 1500 Hrs @ 65°C | PC Pins | Through Hole | Radial, Can - Snap-In - 4 Lead | 0.902" (22.90mm) | 1.378" Dia (35.00mm) | 2.874" (73.00mm) | -40°C ~ 65°C |
|
SC0350-270-RSSCAPACITOR 350F 0%/20% 2.7V TH |
208 |
|
Datasheet |
- | Box | Active | 350 F | 0%, +20% | 2.7 V | 2.8mOhm | 1500 Hrs @ 65°C | Solder Lug | Through Hole | Radial, Can - Solder Lug - 4 Lead | - | 1.254" Dia (31.85mm) | 2.421" (61.50mm) | -50°C ~ 65°C |
|
SCAP,PBLS-1.25/21.6CAP 1.25F -10% +20% 21.6V UCAP |
482 |
|
Datasheet |
PBLS | Bulk | Active | 1.25 F | -10%, +20% | 21.6 V | 540mOhm | 1000 Hrs @ 65°C | Wire Leads with Connector | User Defined | Module, Wire Leads | - | 1.693" L x 0.866" W (43.00mm x 22.00mm) | 1.417" (36.00mm) | -40°C ~ 65°C |
|
MAL219691216E3CAP 15F -20% +80% 8.4V T/H |
112 |
|
Datasheet |
ENYCAP™ 196HVC | Tray | Last Time Buy | 15 F | -20%, +80% | 8.4 V | 3.6Ohm @ 1kHz | 1000 Hrs @ 85°C | PC Pins | Through Hole | Coin, Stacked Horizontal | 0.630" (16.00mm) | 0.472" Dia x 0.591" L (12.00mm x 15.00mm) | 0.472" (12.00mm) | -20°C ~ 85°C |
|

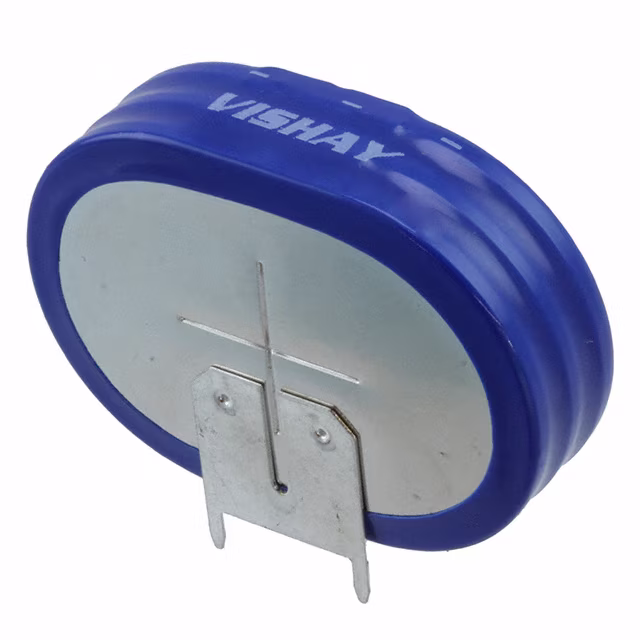

MAL219690101E3CAP 90F -20% +80% 4.2V T/H |
173 |
|
Datasheet |
ENYCAP™ 196HVC | Tray | Last Time Buy | 90 F | -20%, +80% | 4.2 V | 40mOhm @ 1kHz | 2000 Hrs @ 85°C | PC Pins | Through Hole | Coin, Stacked Vertical | 0.394" (10.00mm) | 1.378" L x 0.984" W (35.00mm x 25.00mm) | 0.394" (10.00mm) | -20°C ~ 85°C |
|
|
SCAP,PBLS-4.5/27CAP 4.5F -10% +20% 27V UCAP PACK |
137 |
|
Datasheet |
PBLS | Bulk | Active | 4.5 F | -10%, +20% | 27 V | 220mOhm | 1000 Hrs @ 65°C | Wire Leads with Connector | User Defined | Module, Wire Leads | - | 2.598" L x 1.083" W (66.00mm x 27.50mm) | 2.402" (61.00mm) | -40°C ~ 65°C |
|
XL60-3R0308W-RCAP 3V 3000F WELD |
444 |
|
Datasheet |
XL60 | Bulk | Active | 3000 F | 0%, +20% | 3 V | 0.23mOhm | 1500 Hrs @ 65°C | Weld Stud | Chassis Mount | Axial, Can | - | 2.390" Dia x 5.433" L (60.70mm x 138.00mm) | - | -40°C ~ 65°C |
|
SC3000-300-ASCCAP 3V 3000F AXIAL SCREW TERMINA |
43 |
|
Datasheet |
- | Box | Active | 3000 F | 0%, +20% | 3 V | 0.29mOhm | 1500 Hrs @ 65°C | Screw Terminals | Chassis Mount | Axial, Can - Screw Terminals | - | 2.402" Dia x 5.413" L (61.00mm x 137.50mm) | - | -40°C ~ 65°C |
Electric Double Layer Capacitors (EDLC), Supercapacitors Electronic Components
Explore Electric Double Layer Capacitors (EDLC), Supercapacitors electronic components, related subcategories, product specifications, datasheets and sourcing options. We support original component procurement, BOM sourcing and RFQ services for engineers, distributors and global buyers.
