Digital to Analog Converters (DAC)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Programmable | Number of Bits | Number of D/A Converters | Settling Time | Output Type | Differential Output | Data Interface | Reference Type | Voltage - Supply, Analog | Voltage - Supply, Digital | INL/DNL (LSB) | Architecture | Operating Temperature | Supplier Device Package | Mounting Type | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
DAC1405D750HW-C18IC DAC 14BIT A-OUT 100HTQFP |
0 |
|
Datasheet |
- | 100-TQFP Exposed Pad | Tape & Reel (TR) | Obsolete | Not Verified | 14 | 2 | 20ns (Typ) | Current - Unbuffered | Yes | Parallel | External, Internal | 1.7V ~ 1.9V, 3V ~ 3.6V | 1.7V ~ 1.9V | - | Binary-Weighted DAC, String DAC | -40°C ~ 85°C | 100-HTQFP (14x14) | Surface Mount | - | - |
|
DAC1408D750HN-C1IC DAC 14BIT A-OUT 64QFPN |
0 |
|
Datasheet |
- | 64-VFQFN Exposed Pad | Tray | Obsolete | Not Verified | 14 | 2 | 20ns (Typ) | Current - Unbuffered | Yes | JESD204A | Internal | 1.7V ~ 1.9V, 3.13V ~ 3.47V | 1.7V ~ 1.9V | - | Oversampling Interpolating DAC | -40°C ~ 85°C | 64-VFQFPN (9x9) | Surface Mount | - | - |
|
|
DAC1408D750HN-C18IC DAC 14BIT A-OUT 64QFPN |
0 |
|
Datasheet |
- | 64-VFQFN Exposed Pad | Tape & Reel (TR) | Obsolete | Not Verified | 14 | 2 | 20ns (Typ) | Current - Unbuffered | Yes | JESD204A | Internal | 1.7V ~ 1.9V, 3.13V ~ 3.47V | 1.7V ~ 1.9V | - | Oversampling Interpolating DAC | -40°C ~ 85°C | 64-VFQFPN (9x9) | Surface Mount | - | - |
|
DAC1617D1G0HN-C1IC DAC 16BIT A-OUT 72VFQFPN |
0 |
|
Datasheet |
- | 72-VFQFN Exposed Pad | Tray | Active | Not Verified | 16 | 2 | 20ns (Typ) | Current - Unbuffered | Yes | LVDS - Parallel | Internal | 1.7V ~ 1.9V, 3.15V ~ 3.45V | 1.7V ~ 1.9V | - | Binary-Weighted DAC, String DAC | -40°C ~ 85°C | 72-VFQFPN (10x10) | Surface Mount | - | - |
|
|
DAC1617D1G0HN-C18IC DAC 16BIT A-OUT 72VFQFPN |
0 |
|
Datasheet |
- | 72-VFQFN Exposed Pad | Tape & Reel (TR) | Active | Not Verified | 16 | 2 | 20ns (Typ) | Current - Unbuffered | Yes | LVDS - Parallel | Internal | 1.7V ~ 1.9V, 3.15V ~ 3.45V | 1.7V ~ 1.9V | - | Binary-Weighted DAC, String DAC | -40°C ~ 85°C | 72-VFQFPN (10x10) | Surface Mount | - | - |
|
|
DAC1627D1G25HN-C1IC DAC 16BIT A-OUT 72VFQFPN |
0 |
|
Datasheet |
- | 72-VFQFN Exposed Pad | Tray | Active | Not Verified | 16 | 2 | 20ns (Typ) | Current - Unbuffered | Yes | LVDS - Parallel | External, Internal | 1.7V ~ 1.9V, 3.15V ~ 3.45V | 1.7V ~ 1.9V | - | Binary-Weighted DAC, String DAC | -40°C ~ 85°C | 72-VFQFPN (10x10) | Surface Mount | - | - |
|
DAC1658D1G25NLGAIC DAC 16BIT A-OUT 56VFQFPN |
0 |
|
Datasheet |
- | 56-VFQFN Exposed Pad | Tray | Active | Not Verified | 16 | 2 | 20µs (Typ) | Current - Unbuffered | Yes | JESD204B | External, Internal | 1.14V ~ 1.26V, 2.7V ~ 3.45V | 1.14V ~ 1.26V | - | Oversampling Interpolating DAC | -40°C ~ 85°C | 56-VFQFPN (8x8) | Surface Mount | - | - |
|
MAX7624CPE+IC DAC 8BIT A-OUT 16DIP |
0 |
|
Datasheet |
- | 16-DIP (0.300", 7.62mm) | Tube | Obsolete | Not Verified | 8 | 1 | 350µs | Current - Unbuffered | Yes | Parallel | External | 10.8V ~ 15.75V | 10.8V ~ 15.75V | ±0.5 (Max), ±1 (Max) | R-2R | 0°C ~ 70°C | 16-PDIP | Through Hole | - | - |
|
|
DAC1653D2G0NLGAIC DAC 16BIT A-OUT 56VFQFPN |
0 |
|
Datasheet |
- | 56-VFQFN Exposed Pad | Tray | Active | Not Verified | 16 | 2 | 20ns (Typ) | Current - Unbuffered | Yes | JESD204B | External, Internal | 1.14V ~ 1.26V, 2.7V ~ 3.45V | 1.14V ~ 1.26V | - | Oversampling Interpolating DAC | -40°C ~ 85°C | 56-VFQFPN (8x8) | Surface Mount | - | - |
|
|
DAC1658D2G0NLGA8IC DAC 16BIT A-OUT 56VFQFPN |
0 |
|
Datasheet |
- | 56-VFQFN Exposed Pad | Tape & Reel (TR) | Active | Not Verified | 16 | 2 | 20ns (Typ) | Current - Unbuffered | Yes | JESD204B | External, Internal | 1.14V ~ 1.26V, 3.15V ~ 3.45V | 1.14V ~ 1.26V | - | Oversampling Interpolating DAC | -40°C ~ 85°C | 56-VFQFPN (8x8) | Surface Mount | - | - |
|
AD5640BCPZ-2500RL7IC DAC 14BIT V-OUT 8LFCSP |
0 |
|
Datasheet |
nanoDAC® | 8-WDFN, CSP | Tape & Reel (TR) | Obsolete | Not Verified | 14 | 1 | 10µs | Voltage - Buffered | No | SPI, DSP | Internal | 5V | 5V | ±4 (Max), ±0.5 (Max) | String DAC | -40°C ~ 105°C | 8-LFCSP-WD (3x3) | Surface Mount | - | - |
|
|
AD5680BCPZ-2500RL7IC DAC 18BIT V-OUT 8LFCSP-WD |
0 |
|
Datasheet |
nanoDAC® | 8-WDFN, CSP | Tape & Reel (TR) | Obsolete | Not Verified | 18 | 1 | 85µs | Voltage - Buffered | No | SPI, DSP | External | 5V | 5V | ±32, ±2 (Max) | String DAC | -40°C ~ 105°C | 8-LFCSP-WD (3x3) | Surface Mount | - | - |
|
MAX5713AUD+IC DAC 8BIT V-OUT 14TSSOP |
0 |
|
Datasheet |
- | 14-TSSOP (0.173", 4.40mm Width) | Tube | Obsolete | Not Verified | 8 | 4 | 2.2µs (Typ) | Voltage - Buffered | No | SPI, DSP | External, Internal | 2.7V ~ 5.5V | 2.7V ~ 5.5V | ±0.05, ±0.05 | R-2R | -40°C ~ 125°C | 14-TSSOP | Surface Mount | - | - |
|
|
MAX5714AUD+IC DAC 10BIT V-OUT 14TSSOP |
0 |
|
Datasheet |
- | 14-TSSOP (0.173", 4.40mm Width) | Tube | Active | Not Verified | 10 | 4 | 2.6µs (Typ) | Voltage - Buffered | No | SPI, DSP | External, Internal | 2.7V ~ 5.5V | 2.7V ~ 5.5V | ±0.25, ±0.1 | R-2R | -40°C ~ 125°C | 14-TSSOP | Surface Mount | - | - |
|
|
MAX5714AUD+TIC DAC 10BIT V-OUT 14TSSOP |
0 |
|
Datasheet |
- | 14-TSSOP (0.173", 4.40mm Width) | Tape & Reel (TR) | Active | Not Verified | 10 | 4 | 2.6µs (Typ) | Voltage - Buffered | No | SPI, DSP | External, Internal | 2.7V ~ 5.5V | 2.7V ~ 5.5V | ±0.25, ±0.1 | R-2R | -40°C ~ 125°C | 14-TSSOP | Surface Mount | - | - |
|
|
AD5620BCPZ-2RL7IC DAC 12BIT V-OUT 8LFCSP-WD |
0 |
|
Datasheet |
nanoDAC® | 8-WDFN, CSP | Tape & Reel (TR) | Active | Not Verified | 12 | 1 | 10µs | Voltage - Buffered | No | SPI, DSP | Internal | 5V | 5V | ±1 (Max), ±0.25 (Max) | String DAC | -40°C ~ 105°C | 8-LFCSP-WD (3x3) | Surface Mount | - | - |
|
|
AD5640BCPZ-2RL7IC DAC 14BIT V-OUT 8LFCSP |
0 |
|
Datasheet |
nanoDAC® | 8-WDFN, CSP | Tape & Reel (TR) | Obsolete | Not Verified | 14 | 1 | 10µs | Voltage - Buffered | No | SPI, DSP | Internal | 5V | 5V | ±4 (Max), ±0.5 (Max) | String DAC | -40°C ~ 105°C | 8-LFCSP-WD (3x3) | Surface Mount | - | - |
|
|
AD5680BCPZ-2RL7IC DAC 18BIT V-OUT 8LFCSP-WD |
0 |
|
Datasheet |
nanoDAC® | 8-WDFN, CSP | Tape & Reel (TR) | Active | Not Verified | 18 | 1 | 85µs | Voltage - Buffered | No | SPI, DSP | External | 5V | 5V | ±32, ±2 (Max) | String DAC | -40°C ~ 105°C | 8-LFCSP-WD (3x3) | Surface Mount | - | - |
|

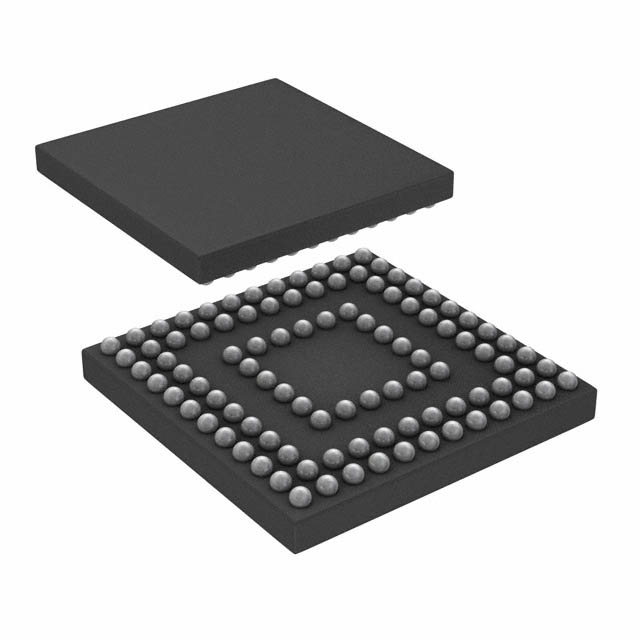

AD5384BBCZ-5REEL7IC DAC 14BIT V-OUT 100CSBGA |
0 |
|
Datasheet |
denseDAC | 100-LFBGA, CSPBGA | Tape & Reel (TR) | Obsolete | Not Verified | 14 | 40 | 8µs | Voltage - Buffered | No | I2C, SPI, DSP | External, Internal | 5V | 2.7V ~ 5.5V | ±4 (Max), -1/+2 (Max) | String DAC | -40°C ~ 85°C | 100-CSPBGA (10x10) | Surface Mount | - | - |
|
|
MAX5814AUD+TIC DAC 10BIT V-OUT 14TSSOP |
0 |
|
- |
- | 14-TSSOP (0.173", 4.40mm Width) | Tape & Reel (TR) | Obsolete | Not Verified | 10 | 4 | 2.6µs (Typ) | Voltage - Buffered | No | I2C | External, Internal | 2.7V ~ 5.5V | 2.7V ~ 5.5V | ±0.25, ±0.1 | R-2R | -40°C ~ 125°C | 14-TSSOP | Surface Mount | - | - |
Digital to Analog Converters (DAC) Electronic Components
Explore Digital to Analog Converters (DAC) electronic components, related subcategories, product specifications, datasheets and sourcing options. We support original component procurement, BOM sourcing and RFQ services for engineers, distributors and global buyers.
