Digital to Analog Converters (DAC)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Programmable | Number of Bits | Number of D/A Converters | Settling Time | Output Type | Differential Output | Data Interface | Reference Type | Voltage - Supply, Analog | Voltage - Supply, Digital | INL/DNL (LSB) | Architecture | Operating Temperature | Supplier Device Package | Mounting Type | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
AD5660ARJ-3REEL7IC DAC 16BIT V-OUT SOT23-8 |
0 |
|
Datasheet |
nanoDAC® | SOT-23-8 | Tape & Reel (TR) | Obsolete | Not Verified | 16 | 1 | 10µs | Voltage - Buffered | No | SPI, DSP | Internal | 5V | 5V | ±32 (Max), ±1 (Max) | String DAC | -40°C ~ 105°C | SOT-23-8 | Surface Mount | - | - |
|
AD568SQ/883BIC DAC 12BIT HS MONO 35NS 24CDIP |
0 |
|
Datasheet |
- | - | Tube | Obsolete | Not Verified | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
AD667JP-REELIC DAC 12BIT V-OUT 28PLCC |
0 |
|
Datasheet |
- | 28-LCC (J-Lead) | Tape & Reel (TR) | Obsolete | Not Verified | 12 | 1 | 4µs | Voltage - Buffered | No | Parallel | External, Internal | ±11.4V ~ 16.5V | - | ±0.5, ±0.5 | R-2R | 0°C ~ 70°C | 28-PLCC (11.51x11.51) | Surface Mount | - | - |
|
MAX5180BEEIIC DAC 10BIT A-OUT 28QSOP |
0 |
|
- |
- | 28-SSOP (0.154", 3.90mm Width) | Tube | Obsolete | Not Verified | 10 | 2 | 25ns (Typ) | Current - Unbuffered | Yes | Parallel | External, Internal | 2.7V ~ 3.3V | 2.7V ~ 3.3V | ±0.5, ±0.5 | Current Source | -40°C ~ 85°C | 28-QSOP | Surface Mount | - | - |
|
|
MAX5180BEEI-TIC DAC 10BIT A-OUT 28QSOP |
0 |
|
- |
- | 28-SSOP (0.154", 3.90mm Width) | Tape & Reel (TR) | Obsolete | Not Verified | 10 | 2 | 25ns (Typ) | Current - Unbuffered | Yes | Parallel | External, Internal | 2.7V ~ 3.3V | 2.7V ~ 3.3V | ±0.5, ±0.5 | Current Source | -40°C ~ 85°C | 28-QSOP | Surface Mount | - | - |
|
MAX5264ACMHIC DAC 14BIT V-OUT 44MQFP |
0 |
|
- |
- | 44-QFP | Tray | Obsolete | Not Verified | 14 | 8 | 22µs (Typ) | Voltage - Buffered | No | Parallel | External | 11.5V ~ 14V, -9V ~ 6.5V | 5V | ±4 (Max), ±1 (Max) | R-2R | 0°C ~ 70°C | 44-MQFP (10x10) | Surface Mount | - | - |
|
MAX5715AWC+TIC DAC 12BIT V-OUT 12WLP |
0 |
|
Datasheet |
- | 12-WFBGA, WLBGA | Tape & Reel (TR) | Active | Not Verified | 12 | 4 | 4.5µs (Typ) | Voltage - Buffered | No | SPI, DSP | External, Internal | 2.7V ~ 5.5V | 2.7V ~ 5.5V | ±0.5, ±0.2 | R-2R | -40°C ~ 125°C | 12-WLP (1.5x2.01) | Surface Mount | - | - |
|

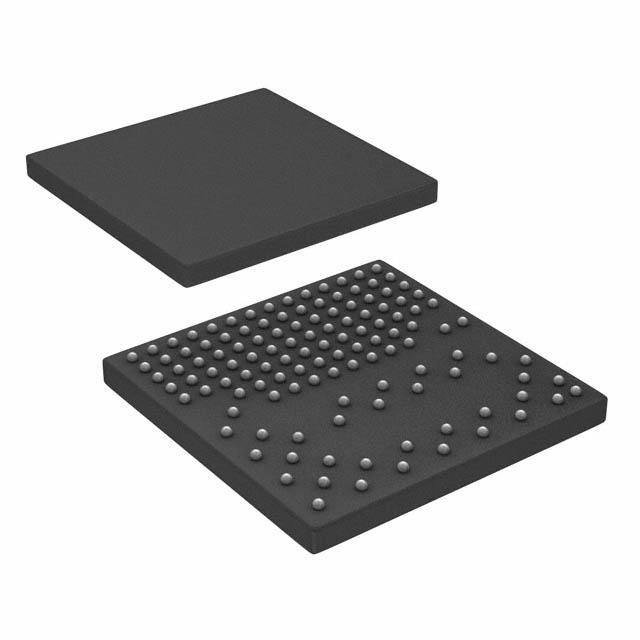

AD5535BKBCIC DAC 14BIT V-OUT 124CSPBGA |
0 |
|
Datasheet |
denseDAC | 124-LBGA, CSPBGA | Tray | Obsolete | Not Verified | 14 | 32 | 65µs (Typ) | Voltage - Buffered | No | SPI, DSP | External | 5V | 2.7V ~ 5.25V | ±0.1, ±0.5 | String DAC | -10°C ~ 85°C | 124-CSPBGA (15x15) | Surface Mount | - | - |
|
|
R2A20169NP#W5IC DAC 8BIT V-OUT 20QFN |
0 |
|
Datasheet |
- | 20-QFN | Tape & Reel (TR) | Obsolete | Not Verified | 8 | 8 | 150µs | Voltage - Buffered | No | SPI | External | 2.7V ~ 5.5V | 2.7V ~ 5.5V | ±1 (Max), ±0.7 (Max) | R-2R | -30°C ~ 85°C | 20-QFN (4x4) | Surface Mount | - | - |
|
MAX5703AUB+IC DAC 8BIT V-OUT 10UMAX |
0 |
|
Datasheet |
- | 10-TFSOP, 10-MSOP (0.118", 3.00mm Width) | Tube | Obsolete | Not Verified | 8 | 1 | 2.8µs (Typ) | Voltage - Buffered | No | SPI, DSP | External, Internal | 2.7V ~ 5.5V | 2.7V ~ 5.5V | ±0.05, ±0.05 | - | -40°C ~ 125°C | 10-uMAX/uSOP | Surface Mount | - | - |
|
MAX5724AUP+TIC DAC 10BIT V-OUT 20TSSOP |
0 |
|
Datasheet |
- | 20-TSSOP (0.173", 4.40mm Width) | Tape & Reel (TR) | Obsolete | Not Verified | 10 | 8 | 2.6µs (Typ) | Voltage - Buffered | No | SPI, DSP | External, Internal | 2.7V ~ 5.5V | 2.7V ~ 5.5V | ±0.2, ±0.1 | R-2R | -40°C ~ 125°C | 20-TSSOP | Surface Mount | - | - |
|
|
MAX5803AUB+IC DAC 8BIT V-OUT 10UMAX |
0 |
|
Datasheet |
- | 10-TFSOP, 10-MSOP (0.118", 3.00mm Width) | Tube | Obsolete | Not Verified | 8 | 1 | 2.8µs (Typ) | Voltage - Buffered | No | I2C | External, Internal | 2.7V ~ 5.5V | 2.7V ~ 5.5V | ±0.05, ±0.05 | R-2R | -40°C ~ 125°C | 10-uMAX/uSOP | Surface Mount | - | - |
|
|
MAX5824AUP+IC DAC 10BIT V-OUT 20TSSOP |
0 |
|
Datasheet |
- | 20-TSSOP (0.173", 4.40mm Width) | Tube | Obsolete | Not Verified | 10 | 8 | 2.6µs (Typ) | Voltage - Buffered | No | I2C | External, Internal | 2.7V ~ 5.5V | 2.7V ~ 5.5V | ±0.2, ±0.1 | R-2R | -40°C ~ 125°C | 20-TSSOP | Surface Mount | - | - |
|
|
MAX5804AUB+IC DAC 10BIT V-OUT 10UMAX |
0 |
|
Datasheet |
- | 10-TFSOP, 10-MSOP (0.118", 3.00mm Width) | Tube | Obsolete | Not Verified | 10 | 1 | 5.2µs (Typ) | Voltage - Buffered | No | I2C | External, Internal | 2.7V ~ 5.5V | 2.7V ~ 5.5V | ±0.2, ±0.1 | R-2R | -40°C ~ 125°C | 10-uMAX/uSOP | Surface Mount | - | - |
.jpg)
|
MAX5803ATB+TIC DAC 8BIT V-OUT 10TDFN |
0 |
|
Datasheet |
* | - | Obsolete | Not Verified | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | |
|
IDTDAC1205D650HW-C1IC DAC 12BIT A-OUT 100HTQFP |
0 |
|
Datasheet |
- | 100-TQFP Exposed Pad | Tray | Obsolete | Not Verified | 12 | 2 | 20ns (Typ) | Current - Unbuffered | Yes | Parallel | Internal | 1.7V ~ 1.9V, 3V ~ 3.6V | 1.7V ~ 1.9V, 3V ~ 3.6V | - | Binary-Weighted DAC, String DAC | -40°C ~ 85°C | 100-HTQFP (14x14) | Surface Mount | - | - |
|
|
IDTDAC1205D650HW-C18IC DAC 12BIT A-OUT 100HTQFP |
0 |
|
Datasheet |
- | 100-TQFP Exposed Pad | Tape & Reel (TR) | Obsolete | Not Verified | 12 | 2 | 20ns (Typ) | Current - Unbuffered | Yes | Parallel | Internal | 1.7V ~ 1.9V, 3V ~ 3.6V | 1.7V ~ 1.9V, 3V ~ 3.6V | - | Binary-Weighted DAC, String DAC | -40°C ~ 85°C | 100-HTQFP (14x14) | Surface Mount | - | - |
|
DAC1208D650HN-C1IC DAC 12BIT A-OUT 64QFPN |
0 |
|
Datasheet |
- | 64-VFQFN Exposed Pad | Tray | Obsolete | Not Verified | 12 | 2 | 20ns (Typ) | Current - Unbuffered | Yes | JESD204A | Internal | 1.7V ~ 1.9V, 3.13V ~ 3.47V | 1.7V ~ 1.9V | - | Oversampling Interpolating DAC | -40°C ~ 85°C | 64-VFQFPN (9x9) | Surface Mount | - | - |
|
DAC1401D125HL-C18IC DAC 14BIT A-OUT 48TQFP |
0 |
|
Datasheet |
- | 48-LQFP | Tape & Reel (TR) | Obsolete | Not Verified | 14 | 2 | 43ns (Typ) | Current - Unbuffered | Yes | Parallel | External, Internal | 3V ~ 3.65V | 3V ~ 3.65V | ±2.15, ±0.75 | String DAC | -40°C ~ 85°C | 48-TQFP (7x7) | Surface Mount | - | - |
|
|
DAC1405D750HW-C1IC DAC 14BIT A-OUT 100HTQFP |
0 |
|
Datasheet |
- | 100-TQFP Exposed Pad | Tray | Obsolete | Not Verified | 14 | 2 | 20ns (Typ) | Current - Unbuffered | Yes | Parallel | External, Internal | 1.7V ~ 1.9V, 3V ~ 3.6V | 1.7V ~ 1.9V | - | Binary-Weighted DAC, String DAC | -40°C ~ 85°C | 100-HTQFP (14x14) | Surface Mount | - | - |
Digital to Analog Converters (DAC) Electronic Components
Explore Digital to Analog Converters (DAC) electronic components, related subcategories, product specifications, datasheets and sourcing options. We support original component procurement, BOM sourcing and RFQ services for engineers, distributors and global buyers.
