Crystals
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Frequency | Frequency Stability | Frequency Tolerance | Load Capacitance | ESR (Equivalent Series Resistance) | Operating Mode | Operating Temperature | Ratings | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
7M-24.000MAAE-TCRYSTAL 24.0000MHZ 12PF SMD |
6,239 |
|
Datasheet |
7M | 4-SMD, No Lead | Tape & Reel (TR) | Active | MHz Crystal | 24 MHz | ±30ppm | ±30ppm | 12pF | 60 Ohms | Fundamental | -20°C ~ 70°C | - | Surface Mount | - | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.031" (0.80mm) |
|
|
7M-16.000MAAE-TCRYSTAL 16.0000MHZ 12PF SMD |
6,064 |
|
Datasheet |
7M | 4-SMD, No Lead | Tape & Reel (TR) | Active | MHz Crystal | 16 MHz | ±30ppm | ±30ppm | 12pF | 80 Ohms | Fundamental | -20°C ~ 70°C | - | Surface Mount | - | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.031" (0.80mm) |
|

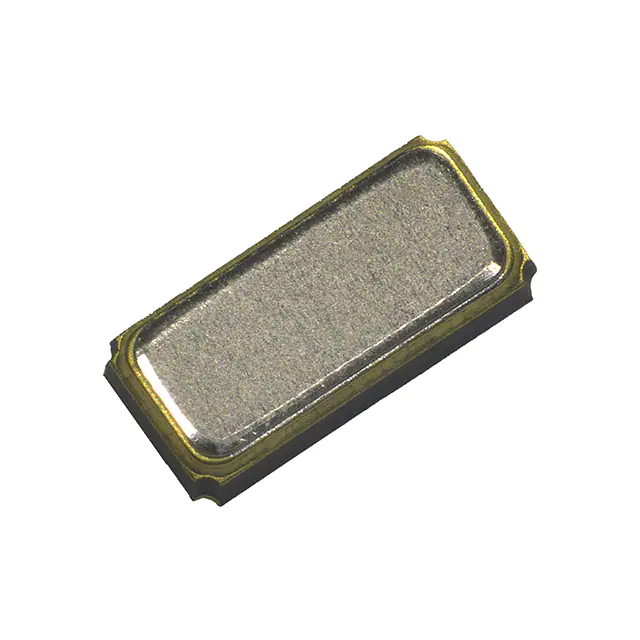

FC3215AN 32.768K-C5NN60KC5CRYSTAL 32.768KHZ 12.5PF SMD |
4,994 |
|
Datasheet |
FC3215AN | 2-SMD, No Lead | Tape & Reel (TR) | Active | kHz Crystal (Tuning Fork) | 32.768 kHz | - | ±20ppm | 12.5pF | 60 kOhms | Fundamental | -40°C ~ 105°C | - | Surface Mount | 2-SMD (3.2x1.5) | 0.126" L x 0.059" W (3.20mm x 1.50mm) | 0.035" (0.90mm) |
|
|
7M-12.000MAAE-TCRYSTAL 12.0000MHZ 12PF SMD |
1,595 |
|
Datasheet |
7M | 4-SMD, No Lead | Tape & Reel (TR) | Active | MHz Crystal | 12 MHz | ±30ppm | ±30ppm | 12pF | 100 Ohms | Fundamental | -20°C ~ 70°C | - | Surface Mount | - | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.031" (0.80mm) |
|
|
7M-50.000MAHV-TCRYSTAL 50.0000MHZ 8PF SMD |
18,621 |
|
Datasheet |
7M | 4-SMD, No Lead | Tape & Reel (TR) | Active | MHz Crystal | 50 MHz | ±30ppm | ±30ppm | 8pF | 60 Ohms | Fundamental | -40°C ~ 85°C | - | Surface Mount | - | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.031" (0.80mm) |
|
7V-10.000MAHJ-TCRYSTAL 10.0000MHZ 18PF SMD |
1,701 |
|
Datasheet |
7V | 4-SMD, No Lead | Tape & Reel (TR) | Active | MHz Crystal | 10 MHz | ±30ppm | ±30ppm | 18pF | 150 Ohms | Fundamental | -40°C ~ 85°C | - | Surface Mount | - | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.035" (0.90mm) |
|
|
7M-16.000MAAJ-TCRYSTAL 16.0000MHZ 18PF SMD |
62,653 |
|
Datasheet |
7M | 4-SMD, No Lead | Tape & Reel (TR) | Active | MHz Crystal | 16 MHz | ±30ppm | ±30ppm | 18pF | 80 Ohms | Fundamental | -20°C ~ 70°C | - | Surface Mount | - | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.031" (0.80mm) |
|
FA-20H 16.0000MF10Z-AJ5CRYSTAL 16.0000MHZ 8PF SMD |
3,851 |
|
Datasheet |
FA-20H | 4-SMD, No Lead | Tape & Reel (TR) | Active | MHz Crystal | 16 MHz | ±10ppm | ±10ppm | 8pF | 80 Ohms | Fundamental | -20°C ~ 75°C | - | Surface Mount | - | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.022" (0.55mm) |
|
FC-135R 32.7680KA-A5CRYSTAL 32.7680KHZ 12.5PF SMD |
1,462 |
|
Datasheet |
FC-135R | 2-SMD, No Lead | Tape & Reel (TR) | Active | kHz Crystal (Tuning Fork) | 32.768 kHz | - | ±20ppm | 12.5pF | 50 kOhms | Fundamental | -40°C ~ 85°C | - | Surface Mount | 2-SMD (3.2x1.5) | 0.126" L x 0.059" W (3.20mm x 1.50mm) | 0.035" (0.90mm) |
|
FC-12M 32.7680KA-A0CRYSTAL 32.7680KHZ 12.5PF SMD |
6,585 |
|
Datasheet |
FC-12M | 2-SMD, No Lead | Tape & Reel (TR) | Active | kHz Crystal (Tuning Fork) | 32.768 kHz | - | ±20ppm | 12.5pF | 90 kOhms | Fundamental | -40°C ~ 85°C | - | Surface Mount | 2-SMD (2.05x1.2) | 0.081" L x 0.047" W (2.05mm x 1.20mm) | 0.024" (0.60mm) |
|
|
FC-12M 32.7680KA-A5CRYSTAL 32.7680KHZ 12.5PF SMD |
6,170 |
|
Datasheet |
FC-12M | 2-SMD, No Lead | Tape & Reel (TR) | Active | kHz Crystal (Tuning Fork) | 32.768 kHz | - | ±20ppm | 12.5pF | 90 kOhms | Fundamental | -40°C ~ 85°C | - | Surface Mount | 2-SMD (2.05x1.2) | 0.081" L x 0.047" W (2.05mm x 1.20mm) | 0.024" (0.60mm) |
|
|
FC-135R 32.7680KA-A0CRYSTAL 32.7680KHZ 12.5PF SMD |
2,087 |
|
Datasheet |
FC-135R | 2-SMD, No Lead | Tape & Reel (TR) | Active | kHz Crystal (Tuning Fork) | 32.768 kHz | - | ±20ppm | 12.5pF | 50 kOhms | Fundamental | -40°C ~ 85°C | - | Surface Mount | 2-SMD (3.2x1.5) | 0.126" L x 0.059" W (3.20mm x 1.50mm) | 0.035" (0.90mm) |
|
9HT10-32.768KBZB-TCRYSTAL 32.7680KHZ 6PF SMD |
42,477 |
|
Datasheet |
9HT10 | 2-SMD, No Lead | Tape & Reel (TR) | Active | kHz Crystal (Tuning Fork) | 32.768 kHz | - | ±50ppm | 6pF | 70 kOhms | Fundamental | -40°C ~ 85°C | - | Surface Mount | - | 0.126" L x 0.059" W (3.20mm x 1.50mm) | 0.033" (0.85mm) |
|
|
9HT10-32.768KBZF-TCRYSTAL 32.7680KHZ 12.5PF SMD |
21,775 |
|
Datasheet |
9HT10 | 2-SMD, No Lead | Tape & Reel (TR) | Active | kHz Crystal (Tuning Fork) | 32.768 kHz | - | ±50ppm | 12.5pF | 70 kOhms | Fundamental | -40°C ~ 85°C | - | Surface Mount | - | 0.126" L x 0.059" W (3.20mm x 1.50mm) | 0.033" (0.85mm) |
|
|
FA-20H 25.0000MD30Y-C5CRYSTAL 25.0000MHZ 18PF SMD |
4,643 |
|
Datasheet |
FA-20H | 4-SMD, No Lead | Tape & Reel (TR) | Active | MHz Crystal | 25 MHz | ±30ppm | ±30ppm | 18pF | 80 Ohms | Fundamental | -30°C ~ 85°C | - | Surface Mount | - | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.022" (0.55mm) |
|
|
9HT10-32.768KBZC-TCRYSTAL 32.7680KHZ 9PF SMD |
12,172 |
|
Datasheet |
9HT10 | 2-SMD, No Lead | Tape & Reel (TR) | Active | kHz Crystal (Tuning Fork) | 32.768 kHz | - | ±50ppm | 9pF | 70 kOhms | Fundamental | -40°C ~ 85°C | - | Surface Mount | - | 0.126" L x 0.059" W (3.20mm x 1.50mm) | 0.033" (0.85mm) |
|
|
7V-25.000MAHJ-TCRYSTAL 25.0000MHZ 18PF SMD |
9,448 |
|
Datasheet |
7V | 4-SMD, No Lead | Tape & Reel (TR) | Active | MHz Crystal | 25 MHz | ±30ppm | ±30ppm | 18pF | 60 Ohms | Fundamental | -40°C ~ 85°C | - | Surface Mount | - | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.035" (0.90mm) |
|
|
7V-24.000MAAV-TCRYSTAL 24.0000MHZ 8PF SMD |
10,630 |
|
Datasheet |
7V | 4-SMD, No Lead | Tape & Reel (TR) | Active | MHz Crystal | 24 MHz | ±30ppm | ±30ppm | 8pF | 60 Ohms | Fundamental | -20°C ~ 70°C | - | Surface Mount | - | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.035" (0.90mm) |
|
|
FA-20H 19.2000MF12Y-AG3CRYSTAL 19.2000MHZ 7PF SMD |
3,965 |
|
Datasheet |
FA-20H | 4-SMD, No Lead | Tape & Reel (TR) | Active | MHz Crystal | 19.2 MHz | ±12ppm | ±10ppm | 7pF | 80 Ohms | Fundamental | -30°C ~ 85°C | - | Surface Mount | - | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.022" (0.55mm) |
|
MC-146 32.7680KA-A0:PURE SNCRYSTAL 32.7680KHZ 12.5PF SMD |
3,393 |
|
Datasheet |
MC-146 | 4-SMD, Flat Leads | Tape & Reel (TR) | Active | kHz Crystal (Tuning Fork) | 32.768 kHz | - | ±20ppm | 12.5pF | 65 kOhms | Fundamental | -40°C ~ 85°C | - | Surface Mount | 4-SMD (6.7x1.5) | 0.264" L x 0.059" W (6.70mm x 1.50mm) | 0.055" (1.40mm) |
