Crystals
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Frequency | Frequency Stability | Frequency Tolerance | Load Capacitance | ESR (Equivalent Series Resistance) | Operating Mode | Operating Temperature | Ratings | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
FC-135 32.7680KA-AC0CRYSTAL 32.7680KHZ 9PF SMD |
113,970 |
|
Datasheet |
FC-135 | 2-SMD, No Lead | Tape & Reel (TR) | Active | kHz Crystal (Tuning Fork) | 32.768 kHz | - | ±20ppm | 9pF | 70 kOhms | Fundamental | -40°C ~ 85°C | - | Surface Mount | 2-SMD (3.2x1.5) | 0.126" L x 0.059" W (3.20mm x 1.50mm) | 0.035" (0.90mm) |
|
SC32S-12.5PF20PPMCRYSTAL 32.7680KHZ 12.5PF SMD |
68,821 |
|
Datasheet |
SC32S | 2-SMD, No Lead | Tape & Reel (TR) | Active | kHz Crystal (Tuning Fork) | 32.768 kHz | - | ±20ppm | 12.5pF | 70 kOhms | Fundamental | -40°C ~ 85°C | - | Surface Mount | - | 0.126" L x 0.059" W (3.20mm x 1.50mm) | 0.033" (0.85mm) |
|
|
SC32S-9PF20PPMCRYSTAL 32.7680KHZ 9PF SMD |
12,938 |
|
Datasheet |
SC32S | 2-SMD, No Lead | Tape & Reel (TR) | Active | kHz Crystal (Tuning Fork) | 32.768 kHz | - | ±20ppm | 9pF | 70 kOhms | Fundamental | -40°C ~ 85°C | - | Surface Mount | - | 0.126" L x 0.059" W (3.20mm x 1.50mm) | 0.033" (0.85mm) |
|
FC-12M 32.7680KD-A0CRYSTAL 32.7680KHZ 12.5PF SMD |
10,432 |
|
Datasheet |
FC-12M | 2-SMD, No Lead | Tape & Reel (TR) | Active | kHz Crystal (Tuning Fork) | 32.768 kHz | - | ±30ppm | 12.5pF | 90 kOhms | Fundamental | -40°C ~ 85°C | - | Surface Mount | 2-SMD (2.05x1.2) | 0.081" L x 0.047" W (2.05mm x 1.20mm) | 0.024" (0.60mm) |
|

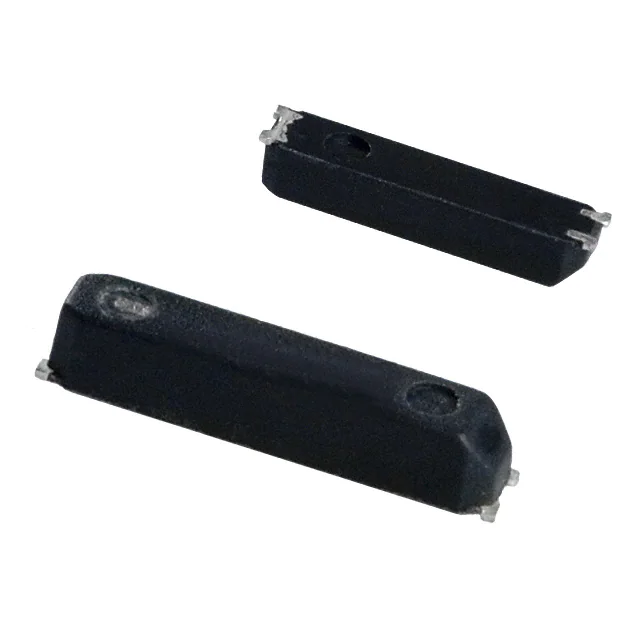

MC-146 32.7680KA-A5: ROHSCRYSTAL 32.7680KHZ 12.5PF SMD |
8,654 |
|
Datasheet |
MC-146 | 4-SMD, Flat Leads | Tape & Reel (TR) | Active | kHz Crystal (Tuning Fork) | 32.768 kHz | - | ±20ppm | 12.5pF | 65 kOhms | Fundamental | -40°C ~ 85°C | - | Surface Mount | 4-SMD (6.7x1.5) | 0.264" L x 0.059" W (6.70mm x 1.50mm) | 0.055" (1.40mm) |
|
|
MC-146 32.7680KA-AG0: ROHSCRYSTAL 32.7680KHZ 7PF SMD |
4,571 |
|
Datasheet |
MC-146 | 4-SMD, Flat Leads | Tape & Reel (TR) | Active | kHz Crystal (Tuning Fork) | 32.768 kHz | - | ±20ppm | 7pF | 65 kOhms | Fundamental | -40°C ~ 85°C | - | Surface Mount | 4-SMD (6.7x1.5) | 0.264" L x 0.059" W (6.70mm x 1.50mm) | 0.055" (1.40mm) |
|
FA-20H 16.0000MF10Z-AJ0CRYSTAL 16.0000MHZ 8PF SMD |
183,014 |
|
Datasheet |
FA-20H | 4-SMD, No Lead | Tape & Reel (TR) | Active | MHz Crystal | 16 MHz | ±10ppm | ±10ppm | 8pF | 80 Ohms | Fundamental | -20°C ~ 75°C | - | Surface Mount | - | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.022" (0.55mm) |
|
|
SC20S-7PF20PPMCRYSTAL 32.7680KHZ 7PF SMD |
107,763 |
|
Datasheet |
SC20S | 2-SMD, No Lead | Tape & Reel (TR) | Active | kHz Crystal (Tuning Fork) | 32.768 kHz | - | ±20ppm | 7pF | 70 kOhms | Fundamental | -40°C ~ 85°C | - | Surface Mount | - | 0.079" L x 0.047" W (2.00mm x 1.20mm) | 0.024" (0.60mm) |
|
|
MC-146 32.7680KA-A0:ROHSCRYSTAL 32.7680KHZ 12.5PF SMD |
38,687 |
|
Datasheet |
MC-146 | 4-SMD, Flat Leads | Tape & Reel (TR) | Active | kHz Crystal (Tuning Fork) | 32.768 kHz | - | ±20ppm | 12.5pF | 65 kOhms | Fundamental | -40°C ~ 85°C | - | Surface Mount | 4-SMD (6.7x1.5) | 0.264" L x 0.059" W (6.70mm x 1.50mm) | 0.055" (1.40mm) |
|
FC2012AN 32.768K-C5NN60KC7CRYSTAL 32.7680KHZ 12.5PF SMD |
28,237 |
|
Datasheet |
FC2012AN | 2-SMD, No Lead | Tape & Reel (TR) | Active | kHz Crystal (Tuning Fork) | 32.768 kHz | - | ±20ppm | 12.5pF | 60 kOhms | Fundamental | -40°C ~ 105°C | - | Surface Mount | 2-SMD (2.05x1.2) | 0.081" L x 0.047" W (2.05mm x 1.20mm) | 0.024" (0.60mm) |
|
|
FA-238 16.0000MB-K3CRYSTAL 16.0000MHZ 10PF SMD |
91,522 |
|
Datasheet |
FA-238 | 4-SMD, No Lead | Tape & Reel (TR) | Active | MHz Crystal | 16 MHz | ±30ppm | ±50ppm | 10pF | 80 Ohms | Fundamental | -40°C ~ 85°C | - | Surface Mount | - | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.028" (0.70mm) |
|
|
FA-238 24.0000MB-C3CRYSTAL 24.0000MHZ 18PF SMD |
71,881 |
|
Datasheet |
FA-238 | 4-SMD, No Lead | Tape & Reel (TR) | Active | MHz Crystal | 24 MHz | ±30ppm | ±50ppm | 18pF | 60 Ohms | Fundamental | -20°C ~ 70°C | - | Surface Mount | - | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.028" (0.70mm) |
|
FA-128 24.0000MF10Z-W3CRYSTAL 24.0000MHZ 12PF SMD |
62,916 |
|
Datasheet |
FA-128 | 4-SMD, No Lead | Tape & Reel (TR) | Active | MHz Crystal | 24 MHz | ±10ppm | ±10ppm | 12pF | 80 Ohms | Fundamental | -20°C ~ 75°C | - | Surface Mount | 4-SMD (2x1.6) | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.020" (0.50mm) |
|
|
FA-128 32.0000MF10Z-AJ3CRYSTAL 32.0000MHZ 8PF SMD |
38,133 |
|
Datasheet |
FA-128 | 4-SMD, No Lead | Tape & Reel (TR) | Active | MHz Crystal | 32 MHz | ±10ppm | ±10ppm | 8pF | 60 Ohms | Fundamental | -20°C ~ 75°C | - | Surface Mount | 4-SMD (2x1.6) | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.020" (0.50mm) |
|
9HT10-32.768KDZF-TCRYSTAL 32.7680KHZ 12.5PF SMD |
33,223 |
|
Datasheet |
9HT10 | 2-SMD, No Lead | Tape & Reel (TR) | Active | kHz Crystal (Tuning Fork) | 32.768 kHz | - | ±20ppm | 12.5pF | 70 kOhms | Fundamental | -40°C ~ 85°C | - | Surface Mount | - | 0.126" L x 0.059" W (3.20mm x 1.50mm) | 0.033" (0.85mm) |
|
8Z-16.000MAHE-TCRYSTAL 16.0000MHZ 12PF SMD |
13,436 |
|
Datasheet |
8Z | 4-SMD, No Lead | Tape & Reel (TR) | Active | MHz Crystal | 16 MHz | ±30ppm | ±30ppm | 12pF | 100 Ohms | Fundamental | -40°C ~ 85°C | - | Surface Mount | - | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.022" (0.55mm) |
|

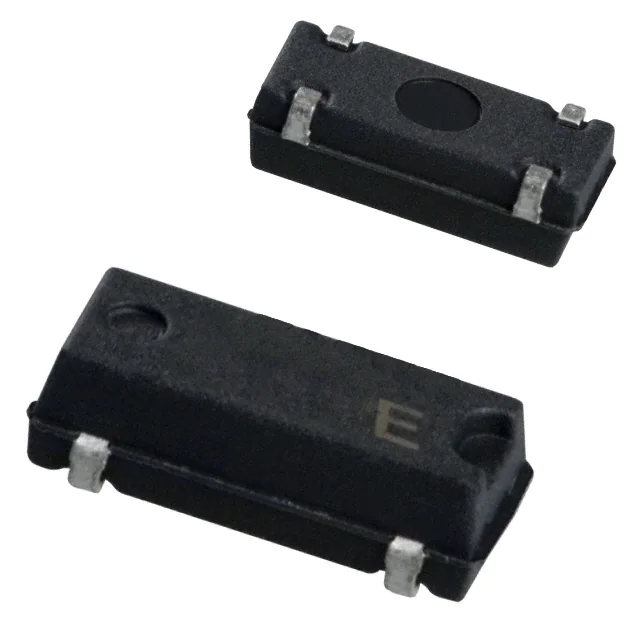

MC-306 32.7680K-A0:ROHSCRYSTAL 32.7680KHZ 12.5PF SMD |
165,287 |
|
Datasheet |
MC-306 | 4-SOJ, 5.50mm pitch | Tape & Reel (TR) | Active | kHz Crystal (Tuning Fork) | 32.768 kHz | - | ±100ppm | 12.5pF | 50 kOhms | Fundamental | -40°C ~ 85°C | - | Surface Mount | 4-SOJ | 0.315" L x 0.126" W (8.00mm x 3.20mm) | 0.100" (2.54mm) |
|
TSX-3225 16.0000MF18X-AC3CRYSTAL 16.0000MHZ 9PF SMD |
111,595 |
|
Datasheet |
TSX-3225 | 4-SMD, No Lead | Tape & Reel (TR) | Active | MHz Crystal | 16 MHz | ±18ppm | ±10ppm | 9pF | 60 Ohms | Fundamental | -40°C ~ 85°C | - | Surface Mount | - | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.024" (0.60mm) |
|
9HT11-32.768KDZF-TCRYSTAL 32.7680KHZ 12.5PF SMD |
109,023 |
|
Datasheet |
9HT11 | 2-SMD, No Lead | Tape & Reel (TR) | Active | kHz Crystal (Tuning Fork) | 32.768 kHz | - | ±20ppm | 12.5pF | 90 kOhms | Fundamental | -40°C ~ 85°C | - | Surface Mount | - | 0.079" L x 0.047" W (2.00mm x 1.20mm) | 0.024" (0.60mm) |
|
|
TSX-3225 26.0000MF09Z-AC3CRYSTAL 26.0000MHZ 9PF SMD |
71,374 |
|
Datasheet |
TSX-3225 | 4-SMD, No Lead | Tape & Reel (TR) | Active | MHz Crystal | 26 MHz | ±9ppm | ±10ppm | 9pF | 40 Ohms | Fundamental | -20°C ~ 75°C | - | Surface Mount | - | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.024" (0.60mm) |
Crystals Electronic Components
Explore Crystals electronic components, related subcategories, product specifications, datasheets and sourcing options. We support original component procurement, BOM sourcing and RFQ services for engineers, distributors and global buyers.
