Crystals
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Frequency | Frequency Stability | Frequency Tolerance | Load Capacitance | ESR (Equivalent Series Resistance) | Operating Mode | Operating Temperature | Ratings | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
8Z-25.000MAHE-TCRYSTAL 25.0000MHZ 12PF SMD |
2,402 |
|
Datasheet |
8Z | 4-SMD, No Lead | Tape & Reel (TR) | Active | MHz Crystal | 25 MHz | ±30ppm | ±30ppm | 12pF | 100 Ohms | Fundamental | -40°C ~ 85°C | - | Surface Mount | - | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.022" (0.55mm) |
|
8Z-19.200MAHE-TCRYSTAL 19.2000MHZ 12PF SMD |
1,748 |
|
Datasheet |
8Z | 4-SMD, No Lead | Tape & Reel (TR) | Active | MHz Crystal | 19.2 MHz | ±30ppm | ±30ppm | 12pF | 100 Ohms | Fundamental | -40°C ~ 85°C | - | Surface Mount | - | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.022" (0.55mm) |
|
7V-14.7456MAHE-TCRYSTAL 14.7456MHZ 12PF SMD |
28,569 |
|
Datasheet |
7V | 4-SMD, No Lead | Tape & Reel (TR) | Active | MHz Crystal | 14.7456 MHz | ±30ppm | ±30ppm | 12pF | 100 Ohms | Fundamental | -40°C ~ 85°C | - | Surface Mount | - | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.035" (0.90mm) |
|
FA-118T 26.0000MF12Z-AC3CRYSTAL 26.0000MHZ 9PF SMD |
5,389 |
|
Datasheet |
FA-118T | 4-SMD, No Lead | Tape & Reel (TR) | Active | MHz Crystal | 26 MHz | ±12ppm | ±10ppm | 9pF | 200 Ohms | Fundamental | -20°C ~ 75°C | - | Surface Mount | 4-SMD (1.6x1.2) | 0.063" L x 0.047" W (1.60mm x 1.20mm) | 0.014" (0.35mm) |
|
9HT11-32.768KDZY-TCRYSTAL 32.7680KHZ 7PF SMD |
19,999 |
|
Datasheet |
9HT11 | 2-SMD, No Lead | Tape & Reel (TR) | Active | kHz Crystal (Tuning Fork) | 32.768 kHz | - | ±20ppm | 7pF | 90 kOhms | Fundamental | -40°C ~ 85°C | - | Surface Mount | - | 0.079" L x 0.047" W (2.00mm x 1.20mm) | 0.024" (0.60mm) |
|
AM-48.000MAGE-TCRYSTAL 48.0000MHZ 12PF SMD |
13,219 |
|
Datasheet |
AM | 4-SMD, No Lead | Tape & Reel (TR) | Active | MHz Crystal | 48 MHz | ±50ppm | ±30ppm | 12pF | 60 Ohms | Fundamental | -40°C ~ 85°C | AEC-Q200 | Surface Mount | - | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.031" (0.80mm) |
|
AM-16.9344MAGV-TCRYSTAL 16.9344MHZ 8PF SMD |
8,896 |
|
Datasheet |
AM | 4-SMD, No Lead | Tape & Reel (TR) | Active | MHz Crystal | 16.9344 MHz | ±50ppm | ±30ppm | 8pF | 100 Ohms | Fundamental | -40°C ~ 85°C | AEC-Q200 | Surface Mount | - | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.031" (0.80mm) |
|
8Q-24.000MAAV-TCRYSTAL 24.0000MHZ 8PF SMD |
8,441 |
|
Datasheet |
8Q | 4-SMD, No Lead | Tape & Reel (TR) | Active | MHz Crystal | 24 MHz | ±30ppm | ±30ppm | 8pF | 100 Ohms | Fundamental | -20°C ~ 70°C | - | Surface Mount | - | 0.063" L x 0.047" W (1.60mm x 1.20mm) | 0.016" (0.40mm) |
|
|
8Z-18.432MAHE-TCRYSTAL 18.4320MHZ 12PF SMD |
12,915 |
|
Datasheet |
8Z | 4-SMD, No Lead | Tape & Reel (TR) | Active | MHz Crystal | 18.432 MHz | ±30ppm | ±30ppm | 12pF | 100 Ohms | Fundamental | -40°C ~ 85°C | - | Surface Mount | - | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.022" (0.55mm) |
|
7M-26.000MAAJ-TCRYSTAL 26.0000MHZ 18PF SMD |
59,518 |
|
Datasheet |
7M | 4-SMD, No Lead | Tape & Reel (TR) | Active | MHz Crystal | 26 MHz | ±30ppm | ±30ppm | 18pF | 60 Ohms | Fundamental | -20°C ~ 70°C | - | Surface Mount | - | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.031" (0.80mm) |
|
|
7M-27.120MAHE-TCRYSTAL 27.1200MHZ 12PF SMD |
27,561 |
|
Datasheet |
7M | 4-SMD, No Lead | Tape & Reel (TR) | Active | MHz Crystal | 27.12 MHz | ±30ppm | ±30ppm | 12pF | 60 Ohms | Fundamental | -40°C ~ 85°C | - | Surface Mount | - | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.031" (0.80mm) |
|
7M-10.000MAAJ-TCRYSTAL 10.0000MHZ 18PF SMD |
21,260 |
|
Datasheet |
7M | 4-SMD, No Lead | Tape & Reel (TR) | Active | MHz Crystal | 10 MHz | ±30ppm | ±30ppm | 18pF | 100 Ohms | Fundamental | -20°C ~ 70°C | - | Surface Mount | - | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.031" (0.80mm) |
|
|
7M-50.000MAAJ-TCRYSTAL 50.0000MHZ 18PF SMD |
12,756 |
|
Datasheet |
7M | 4-SMD, No Lead | Tape & Reel (TR) | Active | MHz Crystal | 50 MHz | ±30ppm | ±30ppm | 18pF | 60 Ohms | Fundamental | -20°C ~ 70°C | - | Surface Mount | - | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.031" (0.80mm) |
|
|
7M-20.000MAHE-TCRYSTAL 20.0000MHZ 12PF SMD |
9,731 |
|
Datasheet |
7M | 4-SMD, No Lead | Tape & Reel (TR) | Active | MHz Crystal | 20 MHz | ±30ppm | ±30ppm | 12pF | 60 Ohms | Fundamental | -40°C ~ 85°C | - | Surface Mount | - | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.031" (0.80mm) |
|
|
7M-13.560MAAJ-TCRYSTAL 13.5600MHZ 18PF SMD |
9,519 |
|
Datasheet |
7M | 4-SMD, No Lead | Tape & Reel (TR) | Active | MHz Crystal | 13.56 MHz | ±30ppm | ±30ppm | 18pF | 100 Ohms | Fundamental | -20°C ~ 70°C | - | Surface Mount | - | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.031" (0.80mm) |
|
8Y-50.000MAHV-TCRYSTAL 50.0000MHZ 8PF SMD |
8,883 |
|
Datasheet |
8Y | 4-SMD, No Lead | Tape & Reel (TR) | Active | MHz Crystal | 50 MHz | ±30ppm | ±30ppm | 8pF | 80 Ohms | Fundamental | -40°C ~ 85°C | - | Surface Mount | - | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.022" (0.55mm) |
|
|
7M-40.000MAAJ-TCRYSTAL 40.0000MHZ 18PF SMD |
3,315 |
|
Datasheet |
7M | 4-SMD, No Lead | Tape & Reel (TR) | Active | MHz Crystal | 40 MHz | ±30ppm | ±30ppm | 18pF | 60 Ohms | Fundamental | -20°C ~ 70°C | - | Surface Mount | - | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.031" (0.80mm) |
|
|
7M-27.000MAAJ-TCRYSTAL 27.0000MHZ 18PF SMD |
3,120 |
|
Datasheet |
7M | 4-SMD, No Lead | Tape & Reel (TR) | Active | MHz Crystal | 27 MHz | ±30ppm | ±30ppm | 18pF | 60 Ohms | Fundamental | -20°C ~ 70°C | - | Surface Mount | - | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.031" (0.80mm) |
|

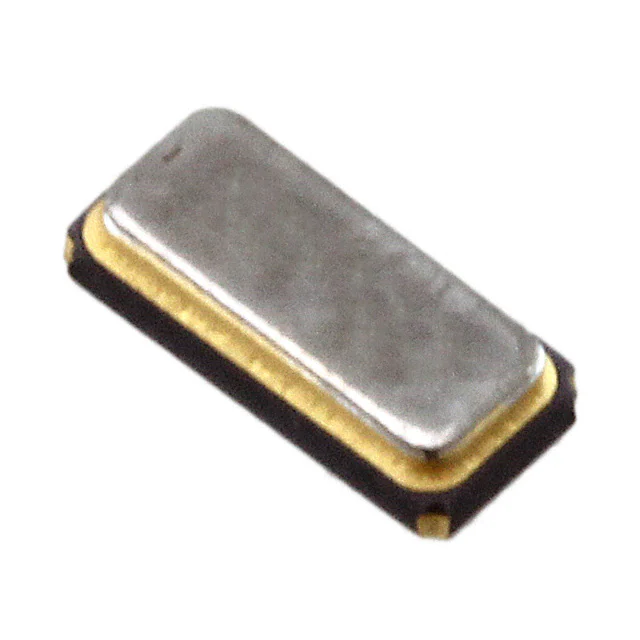

AH-32.768KDZY-TCRYSTAL 32.7680KHZ 7PF SMD |
1,070 |
|
Datasheet |
AH | 2-SMD, No Lead | Tape & Reel (TR) | Active | kHz Crystal (Tuning Fork) | 32.768 kHz | - | ±20ppm | 7pF | 70 kOhms | Fundamental | -40°C ~ 85°C | AEC-Q200 | Surface Mount | - | 0.126" L x 0.059" W (3.20mm x 1.50mm) | 0.033" (0.85mm) |
|
|
AH-32.768KDZB-TCRYSTAL 32.7680KHZ 6PF SMD |
1,005 |
|
Datasheet |
AH | 2-SMD, No Lead | Tape & Reel (TR) | Active | kHz Crystal (Tuning Fork) | 32.768 kHz | - | ±20ppm | 6pF | 70 kOhms | Fundamental | -40°C ~ 85°C | AEC-Q200 | Surface Mount | - | 0.126" L x 0.059" W (3.20mm x 1.50mm) | 0.033" (0.85mm) |
Crystals Electronic Components
Frequently Asked Questions
Q1: What products are included in Crystals?
This category includes related Crystals subcategories and electronic components from multiple manufacturers. Select a lower-level category to view available part numbers.
Q2: Can I request a quotation for Crystals components?
Yes. Send us the part numbers and required quantities, and our team will provide sourcing and quotation support.
Q3: Are datasheets and technical information available?
Yes. Datasheets and technical information are available on supported final product pages and product listings.
Q4: Do you support BOM sourcing?
Yes. We support BOM matching, component procurement and alternative sourcing for Crystals and other electronic components.
