Crystals
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Frequency | Frequency Stability | Frequency Tolerance | Load Capacitance | ESR (Equivalent Series Resistance) | Operating Mode | Operating Temperature | Ratings | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
7M50070032CRYSTAL 50MHZ 18PF SMD |
2,729 |
|
Datasheet |
7M | 4-SMD, No Lead | Tape & Reel (TR) | Active | MHz Crystal | 50 MHz | ±15ppm | ±10ppm | 18pF | - | Fundamental | -40°C ~ 85°C | - | Surface Mount | - | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.031" (0.80mm) |
|
7V-12.000MAAV-TCRYSTAL 12.0000MHZ 8PF SMD |
2,672 |
|
Datasheet |
7V | 4-SMD, No Lead | Tape & Reel (TR) | Active | MHz Crystal | 12 MHz | ±30ppm | ±30ppm | 8pF | 100 Ohms | Fundamental | -20°C ~ 70°C | - | Surface Mount | - | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.035" (0.90mm) |
|
|
7V-32.000MAAV-TCRYSTAL 32.0000MHZ 8PF SMD |
1,330 |
|
Datasheet |
7V | 4-SMD, No Lead | Tape & Reel (TR) | Active | MHz Crystal | 32 MHz | ±30ppm | ±30ppm | 8pF | 60 Ohms | Fundamental | -20°C ~ 70°C | - | Surface Mount | - | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.035" (0.90mm) |
|
FC-135R 32.7680KF-AC0CRYSTAL 32.7680KHZ 9PF SMD |
1,007 |
|
Datasheet |
FC-135R | 2-SMD, No Lead | Tape & Reel (TR) | Active | kHz Crystal (Tuning Fork) | 32.768 kHz | - | ±10ppm | 9pF | 50 kOhms | Fundamental | -40°C ~ 85°C | - | Surface Mount | 2-SMD (3.2x1.5) | 0.126" L x 0.059" W (3.20mm x 1.50mm) | 0.035" (0.90mm) |
|
9HT10-32.768KAZB-TCRYSTAL 32.7680KHZ 6PF SMD |
20,327 |
|
Datasheet |
9HT10 | 2-SMD, No Lead | Tape & Reel (TR) | Active | kHz Crystal (Tuning Fork) | 32.768 kHz | - | ±30ppm | 6pF | 70 kOhms | Fundamental | -40°C ~ 85°C | - | Surface Mount | - | 0.126" L x 0.059" W (3.20mm x 1.50mm) | 0.033" (0.85mm) |
|
9HT11-32.768KBZB-TCRYSTAL 32.7680KHZ 6PF SMD |
15,521 |
|
Datasheet |
9HT11 | 2-SMD, No Lead | Tape & Reel (TR) | Active | kHz Crystal (Tuning Fork) | 32.768 kHz | - | ±50ppm | 6pF | 90 kOhms | Fundamental | -40°C ~ 85°C | - | Surface Mount | - | 0.079" L x 0.047" W (2.00mm x 1.20mm) | 0.024" (0.60mm) |
|
|
9HT10-32.768KAZC-TCRYSTAL 32.7680KHZ 9PF SMD |
3,103 |
|
Datasheet |
9HT10 | 2-SMD, No Lead | Tape & Reel (TR) | Active | kHz Crystal (Tuning Fork) | 32.768 kHz | - | ±30ppm | 9pF | 70 kOhms | Fundamental | -40°C ~ 85°C | - | Surface Mount | - | 0.126" L x 0.059" W (3.20mm x 1.50mm) | 0.033" (0.85mm) |
|
|
7V-20.000MAAE-TCRYSTAL 20.0000MHZ 12PF SMD |
1,170 |
|
Datasheet |
7V | 4-SMD, No Lead | Tape & Reel (TR) | Active | MHz Crystal | 20 MHz | ±30ppm | ±30ppm | 12pF | 60 Ohms | Fundamental | -20°C ~ 70°C | - | Surface Mount | - | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.035" (0.90mm) |
|
|
7V-12.000MAHJ-TCRYSTAL 12.0000MHZ 18PF SMD |
7,766 |
|
Datasheet |
7V | 4-SMD, No Lead | Tape & Reel (TR) | Active | MHz Crystal | 12 MHz | ±30ppm | ±30ppm | 18pF | 150 Ohms | Fundamental | -20°C ~ 70°C | - | Surface Mount | - | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.035" (0.90mm) |
|
MC-146 32.7680KA-A5: PURE SNCRYSTAL 32.7680KHZ 12.5PF SMD |
18,312 |
|
Datasheet |
MC-146 | 4-SMD, Flat Leads | Tape & Reel (TR) | Active | kHz Crystal (Tuning Fork) | 32.768 kHz | - | ±20ppm | 12.5pF | 65 kOhms | Fundamental | -40°C ~ 85°C | - | Surface Mount | 4-SMD (6.7x1.5) | 0.264" L x 0.059" W (6.70mm x 1.50mm) | 0.055" (1.40mm) |
|
|
7V-20.000MAHE-TCRYSTAL 20.0000MHZ 12PF SMD |
4,286 |
|
Datasheet |
7V | 4-SMD, No Lead | Tape & Reel (TR) | Active | MHz Crystal | 20 MHz | ±30ppm | ±30ppm | 12pF | 60 Ohms | Fundamental | -40°C ~ 85°C | - | Surface Mount | - | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.035" (0.90mm) |
|
8Y-16.000MAAV-TCRYSTAL 16.0000MHZ 8PF SMD |
31,070 |
|
Datasheet |
8Y | 4-SMD, No Lead | Tape & Reel (TR) | Active | MHz Crystal | 16 MHz | ±30ppm | ±30ppm | 8pF | 200 Ohms | Fundamental | -20°C ~ 70°C | - | Surface Mount | - | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.022" (0.55mm) |
|
|
9HT11-32.768KAZB-TCRYSTAL 32.7680KHZ 6PF SMD |
12,796 |
|
Datasheet |
9HT11 | 2-SMD, No Lead | Tape & Reel (TR) | Active | kHz Crystal (Tuning Fork) | 32.768 kHz | - | ±30ppm | 6pF | 90 kOhms | Fundamental | -40°C ~ 85°C | - | Surface Mount | - | 0.079" L x 0.047" W (2.00mm x 1.20mm) | 0.024" (0.60mm) |
|
7V-24.000MAHE-TCRYSTAL 24.0000MHZ 12PF SMD |
8,956 |
|
Datasheet |
7V | 4-SMD, No Lead | Tape & Reel (TR) | Active | MHz Crystal | 24 MHz | ±30ppm | ±30ppm | 12pF | 60 Ohms | Fundamental | -40°C ~ 85°C | - | Surface Mount | - | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.035" (0.90mm) |
|

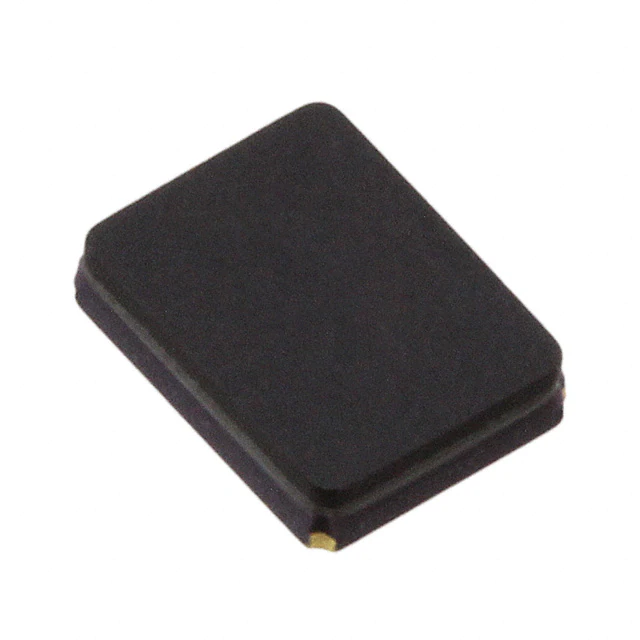

AV-21.948717MAGV-TCRYSTAL 21.948717MHZ 8PF SMD |
8,684 |
|
Datasheet |
AV | 4-SMD, No Lead | Tape & Reel (TR) | Active | MHz Crystal | 21.948717 MHz | ±50ppm | ±30ppm | 8pF | 60 Ohms | Fundamental | -40°C ~ 85°C | AEC-Q200 | Surface Mount | - | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.035" (0.90mm) |
|
|
7V-32.000MAAE-TCRYSTAL 32.0000MHZ 12PF SMD |
7,810 |
|
Datasheet |
7V | 4-SMD, No Lead | Tape & Reel (TR) | Active | MHz Crystal | 32 MHz | ±30ppm | ±30ppm | 12pF | 60 Ohms | Fundamental | -20°C ~ 70°C | - | Surface Mount | - | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.035" (0.90mm) |
|
|
7V-14.7456MAAE-TCRYSTAL 14.7456MHZ 12PF SMD |
6,245 |
|
Datasheet |
7V | 4-SMD, No Lead | Tape & Reel (TR) | Active | MHz Crystal | 14.7456 MHz | ±30ppm | ±30ppm | 12pF | 60 Ohms | Fundamental | -20°C ~ 70°C | - | Surface Mount | - | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.035" (0.90mm) |
|
8Z-24.000MAHE-TCRYSTAL 24.0000MHZ 12PF SMD |
3,960 |
|
Datasheet |
8Z | 4-SMD, No Lead | Tape & Reel (TR) | Active | MHz Crystal | 24 MHz | ±30ppm | ±30ppm | 12pF | 100 Ohms | Fundamental | -40°C ~ 85°C | - | Surface Mount | - | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.022" (0.55mm) |
|
|
AV-9.84375MAGE-TCRYSTAL 9.84375MHZ 12PF SMD |
2,886 |
|
Datasheet |
AV | 4-SMD, No Lead | Tape & Reel (TR) | Active | MHz Crystal | 9.84375 MHz | ±50ppm | ±30ppm | 12pF | 200 Ohms | Fundamental | -40°C ~ 85°C | AEC-Q200 | Surface Mount | - | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.035" (0.90mm) |
|
8Y-20.000MAAE-TCRYSTAL 20.0000MHZ 12PF SMD |
2,595 |
|
Datasheet |
8Y | 4-SMD, No Lead | Tape & Reel (TR) | Active | MHz Crystal | 20 MHz | ±30ppm | ±30ppm | 12pF | 100 Ohms | Fundamental | -20°C ~ 70°C | - | Surface Mount | - | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.022" (0.55mm) |
