Common Mode Chokes
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Filter Type | Number of Lines | Impedance @ Frequency | Current Rating (Max) | DC Resistance (DCR) (Max) | Voltage Rating - DC | Voltage Rating - AC | Operating Temperature | Ratings | Approval Agency | Features | Mounting Type | Size / Dimension | Height (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
DLP11SN900HL2L+00-03CMC 150MA 2LN 90 OHM SMD |
0 |
|
- |
0504 (1210 Metric), 4 Lead | Signal Line | 2 | 90 Ohms @ 100 MHz | - | 150mA | 1.88Ohm | 5V | - | -40°C ~ 85°C | - | - | - | - | - |
|
|
DLP11RB150UL2B+00-01CMC 100MA 2LN 15 OHM SMD |
0 |
|
- |
0504 (1210 Metric), 4 Lead | Signal Line | 2 | 15 Ohms @ 100 MHz | - | 100mA | 1Ohm | 5V | - | -40°C ~ 85°C | - | - | - | - | - |
|
|
DLP11SA900HL2B+00-03CMC 150MA 2LN 90 OHM SMD |
0 |
|
- |
0504 (1210 Metric), 4 Lead | Signal Line | 2 | 90 Ohms @ 100 MHz | - | 150mA | 1.75Ohm | 5V | - | -40°C ~ 85°C | - | - | - | - | - |
|
|
DLP11TB800UL2L+00-01CMC 100MA 2LN 80 OHM SMD |
0 |
|
- |
0504 (1210 Metric), 4 Lead | Signal Line | 2 | 80 Ohms @ 100 MHz | - | 100mA | 1.88Ohm | 5V | - | -40°C ~ 85°C | - | - | - | - | - |
|
|
DLP11SN900HL2B+00-53CMC 150MA 2LN 90 OHM SMD |
0 |
|
- |
0504 (1210 Metric), 4 Lead | Signal Line | 2 | 90 Ohms @ 100 MHz | - | 150mA | 1.88Ohm | 5V | - | -40°C ~ 85°C | - | - | - | - | - |
|
|
DLM11SN900HY2B+00-01CMC 100MA 2LN 90 OHM SMD |
0 |
|
- |
0504 (1210 Metric), 4 Lead | Signal Line | 2 | 90 Ohms @ 100 MHz | - | 100mA | 1.38Ohm | 5V | - | -40°C ~ 85°C | - | - | - | - | - |
|
|
DLM11SN900HY2B+00-53CMC 100MA 2LN 90 OHM SMD |
0 |
|
- |
0504 (1210 Metric), 4 Lead | Signal Line | 2 | 90 Ohms @ 100 MHz | - | 100mA | 1.38Ohm | 5V | - | -40°C ~ 85°C | - | - | - | - | - |
|
VCMBE8104-RCCMC 10MH 2.4A 2LN TH |
0 |
|
Datasheet |
Vertical, 4 PC Pin | - | 2 | - | 10 mH @ 1 kHz | 2.4A | 170mOhm | - | - | -55°C ~ 105°C | - | - | - | - | - |
|
SCM0905-652-RCCMC 6.5MH 400MA 2LN 18.4KOHM SMD |
0 |
|
Datasheet |
4-SMD, J-Lead | - | 2 | 18.4 kOhms @ 10 kHz | 6.5 mH @ 10 kHz | 400mA | 950mOhm | 80V | - | -40°C ~ 125°C | - | - | - | - | - |
|
SCM25-601T-RCCMC 1A 2LN 600 OHM SMD |
0 |
|
Datasheet |
Horizontal, 4 PC Pad | - | 2 | 600 Ohms @ 100 MHz | - | 1A | 200mOhm | 60V | - | -40°C ~ 125°C | - | - | - | - | - |
|
VSLFUU98-102CMC 700MA 2LN SMD |
0 |
|
Datasheet |
Vertical, 4 Gull Wing | - | 2 | - | - | 700mA | 350mOhm (Typ) | - | 264V | - | - | - | - | - | - |
|
ACP20-102CMC 1.5A 2LN 1K OHM SMD |
0 |
|
Datasheet |
Horizontal, 4 PC Pad | - | 2 | 1 kOhms @ 100 MHz | - | 1.5A | 100mOhm | 60V | - | -40°C ~ 85°C | - | - | - | - | - |
|

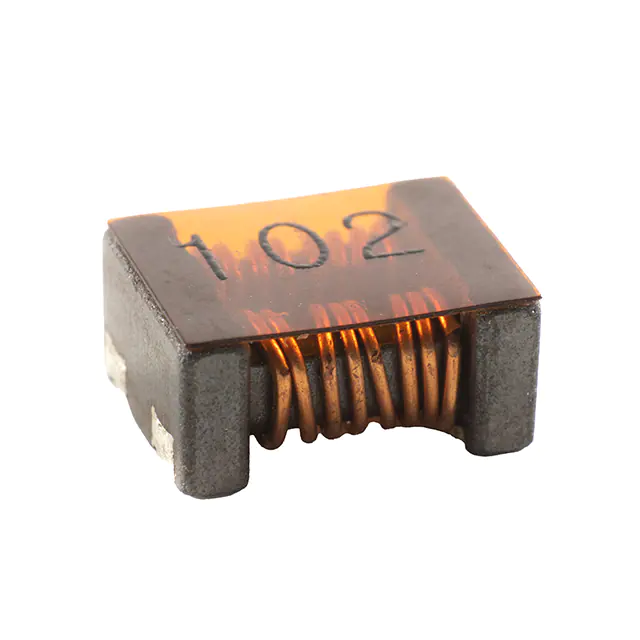

PCMF9070S-102CMC 4A 2LN 1K OHM SMD |
0 |
|
Datasheet |
Horizontal, 4 PC Pad | Power, Signal Line | 2 | 1 kOhms @ 100 MHz | - | 4A | 13mOhm | 125V | - | -40°C ~ 105°C | - | - | - | - | - |
|
|
B78512A7854A003SMD RING CORE CHOKES |
0 |
|
- |
- | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
B78512A8287A003SMD RING CORE CHOKES |
0 |
|
- |
- | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
B78512A8213A003SMD RING CORE CHOKES |
0 |
|
- |
- | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
B78512A8286A003SMD RING CORE CHOKES |
0 |
|
- |
- | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
B78520A8471A003SMD RING CORE CHOKES |
0 |
|
- |
- | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
B78520A9343A003SMD RING CORE CHOKES |
0 |
|
- |
- | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
SCM25-102T-RCCMC 1.2A 2LN 1K OHM SMD |
0 |
|
Datasheet |
Horizontal, 4 PC Pad | Signal Line | 2 | 1 kOhms @ 100 MHz | - | 1.2A | 300mOhm | 60V | - | -40°C ~ 125°C | - | - | - | - | - |
Common Mode Chokes Electronic Components
Explore Common Mode Chokes electronic components, related subcategories, product specifications, datasheets and sourcing options. We support original component procurement, BOM sourcing and RFQ services for engineers, distributors and global buyers.
