Common Mode Chokes
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Filter Type | Number of Lines | Impedance @ Frequency | Current Rating (Max) | DC Resistance (DCR) (Max) | Voltage Rating - DC | Voltage Rating - AC | Operating Temperature | Ratings | Approval Agency | Features | Mounting Type | Size / Dimension | Height (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
MCM-0905-102Y-ECMC 1MH 700MA 2LN SMD |
0 |
|
Datasheet |
Horizontal, 4 PC Pad | Power Line | 2 | - | 1 mH @ 100 kHz | 700mA | 300mOhm | 80V | - | -40°C ~ 125°C | - | - | - | - | - |
|
|
MCM-9070M-222CMC 2.5A 2LN 2.2K OHM SMD |
0 |
|
Datasheet |
Horizontal, 4 PC Pad | Power Line | 2 | 2.2 kOhms @ 100 MHz | - | 2.5A | 60mOhm | 50V | - | -40°C ~ 125°C | - | - | - | - | - |
|
|
MCM-9070M-102CMC 4A 2LN 1K OHM SMD |
0 |
|
Datasheet |
Horizontal, 4 PC Pad | Power Line | 2 | 1 kOhms @ 100 MHz | - | 4A | 13mOhm | 50V | - | -40°C ~ 125°C | - | - | - | - | - |
|
|
MCI-2012-900CMC 330MA 2LN 90 OHM SMD |
0 |
|
Datasheet |
Horizontal, 4 PC Pad | Power Line | 2 | 90 Ohms @ 100 MHz | - | 330mA | 350mOhm | 50V | - | -25°C ~ 85°C | - | - | - | - | - |
|
|
MCM-0905S-202Y-FCMC 2MH 600MA 2LN SMD |
0 |
|
Datasheet |
Horizontal, 4 PC Pad | Power Line | 2 | - | - | 600mA | 420mOhm | 80V | - | -40°C ~ 125°C | - | - | - | - | - |
|
|
MCM-9070M-701CMC 5A 2LN 700 OHM SMD |
0 |
|
Datasheet |
Horizontal, 4 PC Pad | Power Line | 2 | 700 Ohms @ 100 MHz | - | 5A | 10mOhm | 50V | - | -40°C ~ 125°C | - | - | - | - | - |
|
|
MCM-0905S-102Y-FCMC 1MH 800MA 2LN SMD |
0 |
|
Datasheet |
Horizontal, 4 PC Pad | Power Line | 2 | - | - | 800mA | 310mOhm | 80V | - | -40°C ~ 125°C | - | - | - | - | - |
|
|
MCM-0905-501-ECMC 500UH 2A 2LN 1K OHM SMD |
0 |
|
Datasheet |
Horizontal, 4 PC Pad | Power Line | 2 | 1 kOhms @ 10 MHz | - | 2A | 120mOhm | 50V | - | -40°C ~ 125°C | - | - | - | - | - |
|
|
MCM-7060M-302CMC 900MA 2LN 3K OHM SMD |
0 |
|
Datasheet |
Horizontal, 4 PC Pad | Power Line | 2 | 3 kOhms @ 100 MHz | - | 900mA | 75mOhm | 125V | - | -40°C ~ 125°C | - | - | - | - | - |
|
|
MCM-1513M-701CMC 10A 2LN 500 OHM SMD |
0 |
|
Datasheet |
Horizontal, 4 PC Pad | Power Line | 2 | 500 Ohms @ 100 MHz | - | 10A | 7mOhm | 80V | - | -40°C ~ 125°C | - | - | - | - | - |
|
MCF06052T200-TCMC 2LN 20 OHM SMD |
0 |
|
- |
Horizontal, 4 PC Pad | Power Line | 2 | 20 Ohms @ 100 MHz | - | - | - | - | - | -40°C ~ 85°C | - | - | - | - | - |
|
|
MCF06052E900ZTCMC 100MA 2LN 90 OHM SMD |
0 |
|
- |
Horizontal, 4 PC Pad | Power Line | 2 | 90 Ohms @ 100 MHz | - | 100mA | 3.9Ohm | 10V | - | -40°C ~ 85°C | - | - | - | - | - |
|
|
MCF20104H900-TCMC 100MA 4LN 90 OHM SMD |
0 |
|
- |
0804 (2010 Metric), Array, 8 PC Pad | Power Line | 4 | 90 Ohms @ 100 MHz | - | 100mA | 3Ohm | 5V | - | -40°C ~ 85°C | - | - | - | - | - |
|
|
MCF12102G900PTCMC 150MA 2LN 90 OHM SMD |
0 |
|
- |
Horizontal, 4 PC Pad | Power Line | 2 | 90 Ohms @ 100 MHz | - | 150mA | 4.5Ohm | 5V | - | -40°C ~ 85°C | - | - | - | - | - |
|
|
MCF12102S900-TCMC 2LN 90 OHM SMD |
0 |
|
- |
Horizontal, 4 PC Pad | Power Line | 2 | 90 Ohms @ 100 MHz | - | - | - | - | - | -40°C ~ 85°C | - | - | - | - | - |
|
|
MCF12102H900PTCMC 150MA 2LN 90 OHM SMD |
0 |
|
- |
Horizontal, 4 PC Pad | Power Line | 2 | 90 Ohms @ 100 MHz | - | 150mA | 2.5Ohm | 5V | - | -40°C ~ 85°C | - | - | - | - | - |
|

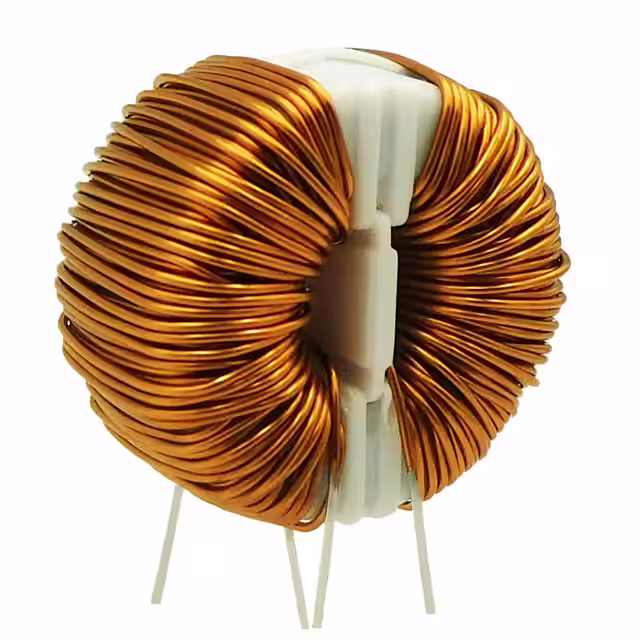

LPTC-V-42.5-2-200CMC 42.5MH 2A 2LN TH |
0 |
|
Datasheet |
Vertical, No Base, 4 PC Pin | Power Line | 2 | - | 42.5 mH @ 1 kHz | 2A | 200mOhm | - | - | -55°C ~ 125°C | - | - | - | - | - |
|
|
MCI-2012-121CMC 370MA 2LN 120 OHM SMD |
0 |
|
Datasheet |
Horizontal, 4 PC Pad | Power Line | 2 | 120 Ohms @ 100 MHz | - | 370mA | 300mOhm | 50V | - | -25°C ~ 85°C | - | - | - | - | - |
|
|
MCM-7060M-132CMC 2.5A 2LN 1.3K OHM SMD |
0 |
|
Datasheet |
Horizontal, 4 PC Pad | Power Line | 2 | 1.3 kOhms @ 100 MHz | - | 2.5A | 21mOhm | 125V | - | -40°C ~ 125°C | - | - | - | - | - |
|
SCM30S-601T-RCCMC 1.5A 2LN 600 OHM SMD |
0 |
|
Datasheet |
Horizontal, 4 PC Pad | - | 2 | 600 Ohms @ 100 MHz | - | 1.5A | 240mOhm | 50V | - | -40°C ~ 125°C | - | - | - | - | - |
Common Mode Chokes Electronic Components
Explore Common Mode Chokes electronic components, related subcategories, product specifications, datasheets and sourcing options. We support original component procurement, BOM sourcing and RFQ services for engineers, distributors and global buyers.
