Common Mode Chokes
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Filter Type | Number of Lines | Impedance @ Frequency | Current Rating (Max) | DC Resistance (DCR) (Max) | Voltage Rating - DC | Voltage Rating - AC | Operating Temperature | Ratings | Approval Agency | Features | Mounting Type | Size / Dimension | Height (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CME2425-8-BCMC 40.5MH 500MA 2LN TH ESD |
0 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 40.5 mH @ 10 kHz | 500mA | 1.26Ohm | - | 250V | -40°C ~ 80°C | - | CSA, IEC, UL, VDE | - | - | - |
|
|
CME2425-9-BCMC 67.5MH 400MA 2LN TH ESD |
0 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 67.5 mH @ 10 kHz | 400mA | 2.02Ohm | - | 250V | -40°C ~ 80°C | - | CSA, IEC, UL, VDE | - | - | - |
|

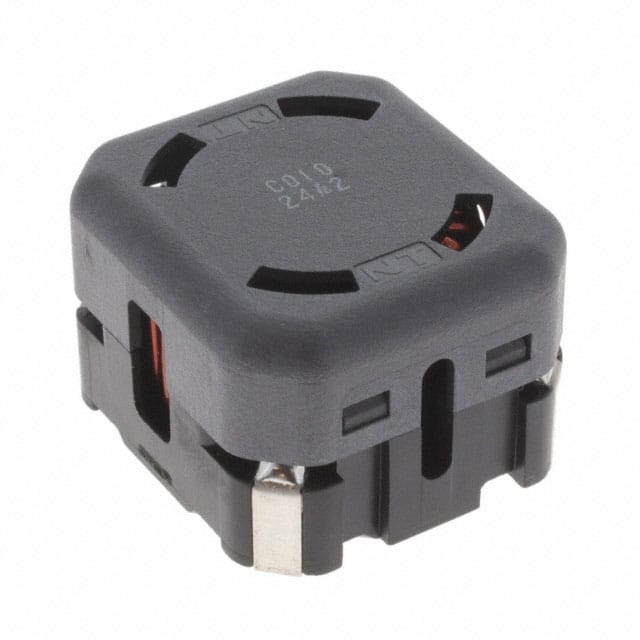

SPF-100-1R1A010CMC 1UH 10MA 2LN SMD |
0 |
|
Datasheet |
Horizontal, 4 PC Pad | Signal Line | 2 | - | 1 µH @ 10 kHz | 10A | 10mOhm | 150V | - | -40°C ~ 120°C | - | - | - | - | - |
|
|
CMF63-2203SMLFCOMMON MODE TRANSFORMER CHOKE |
0 |
|
Datasheet |
Horizontal, 4 PC Pad | Power Line | 2 | - | 220 µH @ 10 kHz | 2.2A | - | - | - | -55°C ~ 125°C | - | - | - | - | - |
|
|
CMF63-4702SMLFCOMMON MODE TRANSFORMER CHOKE |
0 |
|
Datasheet |
Horizontal, 4 PC Pad | Power Line | 2 | - | 47 µH @ 10 kHz | 5A | - | - | - | -55°C ~ 125°C | - | - | - | - | - |
|
AMFW40-3JZCMC 2LN TH INDUSTRIAL |
5 |
|
Datasheet |
- | Power Line | 2 | - | - | - | - | - | - | -40°C ~ 85°C | - | - | Industrial | - | - |
|
|
CME2425-6-BCMC 16MH 800MA 2LN TH ESD |
0 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 16 mH @ 10 kHz | 800mA | 500mOhm | - | 250V | -40°C ~ 80°C | - | CSA, IEC, UL, VDE | - | - | - |
|
DCN181320V1-701HF700uH,10mOhm,6.5Amp Max. DIP CMC |
24 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 700 µH @ 10 kHz | 6.5A | 10mOhm | - | 250V | -40°C ~ 125°C | - | - | - | - | - |
|
|
PL8226NLPOWER |
0 |
|
Datasheet |
Horizontal, 4 PC Pad | Power Line | 2 | - | 117 µH @ 10 kHz | 14A | 1.95mOhm | - | - | -55°C ~ 130°C | - | - | - | - | - |
|
|
PL8226POWER |
0 |
|
Datasheet |
Horizontal, 4 PC Pad | Power Line | 2 | - | 117 µH @ 10 kHz | 14A | 1.95mOhm | - | - | -55°C ~ 130°C | - | - | - | - | - |
|
|
CMF61-3303SMCOMMON MODE TRANSFORMER CHOKE |
0 |
|
Datasheet |
Horizontal, 4 PC Pad | Power Line | 2 | - | 330 µH @ 10 kHz | 750mA | 90mOhm | - | - | -55°C ~ 125°C | - | - | - | - | - |
|
|
CMF61-6803SMCOMMON MODE TRANSFORMER CHOKE |
0 |
|
Datasheet |
Horizontal, 4 PC Pad | Power Line | 2 | - | 680 µH @ 10 kHz | 500mA | 170mOhm | - | - | -55°C ~ 125°C | - | - | - | - | - |
|
|
CMF61-4703SMCOMMON MODE TRANSFORMER CHOKE |
0 |
|
Datasheet |
Horizontal, 4 PC Pad | Power Line | 2 | - | 470 µH @ 10 kHz | 600mA | 125mOhm | - | - | -55°C ~ 125°C | - | - | - | - | - |
|
|
CMF61-1204SMCOMMON MODE TRANSFORMER CHOKE |
0 |
|
Datasheet |
Horizontal, 4 PC Pad | Power Line | 2 | - | 1.2 mH @ 10 kHz | 300mA | 350mOhm | - | - | -55°C ~ 125°C | - | - | - | - | - |
|
|
CMF61-4702SMCOMMON MODE TRANSFORMER CHOKE |
0 |
|
Datasheet |
Horizontal, 4 PC Pad | Power Line | 2 | - | 47 µH @ 10 kHz | 2.5A | 15mOhm | - | - | -55°C ~ 125°C | - | - | - | - | - |
|
|
CMF61-1003SMCOMMON MODE TRANSFORMER CHOKE |
0 |
|
Datasheet |
Horizontal, 4 PC Pad | Power Line | 2 | - | 100 µH @ 10 kHz | 1.6A | 30mOhm | - | - | -55°C ~ 125°C | - | - | - | - | - |
|
|
CMF61-6802SMCOMMON MODE TRANSFORMER CHOKE |
0 |
|
Datasheet |
Horizontal, 4 PC Pad | Power Line | 2 | - | 68 µH @ 10 kHz | 2A | 20mOhm | - | - | -55°C ~ 125°C | - | - | - | - | - |
|
|
CMF61-1004SMCOMMON MODE TRANSFORMER CHOKE |
0 |
|
Datasheet |
Horizontal, 4 PC Pad | Power Line | 2 | - | 1 mH @ 10 kHz | 400mA | 250mOhm | - | - | -55°C ~ 125°C | - | - | - | - | - |
|
|
CMF61-1503SMCOMMON MODE TRANSFORMER CHOKE |
0 |
|
Datasheet |
Horizontal, 4 PC Pad | Power Line | 2 | - | 150 µH @ 10 kHz | 1.3A | 40mOhm | - | - | -55°C ~ 125°C | - | - | - | - | - |
|
|
CMF61-6802SMLFCOMMON MODE TRANSFORMER CHOKE |
0 |
|
Datasheet |
Horizontal, 4 PC Pad | Power Line | 2 | - | 68 µH @ 10 kHz | 2A | 20mOhm | - | - | -55°C ~ 125°C | - | - | - | - | - |
