Common Mode Chokes
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Filter Type | Number of Lines | Impedance @ Frequency | Current Rating (Max) | DC Resistance (DCR) (Max) | Voltage Rating - DC | Voltage Rating - AC | Operating Temperature | Ratings | Approval Agency | Features | Mounting Type | Size / Dimension | Height (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
DSO1-25-0003CMC 3.15A 2LN TH |
0 |
|
Datasheet |
Radial | - | 2 | - | - | 3.15A | 50mOhm | 600V | - | -40°C ~ 125°C | - | - | - | - | - |
|
|
CMF3-3003SMCOMMON MODE TRANSFORMER CHOKE |
0 |
|
Datasheet |
Horizontal, 4 PC Pad | Power Line | 2 | - | 300 µH @ 1 kHz | 6.3A | 18mOhm | - | - | -55°C ~ 125°C | - | - | - | - | - |
|
|
CMF3-6503SMCOMMON MODE TRANSFORMER CHOKE |
0 |
|
Datasheet |
Horizontal, 4 PC Pad | Power Line | 2 | - | 650 µH @ 1 kHz | 5.3A | 25mOhm | - | - | -55°C ~ 125°C | - | - | - | - | - |
|
PHBC14-1R2A0187VCMC 187UH 8A 2LN TH |
0 |
|
Datasheet |
Vertical, No Base, 2 PC Pin | - | 2 | - | 187 µH @ 100 kHz | 8A | 37.6mOhm | - | - | -40°C ~ 125°C | - | - | - | - | - |
|
|
CMF3-1503SMCOMMON MODE TRANSFORMER CHOKE |
0 |
|
Datasheet |
Horizontal, 4 PC Pad | Power Line | 2 | - | 150 µH @ 1 kHz | 7.7A | 12mOhm | - | - | -55°C ~ 125°C | - | - | - | - | - |
|

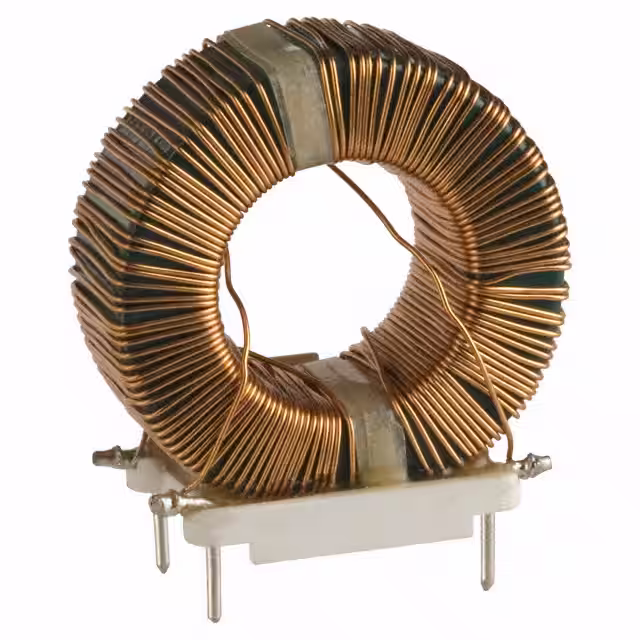

8117-RCCMC 36MH 2.9A 2LN TH |
0 |
|
Datasheet |
Vertical, 4 PC Pin | - | 2 | - | 36 mH @ 1 kHz | 2.9A | 300mOhm | - | - | -55°C ~ 105°C | - | - | - | - | - |
|
|
T60405S6123X3156123X315 |
0 |
|
- |
Horizontal, 6 PC Pin | - | 3 | 1.05 kOhms @ 100 kHz | 1 mH @ 100 kHz | 16A | 3.5mOhm | - | - | -40°C ~ 130°C | - | - | - | - | - |
|
|
T60405R6128X2206128X220 |
0 |
|
- |
Vertical, 4 PC Pin | - | 2 | 1.3 kOhms @ 100 kHz | 1.31 mH @ 100 kHz | 35mA | - | - | - | -40°C ~ 130°C | - | - | - | - | - |
|
|
FL2D-D0-1021000H @ 10 KHZ 2 LINE COMMON MOD |
0 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | 1 H @ 10 kHz | 40A | 2mOhm | - | - | -40°C ~ 105°C | - | - | - | - | - |
|
|
CMF3-2003SMCOMMON MODE TRANSFORMER CHOKE |
0 |
|
Datasheet |
Horizontal, 4 PC Pad | Power Line | 2 | - | 200 µH @ 1 kHz | 7.2A | 14mOhm | - | - | -55°C ~ 125°C | - | - | - | - | - |
|
|
CMF3-2003SMLFCOMMON MODE TRANSFORMER CHOKE |
0 |
|
Datasheet |
Horizontal, 4 PC Pad | Power Line | 2 | - | 200 µH @ 1 kHz | 7.2A | 14mOhm | - | - | -55°C ~ 125°C | - | - | - | - | - |
|
|
CMF3-1504SMCOMMON MODE TRANSFORMER CHOKE |
0 |
|
Datasheet |
Horizontal, 4 PC Pad | Power Line | 2 | - | 1.5 mH @ 1 kHz | 3A | 80mOhm | - | - | -55°C ~ 125°C | - | - | - | - | - |
|
|
T60405R6122X0396122X039 |
0 |
|
- |
Horizontal, 4 PC Pin | - | 2 | 2.6 Ohms @ 100 kHz | 3.5 mH @ 100 kHz | 13.5A | 10mOhm | - | - | -40°C ~ 120°C | - | - | - | - | - |
|
CME2425-7CMC 27.7MH 630MA 2LN TH ESD |
0 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 27.7 mH @ 10 kHz | 630mA | 820mOhm | - | 250V | -40°C ~ 80°C | - | CSA, IEC, UL, VDE | - | - | - |
|
|
CME2425-1-BCMC 1.05MH 2.5A 2LN TH ESD |
0 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 1.05 mH @ 10 kHz | 2.5A | 50mOhm | - | 250V | -40°C ~ 80°C | - | CSA, IEC, UL, VDE | - | - | - |
|
|
CME2425-2-BCMC 2.37MH 2A 2LN TH ESD |
0 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 2.37 mH @ 10 kHz | 2A | 80mOhm | - | 250V | -40°C ~ 80°C | - | CSA, IEC, UL, VDE | - | - | - |
|
|
CME2425-3-BCMC 3.8MH 1.6A 2LN TH ESD |
0 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 3.8 mH @ 10 kHz | 1.6A | 127mOhm | - | 250V | -40°C ~ 80°C | - | CSA, IEC, UL, VDE | - | - | - |
|
|
CME2425-4-BCMC 6MH 1.28A 2LN TH ESD |
0 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 6 mH @ 10 kHz | 1.28A | 202mOhm | - | 250V | -40°C ~ 80°C | - | CSA, IEC, UL, VDE | - | - | - |
|
|
CME2425-5-BCMC 9.8MH 1A 2LN TH ESD |
0 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 9.8 mH @ 10 kHz | 1A | 319mOhm | - | 250V | -40°C ~ 80°C | - | CSA, IEC, UL, VDE | - | - | - |
|
|
CME2425-7-BCMC 27.7MH 630MA 2LN TH ESD |
0 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 27.7 mH @ 10 kHz | 630mA | 820mOhm | - | 250V | -40°C ~ 80°C | - | CSA, IEC, UL, VDE | - | - | - |
