Common Mode Chokes
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Filter Type | Number of Lines | Impedance @ Frequency | Current Rating (Max) | DC Resistance (DCR) (Max) | Voltage Rating - DC | Voltage Rating - AC | Operating Temperature | Ratings | Approval Agency | Features | Mounting Type | Size / Dimension | Height (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
DKFP-E21E-026QDKFP COMP.CHOKE THT P V 2A 2X6.8 |
0 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | - | 2A | 200mOhm (Typ) | - | 250V | -40°C ~ 125°C | - | cURus | - | - | - |
|
|
DKFP-E21E-0133DKFP COMP.CHOKE THT P V 1A 2X33M |
0 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | - | 1A | 805mOhm (Typ) | - | 250V | -40°C ~ 125°C | - | cURus | - | - | - |
|
|
DKFP-D21D-D839DKFP COMP.CHOKE THT P V 0.8A 2X3 |
0 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | - | 800mA | 955mOhm (Typ) | - | 250V | -40°C ~ 125°C | - | cURus | - | - | - |
|
|
DKFP-D21D-2N6QDKFP COMP.CHOKE THT P V 2.5A 2X6 |
0 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | - | 2.5A | 101mOhm (Typ) | - | 250V | -40°C ~ 125°C | - | cURus | - | - | - |
|
|
DKFP-D21D-1N15DKFP COMP.CHOKE THT P V 1.5A 2X1 |
0 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | - | 1.5A | 232mOhm (Typ) | - | 250V | -40°C ~ 125°C | - | cURus | - | - | - |
|
|
DKFP-D21D-0210DKFP COMP.CHOKE THT P V 2A 2X10M |
0 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | - | 2A | 149mOhm (Typ) | - | 250V | -40°C ~ 125°C | - | cURus | - | - | - |
|
|
DKFP-E21E-043LDKFP COMP.CHOKE THT P V 4A 2X3.3 |
0 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | - | 4A | 62mOhm (Typ) | - | 250V | -40°C ~ 125°C | - | cURus | - | - | - |
|
|
DKFP-D21D-043LDKFP COMP.CHOKE THT P V 4A 2X3.3 |
0 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | - | 4A | 45mOhm (Typ) | - | 250V | -40°C ~ 125°C | - | cURus | - | - | - |
|
|
DKFP-D21D-0127DKFP COMP.CHOKE THT P V 1A 2X27M |
0 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | - | 1A | 554mOhm (Typ) | - | 250V | -40°C ~ 125°C | - | cURus | - | - | - |
|
|
DKFP-D21D-D647DKFP COMP.CHOKE THT P V 0.6A 2X4 |
0 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | - | 600mA | 1.17Ohm (Typ) | - | 250V | -40°C ~ 125°C | - | cURus | - | - | - |
|
|
047703-000RDS 11-2,7 |
0 |
|
- |
- | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
CPFC85-1M15NPCMC 4.7MH 2LN SMD |
0 |
|
Datasheet |
Horizontal, 4 PC Pad | - | 2 | - | 4.7 mH @ 100 kHz | - | 2Ohm | - | - | - | - | - | - | - | - |
|
|
FL2D-10-702B7MH @ 10 KHZ 2 LINE COMMON MODE |
0 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 7 mH @ 10 kHz | 1A | 200mOhm | - | - | -40°C ~ 105°C | - | - | - | - | - |
|
LCF300806A750TGCMC 100MA 6LN 75 OHM SMD |
0 |
|
Datasheet |
1203 (3008 Metric), 12 Lead | Signal Line | 6 | 75 Ohms @ 100 MHz | - | 100mA | 6Ohm | - | - | -40°C ~ 85°C | - | - | - | - | - |
|

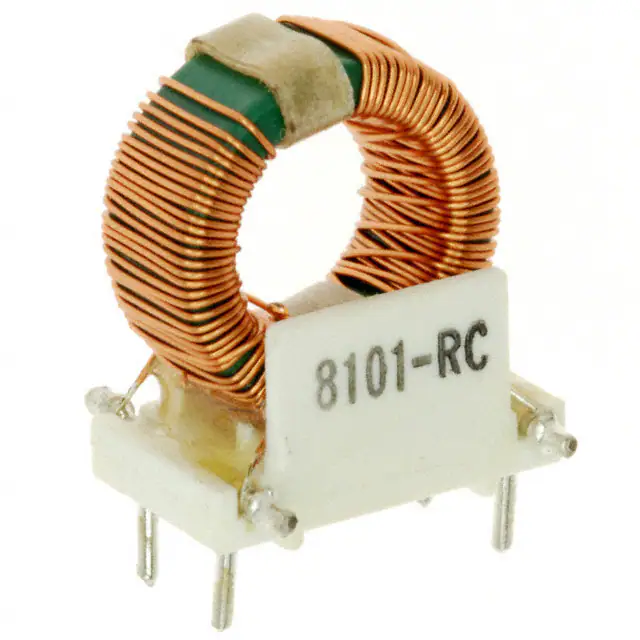

8101CMC 4MH 1.7A 2LN TH |
0 |
|
Datasheet |
Vertical, 4 PC Pin | - | 2 | - | 4 mH @ 1 kHz | 1.7A | 173mOhm | - | - | -55°C ~ 105°C | - | - | - | - | - |
|

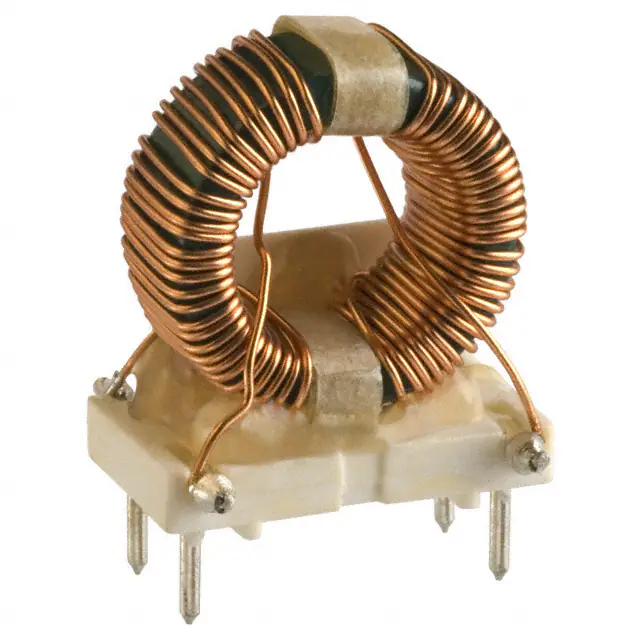

8102CMC 2.5MH 2.4A 2LN TH |
0 |
|
Datasheet |
Vertical, 4 PC Pin | - | 2 | - | 2.5 mH @ 1 kHz | 2.4A | 90mOhm | - | - | -55°C ~ 105°C | - | - | - | - | - |
|
8103CMC 1MH 4.8A 2LN TH |
0 |
|
Datasheet |
Vertical, 4 PC Pin | - | 2 | - | 1 mH @ 1 kHz | 4.8A | 22mOhm | - | - | -55°C ~ 105°C | - | - | - | - | - |
|
TF0804S-201Y1R6-01CMC 200UH 1.6A 2LN TH |
0 |
|
Datasheet |
Vertical, No Base, 4 PC Pin | Signal Line | 2 | - | 200 µH @ 1 kHz | 1.6A | 25mOhm | - | - | -20°C ~ 120°C | - | - | - | - | - |
|
HHBC12-1R0A0028VCMC 28UH 5A 2LN TH |
0 |
|
Datasheet |
Vertical, No Base, 2 PC Pin | - | 2 | - | 28 µH @ 100 kHz | 5A | 21.1mOhm | - | - | -40°C ~ 125°C | - | - | - | - | - |
|
7101-RCCMC 510UH 1A 2LN TH |
0 |
|
Datasheet |
Vertical, No Base, 4 PC Pin | - | 2 | - | 510 µH @ 1 kHz | 1A | 40mOhm | - | - | -55°C ~ 105°C | - | - | - | - | - |
